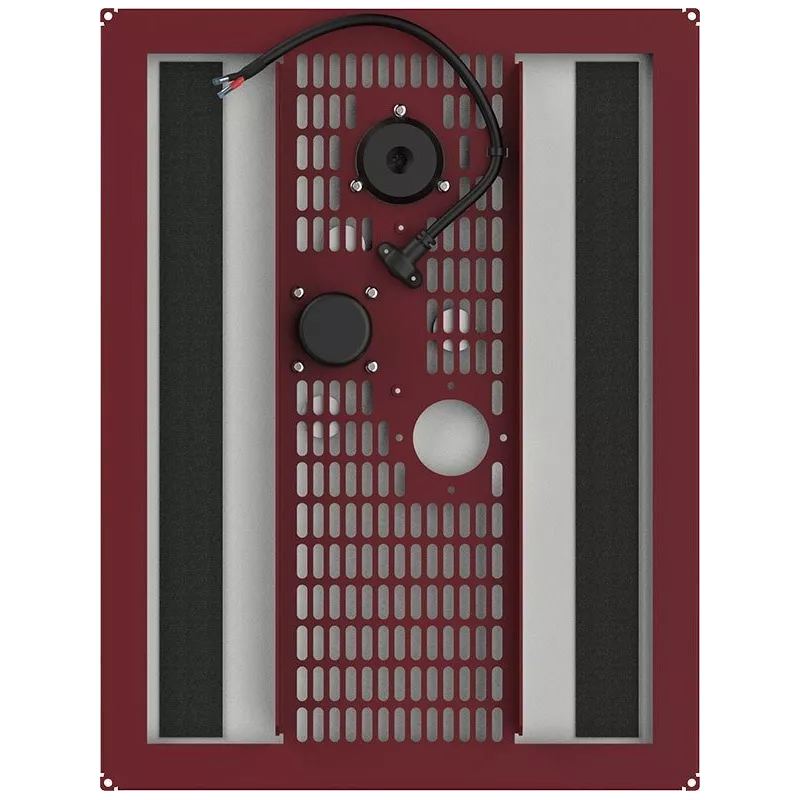

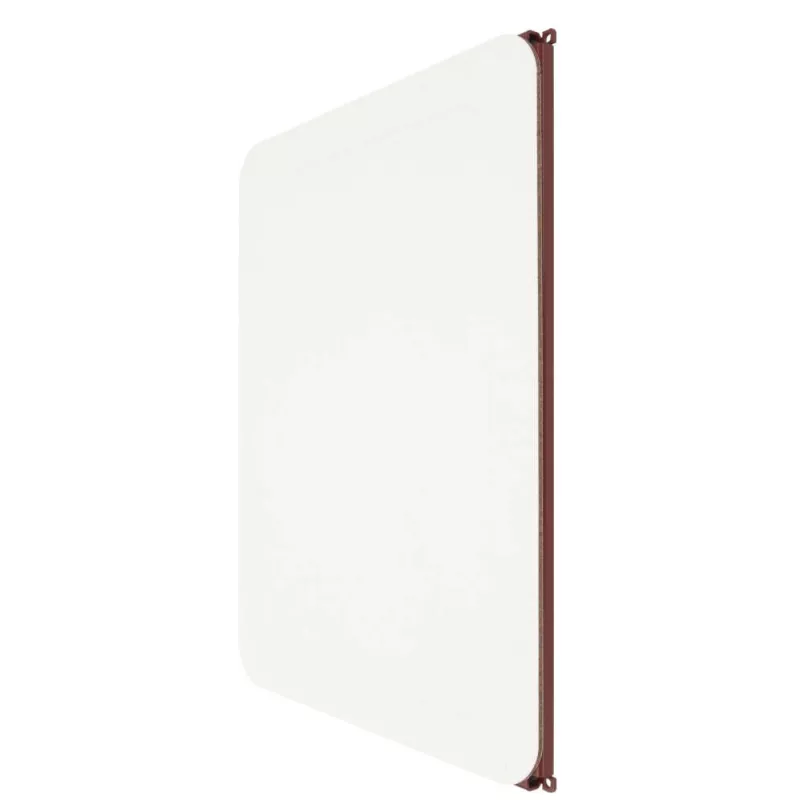

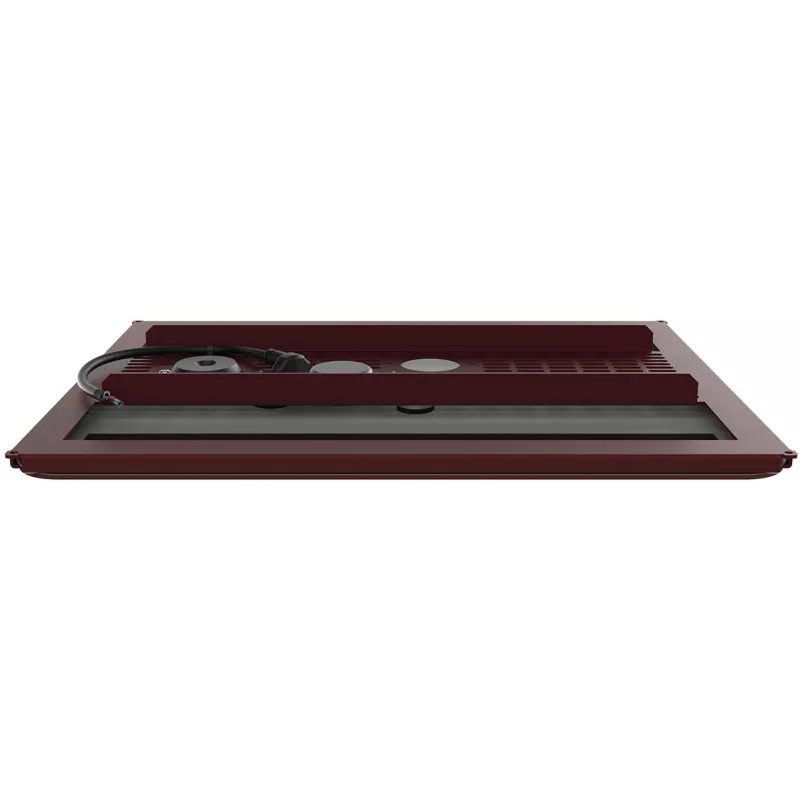

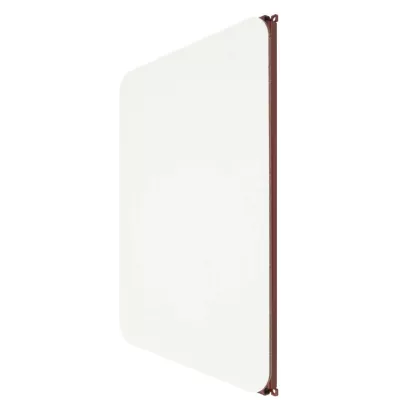

Amina Edge 5i | Invisible speaker for plasterboard (piece)

65634
CHF990.00 Tax included
Supplier stock – typically 4 to 7 days
The Amina Edge 5i is an invisible speaker for plasterboard, plastered up to its edges and painted with the wall, sold individually. It is designed for medium-power distributed audio and multi-channel surround.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

The minimum purchase order quantity for the product is 2.

Kitchen with a white marble island and pendant lights

Versatile Edge panel

The Edge 5i measures 450 × 345 mm, is 36 mm thick and weighs 1.3 kg. It is designed for medium-power residential or commercial distributed audio and multi-channel surround systems. It handles 50 W continuous over 100 hours and 100 W peak, at 4 ohms.

Restaurant room with a bar and coloured armchairs

Plasterboard installation

The Edge 5i replaces a small section of plasterboard and is finished like tapered-edge board. Once taped, filled, sanded and given a thin coat of fine finishing compound, it is painted with the wall or ceiling and disappears. It can also go into an existing skim-coated wall as a retrofit, but must not be fully plastered over. Its integrated ridge gives a clean finish in taped-and-jointed walls and ceilings.

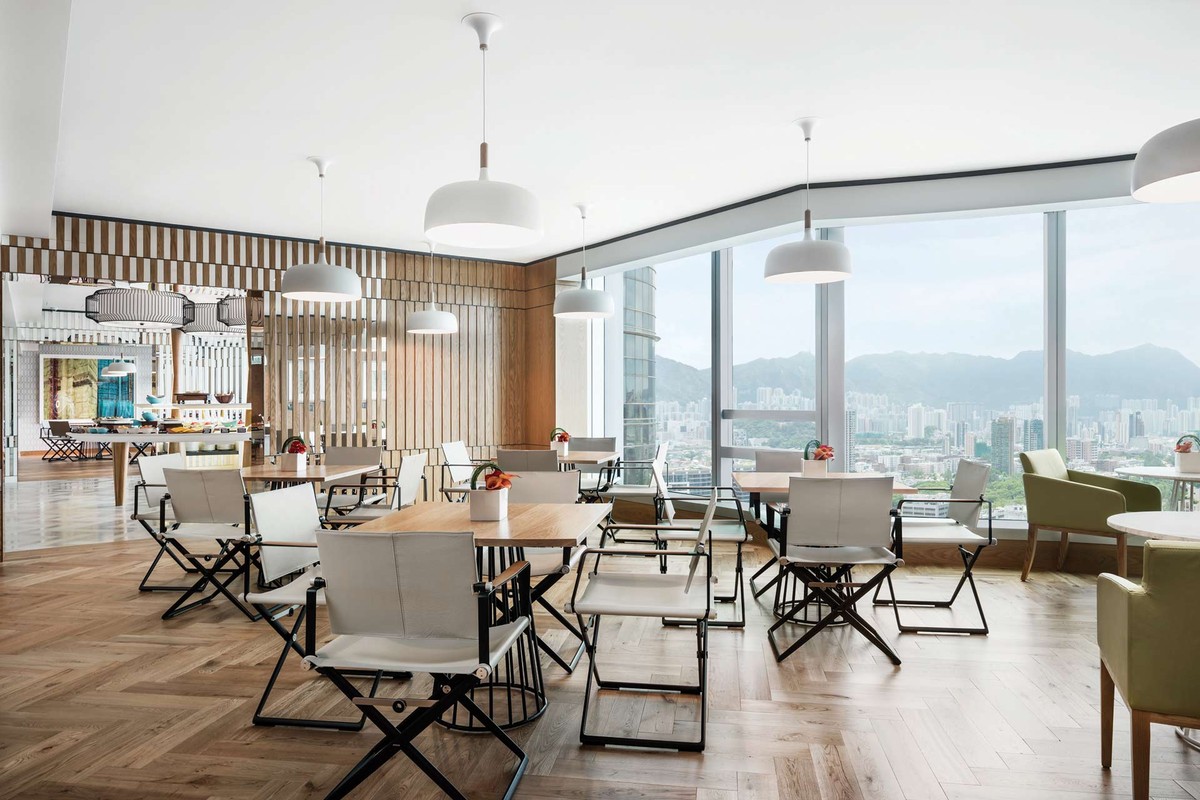

Club lounge dining room with full-height windows

Exciters and ToneRelief panel

Amina's proprietary exciters rely on Optidrive, Opti-damping and Reduced Resonance Exciter technologies, combined with the ToneRelief panel design. The Edge series aims for a warm, balanced tonality. Dispersion covers 180° × 180°, sensitivity reaches 86 dB at 1 m / 2.83 Vrms and response runs from 60 Hz to 14 kHz at -6 dB.

Timber-clad office with a glass partition

Backbox and Guardian protection

The Edge 5i mounts in an Amina CV345 backbox, or with Mounting Blocks. Wiring uses blue butt-splice crimp terminals for 14 to 16 AWG cable. In-line protection comes from a Guardian 2, 8 or 16 unit. It can be supplied with a 100/70 V transformer for high-impedance installations.

65634

Data sheet

Product Type
Invisible speaker
Brand
Amina
Nominal impedance
4 ohms
Sensitivity
86 dB (2.83 V / 1 m)
Installation type
Plaster-up-to
Connections
Blue butt-splice crimp terminals (14-16 AWG)
Associated backbox
Backbox CV345 or Mounting Blocks
Frequency response
60 Hz – 14 kHz (-6 dB)
Power handling
50 W / 100 W (100 h continuous / peak)
Width
45.0 cm
Depth
3.6 cm
Height
34.5 cm
Unit weight
1.3 kg

Specific References

UPC
65634
New
