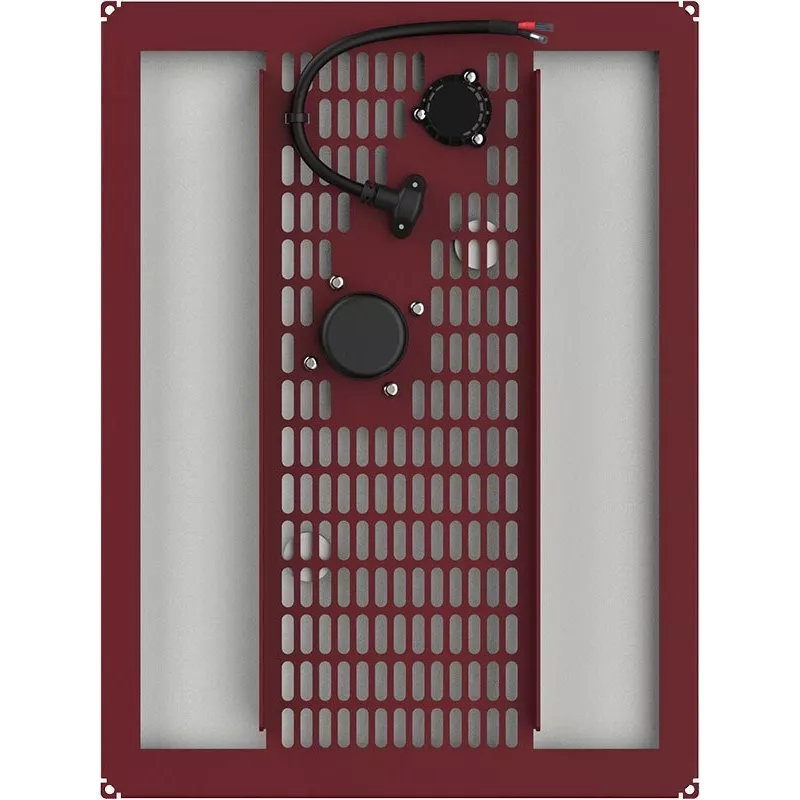

Amina Edge 3i | Invisible speaker for plasterboard (piece)

65633
CHF740.00 Tax included
Supplier stock – typically 4 to 7 days

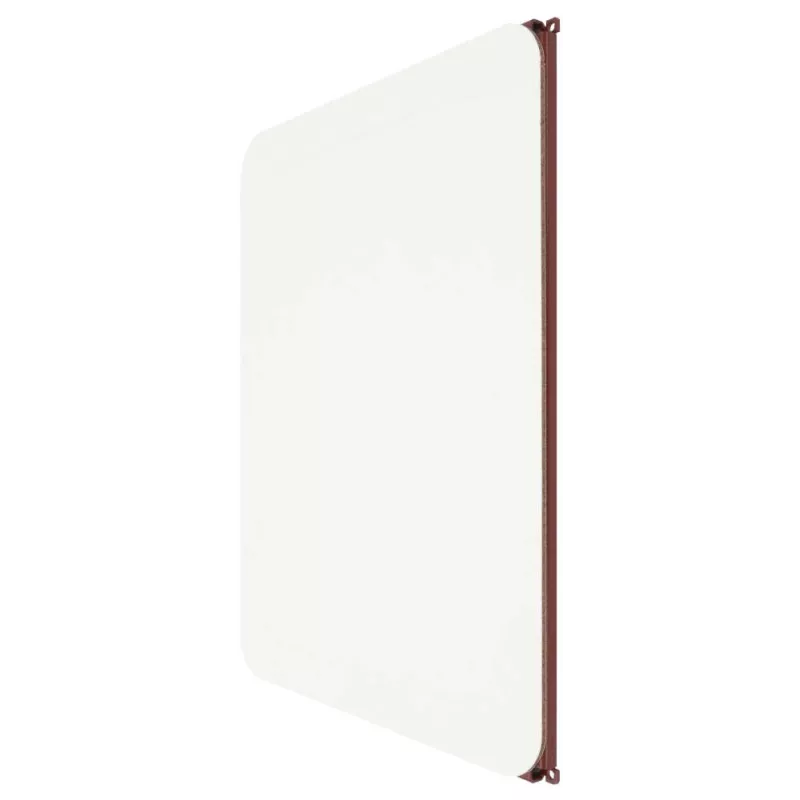

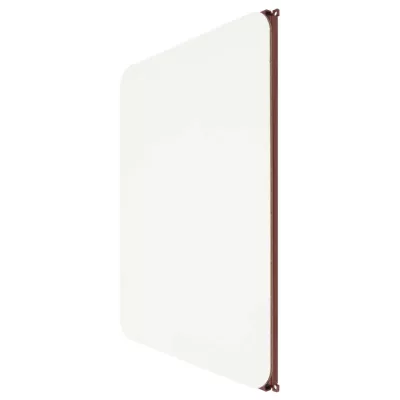

The Amina Edge 3i is an invisible speaker for plasterboard, plastered up to its edges and painted with the wall, sold individually. The most compact Edge fits between closely spaced studs, in small rooms and corridors.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

The minimum purchase order quantity for the product is 2.

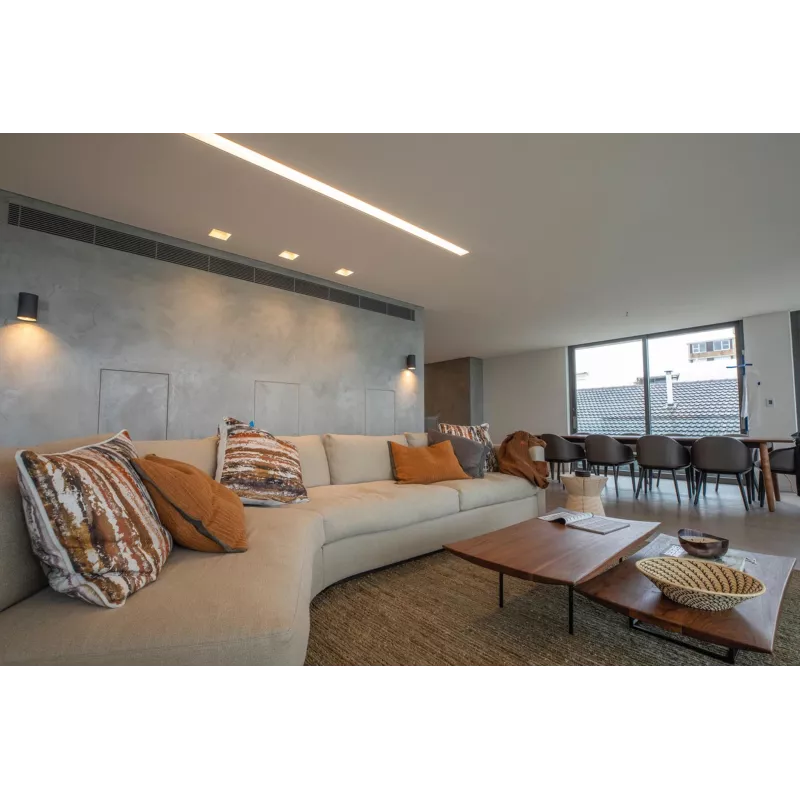

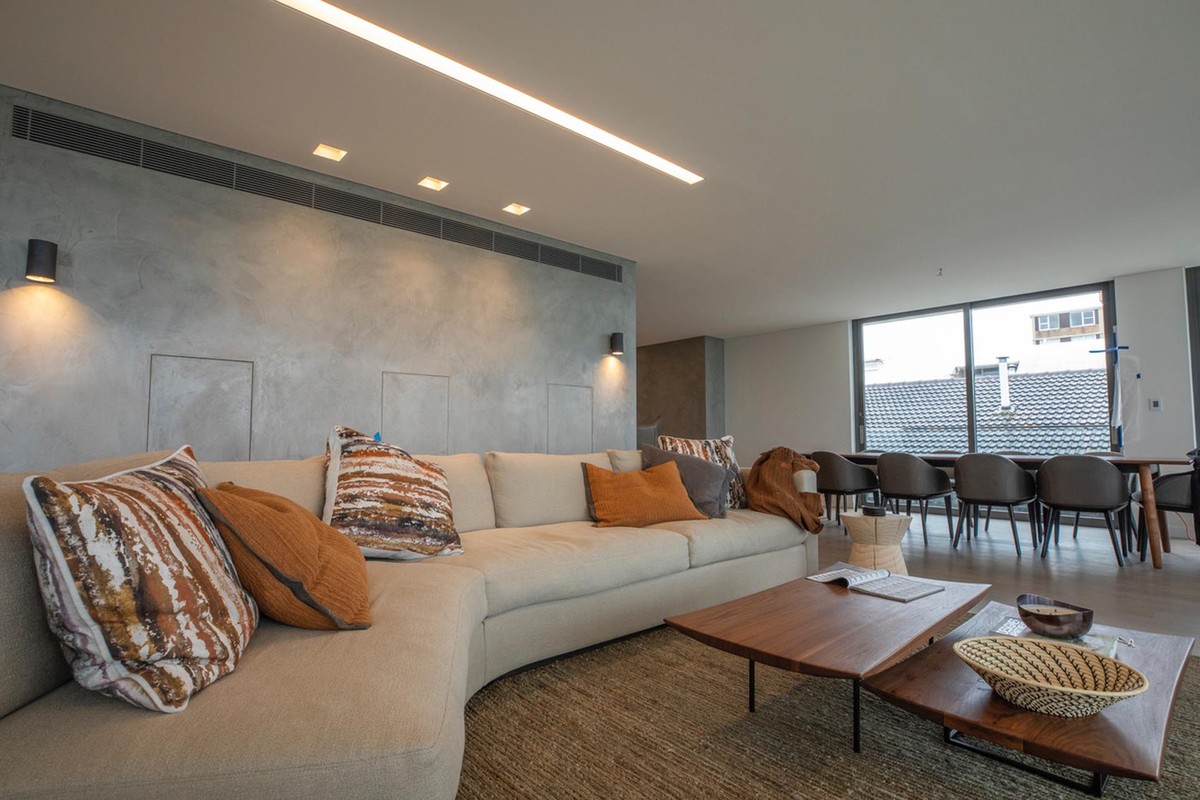

Penthouse living room with a corner sofa and dining area

The most compact Edge

The Edge 3i measures 400 × 300 mm, is 30.7 mm thick and weighs 1 kg. Its size fits between closely spaced studs and joists, in small rooms, guest rooms or corridors. With a subwoofer, it also works in a multi-channel surround system.

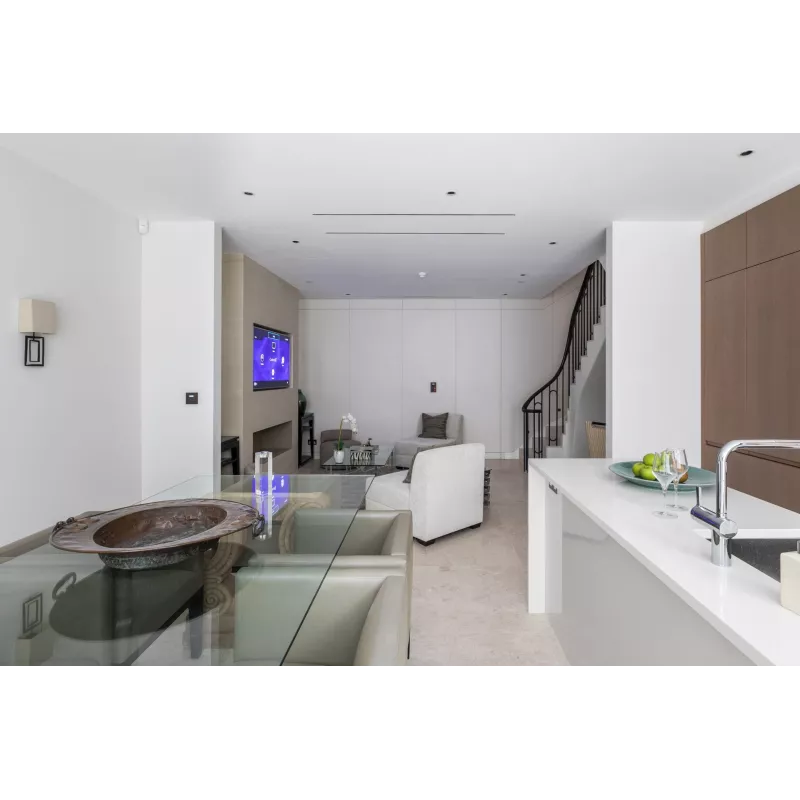

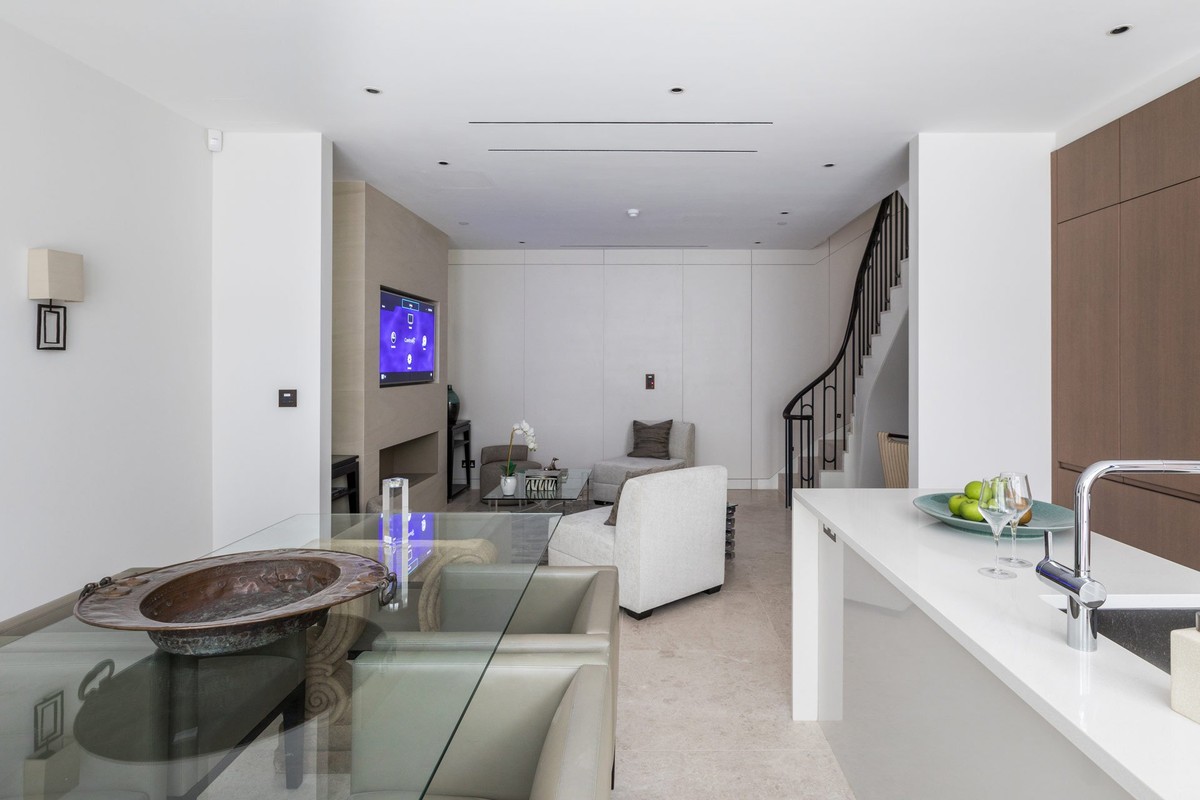

Open-plan living room with a white kitchen and staircase

Plasterboard installation

The Edge 3i replaces a small section of plasterboard and is finished like tapered-edge board. Once taped, filled, sanded and given a thin coat of fine finishing compound, it is painted with the wall or ceiling and disappears. It can also go into an existing skim-coated wall as a retrofit, but must not be fully plastered over.

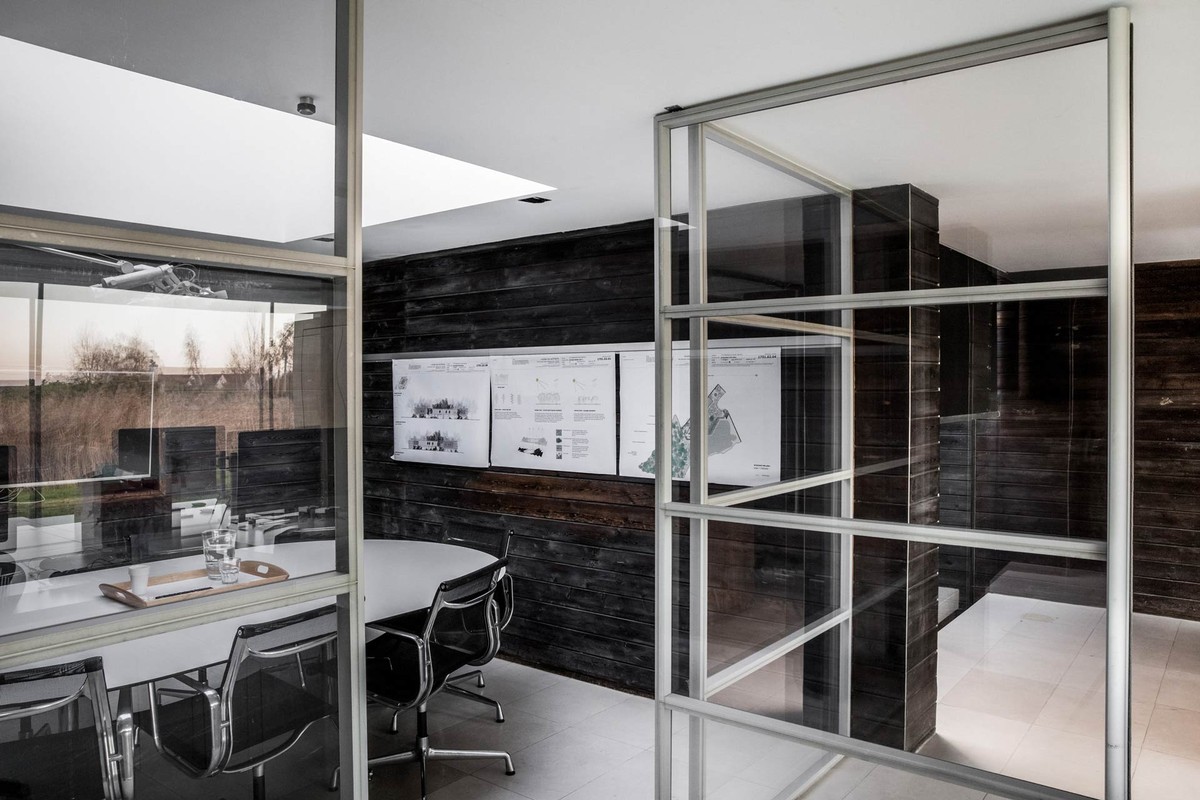

Glazed meeting room with a round table

Exciters and ToneRelief panel

Amina's proprietary exciters rely on Optidrive, Opti-damping and Reduced Resonance Exciter technologies, combined with the ToneRelief panel design. The Edge series aims for a warm, balanced tonality. Dispersion covers 180° × 180°, sensitivity reaches 85 dB at 1 m / 2.83 Vrms and response runs from 60 Hz to 13 kHz at -6 dB.

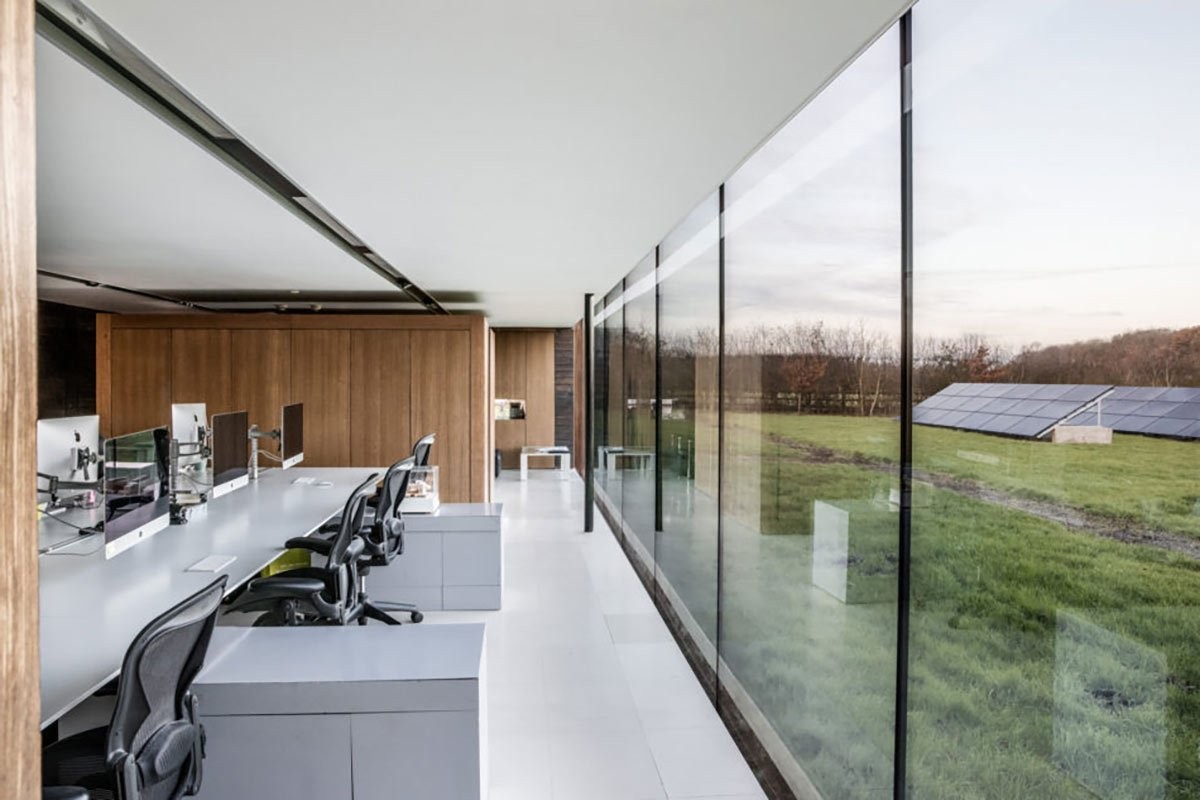

Glazed open-plan office facing the countryside

Backbox and Guardian protection

The Edge 3i mounts in an Amina CV300 backbox, or with Mounting Blocks. Wiring uses blue butt-splice crimp terminals for 14 to 16 AWG cable. In-line protection comes from a Guardian 2, 8 or 16 unit. It can be supplied with a 100/70 V transformer for high-impedance installations.

65633

Data sheet

Product Type
Invisible speaker
Brand
Amina
Nominal impedance
4 ohms
Sensitivity
85 dB (2.83 V / 1 m)
Installation type
Plaster-up-to
Connections
Blue butt-splice crimp terminals (14-16 AWG)
Associated backbox
Backbox CV300 or Mounting Blocks
Frequency response
60 Hz – 13 kHz (-6 dB)
Power handling
30 W / 60 W (100 h continuous / peak)
Width
40.0 cm
Depth
3.07 cm
Height
30.0 cm
Unit weight
1.0 kg

Specific References

UPC
65633
New
