Amina MobiusDual i | Stereo invisible plaster-in speaker (piece)

65632
CHF1,590.00 Tax included
Supplier stock – typically 4 to 7 days
The Amina MobiusDual i is a stereo invisible speaker covered with a 2 mm plaster skim, sold individually. It reproduces both stereo channels from one panel where a pair will not fit.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

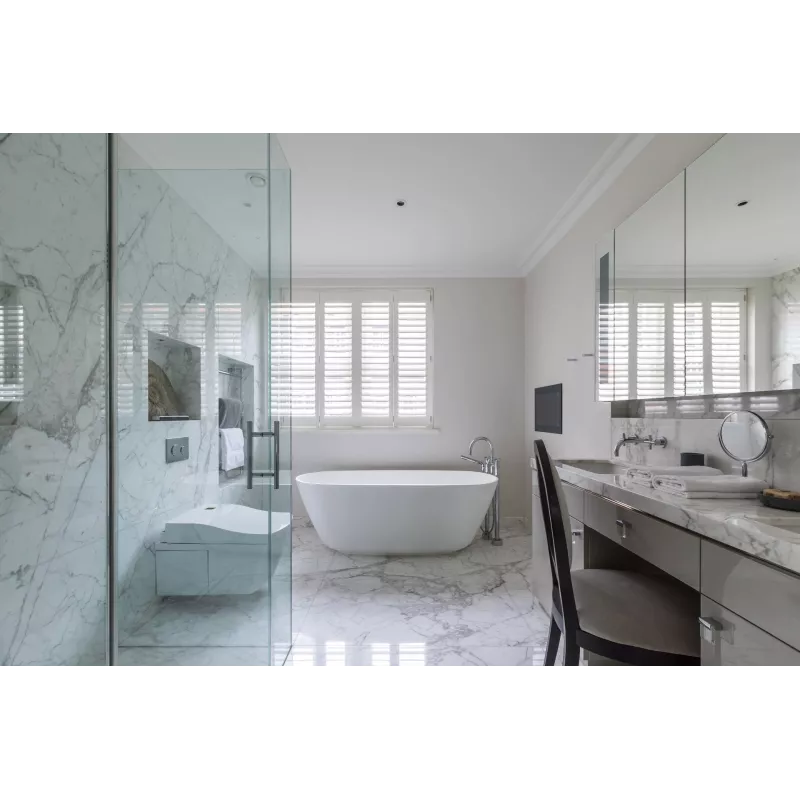

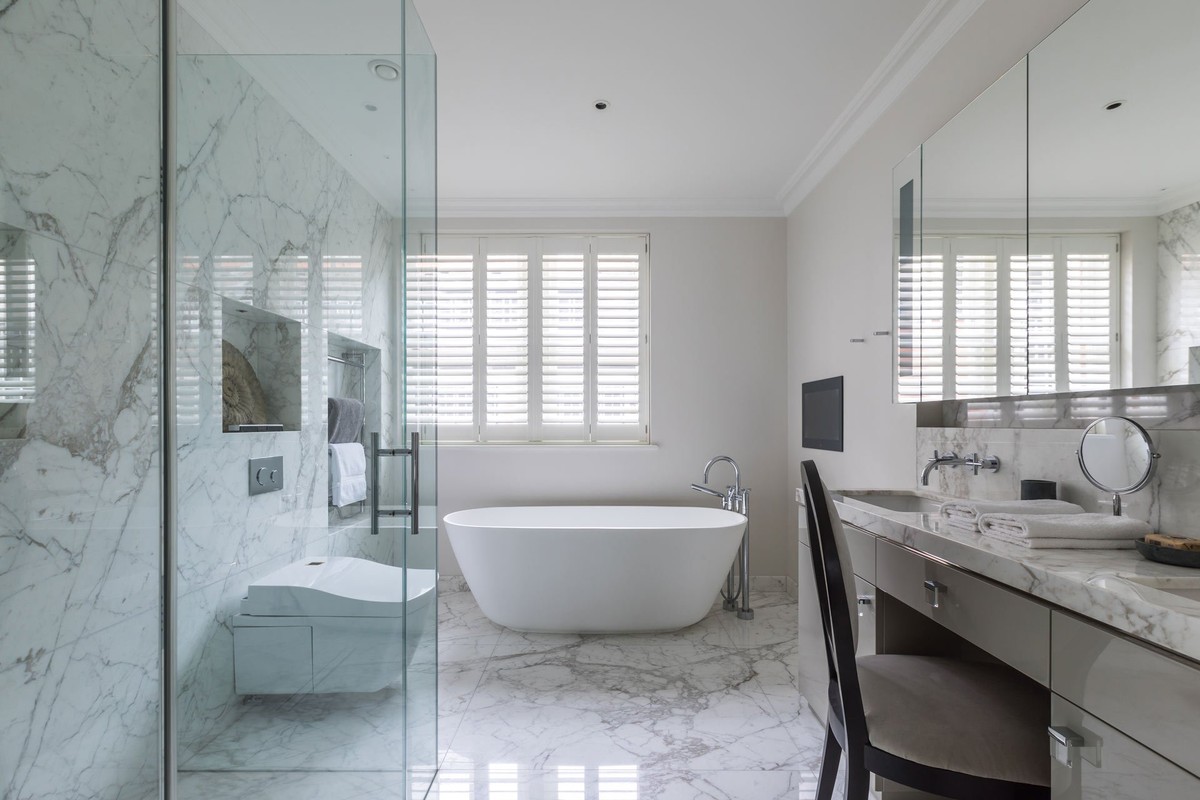

Marble bathroom with a freestanding bath

Two channels, one panel

The MobiusDual i reproduces both channels of a stereo signal from a single 450 × 345 × 30.7 mm panel weighing 2.1 kg. It suits rooms with no space for a pair of speakers, where stereo width is not essential. The i version gets upgraded high-frequency transducers and moves to 6 ohms per channel, each handling 30 W continuous and 60 W peak.

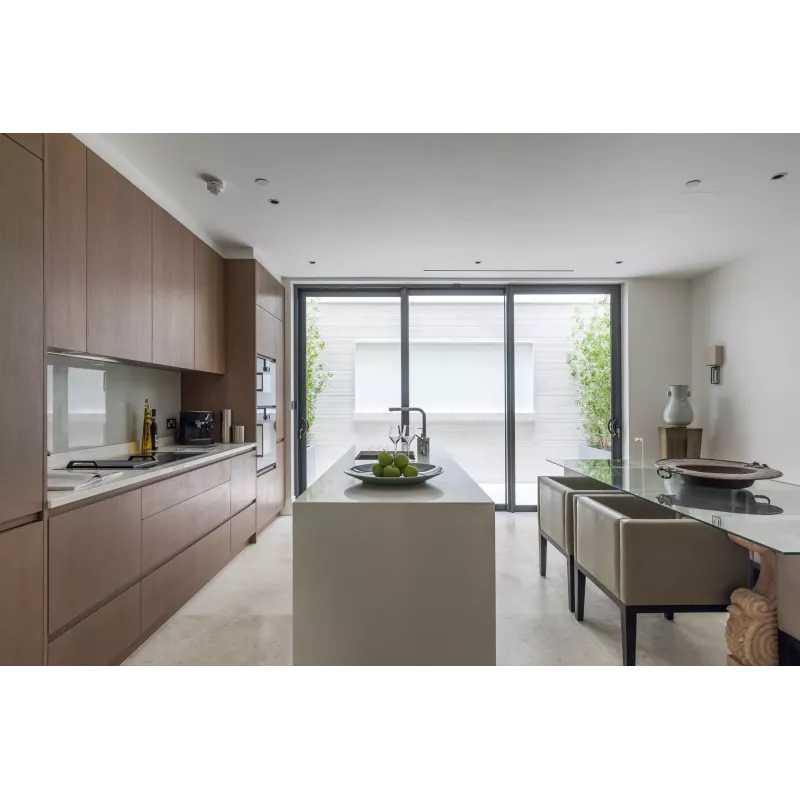

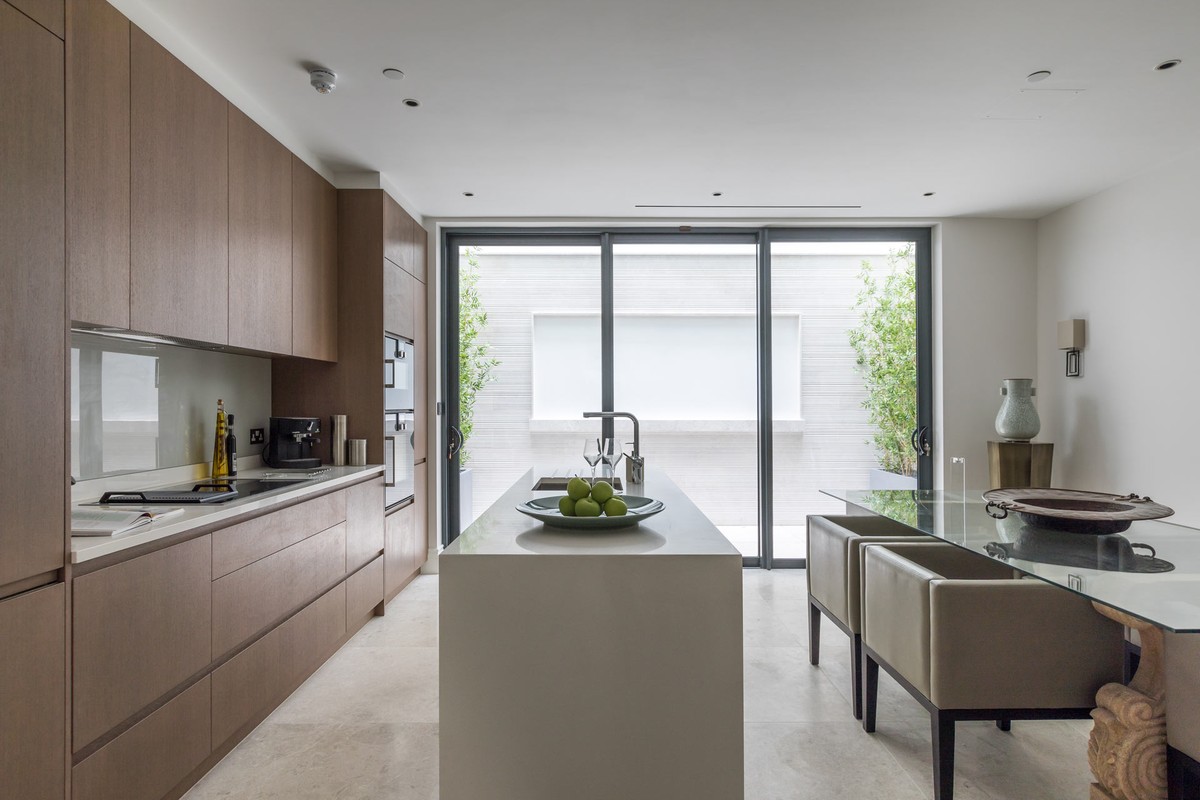

Wood kitchen with a central island

Invisible under plaster

Once fitted, the MobiusDual i is covered with a 2 mm plaster skim and painted with the rest of the wall or ceiling. It can also sit behind solid wood, veneer or leather. No grille or cut-out remains visible in the room.

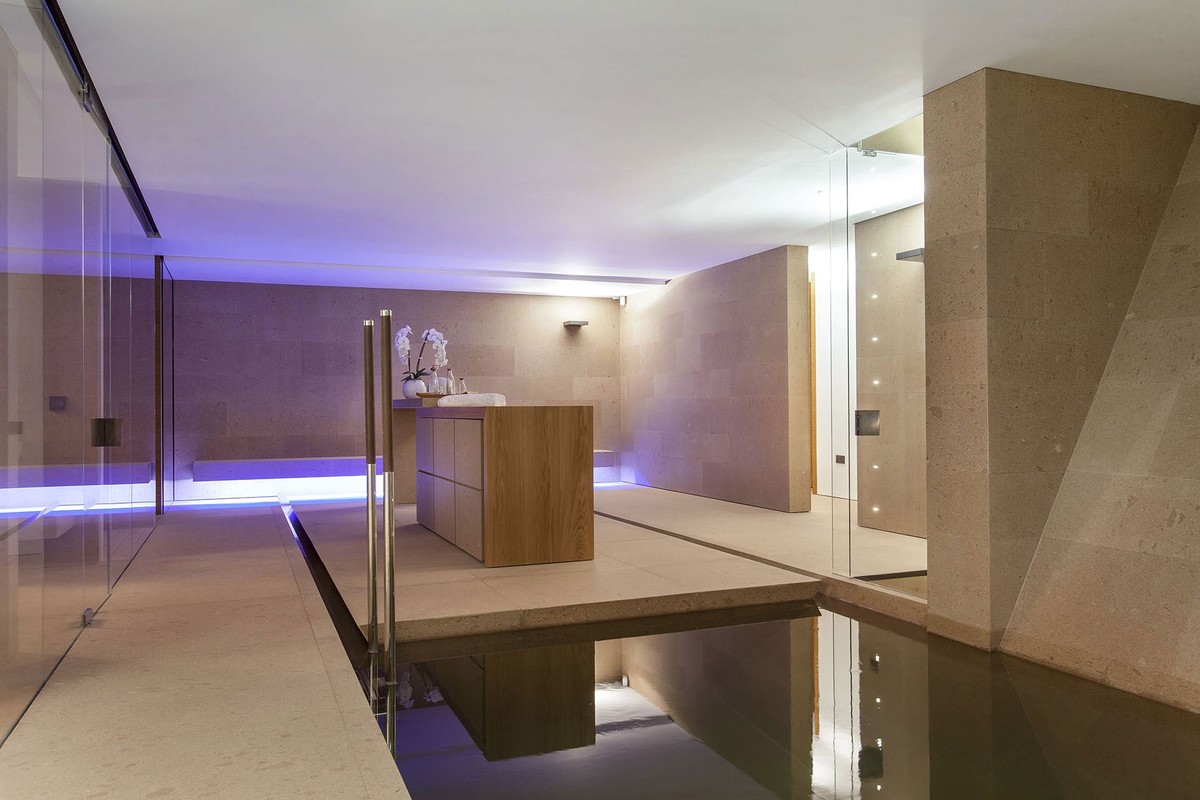

Spa area with a plunge pool and violet lighting

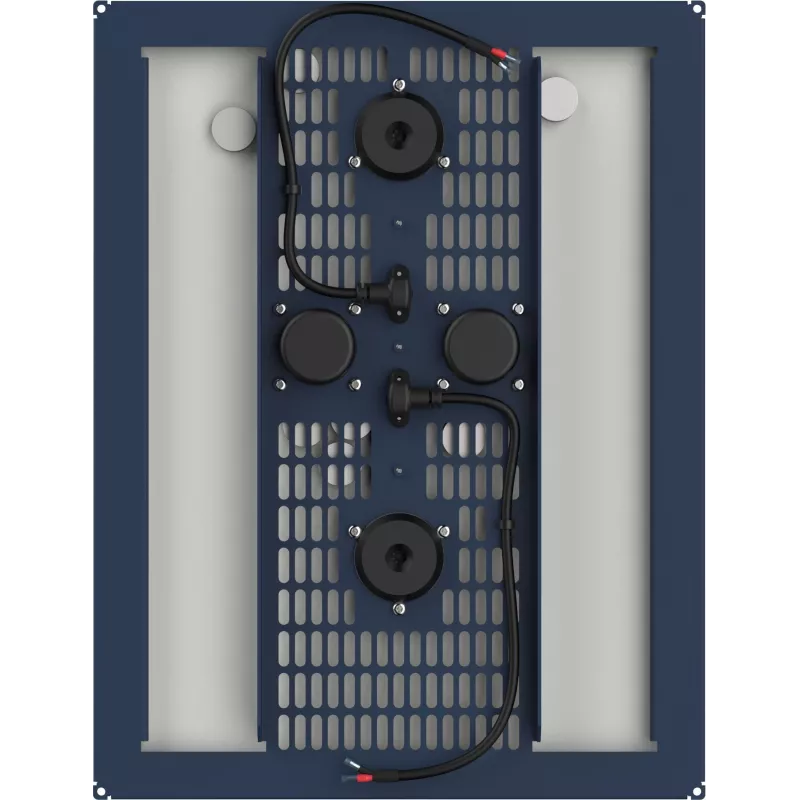

Optidrive and Opti-damping exciters

The panel is driven by Amina's proprietary transducers, with Optidrive, Opti-damping and Reduced Resonance Exciter technologies. Dispersion covers 180° × 180° across the specified range, so the sound stays even from one end of the room to the other. Sensitivity reaches 83 dB at 1 m / 2.83 Vrms with both channels driven, and response runs from 105 Hz to 29 kHz.

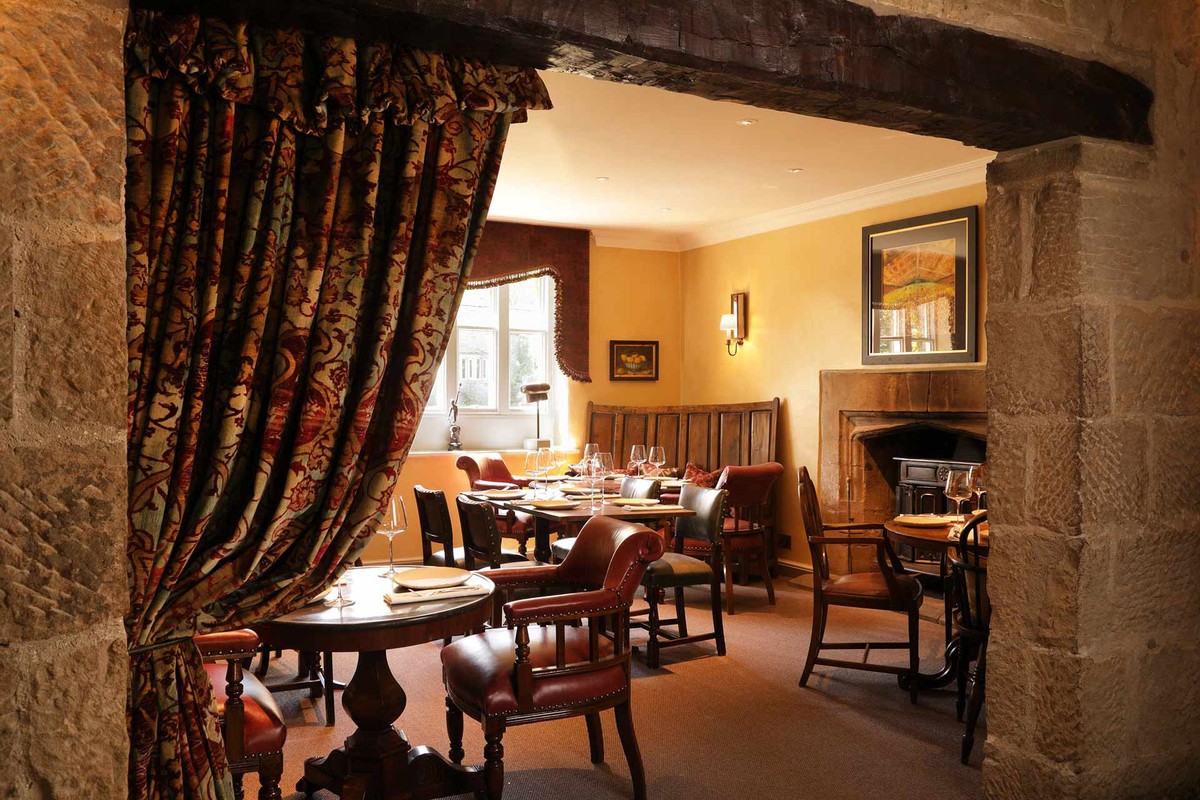

Small dining room with beams and exposed stone

Backbox and APU protection

The MobiusDual i mounts in an Amina CV345 or SW345 backbox, or with Mounting Blocks. Wiring uses two pairs of blue butt-splice crimp terminals for 14 to 16 AWG cable. In-line protection uses two APUi30C, one APU-RS8iC or one APU-RS16iC.

65632

Data sheet

Product Type
Invisible speaker
Brand
Amina
Nominal impedance
2 x 6 ohms
Sensitivity
83 dB (2.83 V, 1 m, both channels driven)
Installation type
Fully covered (2 mm plaster skim or other covering)
Connections
2 pairs of blue butt-splice crimp terminals (14-16 AWG)
Associated backbox
Backbox CV/SW345 or Mounting Blocks
Frequency response
105 Hz – 29 kHz
Power handling
2 x 30 W / 60 W (100 h continuous / peak)
Width
45.0 cm
Depth
3.07 cm
Height
34.5 cm
Unit weight
2.1 kg

Specific References

UPC
65632
