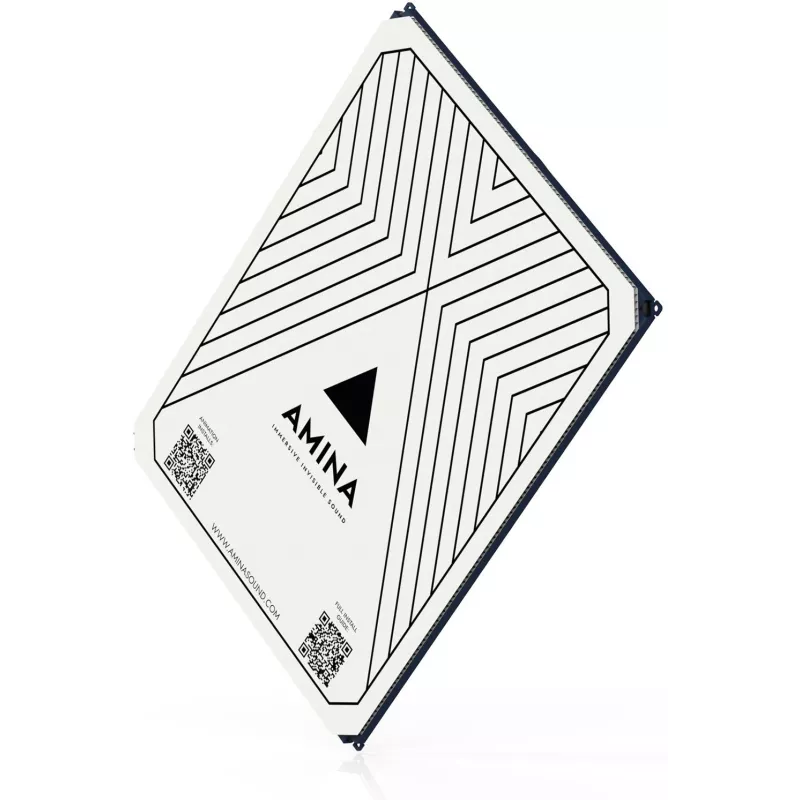

Amina Mobius 7i | Invisible plaster-in speaker (piece)

65631
CHF1,500.00 Tax included
24‑hour delivery
The Amina Mobius 7i is an invisible speaker covered with a 2 mm plaster skim, sold individually. Top of the Mobius series, it handles 75 W continuous and 150 W peak.
Quantity
Add to wishlist
In stock

The minimum purchase order quantity for the product is 2.

Bright living room with a grand piano and white sofa

Top of the Mobius range

The Mobius 7i heads the Mobius series. It has the highest power handling in the range: 75 W continuous over 100 hours and 150 W peak, at 4 ohms. Its usable range extends from 45 Hz to 22 kHz at ±10 dB, for high-power multi-channel surround and high-end commercial installations.

White-walled gallery with a projection screen at the far end

Invisible under plaster

Once fitted, the Mobius 7i is covered with a 2 mm plaster skim and painted with the rest of the wall or ceiling. It can also sit behind wood, leather, slate or marble. No grille or cut-out remains visible in the room.

Round dining room under a lit ceiling

Optidrive and Opti-damping exciters

The panel is driven by Amina's proprietary transducers, with Optidrive, Opti-damping and Reduced Resonance Exciter technologies. Dispersion covers 180° × 180° across the specified range, so the sound stays even from one end of the room to the other. Sensitivity reaches 83 dB at 1 m / 2.83 Vrms and response runs from 55 Hz to 21 kHz at -6 dB.

Club lounge bar overlooking the city

Backbox and Guardian protection

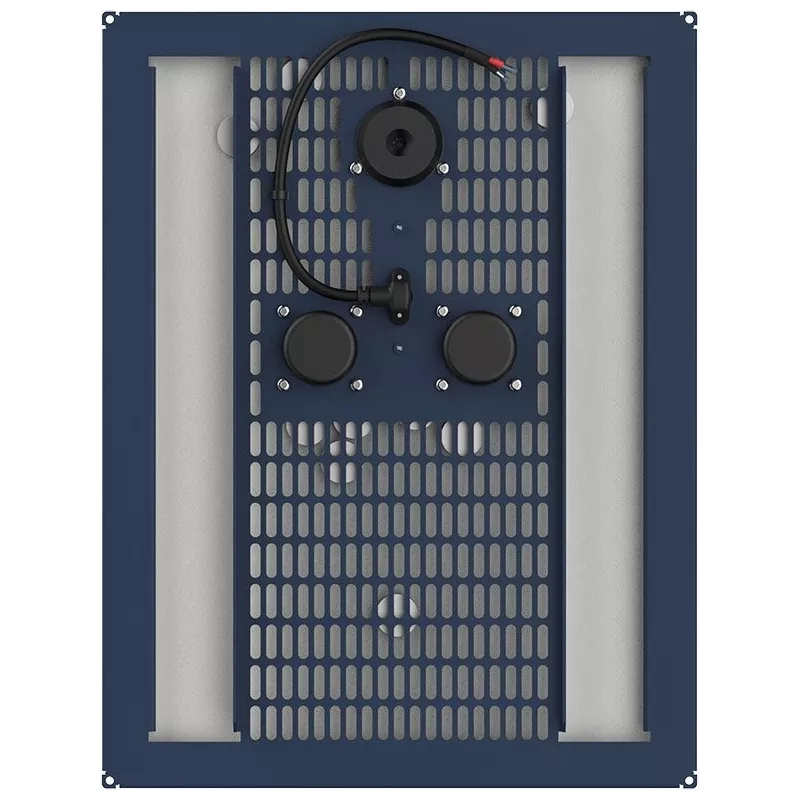

The Mobius 7i mounts in an Amina CV345 or SW345 backbox, or with Mounting Blocks. Wiring uses blue butt-splice crimp terminals for 14 to 16 AWG cable. In-line protection comes from a Guardian 2, 8 or 16 unit. It can be supplied with a 100/70 V transformer for high-impedance installations.

65631

Data sheet

Product Type
Invisible speaker
Brand
Amina
Nominal impedance
4 ohms
Sensitivity
83 dB / 2.83 V / 1 m
Installation type
Fully covered (2 mm plaster skim or other covering)
Connections
Blue butt-splice crimp terminals (14-16 AWG)
Associated backbox
Backbox CV/SW345 or Mounting Blocks
Frequency response
55 Hz – 21 kHz (-6 dB)
Power handling
75 W / 150 W (100 h continuous / peak)
Width
45.0 cm
Depth
3.07 cm
Height
34.5 cm
Unit weight
1.8 kg

Specific References

UPC
65631
