Amina Mobius 5i/S200 | Slim invisible plaster-in speaker (piece)

65630
CHF990.00 Tax included
Supplier stock – typically 4 to 7 days
The Amina Mobius 5i/S200 is a slim invisible speaker covered with a 2 mm plaster skim, sold individually. At 200 mm wide, it fits narrow partitions and follows gently curved surfaces.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

The minimum purchase order quantity for the product is 2.

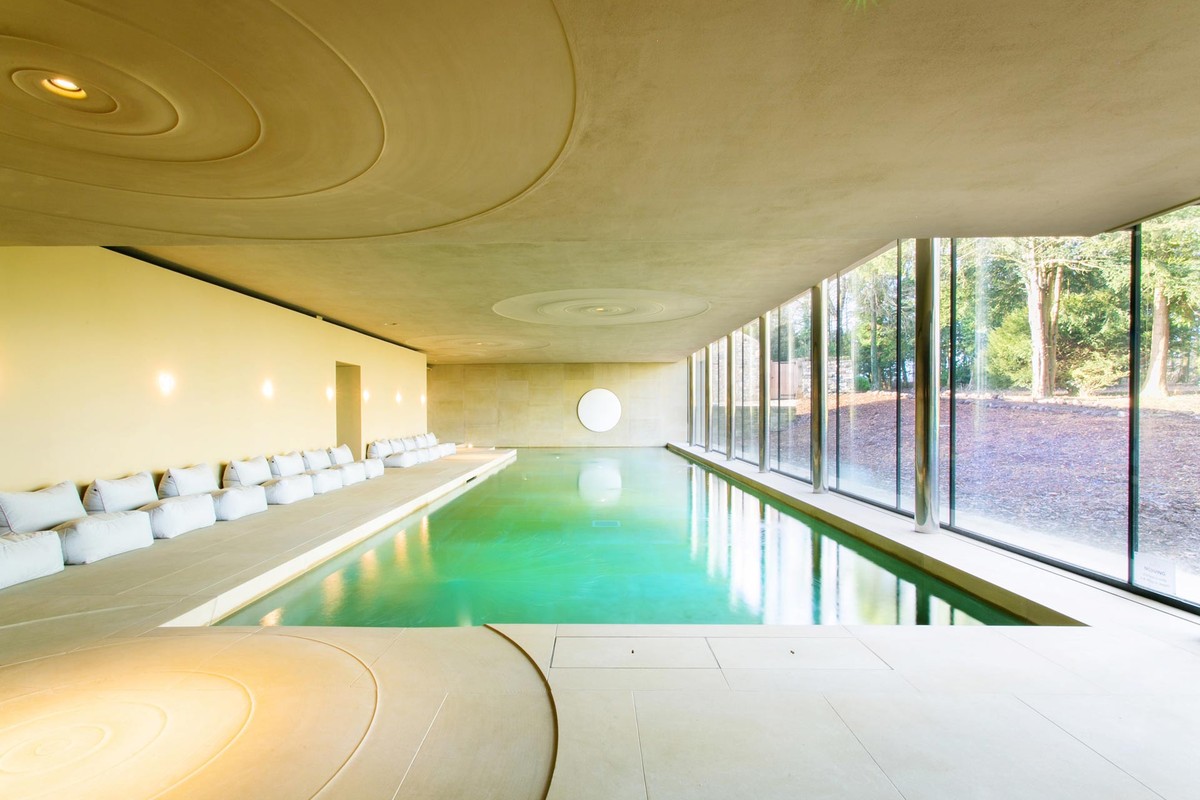

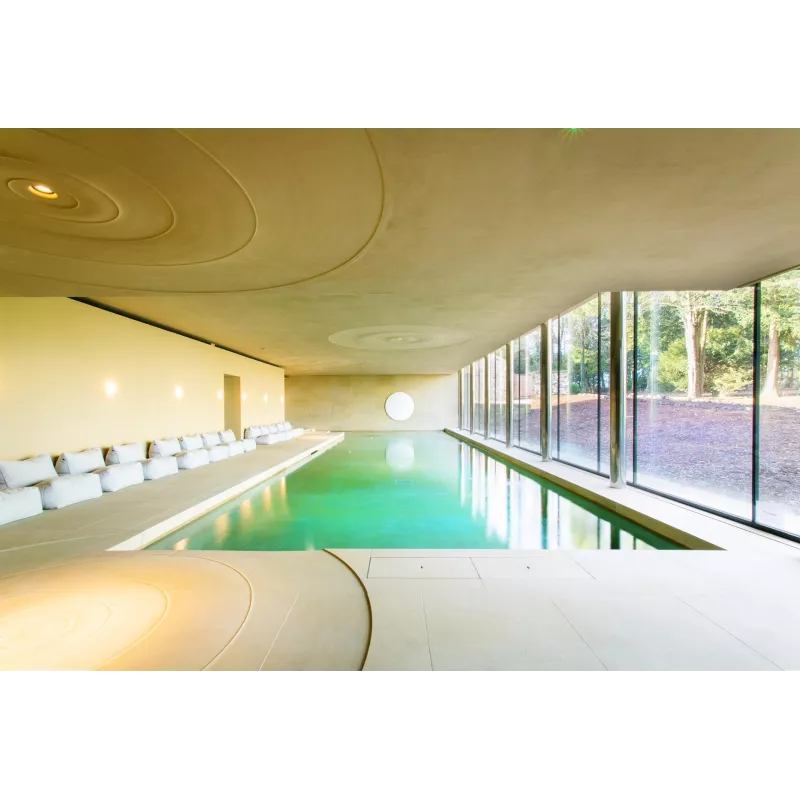

Indoor pool under a vaulted plaster ceiling

Slim 200 mm format

The Mobius 5i/S200 is the slim version of the Mobius 5i: 450 × 200 mm, 32 mm thick and 1.1 kg. It fits shallow stud walls and tight joist layouts. It also follows gently curved walls and ceilings with a radius above 6 m.

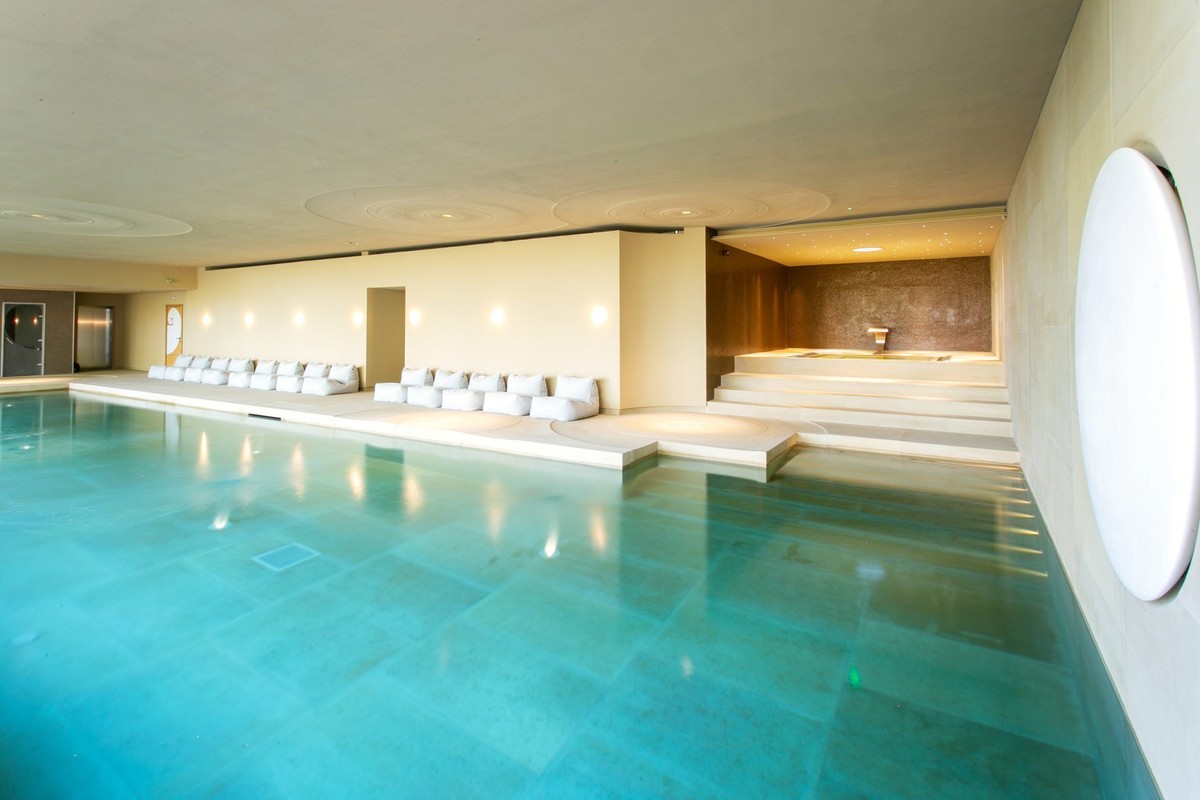

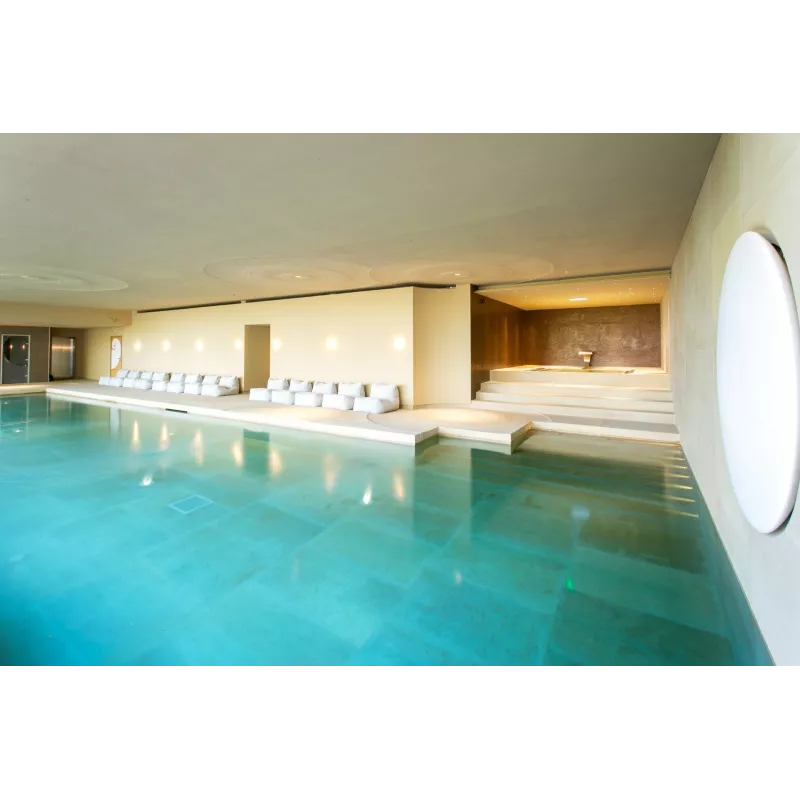

Indoor pool with plastered walls and a round window

Invisible under plaster

Once fitted, the Mobius 5i/S200 is covered with a 2 mm plaster skim and painted with the rest of the wall or ceiling. It can also sit behind wood, veneer, leather or stone. No grille or cut-out remains visible in the room.

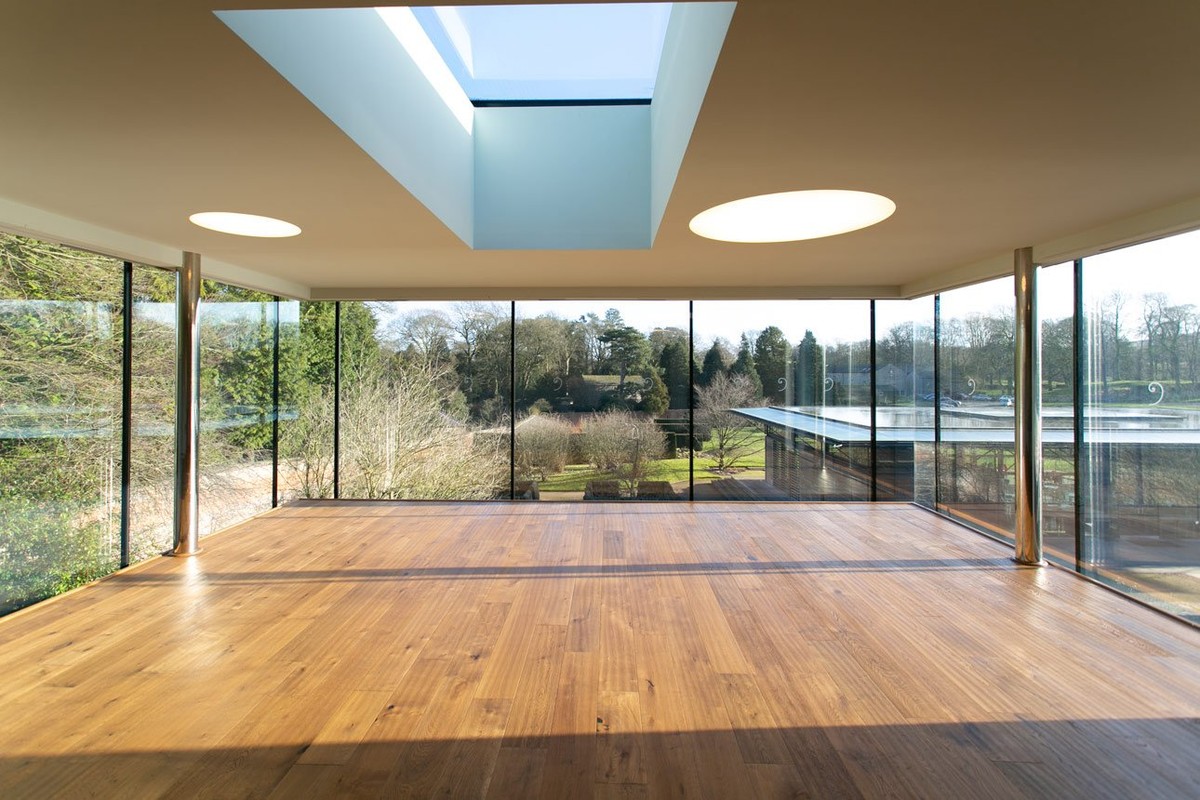

Sunlit studio with wooden floor and full-height glazing

Optidrive and Opti-damping exciters

The panel is driven by Amina's proprietary transducers, with Optidrive, Opti-damping and Reduced Resonance Exciter technologies. Dispersion covers 180° × 180° across the specified range, so the sound stays even from one end of the room to the other. Sensitivity reaches 82 dB at 1 m / 2.83 Vrms and response runs from 81 Hz to 19 kHz at -6 dB.

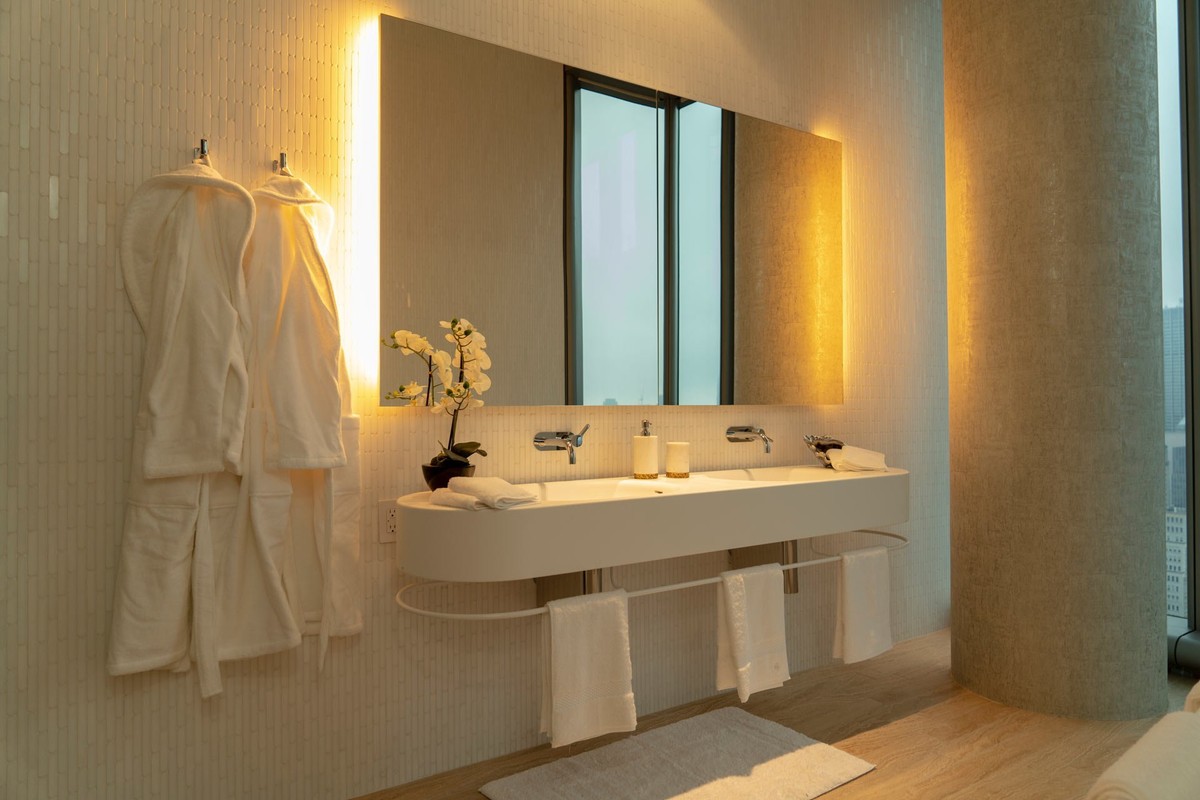

Bathroom with curved walls and indirect lighting

Backbox and Guardian protection

The Mobius 5i/S200 mounts in an Amina CV200 or SW200 backbox, or with Mounting Blocks or the Tab Mounting Kit. Wiring uses blue butt-splice crimp terminals for 14 to 16 AWG cable. In-line protection comes from a Guardian 2, 8 or 16 unit. It can be supplied with a 100/70 V transformer for high-impedance installations.

65630

Data sheet

Product Type
Invisible speaker
Brand
Amina
Nominal impedance
4 ohms
Sensitivity
82 dB (2.83 V, 1 m)
Installation type
Fully covered (2 mm plaster skim or other covering)
Connections
Blue butt-splice crimp terminals (14-16 AWG)
Associated backbox
Backbox CV200/SW200 or Mounting Blocks/Tab Mounting Kit
Frequency response
81 Hz – 19 kHz (-6 dB)
Power handling
50 W / 100 W (100 h continuous / peak)
Width
45.0 cm
Depth
3.2 cm
Height
20.0 cm
Unit weight
1.1 kg

Specific References

UPC
65630
New
