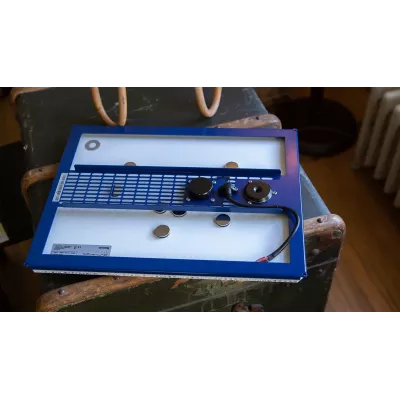

Amina Mobius 5i | Invisible plaster-in speaker (piece)

65629
CHF999.00 Tax included
Supplier stock – typically 4 to 7 days
The Amina Mobius 5i is an invisible speaker covered with a 2 mm plaster skim, sold individually. It goes into a wall, ceiling or wood panelling and leaves no visible grille.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

The minimum purchase order quantity for the product is 2.

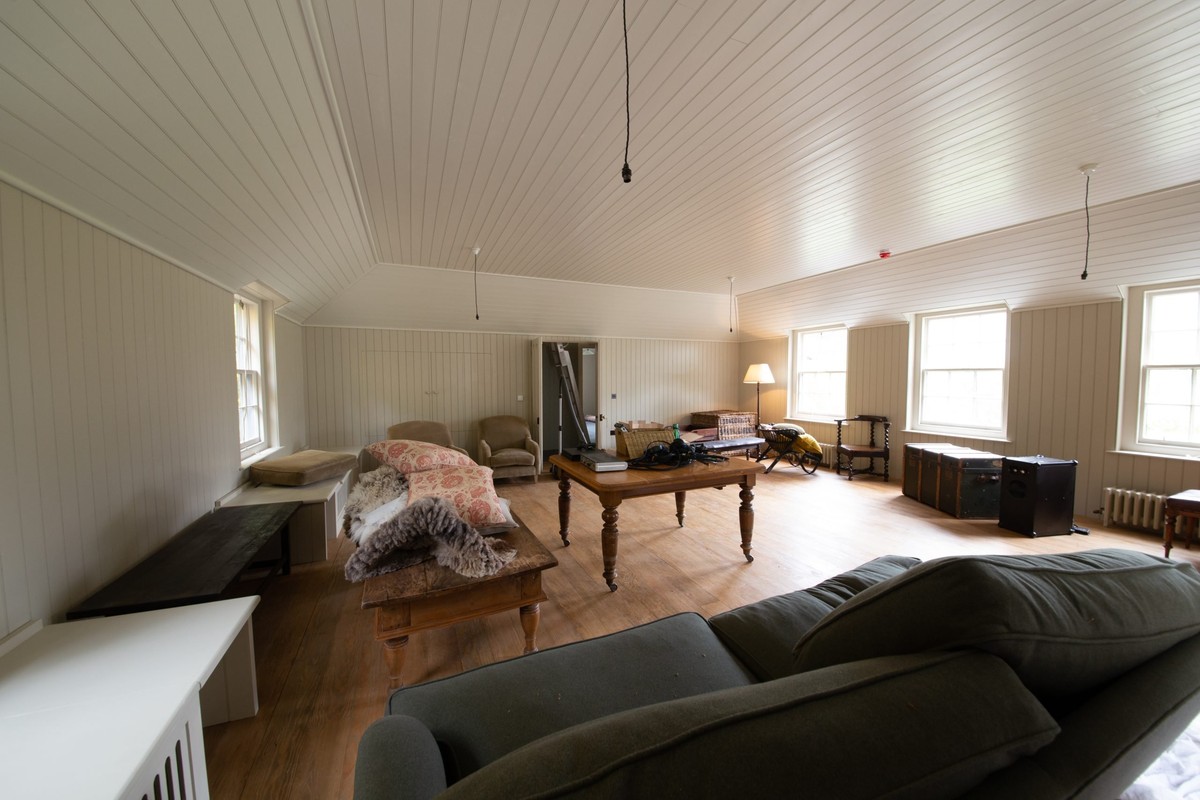

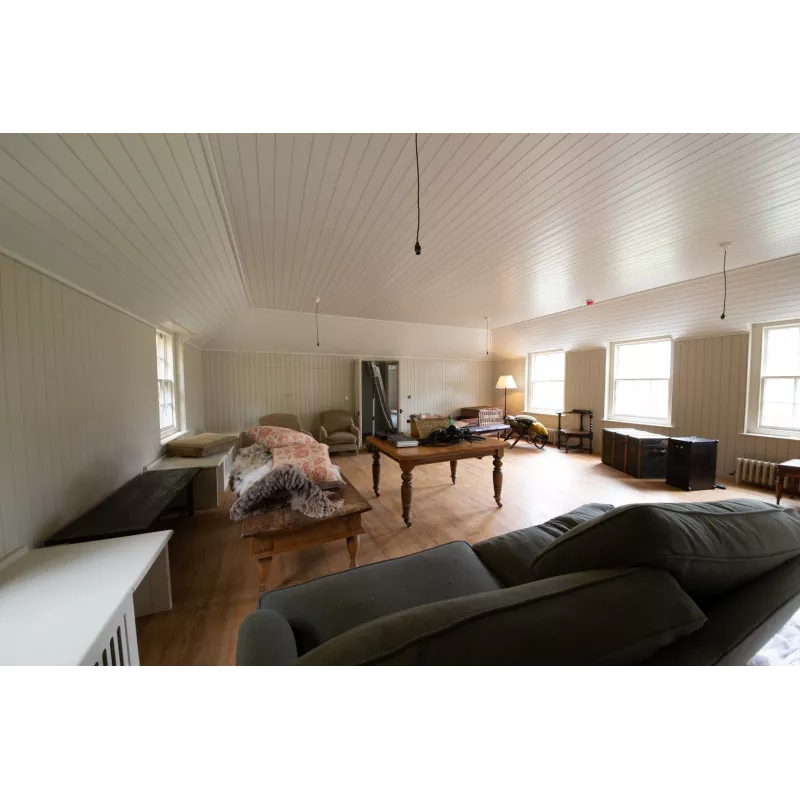

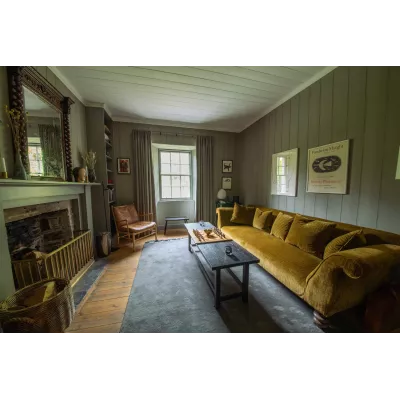

Panelled living room whose woodwork hides a Mobius 5i speaker

Versatile Mobius panel

The Mobius 5i suits most residential and high-end commercial projects, up to mid-power multi-channel surround. It goes into a wall or ceiling, or into cabinetry and millwork. The panel measures 450 × 345 × 30.7 mm, weighs 1.4 kg and handles 50 W continuous over 100 hours, 100 W peak.

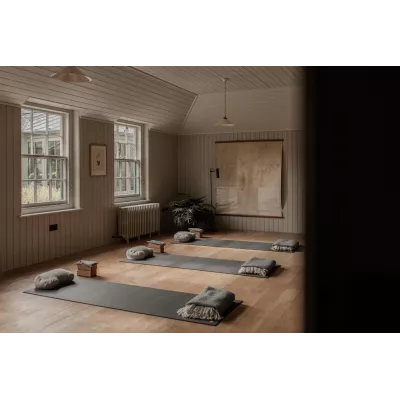

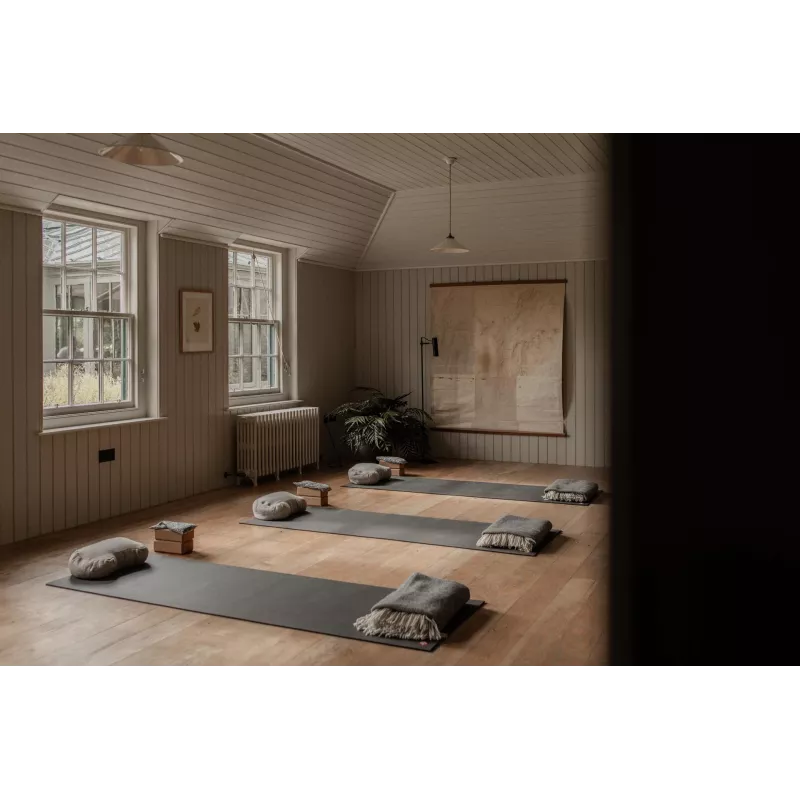

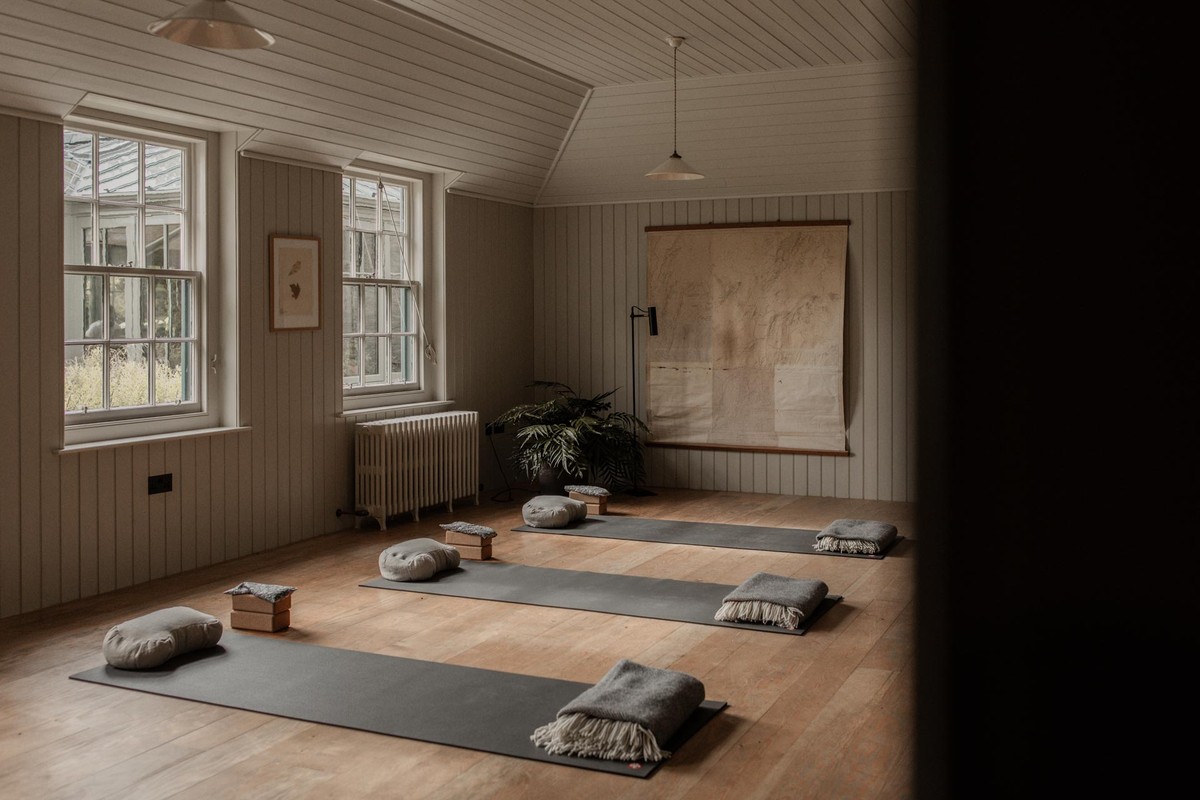

Panelled yoga room, speaker hidden behind the woodwork

Invisible under plaster

Once fitted, the Mobius 5i is covered with a 2 mm plaster skim and painted with the rest of the wall or ceiling. It can also sit behind wood, leather, slate or marble. No grille or cut-out remains visible in the room.

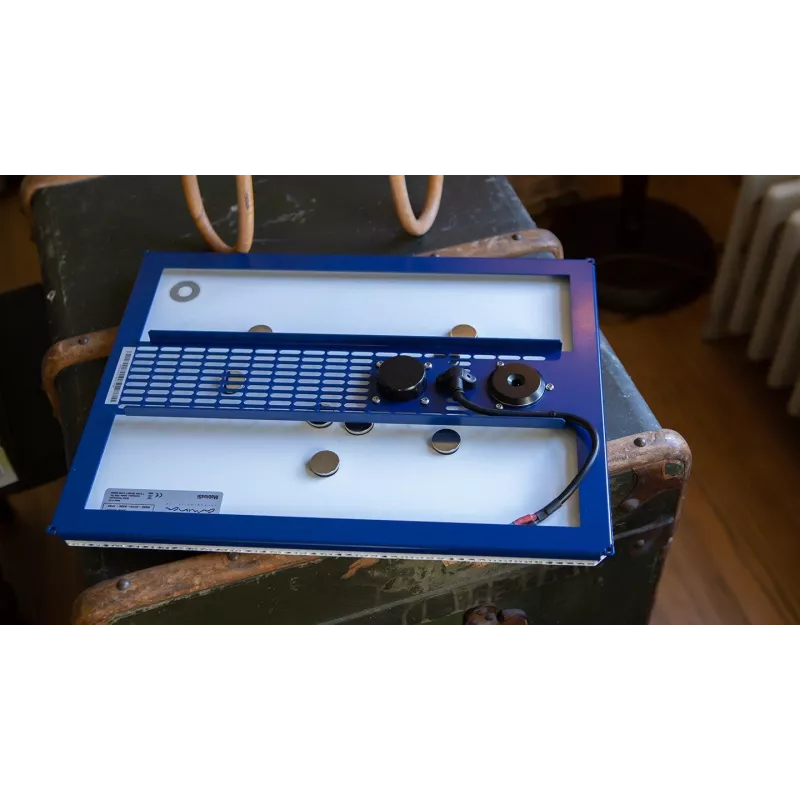

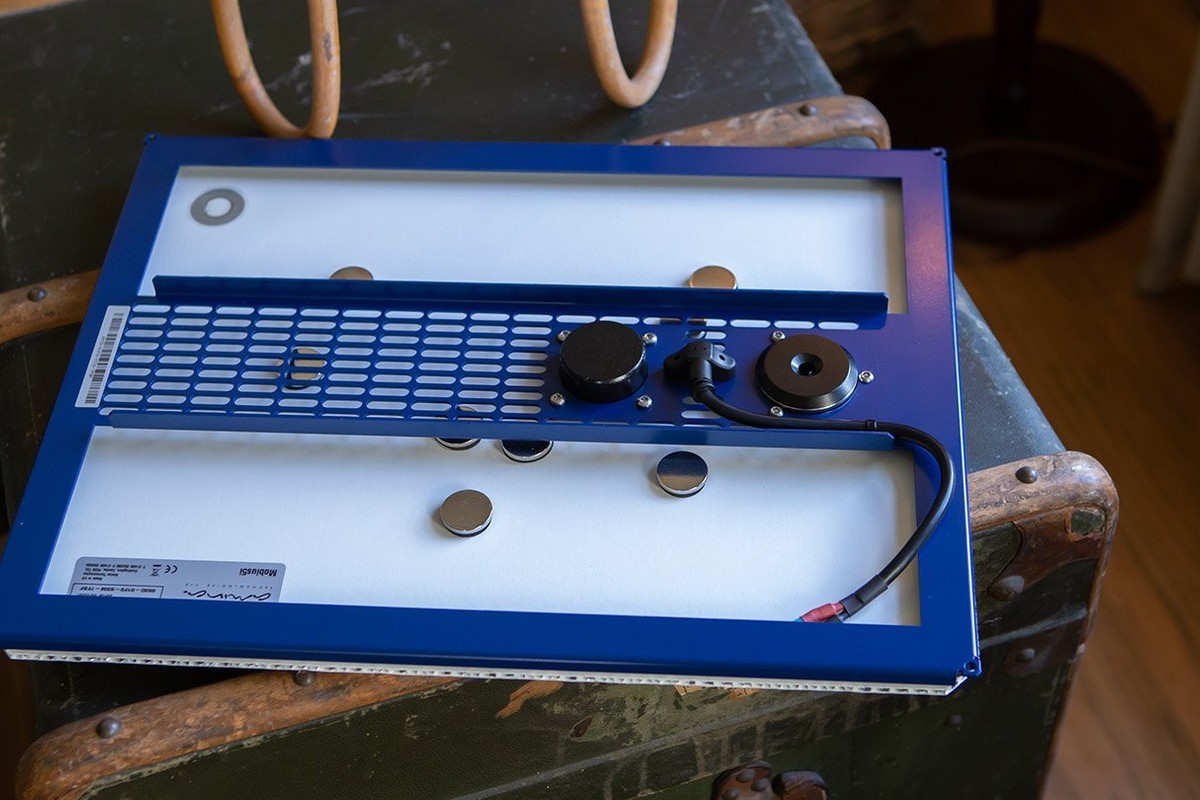

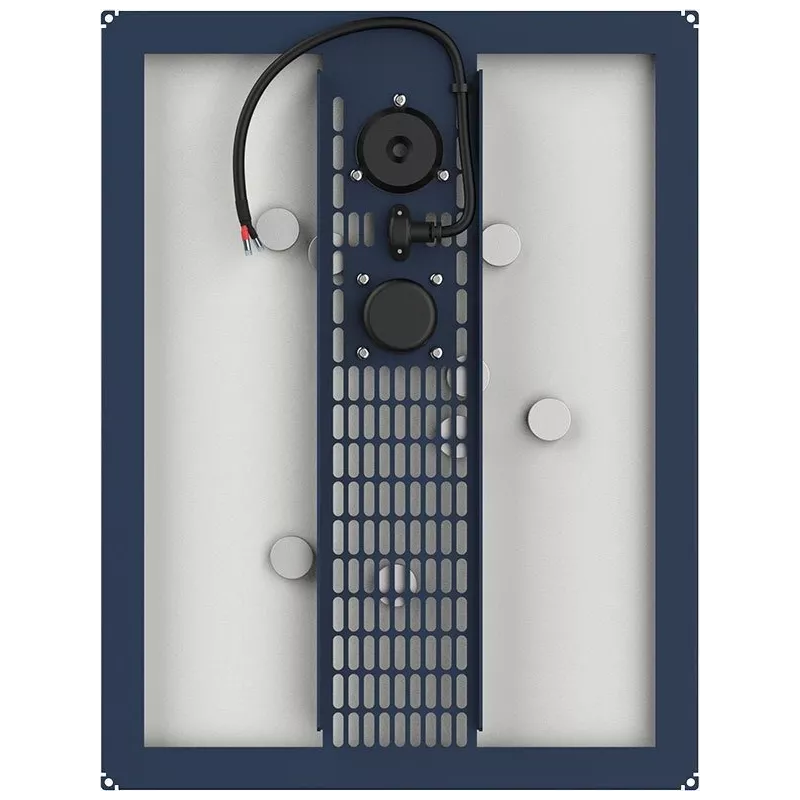

Back of the panel with its exciter and wiring

Optidrive and Opti-damping exciters

The panel is driven by Amina's proprietary transducers, with Optidrive, Opti-damping and Reduced Resonance Exciter technologies. Dispersion covers 180° × 180° across the specified range, so the sound stays even from one end of the room to the other. Sensitivity reaches 83 dB at 1 m / 2.83 Vrms and response runs from 68 Hz to 22.8 kHz at -6 dB.

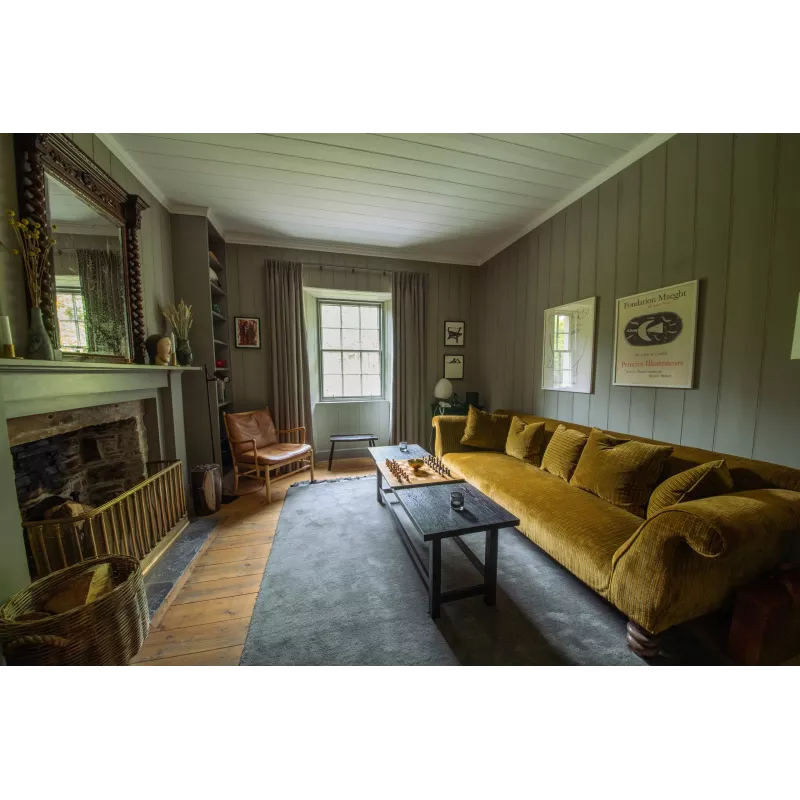

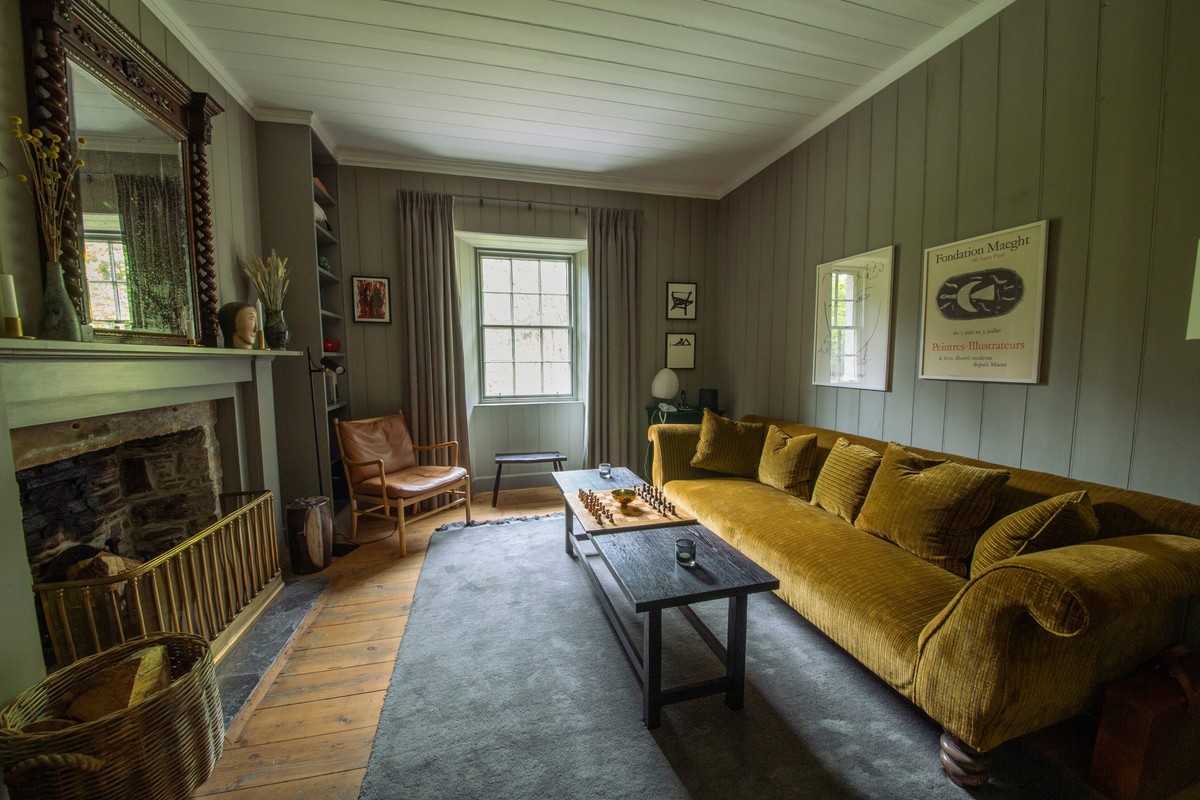

Panelled living room with a velvet sofa and fireplace

Backbox and Guardian protection

The Mobius 5i mounts in an Amina CV345 or SW345 backbox, or with Mounting Blocks or the Tab Mounting Kit. Wiring uses blue butt-splice crimp terminals for 14 to 16 AWG cable. In-line protection comes from a Guardian 2, 8 or 16 unit. It can be supplied with a 100/70 V transformer for high-impedance installations.

65629

Data sheet

Product Type
Invisible speaker
Brand
Amina
Nominal impedance
4 ohms
Sensitivity
83 dB / 2.83 V / 1 m
Installation type
Fully covered (2 mm plaster skim or other covering)
Connections
Blue butt-splice crimp terminals (14-16 AWG)
Associated backbox
Backbox CV345/SW345 or Mounting Blocks/Tab Mounting Kit
Frequency response
68 Hz – 22.8 kHz (-6 dB)
Power handling
50 W / 100 W (100 h continuous / peak)
Width
45.0 cm
Depth
3.07 cm
Height
34.5 cm
Unit weight
1.4 kg

Specific References

UPC
65629
New
