Amina Mobius 3i | Invisible plaster-in speaker (piece)

65627
CHF740.00 Tax included
Supplier stock – typically 4 to 7 days
The Amina Mobius 3i is an invisible speaker covered with a 2 mm plaster skim, sold individually. The most compact Mobius fits between closely spaced studs and disappears into the wall or ceiling.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

The minimum purchase order quantity for the product is 2.

Penthouse bedroom with a large bed and glazed wall

The most compact Mobius

The Mobius 3i measures 400 × 300 mm, is 30.7 mm thick and weighs 1.1 kg. It fits where stud or joist spacing is tight: guest rooms, corridors, secondary spaces. Paired with a subwoofer, it also handles full-range music listening at medium level.

Panelled dining room with a wooden table and fireplace

Invisible under plaster

Once fitted, the Mobius 3i is covered with a 2 mm plaster skim and painted with the rest of the wall or ceiling. It can also sit behind wood, leather or high-pressure laminate. No grille or cut-out remains visible in the room.

Hallway lined with dark timber and oak

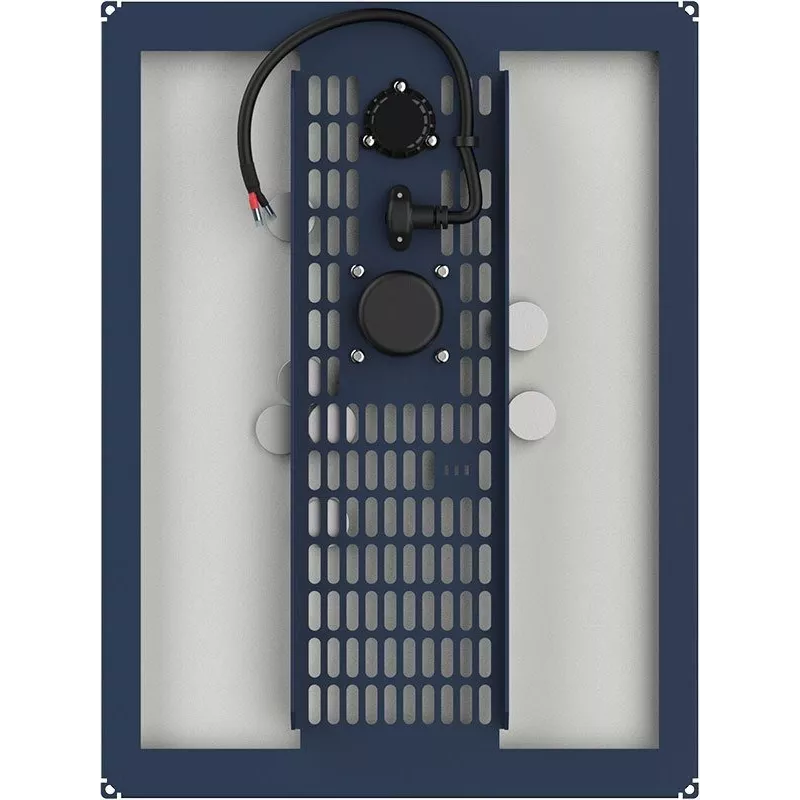

Optidrive and Opti-damping exciters

The panel is driven by Amina's proprietary transducers, with Optidrive, Opti-damping and Reduced Resonance Exciter technologies. Dispersion covers 180° × 180° across the specified range, so the sound stays even from one end of the room to the other. Sensitivity reaches 82 dB at 1 m / 2.83 Vrms and response runs from 90 Hz to 19 kHz at -6 dB.

Attic lounge with white walls and a glass coffee table

Backbox and Guardian protection

The Mobius 3i mounts in an Amina CV300 or SW300 backbox, or with Mounting Blocks or the Tab Mounting Kit. Wiring uses blue butt-splice crimp terminals for 14 to 16 AWG cable. In-line protection comes from a Guardian 2, 8 or 16 unit.

65627

Data sheet

Product Type
Invisible speaker
Brand
Amina
Nominal impedance
4 ohms
Sensitivity
82 dB (2.83 V, 1 m)
Installation type
Fully covered (2 mm plaster skim or other covering)
Connections
Blue butt-splice crimp terminals (14-16 AWG)
Associated backbox
Backbox CV300/SW300 or Mounting Blocks/Tab Mounting Kit
Frequency response
90 Hz – 19 kHz (-6 dB)
Power handling
30 W / 60 W (100 h continuous / peak)
Width
40.0 cm
Depth
3.07 cm
Height
30.0 cm
Unit weight
1.1 kg

Specific References

UPC
65627
