Anthem MRX 540 8K Black | 7.2-channel A/V receiver

Name: Anthem MRX 540 8K Black | 7.2-channel A/V receiver
Brand: Anthem
SKU: 68773
Price: 2699.00 CHF
Availability: InStock

Reference 68773

CHF2,699.00

24‑hour delivery

Anthem MRX 540 8K A/V receiver with 7.2 pre-amplifier channels and five 100 W amplifiers into 8 Ω. It offers seven 8K HDMI 2.1 inputs, ARC Genesis room correction and wireless streaming.

Description
Product Details

Listener stretched out on a sofa in front of an A/V receiver, with stylised red sound waves

32-bit, 768 kHz converters

The MRX 540 8K relies on 32-bit, 768 kHz digital-to-analogue converters. It decodes Dolby Atmos, DTS:X and IMAX Enhanced, for a maximum configuration of 5.2.2. FLAC, ALAC, WAV and DSD files are played back in high resolution.

Understated living room with a sofa and screens showing room-correction software

ARC Genesis room correction

ARC Genesis measures the room with a redesigned, more accurate calibration microphone and optimises the frequency response. Four profiles can be stored. The Anthem web interface lets you adjust the volume, change the audio mode and tweak channel levels from a phone, a tablet or a computer.

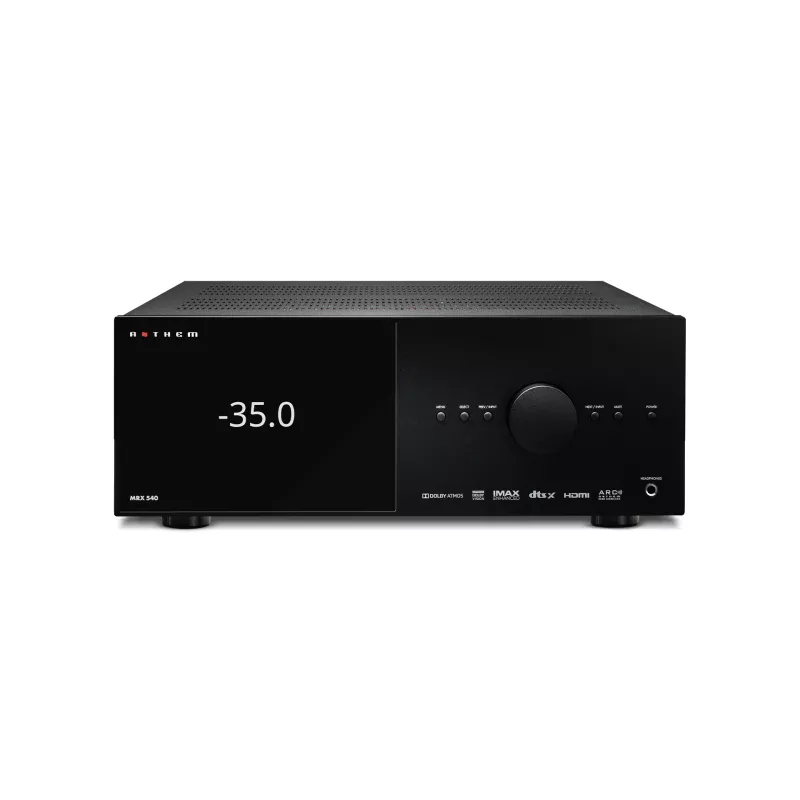

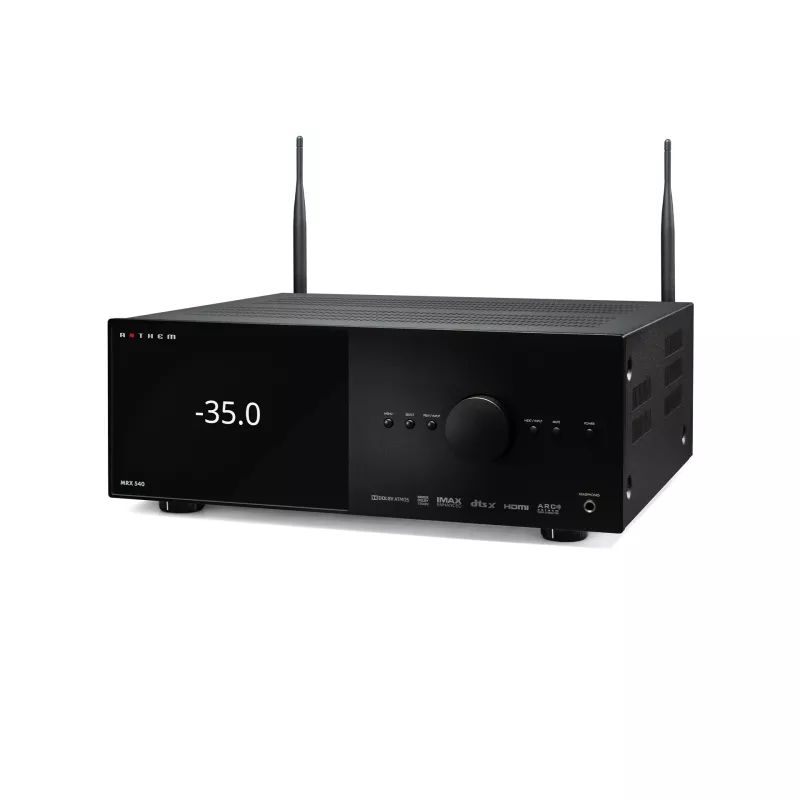

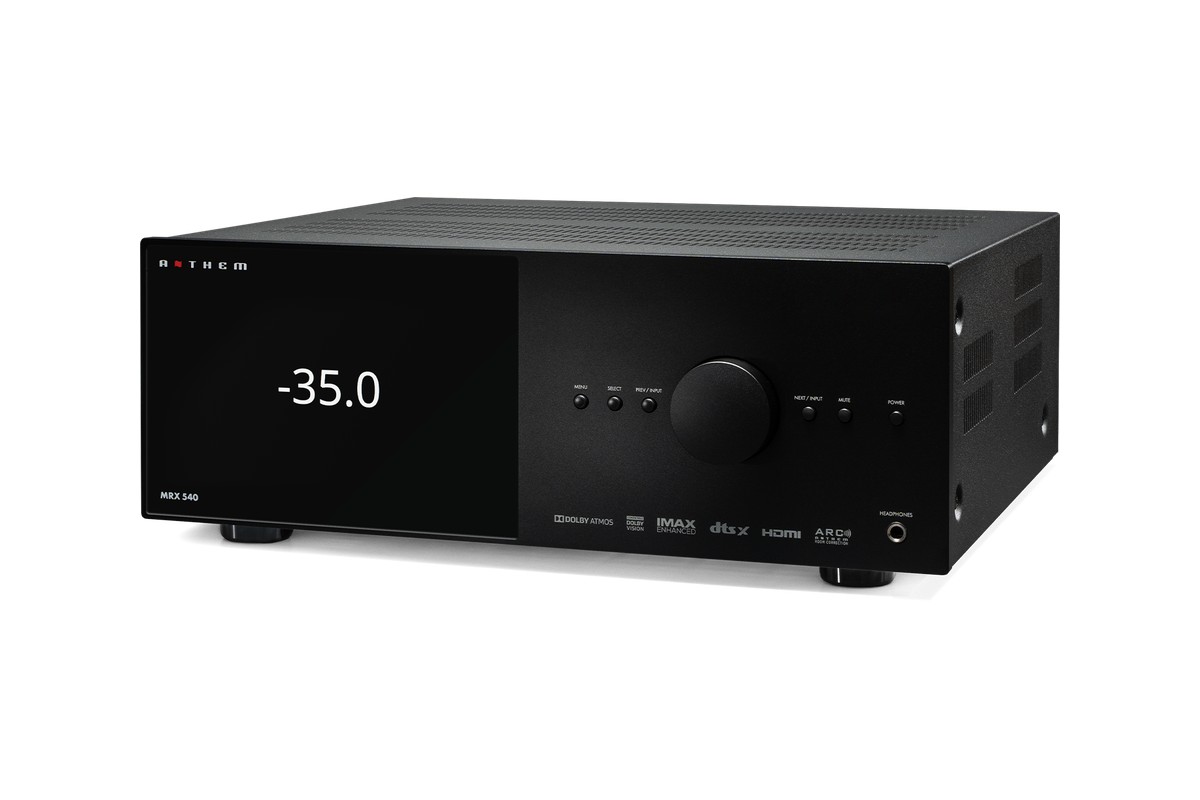

Anthem MRX 540 8K seen from the front three-quarter, black front panel with display and controls

8K HDMI 2.1 platform

Seven HDMI 2.1 inputs accept 8K at 60 Hz or 4K at 120 Hz pass-through, with HDCP 2.3. Two HDMI outputs are available, one of them eARC. VRR, ALLM and QFT are supported for gaming, along with the HDR10, HDR10+, Dolby Vision and HLG formats.

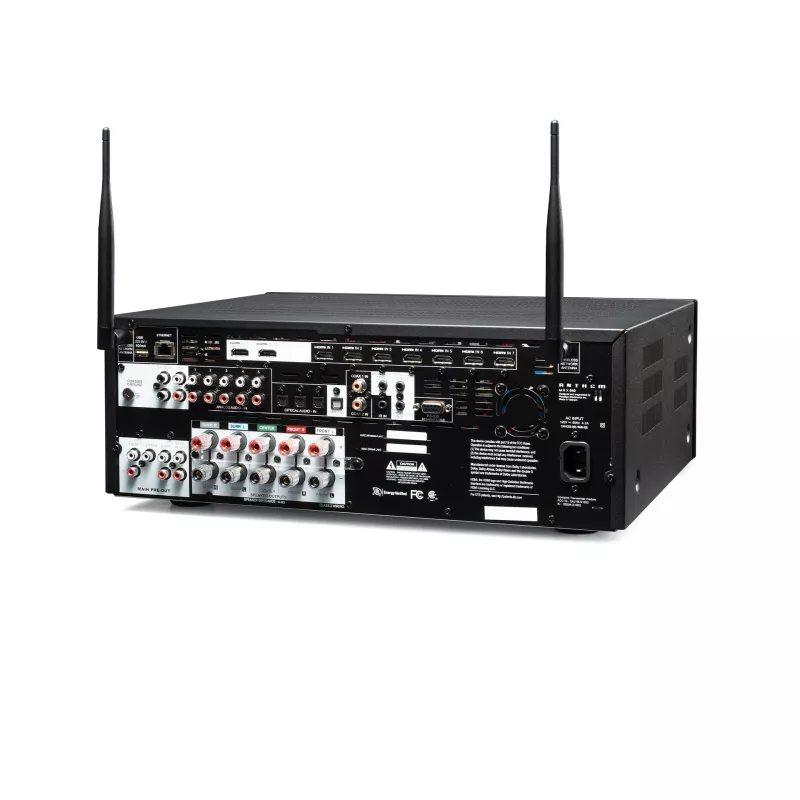

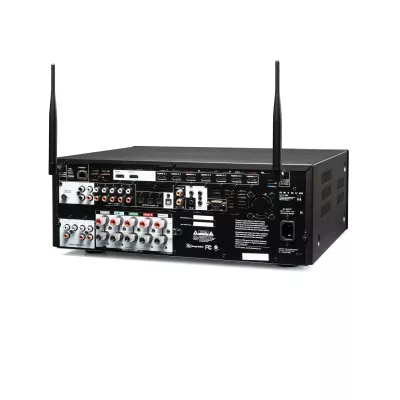

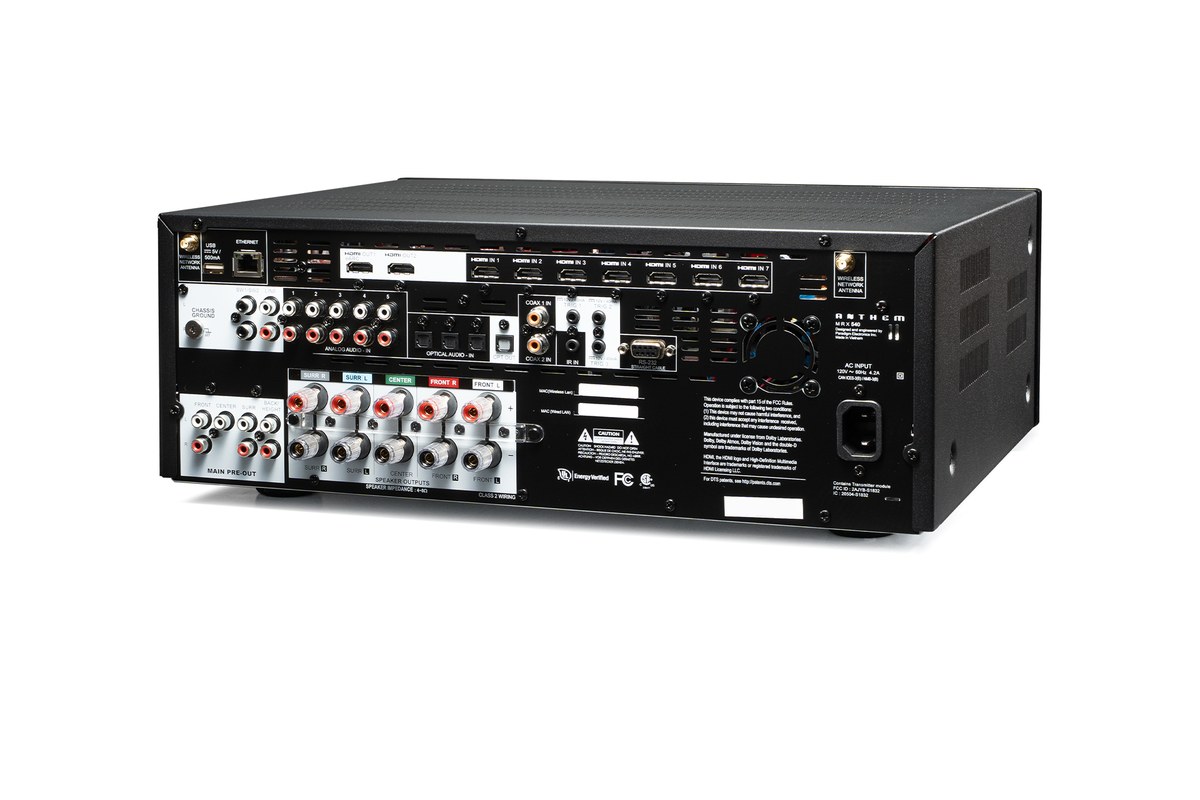

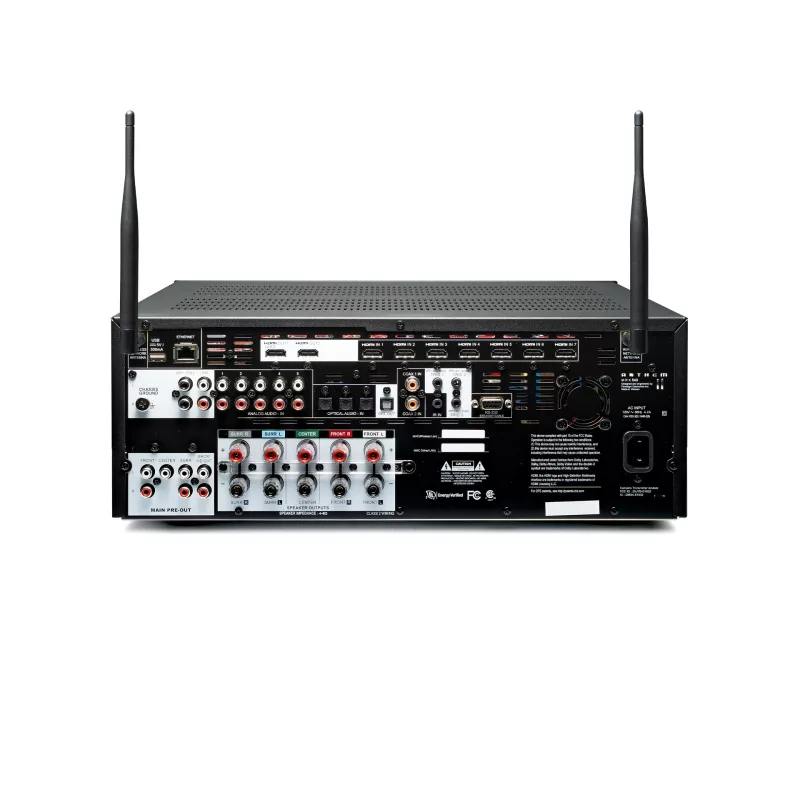

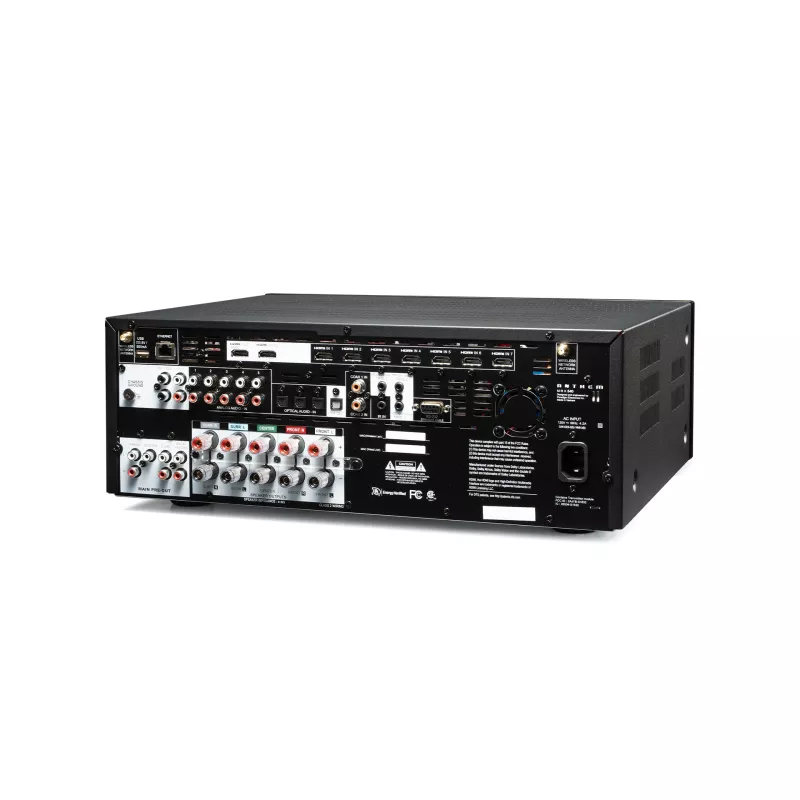

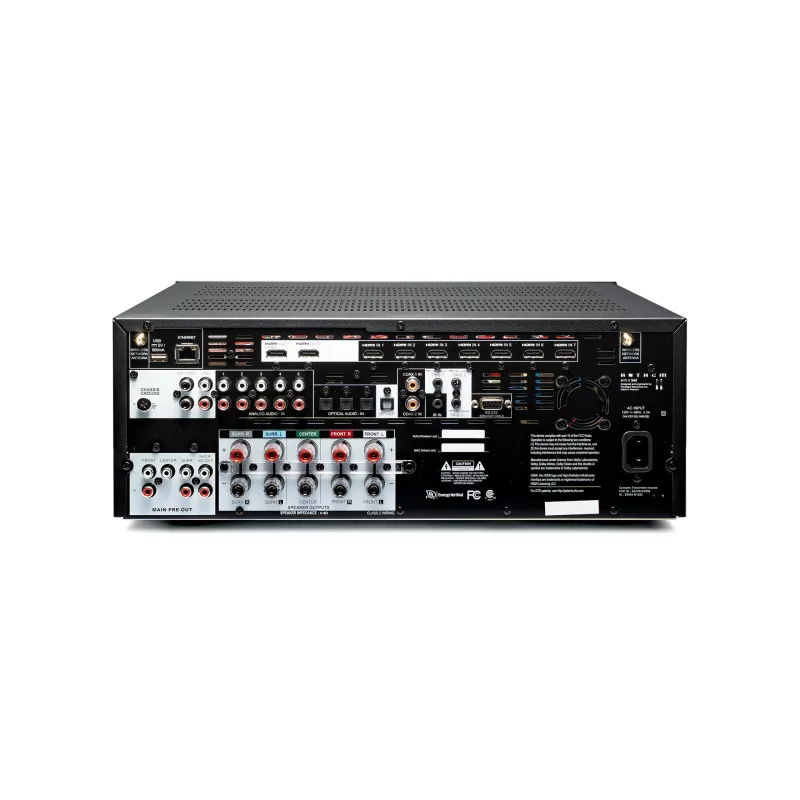

Rear panel of the receiver with speaker terminals, inputs and outputs

Amplification and connections

Five amplifiers deliver 100 W per channel into 8 Ω and 130 W into 6 Ω, with two channels driven at 1 % distortion. The speaker terminals cover FR, FL, C, SR and SL, with two independent subwoofer outputs. The rear panel takes five analogue inputs, two coaxial inputs, three optical inputs and one optical output. The aluminium chassis measures 43.2 × 36.4 × 15.2 cm (W × D × H) and weighs 12.8 kg.

Reference 68773

Data sheet

Product Type: 7.2-Channel Audio-Video Receiver
Features: 6" TFT front display
Aluminium chassis, machined aluminium faceplate
Maximum speaker configuration 5.2.2
USB ports: 1 USB-A 5 V/500 mA (service)
Bluetooth: Yes
Brand: Anthem
Integrated DAC: Yes, 32-bit/768 kHz
WiFi: Yes
Audio outputs: Line output: 1
Pre-amp outputs: 7.2
Number of channels: 7.2
Digital inputs: Coaxial: 2 inputs
Optical: 3 inputs / 1 output
HDMI ARC: Yes (eARC)
Analog inputs: 5 inputs
Subwoofer output: 2 (independent)
Multiroom: no
Output power: 100 W (8 Ω)
130 W (6 Ω)
Phono inputs: No
Color: Black
Number of HDMI ports: 7 inputs / 2 outputs
Streaming services: Apple AirPlay
Google Chromecast Audio
Spotify Connect
HDMI ports: HDMI 2.1
Technology: HDCP 2.3
Video optimization: Dolby Vision
Dynamic HDR
HDR10
HDR10+
HLG
Hi-Res Audio: Yes: FLAC, ALAC, WAV, DSD
Series: MRX
Gaming optimization: ALLM
QFT
VRR
Network connectivity: Yes
Nominal impedance: More than 4 Ω
Installation type: 4U rack mount with kit
Audio technology: AnthemLogic-Cinema
AnthemLogic-Music
DTS-HD Master Audio
DTS:X
DTS Neural:X
DTS Virtual:X
Dolby Atmos
Dolby Atmos Music
Dolby Surround
Dolby TrueHD
IMAX Enhanced
Multichannel stereo
Connections: Speaker terminals: FR, FL, C, SR, SL
Video outputs: HDMI zone 2 output: no
Room correction: Yes (ARC Genesis)
Amplification technology: 5 amplified channels
Power consumption: 0.3 W (standby)
1.8 W (standby, IP control enabled)
4.9 W (standby, HDMI bypass enabled)
365 W (typical load)
Width: 43.2 cm
Depth: 36.4 cm
Height: 15.2 cm
Unit weight: 12.8 kg
