Yamaha RX-A6A | 9.2-Channel AV Receiver | 5 Year Warranty

Name: Yamaha RX-A6A | 9.2-Channel AV Receiver | 5 Year Warranty
Brand: Yamaha
SKU: 67132
Price: 2749.00 CHF
Availability: BackOrder

Reference 67132

CHF3,049.00

CHF2,749.00 Save CHF300.00

Supplier stock – typically 4 to 7 days

Yamaha RX-A6A AV receiver, 9.2 channels, 150 watts per channel into 8 ohms. Dolby Atmos and DTS:X, 8K HDMI, MusicCast, Wi-Fi and AirPlay 2.

Description
Product Details

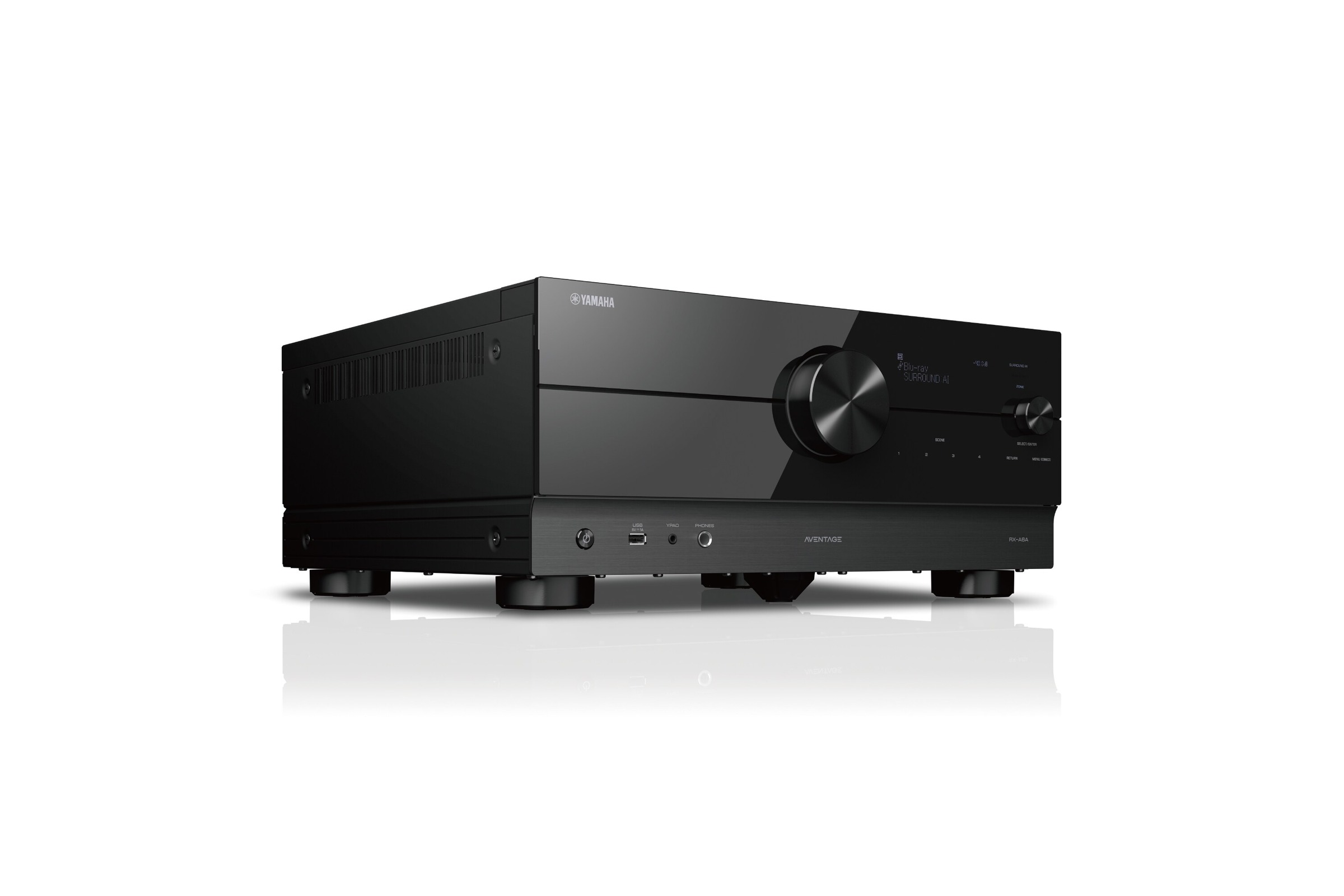

Black AV receiver seen at three quarters on a white background

9.2-Channel Amplification

The RX-A6A delivers 150 watts per channel into 8 ohms, from 20 Hz to 20 kHz at 0.06 per cent distortion. Driving one channel at 1 kHz, power reaches 185 watts. The high slew rate output stage drives 9.2 channels.

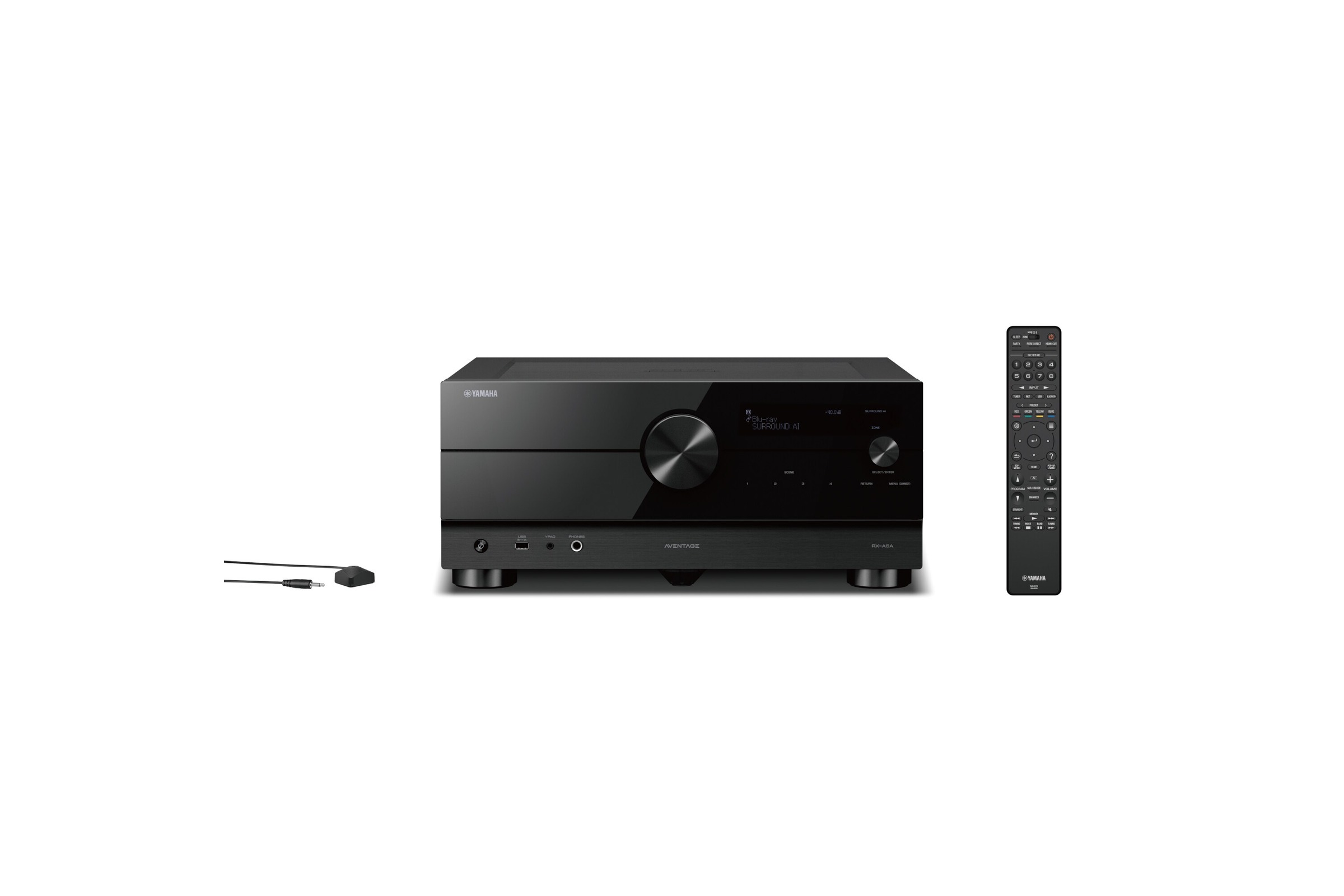

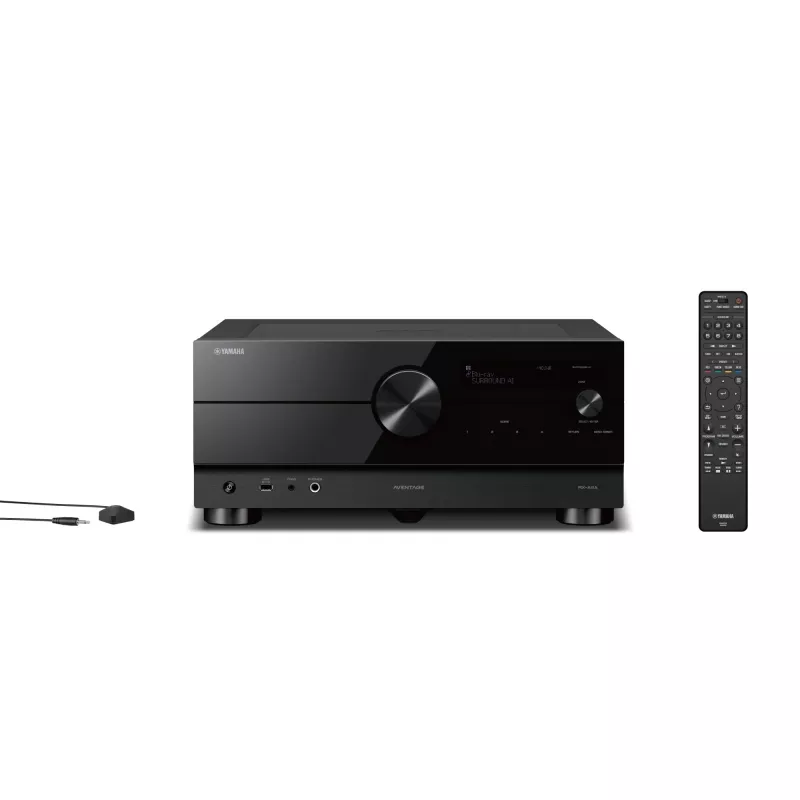

Front panel seen head on, central display and remote control at the right

Immersive Decoding

The unit decodes Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio. Auro-3D decoding joins Dolby Atmos and DTS:X. The CINEMA DSP HD3 engine offers 24 sound field programmes. Surround:AI analyses the scene in real time.

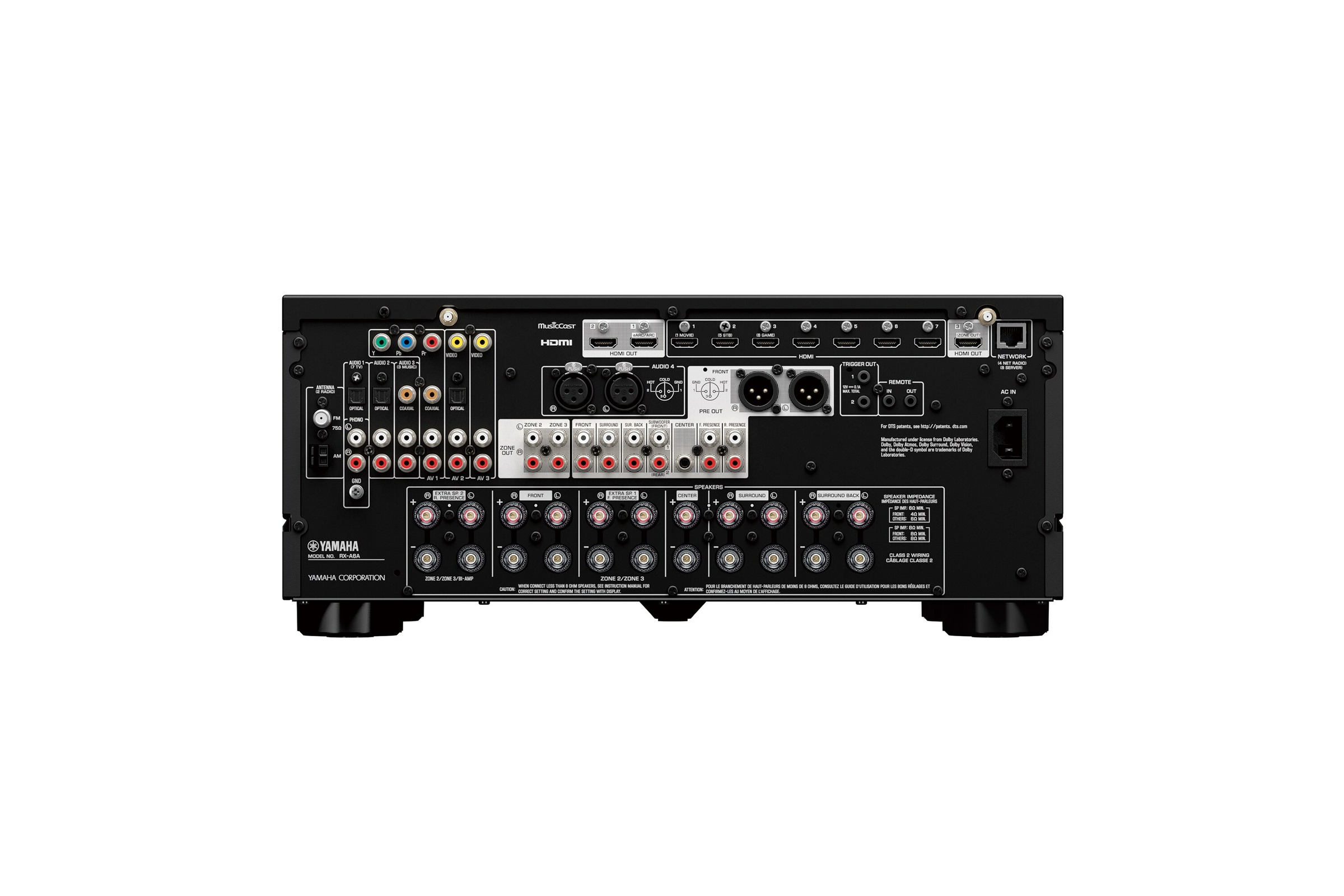

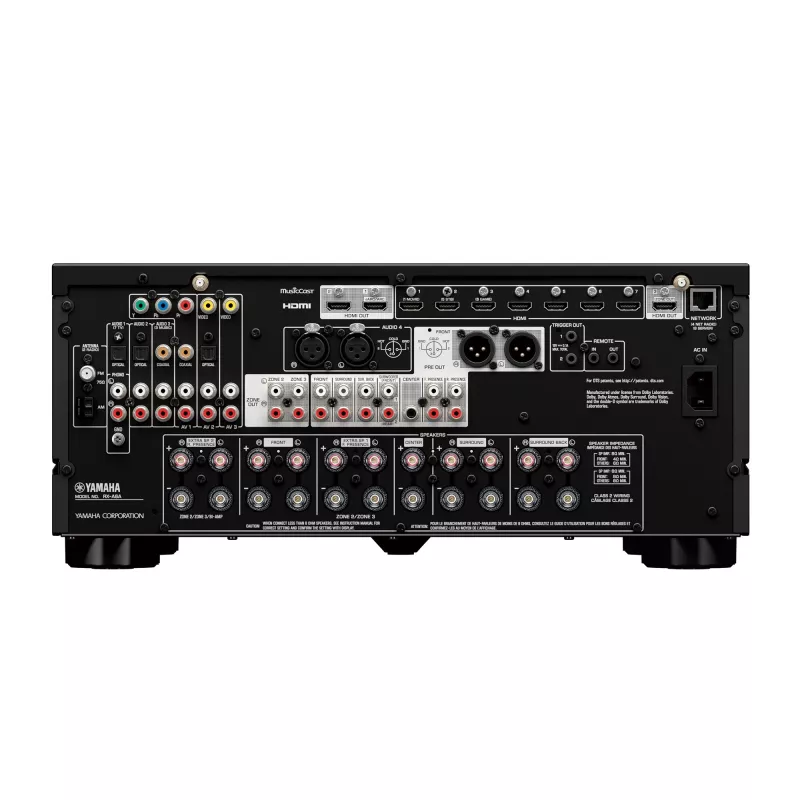

Rear panel, HDMI sockets, speaker terminals and analogue inputs

HDMI and Picture

Connectivity counts 7 entrées et 3 sorties HDMI sockets and a 11.2 canaux preamplified output. Video pass-through takes 8K at 60 Hz and 4K at 120 Hz, with VRR and ALLM. Dolby Vision and HDR10 plus are supported.

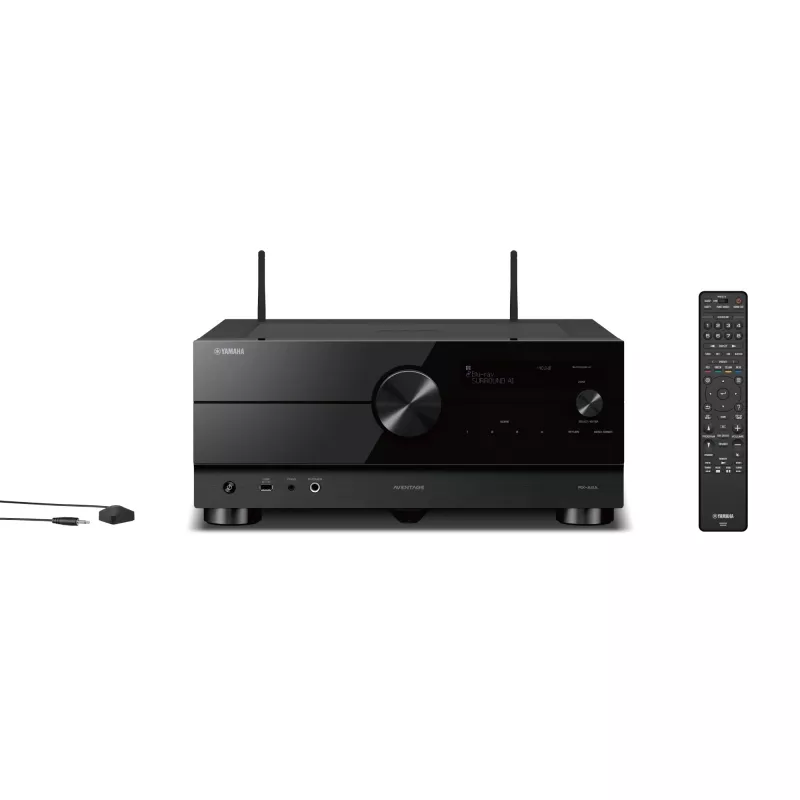

The same unit with aerials up, calibration microphone in the foreground

Network and Calibration

Dual-band Wi-Fi, Ethernet, AirPlay 2, Bluetooth and MusicCast cover the network side. The ESS Hyperstream ES9026PRO et ES9007S converter handles streams up to 384 kHz at 32 bits. YPAO calibration measures the room at several points, and 3 optical, 2 coaxial and 6 analogue inputs complete the rear.

Reference 67132

Data sheet

Features: A.R.T. Wedge
Adaptive DRC
App Control
Audio Delay
Auto Standby
Bi-amp Capable
Compressed Music Enhancer
Dialog Level Adjustment
Dialogue Lift
ECO Mode
Graphical user interface
HDMI CEC
High-resolution Music Enhancer
Initial and Maximum Volume Setting
Party Mode
Powered zone (Zone 2 / 3)
Pure Direct
Remote Control Supplied
SCENE PLUS
SILENT CINEMA / Virtual CINEMA DSP
Video adjustment
Virtual Presence Speaker
Virtual Surround Back Speaker
Web Browser Control
Zone 2 audio output (Preout / HDMI)
Zone 3 audio output (Preout)
Zone 4 audio output (HDMI)
Zone B output (HDMI)
Zone GUI
Zone video output (HDMI (Up to 4K/60Hz))
Integrated tuner: Yes (Availability varies by region.)
USB ports: Yes
Bluetooth: Yes (SBC / AAC)
Integrated DAC: 384 kHz / 32-bit ESS Hyperstream DAC ES9026PRO x1 ES9007S x1
Headphone output: 1
WiFi: Yes (2.4 / 5 GHz)
Audio outputs: 11.2-ch
Number of channels: 9.2
Digital inputs: 2 / 0
3 / 0
HDMI ARC: Yes
Analog inputs: 6 / 0
USB
XLR inputs
Multiroom: Yes
Output power: 150 W (8 ohms, 0.06% THD)
185 W (8 ohms, 0.9% THD)
220 W (8 ohms, 10% THD)
Phono inputs: Yes
Streaming services: Yes
HDMI ports: 7 / 3 (HDCP2.3)
Analogue to HDMI up-conversion
Audio format: MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Technology: Yes
Network connectivity: Yes
Audio technology: 8K60AB, 4K120AB, 40GBPS
24
Auro-3D
DTS-HD Master Audio
DTS:X
Dolby Atmos
Dolby Atmos Height Virtualizer
Dolby Digital Plus
Dolby Surround
Dolby TrueHD
Dolby Vision
HDMI Up-scaling
HDR 10+
Surround:AI
VRR/ALLM
Yes (HD3)
Connections: 2 trigger output 12 V
Component video 1 / 0
Composite video 2 / 0
Remote IR in and out 1 / 1
Room correction: Yes
Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement
Power consumption: moins de 0.4 W
Width: 43.5 cm
Depth: 44.2 cm
Height: 19.2 cm
Unit weight: 20,3 kg
