Pro-Ject Power Box RS Uni 1-way TT | Linear power supply for 15 V turntables

63622
CHF629.00 Tax included
Supplier stock – typically 4 to 7 days
Pro-Ject Power Box RS Uni 1-way TT, a linear power supply for 15 V DC Pro-Ject turntables. Designed for heavy platters, it delivers up to 3 A.
Color : Black
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

Silver power supply seen from the front

For heavy-platter turntables

The Power Box RS Uni 1-way TT was developed for turntables with heavy platters. Pro-Ject recommends it for the RPM 9 and 10, Signature 10 and 12 and Xtension 9, 10 and 12. It remains compatible with all other 15 V DC Pro-Ject turntables, but must not be used with the Phono Box RS.

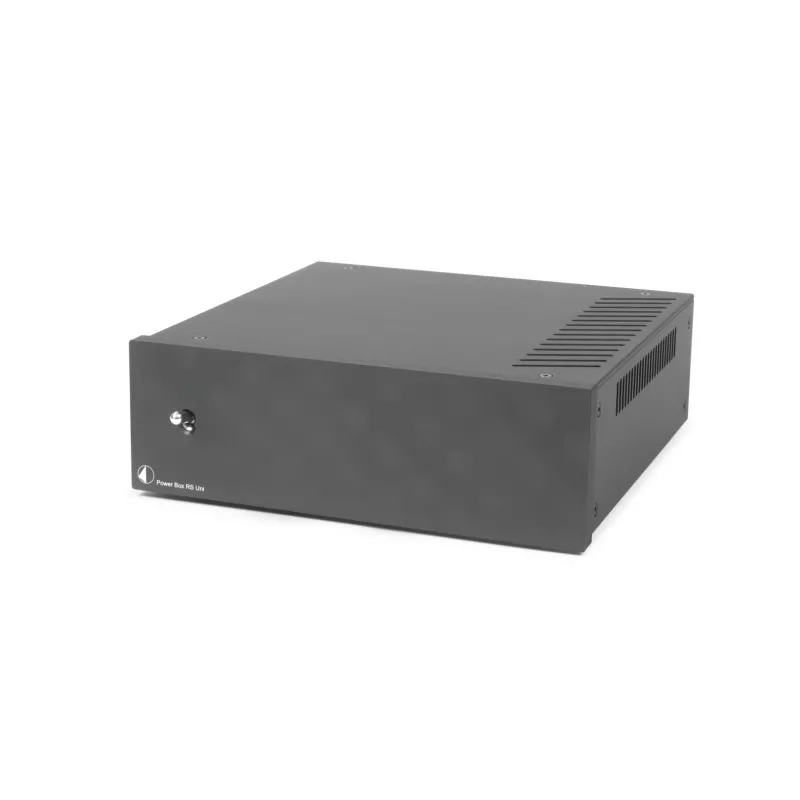

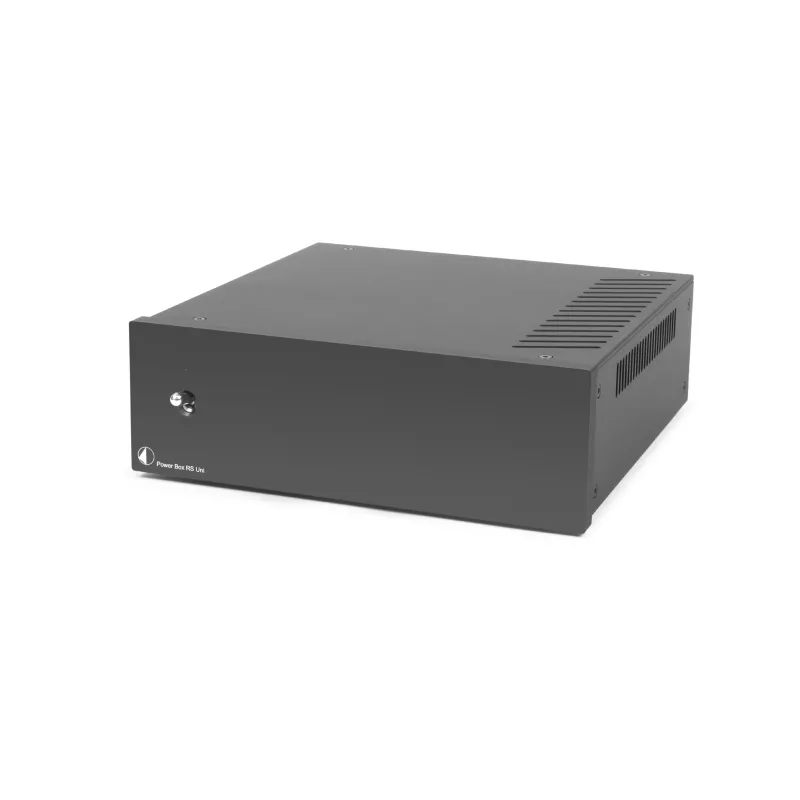

Black power supply seen from a three-quarter angle

Shielded toroidal transformer

The audio-grade toroidal transformer, with copper foil shielding between primary and secondary, acts as an isolating transformer. Its power reserve far exceeds that of a standard wall adapter. A soft-start system prevents inrush current in the primary winding.

Rear panel with IEC socket and turntable output

3-ampere output

The output supplies 15 V and up to 3 A, with precise regulation of the secondary voltage. The 10,000 μF filtration capacity and ripple rejection better than 75 dB ensure clean power. The 3-pole connection cable to the turntable is included.

Black front panel with power switch

4.8 kg RS case

Mains input is through an IEC C15 socket at 230 V / 50 Hz. The case measures 20.1 cm wide, 7.2 cm high and 19.5 cm deep, and weighs 4.8 kg. It comes in silver or black.

Black = Black; Silver = Silver
63622

Data sheet

Product Type
Linear power supply for 15 V DC turntables
Features
Input voltage AC 230 V / 50 Hz, IEC C15 connector (120 V / 60 Hz US)
Output voltage ripple rejection better than 75 dB
Brand
Pro-Ject
Audio outputs
15 V / 3 A max. (for all Pro-Ject 15 V DC turntables)
Technology
Filtration capacity 10,000 μF
Width
20.1 cm
Depth
19.5 cm
Height
7.2 cm
Unit weight
4.8 kg

Specific References

EAN13
9120122297254
