The NAD C 316BEE V2 is a Classic Series stereo integrated amplifier rated at 2 x 40 W, with PowerDrive circuitry and an MM phono input. It offers defeatable tone controls, a headphone output and an infrared remote control.

Description
Product Details

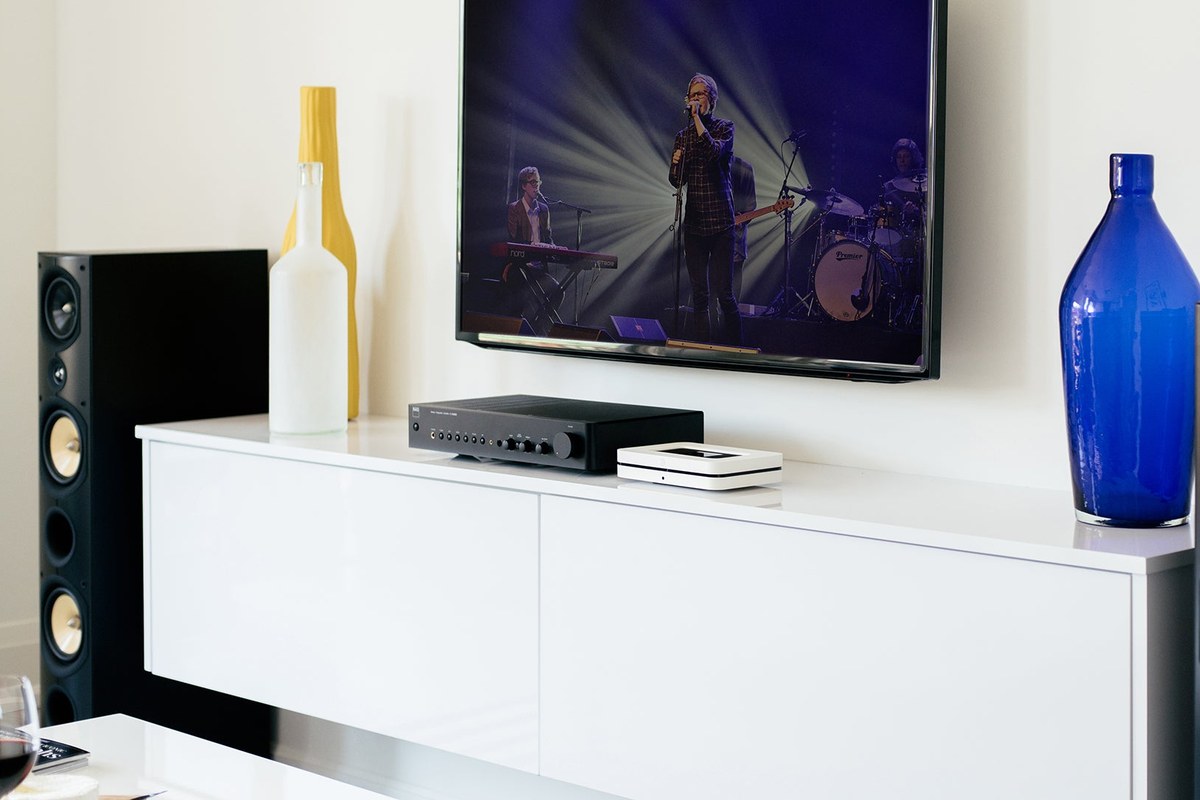

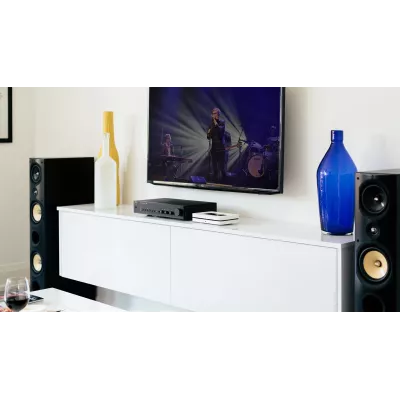

NAD C 316BEE V2 amplifier on a white cabinet below a TV, between two floorstanding speakers

PowerDrive amplification

The C 316BEE V2 relies on NAD's PowerDrive circuit, which continuously monitors the power stage and adapts the power supply to demand. It delivers 40 W per channel continuous, and its IHF dynamic power reaches 90 W into 8 ohms, 120 W into 4 ohms and 170 W into 2 ohms. Musical peaks come through without harshness, with a wide range of loudspeakers.

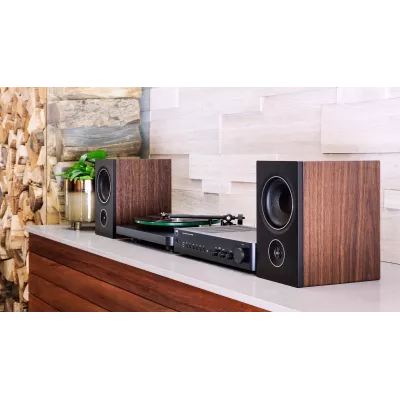

Turntable and black amplifier on a wooden sideboard between two compact speakers

Carefully built MM phono stage

A turntable with an MM cartridge plugs straight into the phono input, with accurate RIAA equalisation and a low noise floor. The stage accepts up to 71 mV at 1 kHz, leaving plenty of headroom for high-output cartridges. Records keep their warmth and their scale.

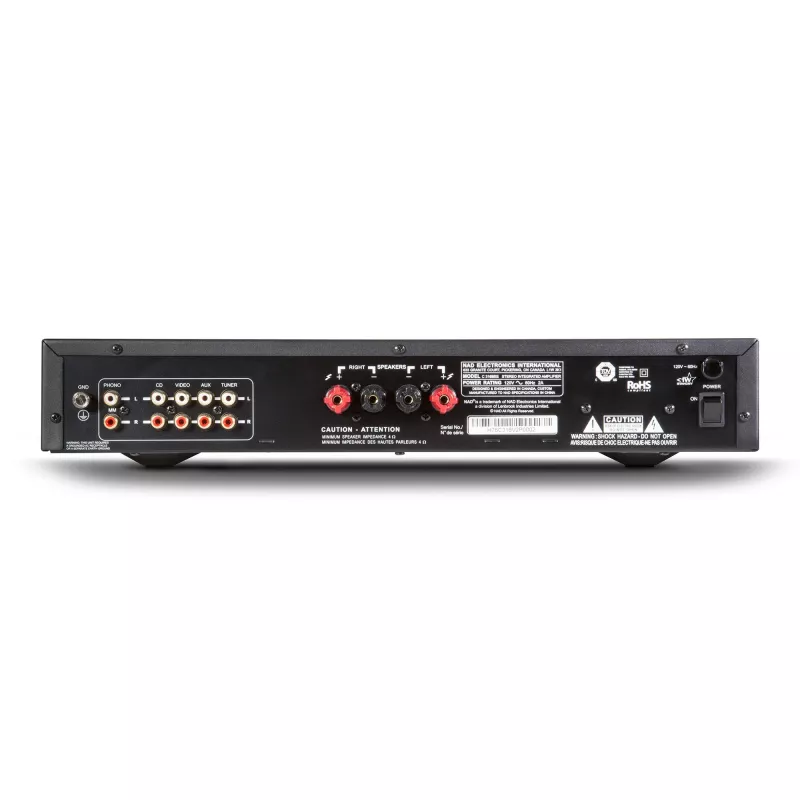

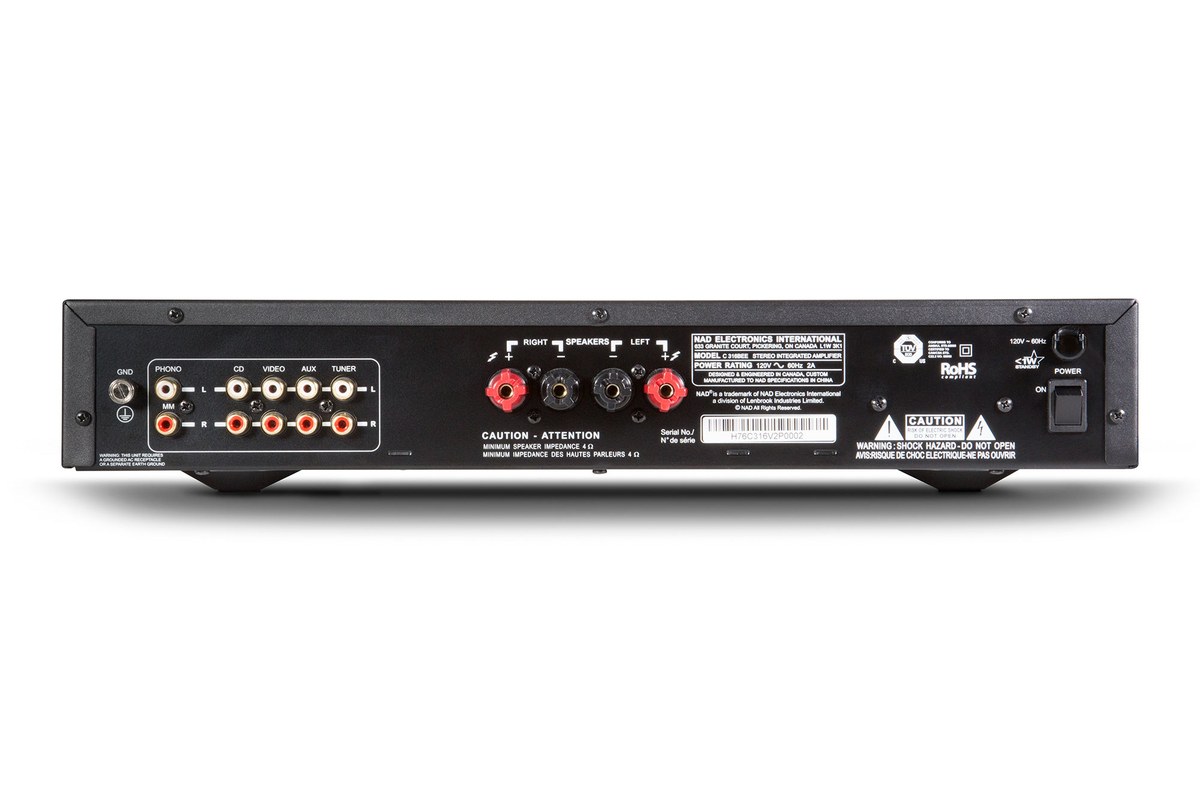

Rear panel: MM phono input, four RCA line inputs and speaker terminals

Essential analogue connections

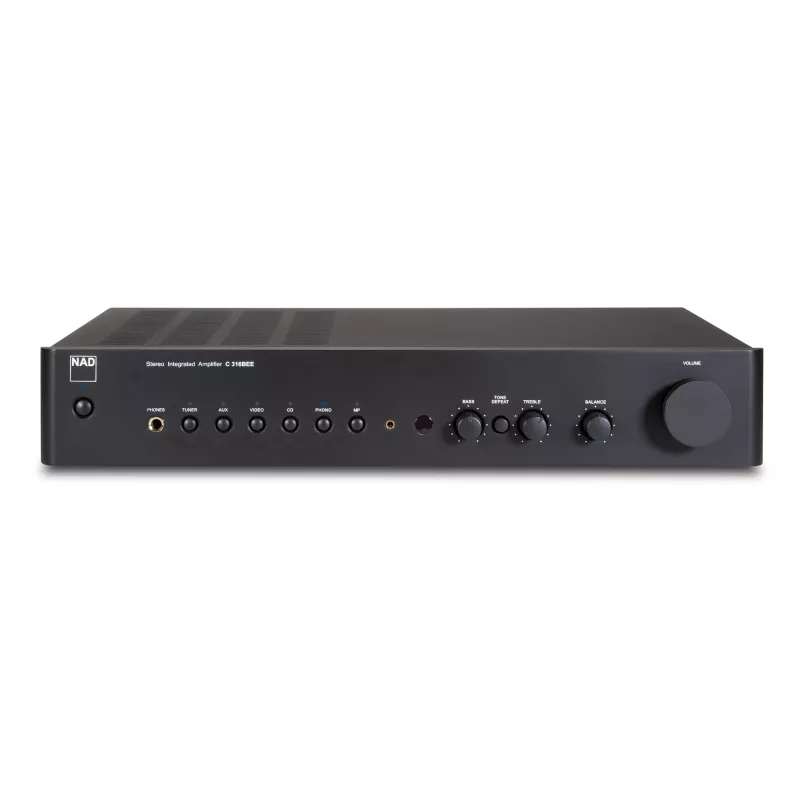

Four RCA line inputs on the back and a front-panel input for a portable player join the phono input. The bass and treble controls act by ±8 dB at 100 Hz and ±5 dB at 10 kHz, and the Tone Defeat function takes them out of the signal path for direct listening. A front headphone output and an infrared remote control complete the package.

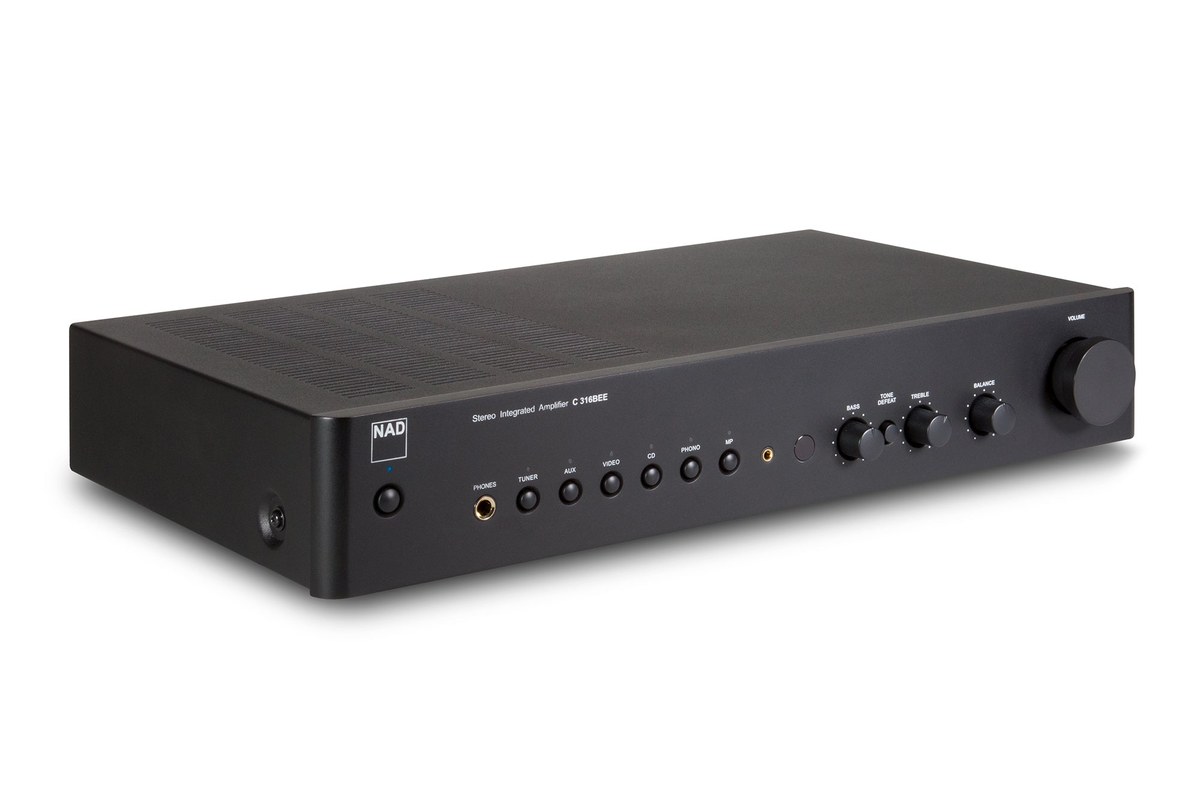

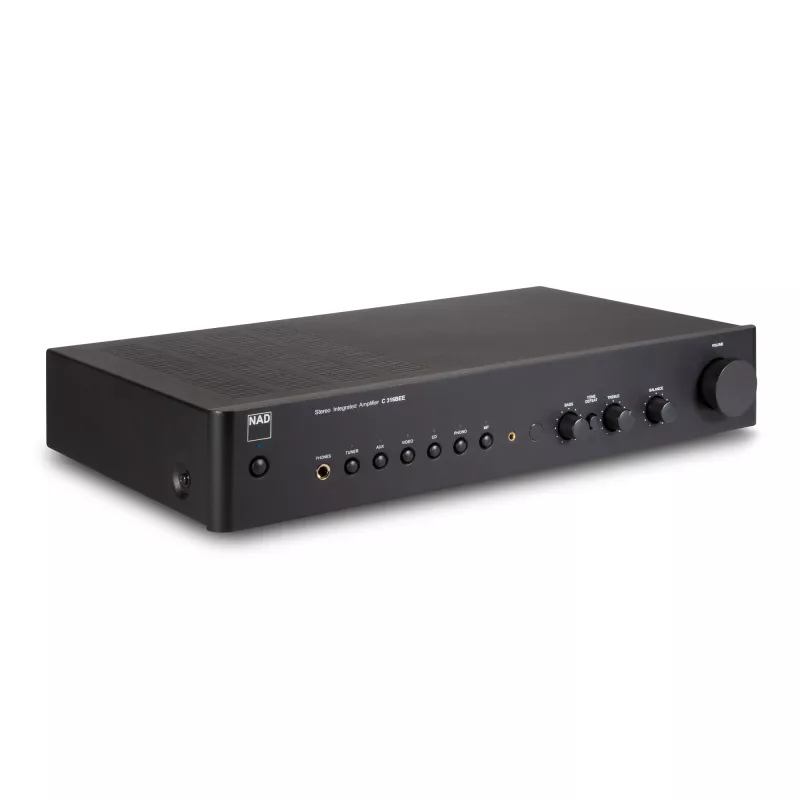

Black integrated amplifier seen from three quarters, front panel with source buttons and tone controls

Toroidal transformer power supply

In a chassis 43.5 cm wide, the C 316BEE V2 combines a generous toroidal transformer, smoothing capacitors with low series resistance and discrete output transistors. This solid foundation gives it a relaxed sound and long-term reliability. Distortion stays below 0.03 % from 20 Hz to 20 kHz, and standby consumption below 0.5 W.

Reference 61271

Data sheet

Product Type: Integrated amplifier
Features: Front-panel line input for portable players
Remote Control Supplied
Tone control bypass
Tone controls: bass ±8 dB at 100 Hz, treble ±5 dB at 10 kHz
Toroidal transformer and discrete output transistors
Brand: NAD
Headphone output: Headphone output, 8 ohm output impedance
Audio outputs: 1 set of speaker outputs
Number of channels: 2
Analog inputs: 4x RCA
Output power: 2 x 40 W continuous (8 Ω)
Clipping power: over 45 W (8 Ω), over 60 W (4 Ω), 1 kHz, 0.1 % THD
IHF dynamic power: 90 W (8 Ω), 120 W (4 Ω), 170 W (2 Ω)
Phono inputs: 1 (MM)
Color: Black
Series: Classic
Sensitivity: 2.95 mV (MM phono, for 40 W into 8 ohms)
200 mV (line, for 40 W into 8 ohms)
Amplification technology: PowerDrive
Signal-to-noise ratio: Over 75 dB (MM phono, IHF cartridge, A-weighted, ref. 5 mV at 1 kHz, 1 W into 8 ohms)
Over 95 dB (speaker output, A-weighted, 500 mV input, ref. 1 W into 8 ohms)
Over 97 dB (A-weighted, 500 mV input, unity gain into 32 ohms)
Over 100 dB (headphone output, A-weighted, 32 ohms, ref. 2 V, unity gain)
Power consumption: Less than 0.5 W in standby
Frequency response: Headphone output: ±0.3 dB (20 Hz – 20 kHz)
Phono, RIAA deviation: +0.3 dB (20 Hz – 20 kHz)
Speaker output: ±0.3 dB (20 Hz – 20 kHz)
Séparation des canaux: Over 70 dB (1 kHz)
Distortion (THD): Less than 0.03 % (line to headphone, 300 ohms, 2 V out)
Less than 0.03 % (phono to speakers, 1 W to 40 W, 8 and 4 ohms)
Width: 43.5 cm
Depth: 28.5 cm
Height: 9.0 cm
Unit weight: 5.5 kg
