Cambridge Audio Edge A

Reference 60313

CHF6,500.00

CHF4,500.00 Tax included Save CHF2,000.00

The Cambridge Audio Edge A is a 100 W integrated amplifier per channel under 8 ohms. It brings together a symmetrical XLR input, an integrated converter and a headphone output in an aluminum frame.

Guarantee safe & secure checkout

Description
Product Details

Integrated Face Vu, Large Central Volume Dial

Hundred watts per canal

The Edge has delivers 100 W RMS under 8 ohms and 200 W RMS under 4 ohms. The distortion remains from 0.002% to 1 kHz at nominal power over 8 ohms, and from 0.02% over the entire band 20 Hz - 20 kHz. The signal / noise ratio exceeds 103 dB and the crosstalk descends below -1 dB to 1 kHz.

Three-quarters of the chassis and its lateral fins

Extended bandwidth

The frequency response extends less than 3 Hz to more than 80 kHz, at more or less 1 dB. The input sensitivity is 380 mV RMS on the asymmetric inputs A1 and A2, under a 47 kilo-ohm impedance, identical on the symmetrical input A3. The maximum consumption reaches 1000 W and the day before goes down under 0.5 W.

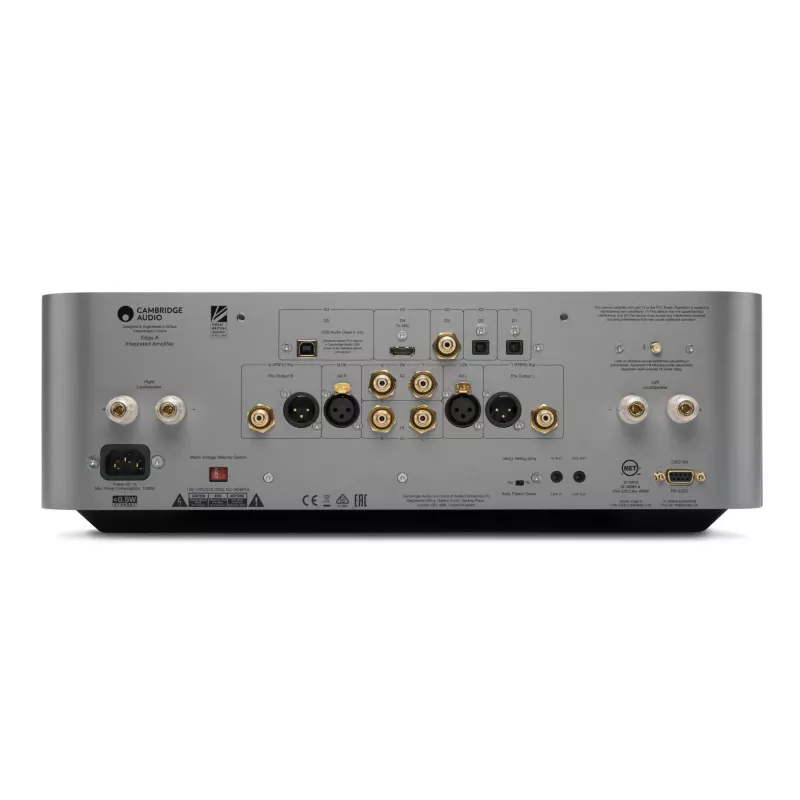

Rear face and complete connectivity of the device

Inputs and outputs

The apparatus combines a symmetrical input, asymmetric inputs, a coaxial S / PDIF, a Toslink, a USB audio input, the Bluetooth and an audio connection Return Channel for the TV. The USB input in class 2.0 accepts the PCM up to 24 bits / 384 kHz and the DSD256. The outputs include speaker terminals, a preamp output and a headphone output planned for impedances from 12 to 600 ohms.

Wireless and format

The Bluetooth 4.1 in a2dp profile and AVRCP supports the formats up to the HD APTX. The Toslink entrance deals 16 and 24 bits from 32 to 96 kHz, the Coaxial S / PDIF goes up to 192 kHz. The chassis measures 460 mm wide, 405 mm deep and 150 mm high, for a mass of 24.4 kg.

Gray = Lunar Gray

Reference 60313

Data sheet
