Yamaha A-S2200 stereo integrated amplifier, 90 watts per channel into 8 ohms. 625 VA toroidal transformer, MM and MC phono stage, MAIN IN input.

Color : Black

Gray
Black

Quantity

Add to wishlist

Supplier stock

Description
Product Details

Amplifier on a low sideboard, speakers and a turntable around it

Power and Control

The A-S2200 delivers 90 watts per channel into 8 ohms and 150 watts into 4 ohms, at 0.07 per cent distortion. Maximum power reaches 160 watts per channel into 4 ohms. Damping factor holds at 250 or more at 1 kHz.

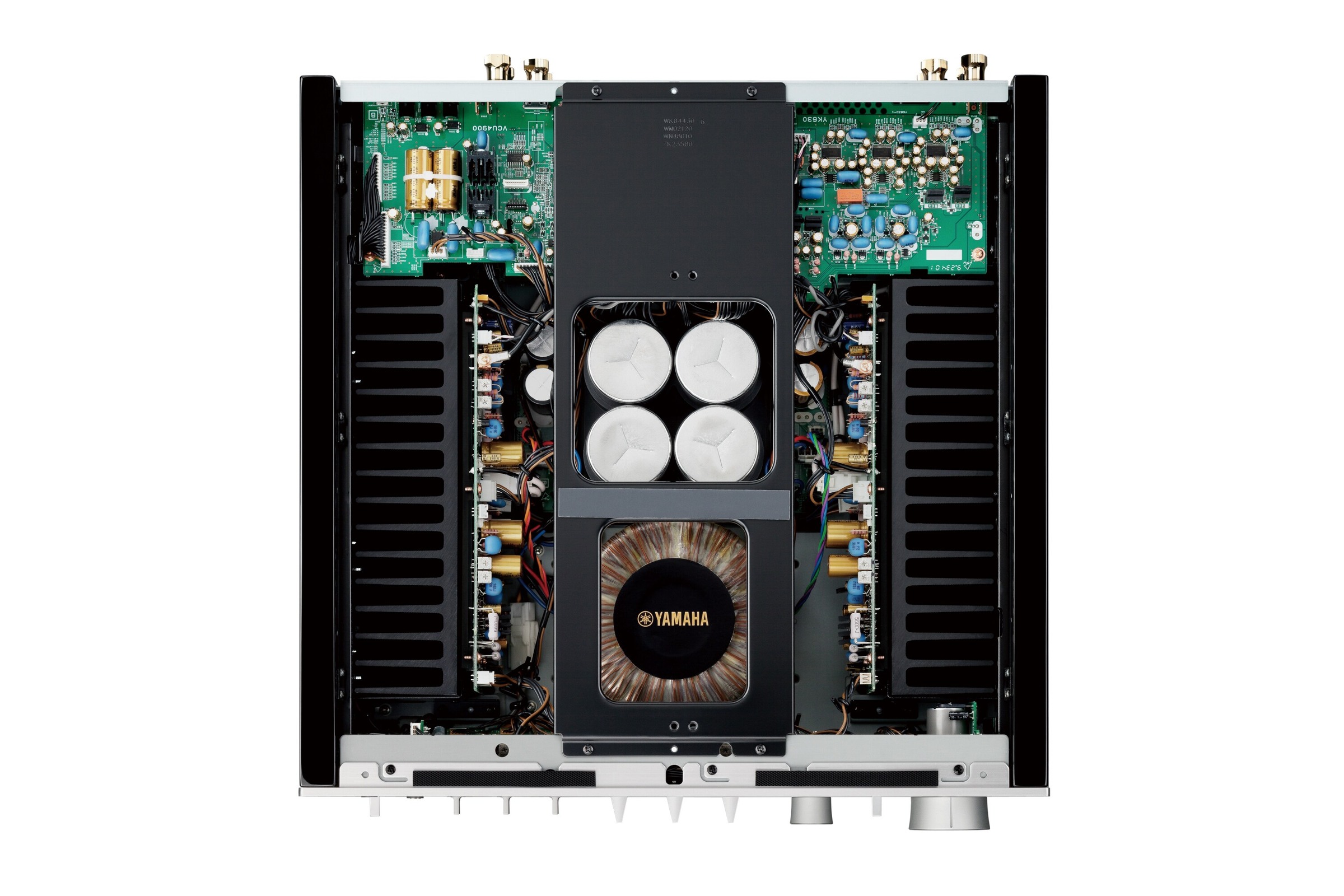

Inside view of the chassis, transformer, capacitors and boards

Toroidal Transformer

The power supply rests on a 625 volt-ampere toroidal transformer. Dynamic power rises to 105 à 220 watts depending on the load, from 8 down to 2 ohms. The unit weighs 22,7 kilos and measures 435 by 157 by 463 millimetres.

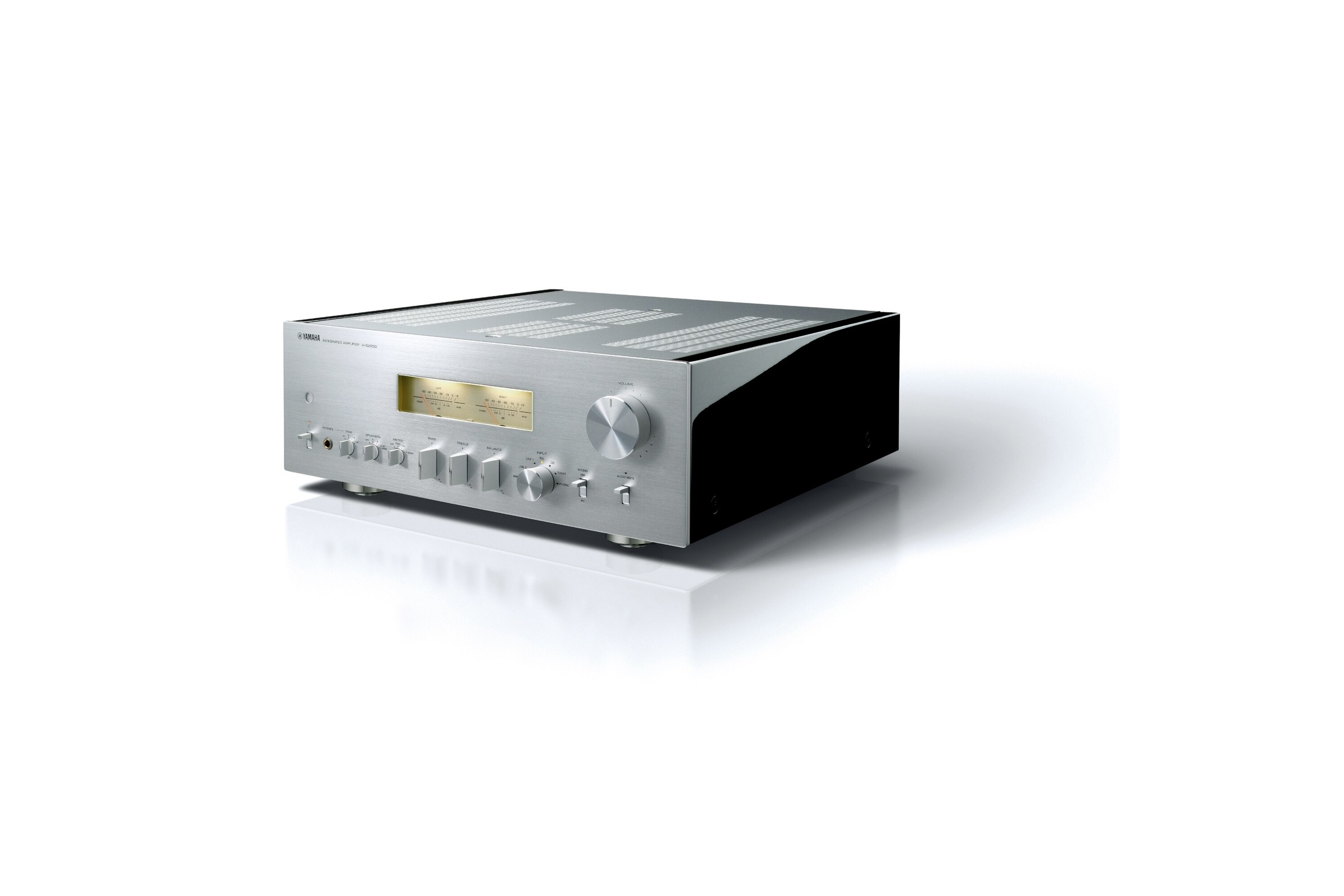

Unit in silver seen at three quarters on a white background

MM and MC Phono Input

The phono stage takes moving-magnet and moving-coil cartridges. RIAA equalisation holds within plus or minus 0.5 dB. Signal-to-noise ratio reaches 96 dB with moving magnet and 90 dB with moving coil.

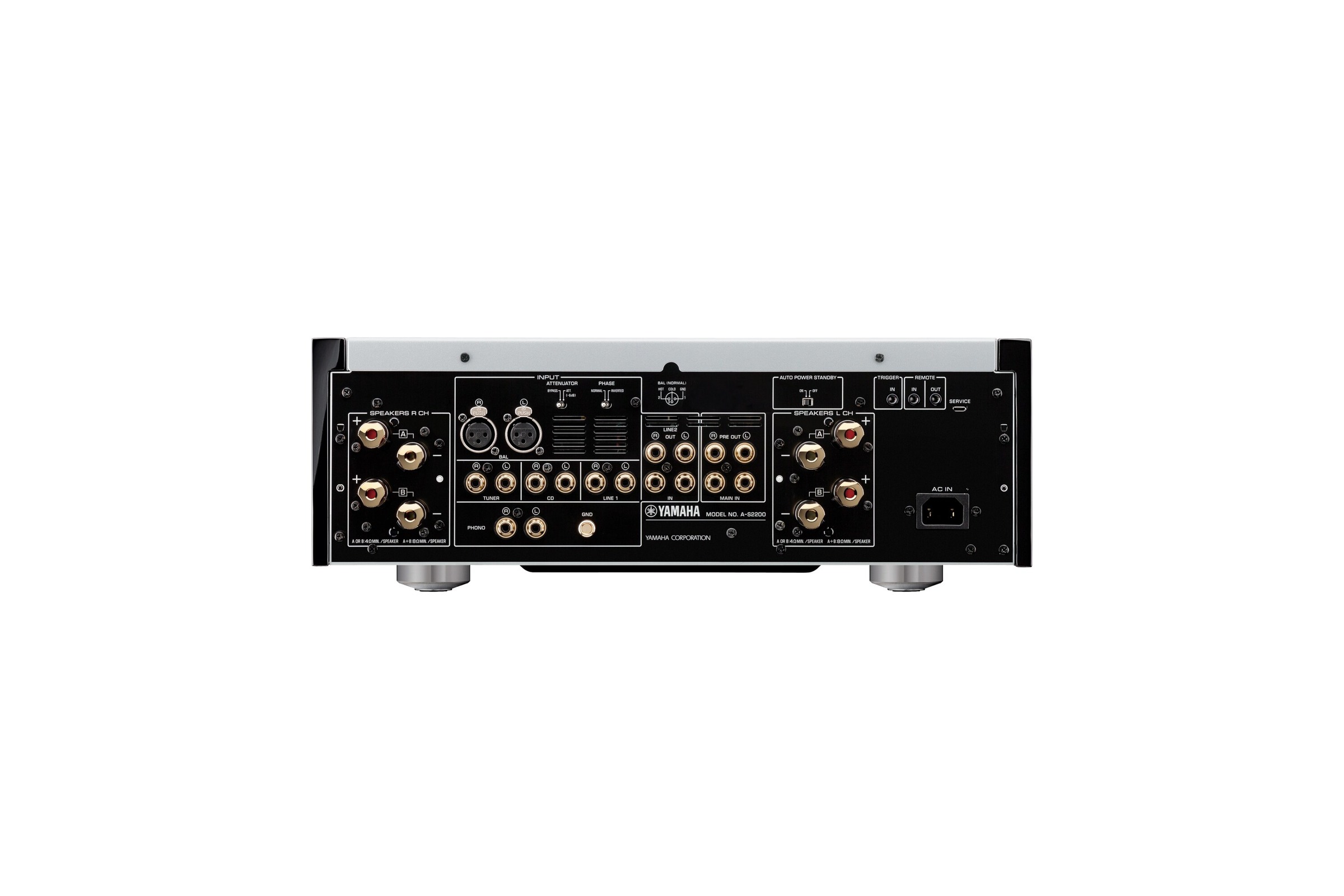

Rear panel, terminals and input and output connectors

Rear Connections

Frequency response covers 5 Hz to 100 kHz within plus 0 to minus 3 dB. On the line-level inputs, signal-to-noise ratio reaches 110 dB. The balanced input raises that figure to 114 dB. A MAIN IN input gives direct access to the power stage.

Reference 63663

Data sheet

Product Type: Integrated amplifier
Number of channels: 2
Analog inputs: RCA, XLR and MAIN IN
Output power: 90 W + 90 W (8 ohms, 0.07% THD)
105 / 135 / 190 / 220 W (8/6/4/2 ohms, dynamic)
150 W + 150 W (4 ohms, 0.07% THD)
160 W + 160 W (4 ohms, 1 kHz)
Phono inputs: 1 (MM and MC)
Color: Black
Silver
Technology: 625 VA toroidal transformer
Signal-to-noise ratio: 110 dB (CD), 96 dB (MM phono), 90 dB (MC phono), 114 dB (XLR)
Frequency response: plus 0 / minus 3 dB (5 Hz - 100 kHz)
Distortion (THD): 0.035% (50 W into 8 ohms)
Width: 43.5 cm
Depth: 46,3 cm
Height: 15.7 cm
Unit weight: 22,7 kg
