Yamaha M-5000 | Stereo Power Amplifier | 5 Year Warranty

63672
CHF8,699.00
Supplier stock – typically 4 to 7 days
Yamaha M-5000 stereo power amplifier, 100 watts per channel into 8 ohms. RCA and XLR inputs, damping factor of 300 or more.
Color : Gray
Quantity
Add to wishlist
Supplier stock

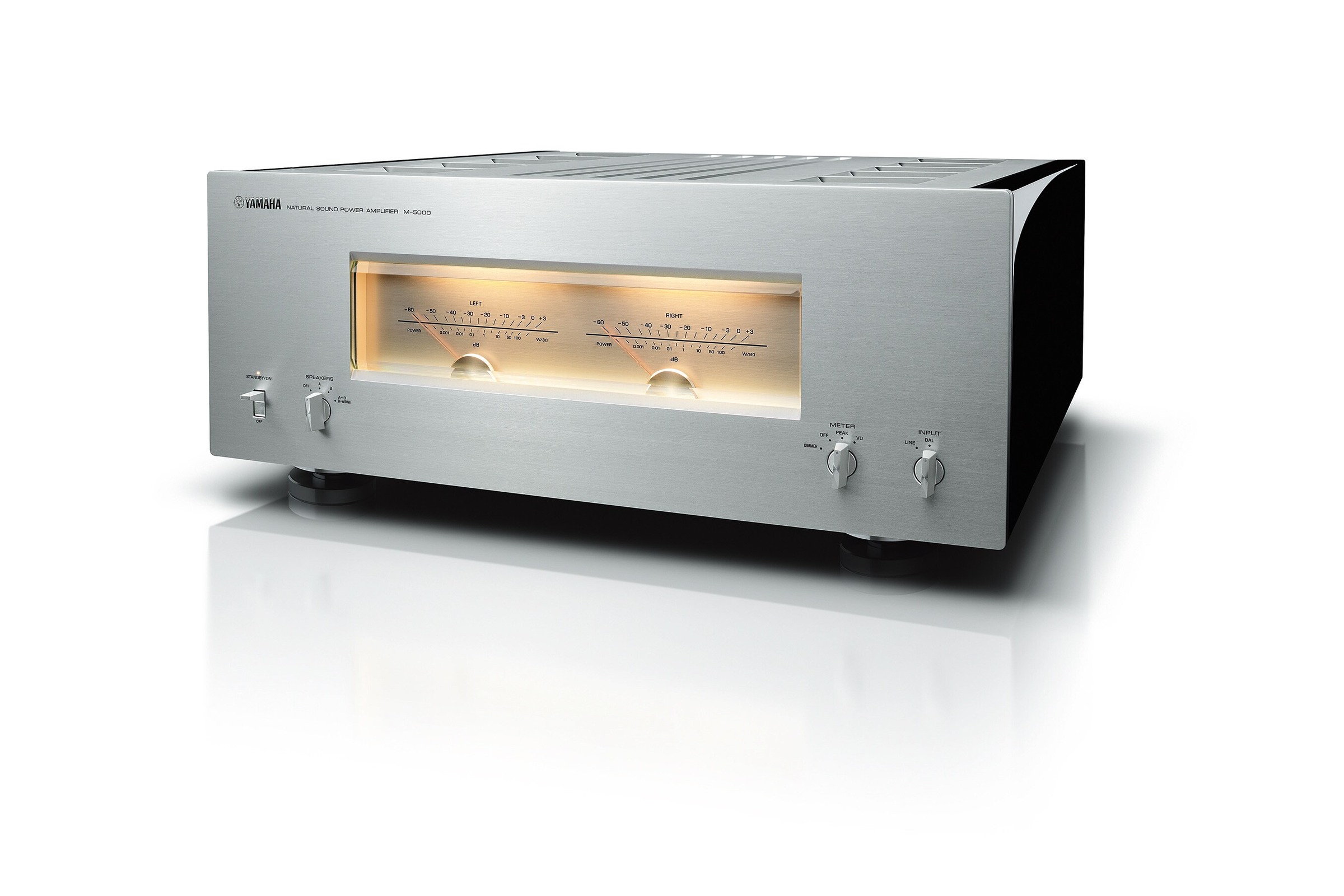

Unit in silver seen at three quarters on a white background

One Hundred Watts per Channel

The M-5000 delivers 100 watts per channel into 8 ohms, from 20 Hz to 20 kHz at 0.07 per cent distortion. Maximum power reaches 220 watts per channel into 4 ohms. Damping factor holds at 300 or more into 8 ohms.

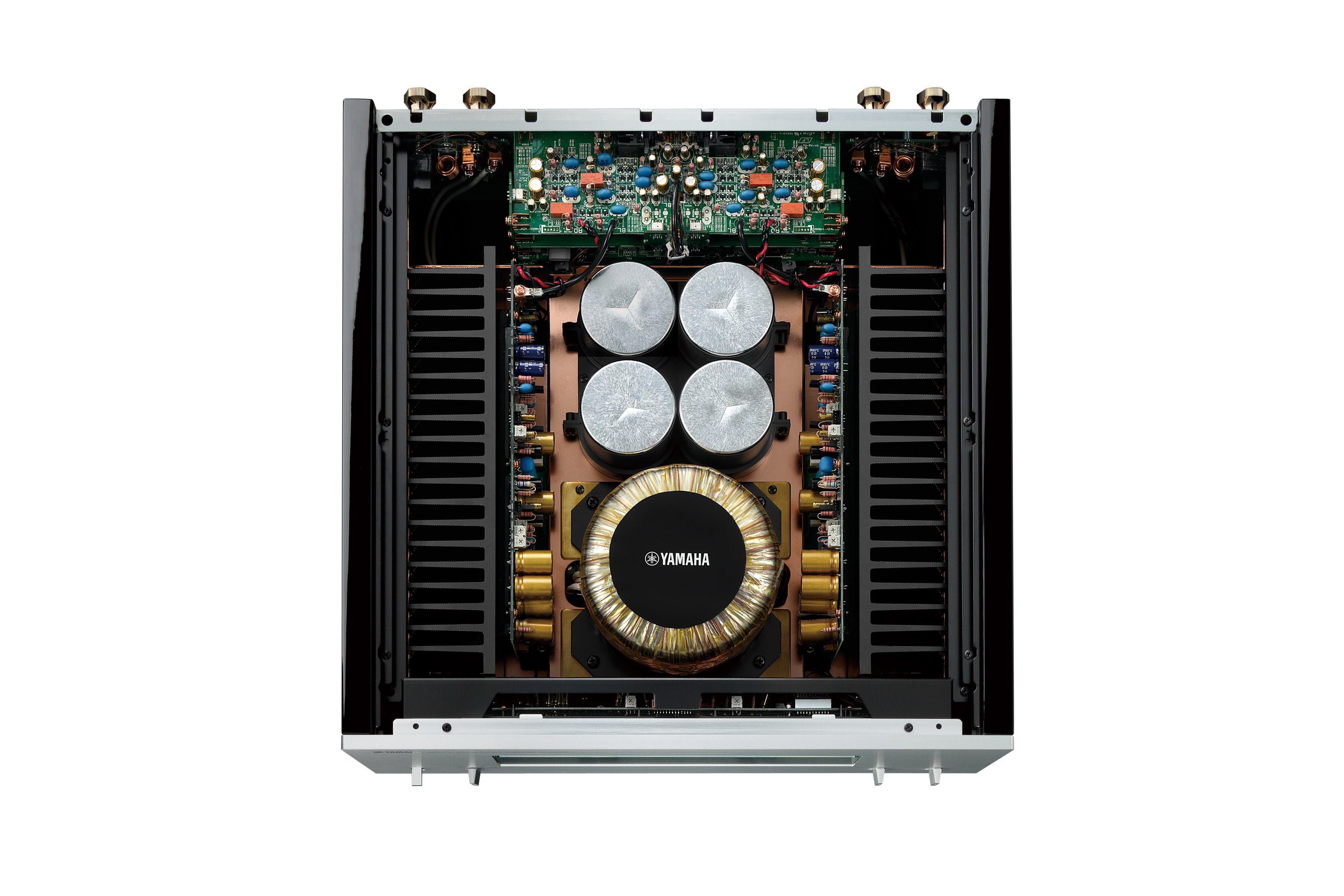

Inside view of the chassis, transformer, capacitors and boards

Power Supply and Chassis

The unit draws 400 watts in use and up to 800 watts at peak. Standby is limited to 0.2 watt, off mode to 0.1 watt. The chassis measures 435 by 180 by 464 millimetres and weighs 26.9 kilos.

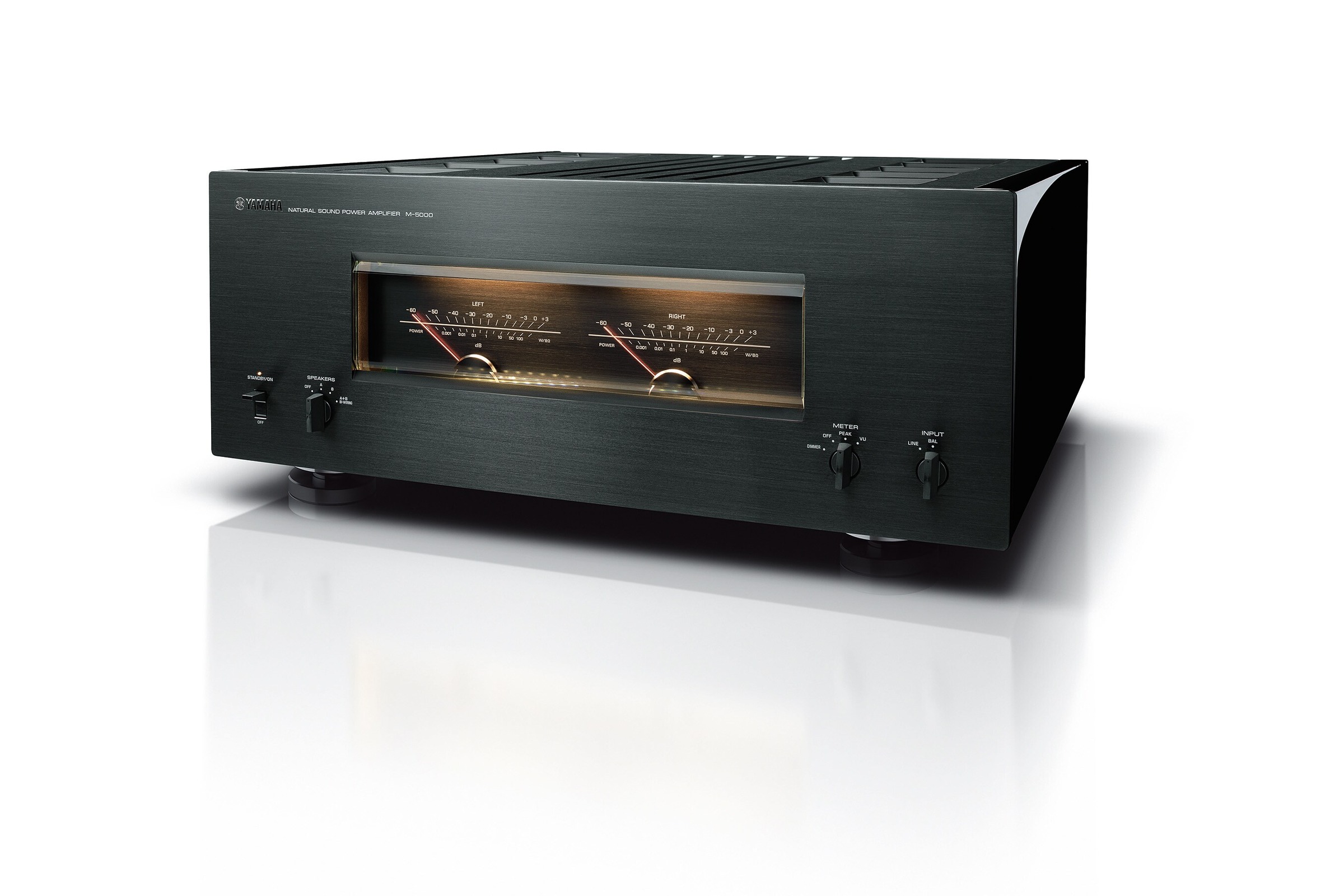

The same unit in black, top plate and front panel visible

Dynamic Reserve

Dynamic power rises to 125 watts into 8 ohms, 170 watts into 6 ohms and 250 watts into 4 ohms. Dynamic headroom stands at 0.97 dB into 8 ohms. Power bandwidth runs from 10 Hz to 50 kHz.

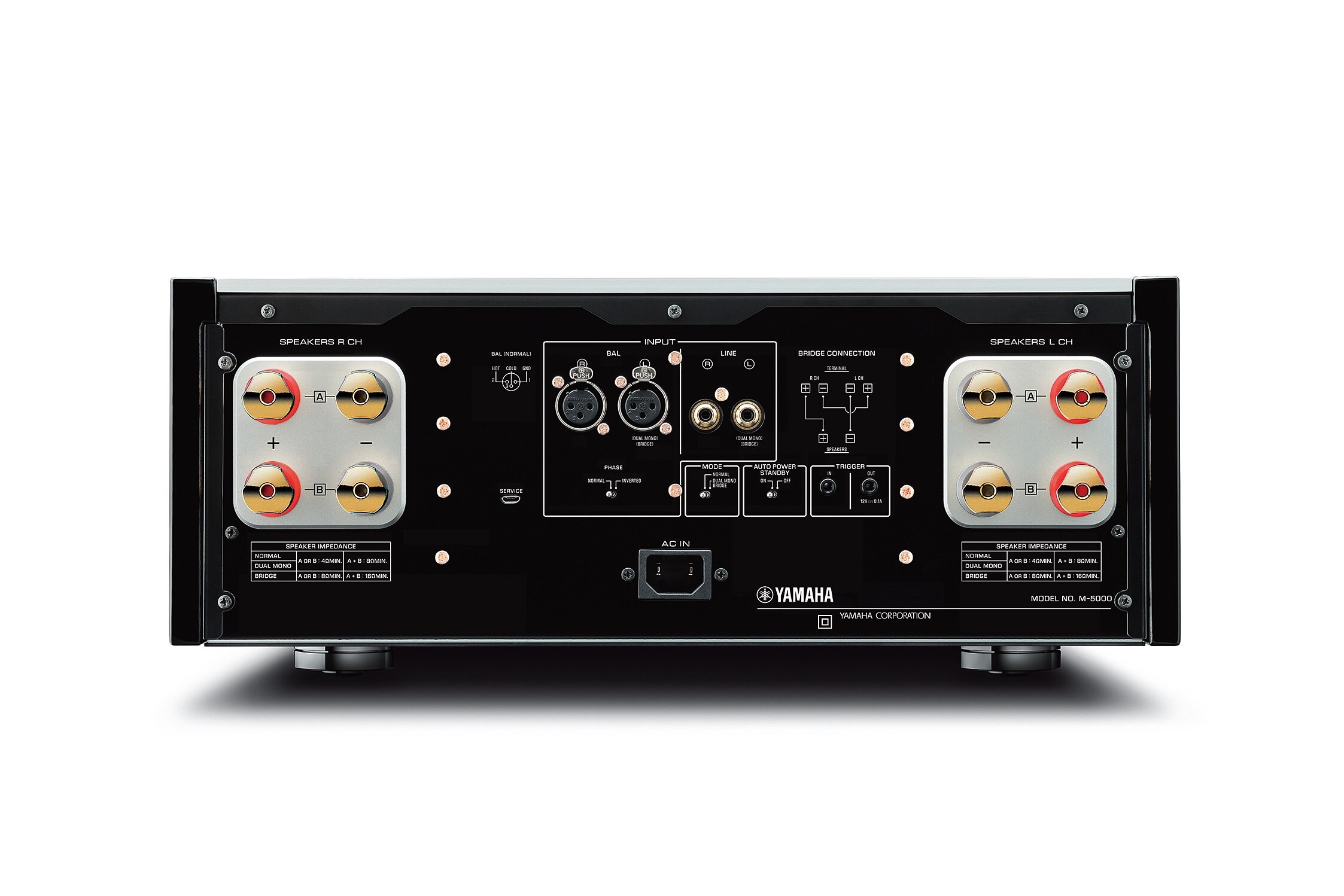

Rear panel, terminals and input and output connectors

Balanced Connection

One RCA input and one balanced XLR input take the preamplifier. A trigger input and output tie the unit to the rest of the system. Signal-to-noise ratio reaches 110 dB and residual noise 40 microvolts on the balanced input.

63672

Data sheet

Product Type
Power Amplifier
Features
Auto Standby
Number of channels
2
Analog inputs
1 RCA, 1 XLR
Output power
100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.07% THD)
125 W / 170 W / 250 W (8/6/4 ohms, dynamic)
220 W + 220 W (4 ohms, 1 kHz)
Color
Black
Silver
Signal-to-noise ratio
110 dB (IHF-A)
Power consumption
0.2 W standby
400 W
800 W maximum
Frequency response
plus 0 / minus 3 dB (5 Hz - 100 kHz)
Séparation des canaux
90 dB or more (1 kHz)
Distortion (THD)
0.035% (50 W into 8 ohms, 20 Hz - 20 kHz)
Width
43.5 cm
Depth
46,4 cm
Height
18,0 cm
Unit weight
26,9 kg

Specific References

UPC
63671
EAN13
4957812637671
