IsoTek EVO3 Mini Mira CH | Audio-video mains filter, Swiss outlets

54208
CHF361.00 Tax included
24‑hour delivery
IsoTek EVO3 Mini Mira mains filter, Swiss version, for audio-video systems. Its two outlets are filtered separately and the Triple Resonance Filter circuit targets screens.
Quantity
Add to wishlist
Last items in stock

IsoTek EVO3 Mini Mira CH seen from the front, IEC C14 inlet

Dual filtering circuits

The Mini Mira treats mains noise in both common and differential mode through two separate circuits. Radio-frequency interference is reduced by 30 dB on the audio side and 40 dB on the video side. Internal wiring is multi-strand 6n silver-plated OFC copper with an FEP dielectric, on a fully star-earthed network.

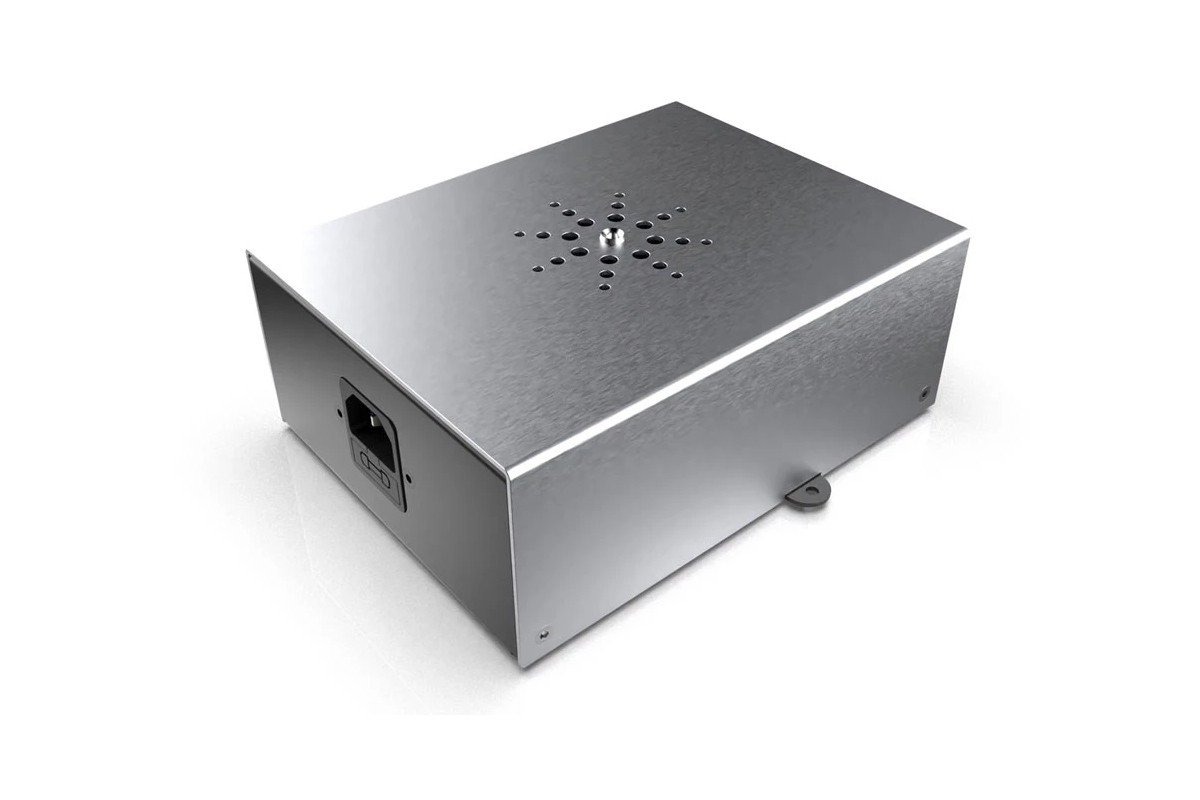

Compact aluminium housing seen at three-quarters

A compact housing, two Swiss outlets

Both Swiss outlets are filtered on their own, which stops one device from contaminating the other in differential mode. The Triple Resonance Filter circuit targets screens — LCD, LED, OLED, QLED, plasma — and remains compatible with projectors. The 130 x 65 x 170 mm housing can be wall-mounted, takes a standard IEC C13 cable and delivers up to 2 300 W at 230 V, under 22 500 A of instantaneous protection.

54208

Data sheet

Product Type
Mains Filter
Width
13 cm
Depth
17 cm
Height
6.5 cm
Unit weight
0.9 kg

Specific References

EAN13
5060296411350
