Cardas Nautilus PowerStrip 20 amp IEC | Mains power strip, 6 outlets, 20 A inlet

70320
CHF2,590.00 Tax included
24‑hour delivery
The Cardas Nautilus PowerStrip 20 amp IEC is a mains power strip with six filtered outlets, fitted with the 20 A IEC inlet Cardas offers as an option. Its point-to-point solid copper wiring feeds the whole system from a single housing.
Quantity
Add to wishlist
In stock

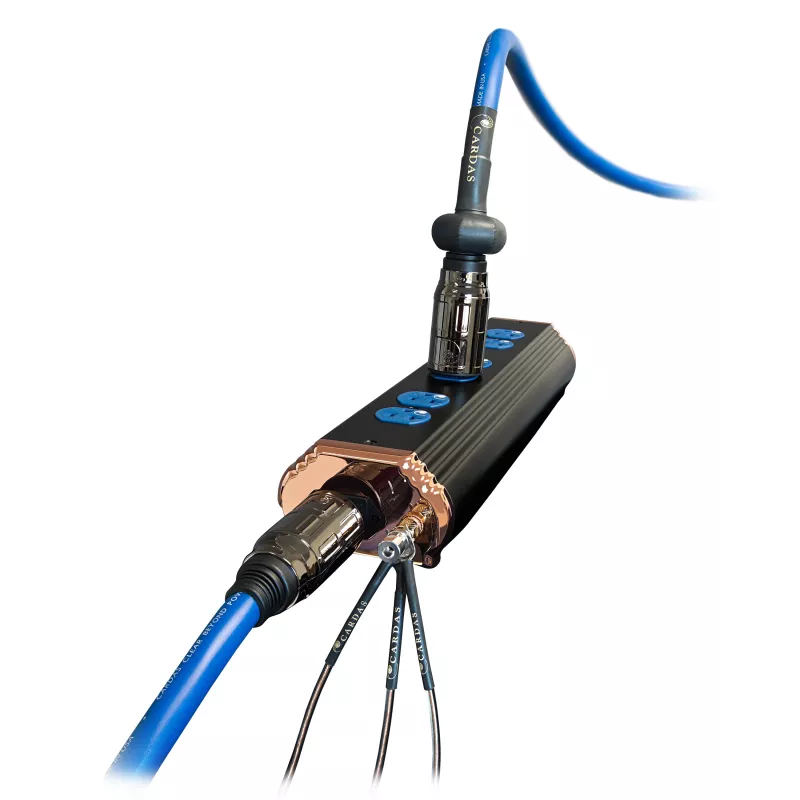

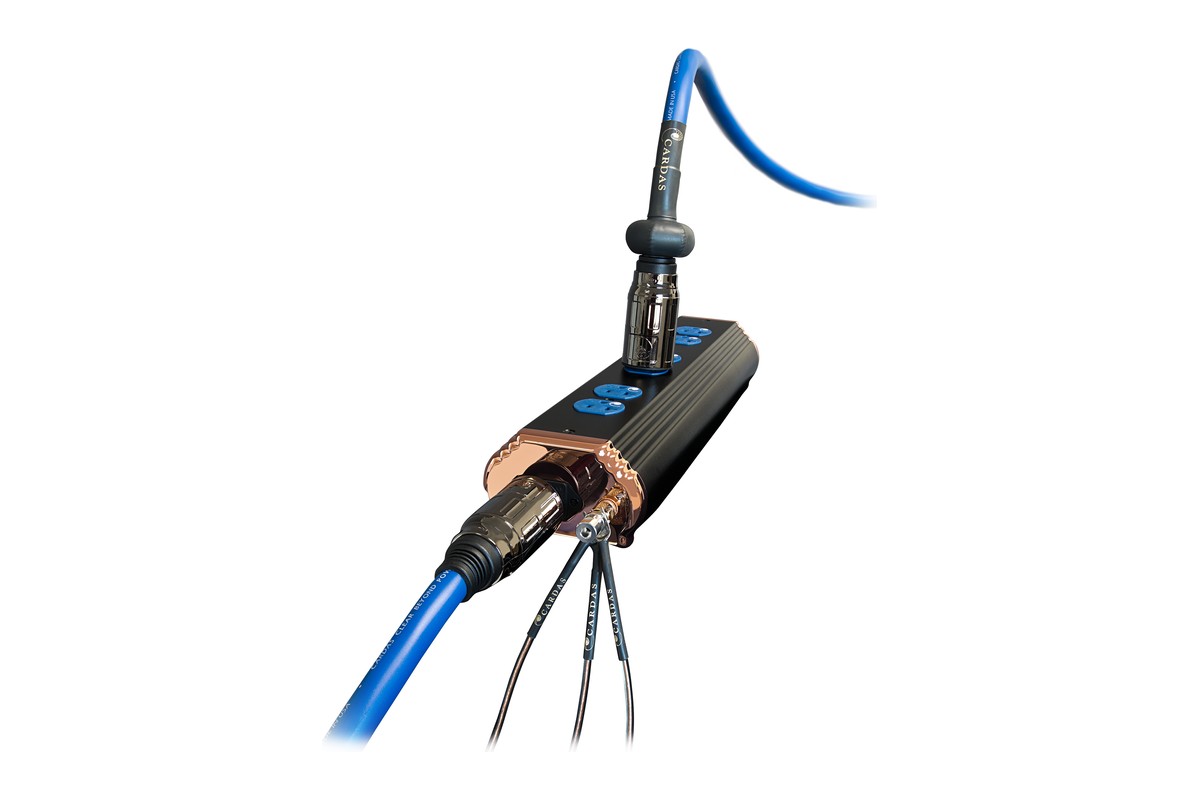

Blue power cord plugged into the Nautilus IEC inlet, with three ground cables

20 A IEC inlet

This model replaces the standard 15 A IEC input of the Nautilus with a 20 A IEC inlet, offered as an option by Cardas. It connects with a power cord fitted with a 20 A IEC plug. Next to the inlet, a 4 mm banana socket takes Cardas ground cables, sold separately.

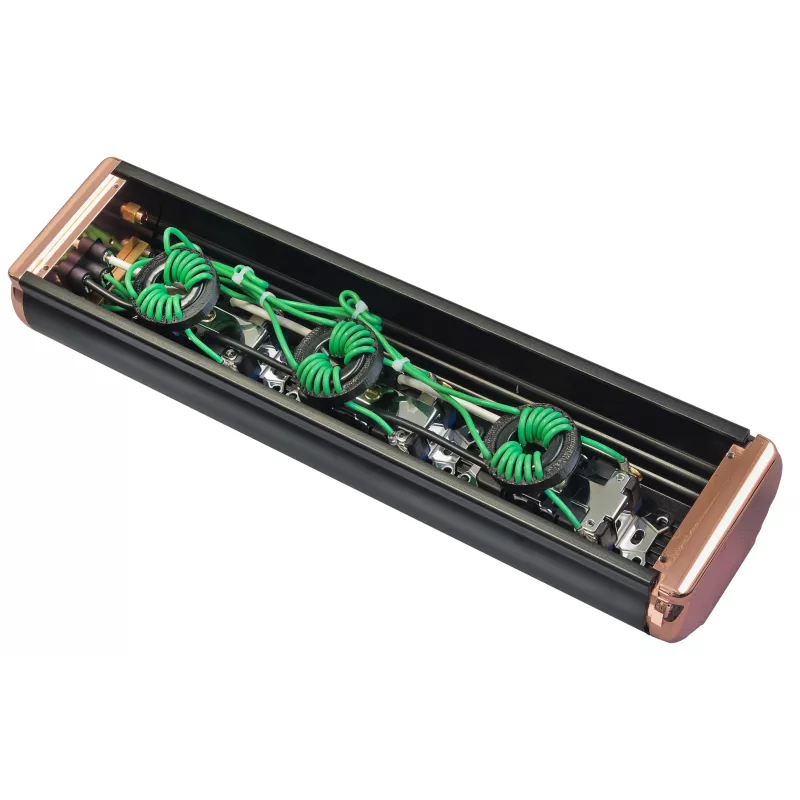

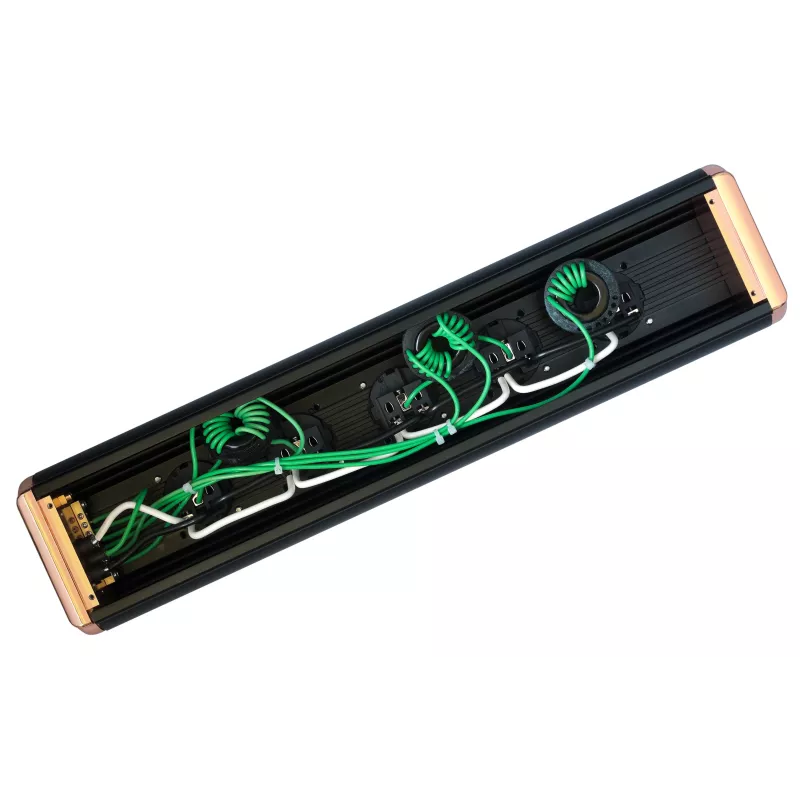

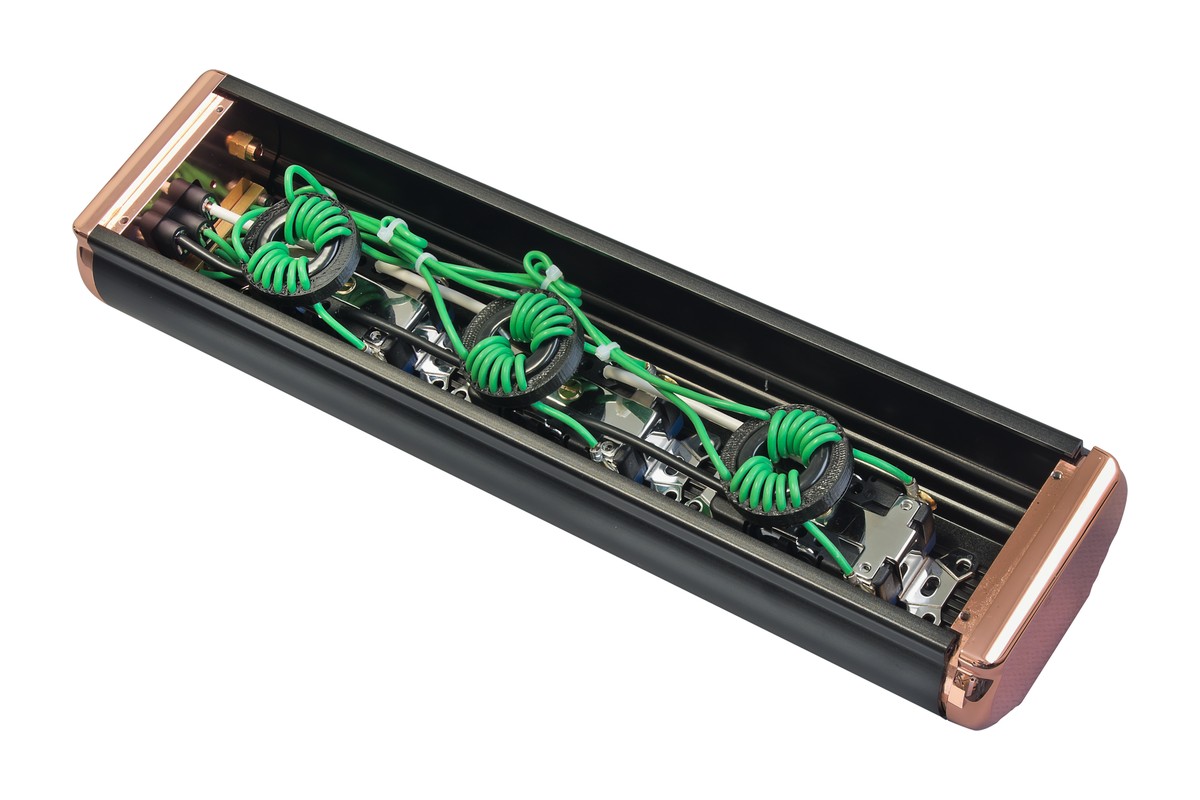

Nautilus opened up: point-to-point solid copper wiring and green toroidal filters

One filter per outlet

Opened up, the Nautilus shows its six outlets linked point to point by Grade 1 solid copper, 99.9999% pure. Each outlet has its own passive RFI/EMI filter, taken from the most elaborate Cardas power cables.

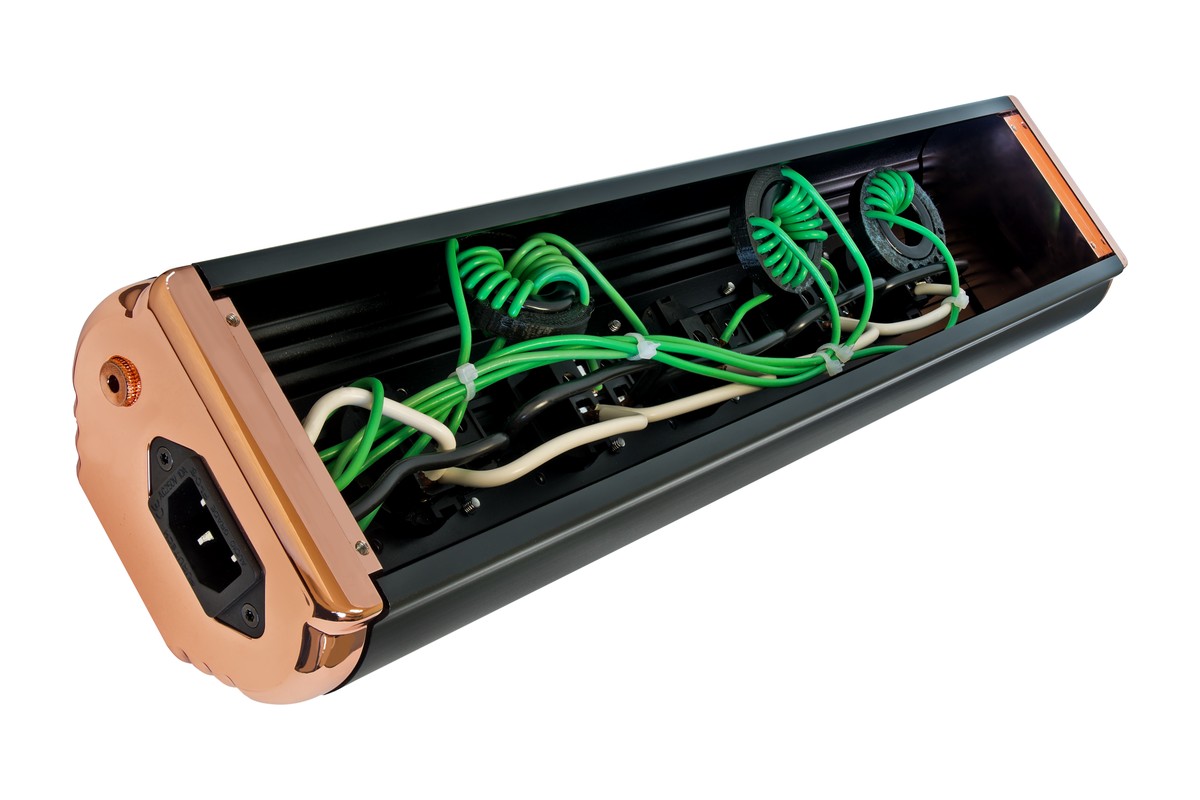

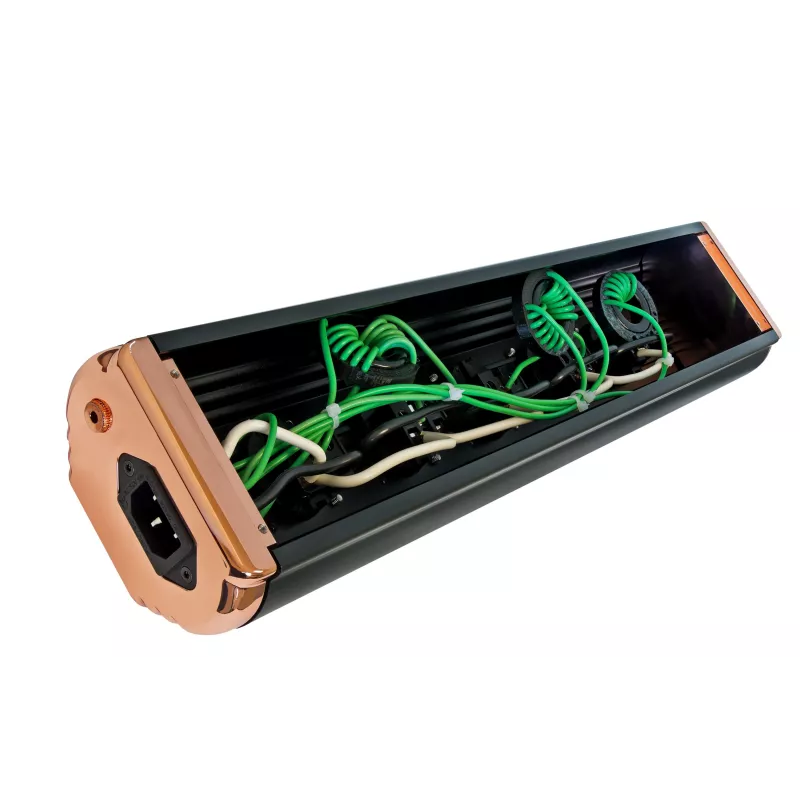

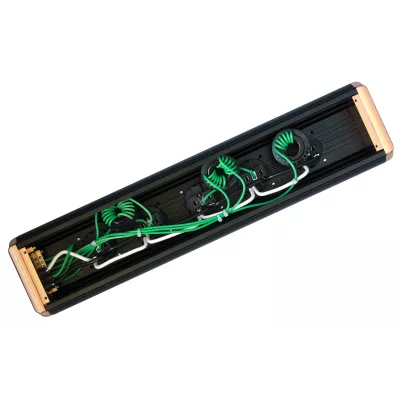

European Nautilus opened up: green and white wiring behind the IEC inlet

Wiring behind the inlet

Behind the input inlet, the ground conductor follows golden-ratio proportions, in a Cross-field geometry under a PFA jacket. 3D-printed guides give every turn the same shape.

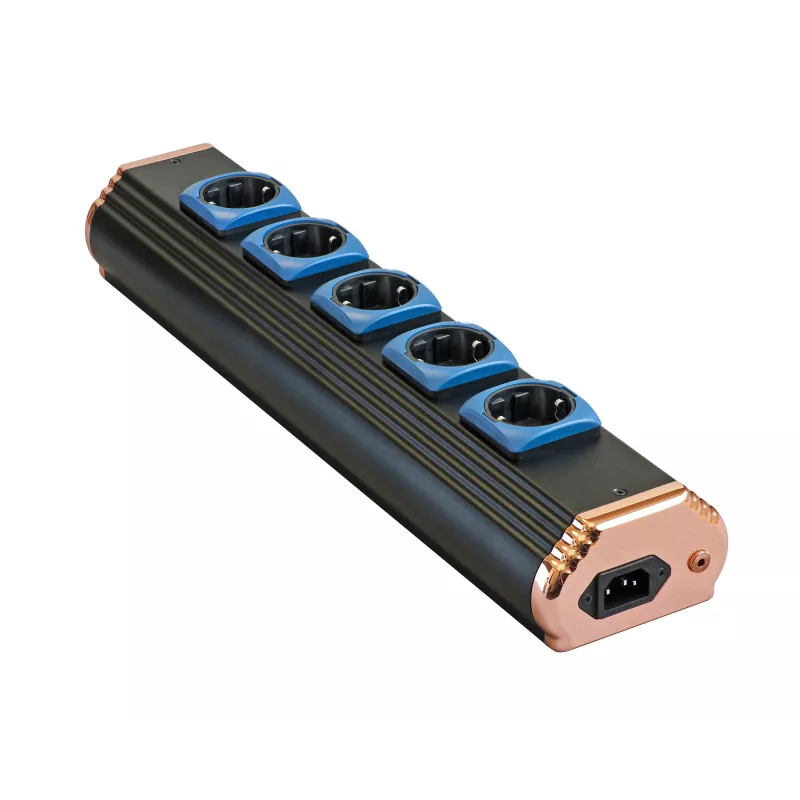

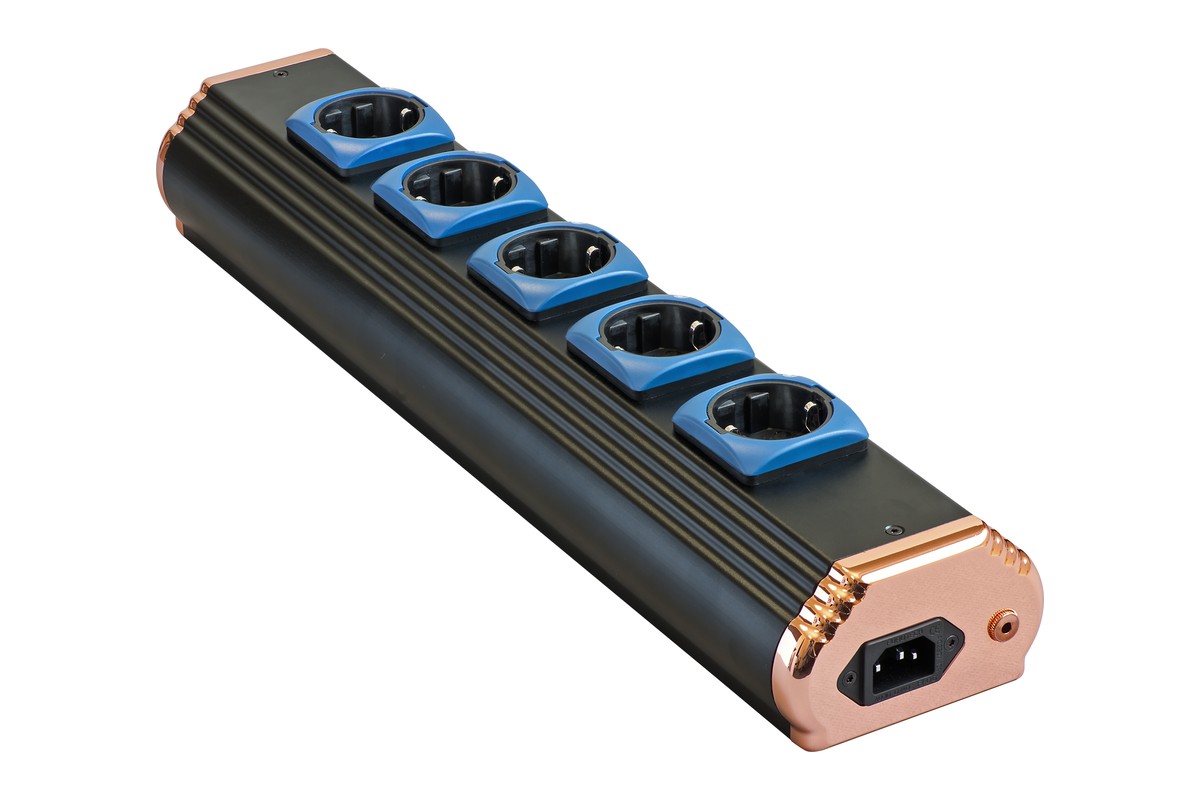

Cardas Nautilus power strip, European version: black housing, blue Schuko outlets and copper-coloured IEC inlet

One-kilogram ground plate

A one-kilogram copper ground plate is built into the extruded, resonance-damped aluminium housing, closed by copper-plated brass end caps. Assembly is done by hand in Bandon, Oregon.

70320

Data sheet

Product Type
Power Strip
Features
RFI/EMI filter
Brand
Cardas
Technology
Solid core Grade 1, 99.9999% pure oxygen free copper, extruded PVC insulation. Ground conductor Grade 1, 99.9999% pure oxygen free copper, gauges scaled to Golden Ratio. Cross-field layer geometry, PFA jacket.
Series
Nautilus Power Strip
Connections
20 amp IEC inlet (option; the standard model is 15 amp IEC)
Connector

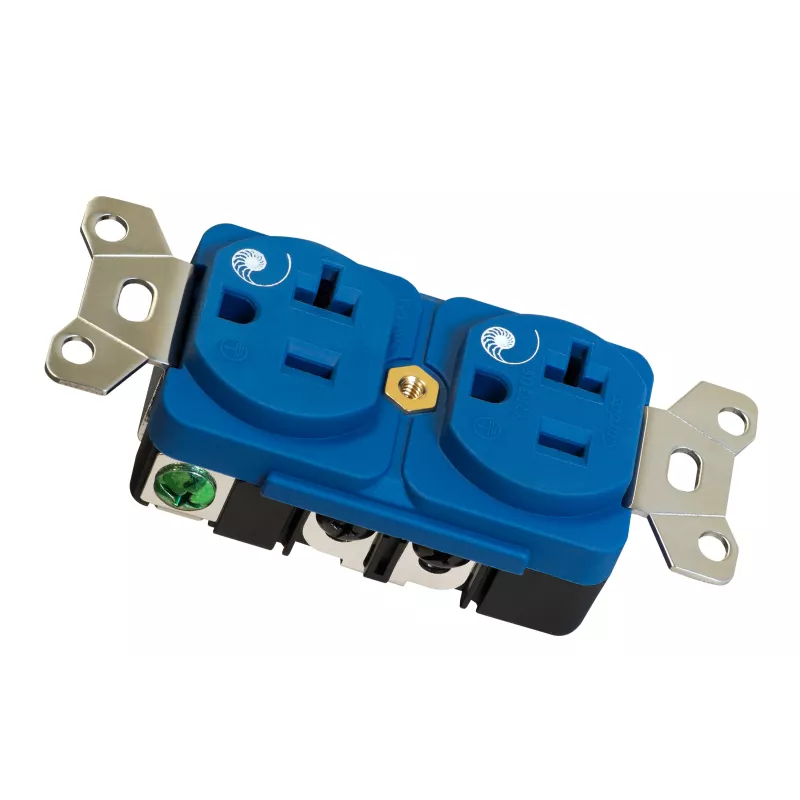

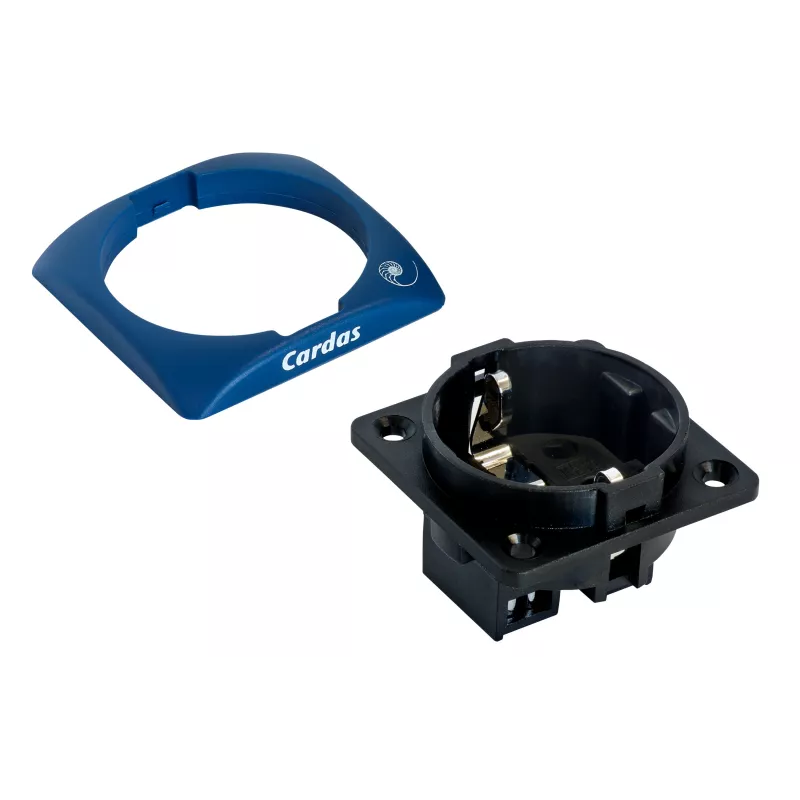

6 outlets, Cardas 4181US (US) / 4181EU (Euro) premium power outlets
Width
47.6 cm
Depth
10.5 cm
Height
7.7 cm
Unit weight
3.5 kg

Specific References

UPC
70320
