Cardas Nautilus PowerStrip 15 amp IEC | Mains power strip, 6 filtered outlets

70319
CHF2,390.00 Tax included
24‑hour delivery
The Cardas Nautilus PowerStrip 15 amp IEC is a mains power strip with six outlets, each with its own passive RFI/EMI filter. Wired point to point in solid copper, it feeds the whole system from a single 15 A IEC inlet.
Quantity
Add to wishlist
In stock

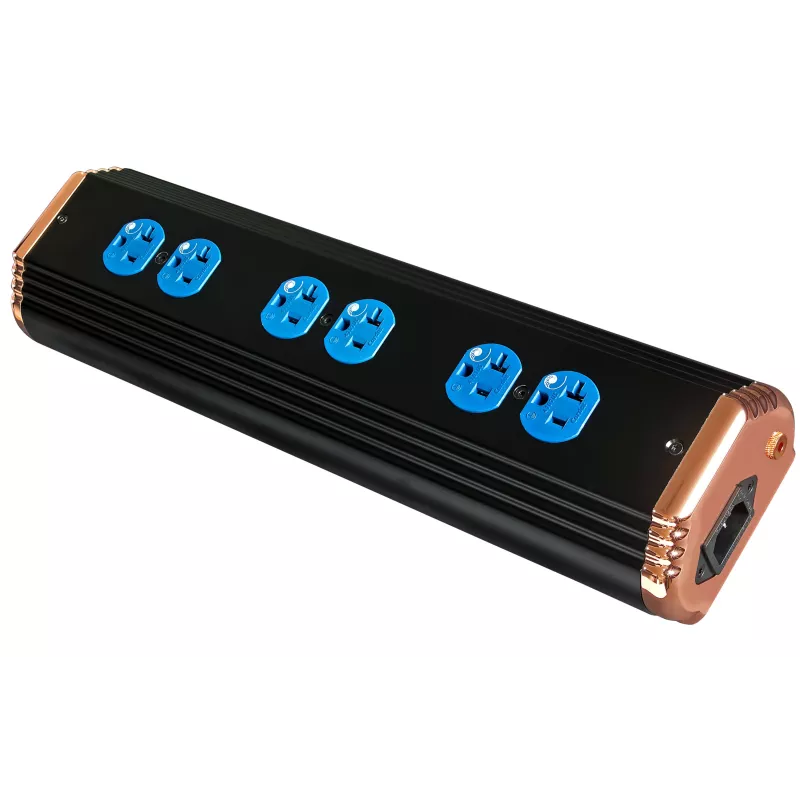

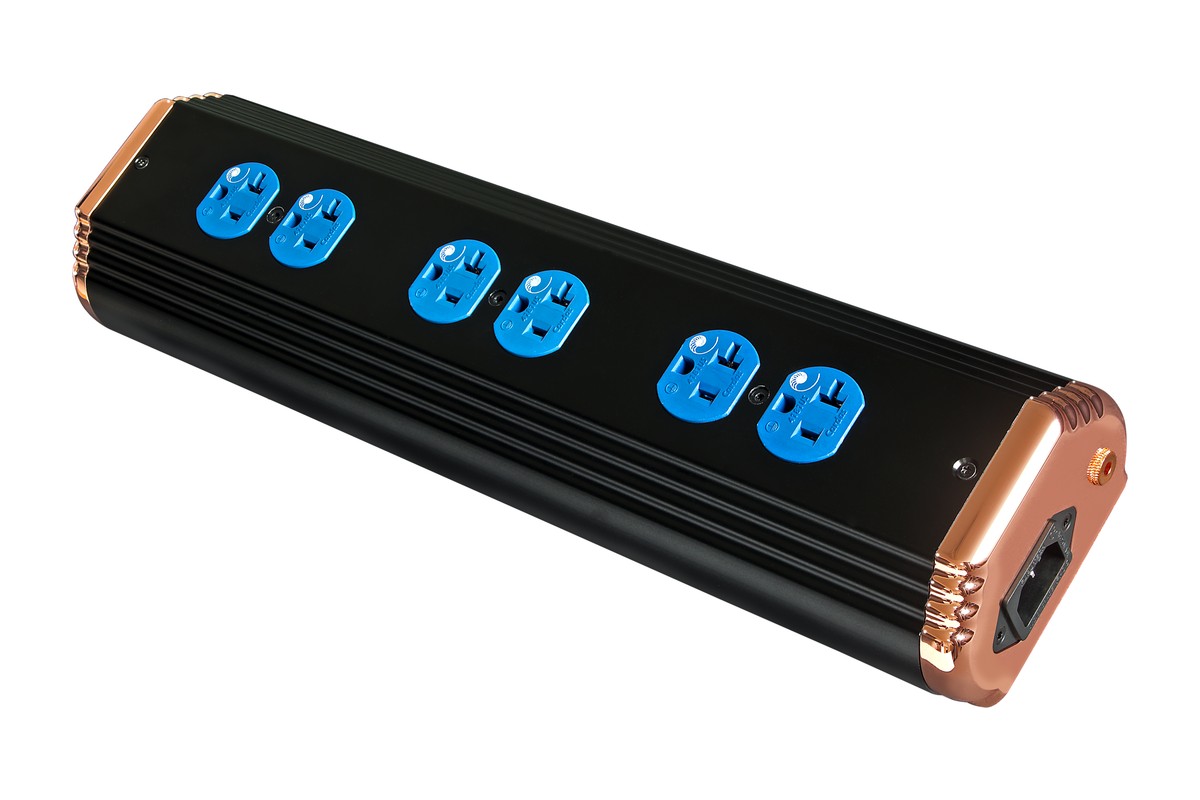

Cardas Nautilus power strip, US version: black housing, six blue outlets and copper-coloured IEC inlet

Six outlets in one housing

The Nautilus PowerStrip brings six Cardas outlets together in a single housing, so the whole system plugs in at one point. Each outlet has its own passive RFI/EMI filter, the same one Cardas fits to its most elaborate power cables.

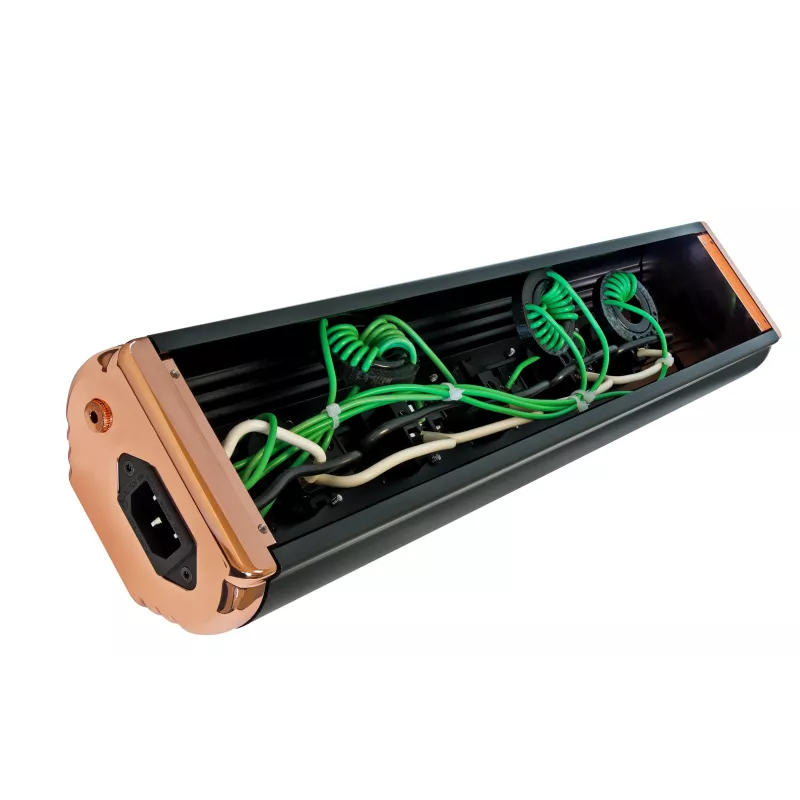

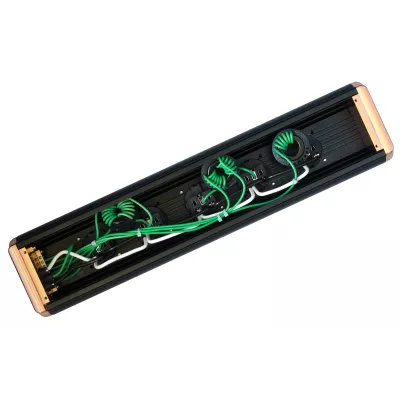

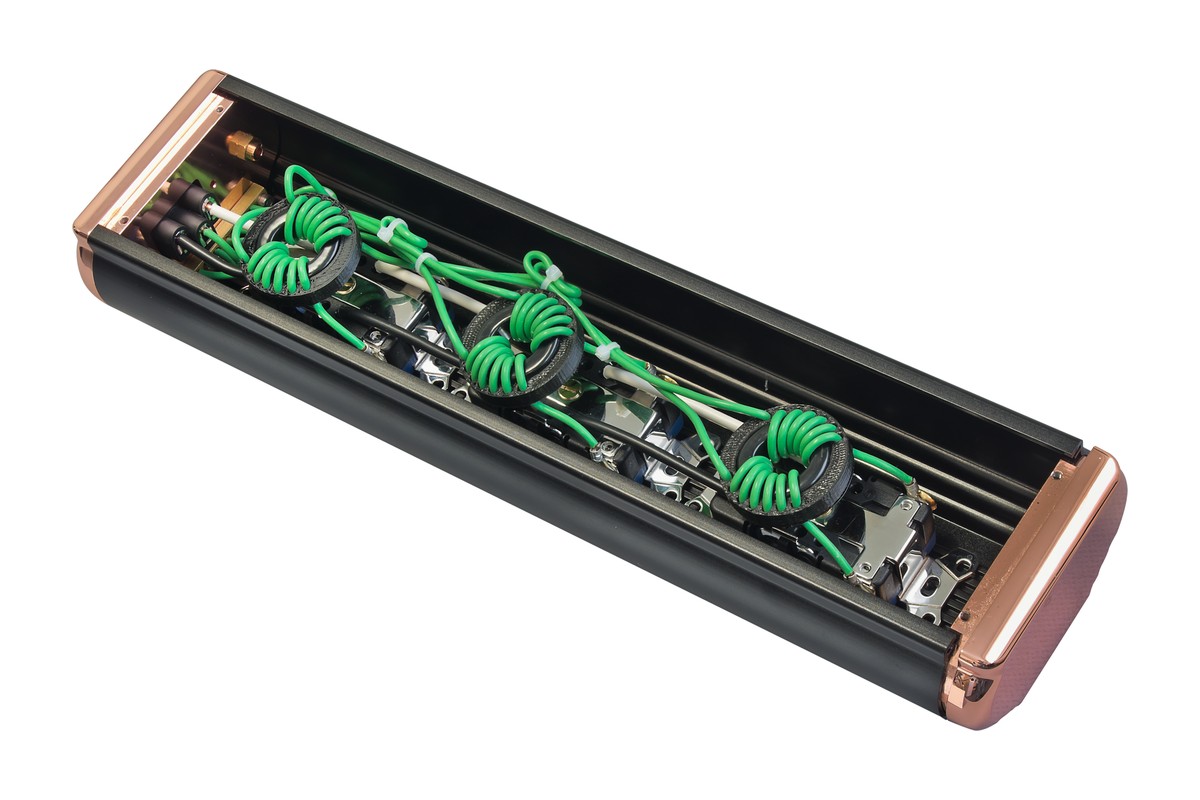

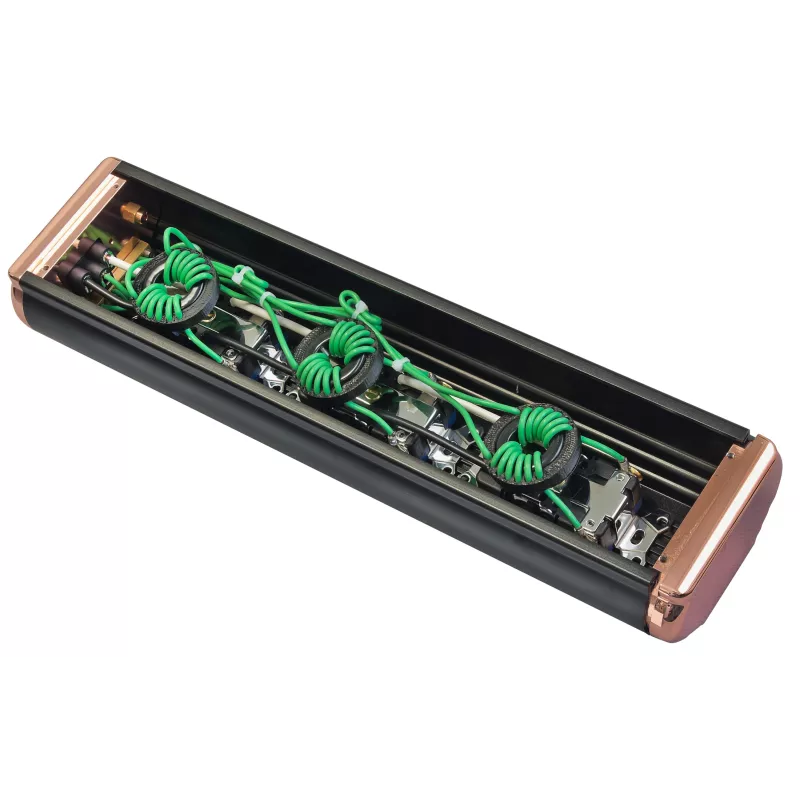

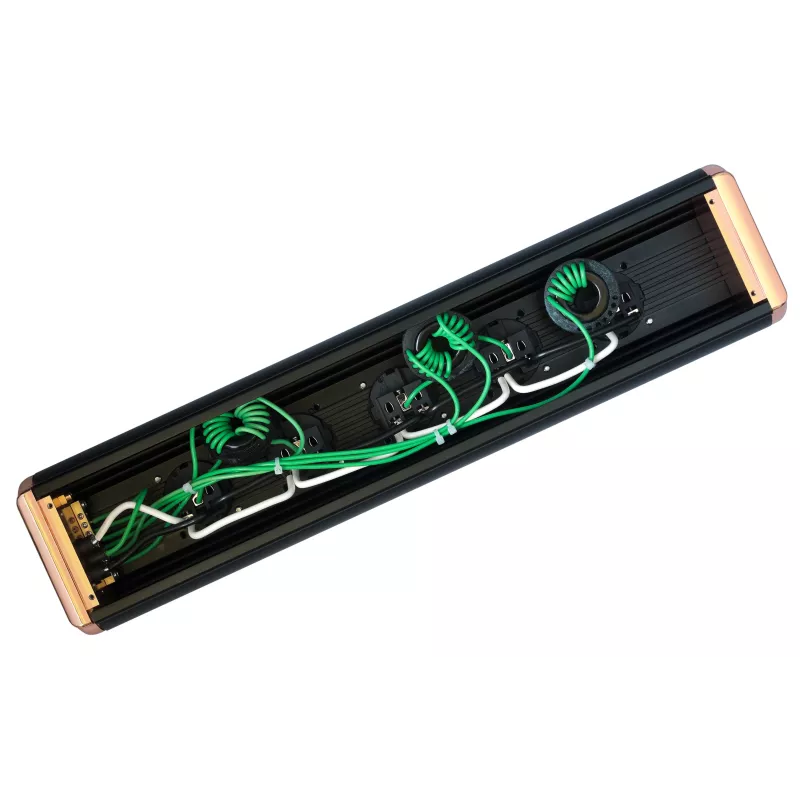

Nautilus opened up: point-to-point solid copper wiring and green toroidal filters

Point-to-point wiring

With the housing open, the wiring is visible: the outlets are linked point to point by heavy-gauge solid copper conductors, 99.9999% pure. The ground conductor follows golden-ratio proportions, in a Cross-field geometry under a PFA jacket. 3D-printed guides give every turn the same shape.

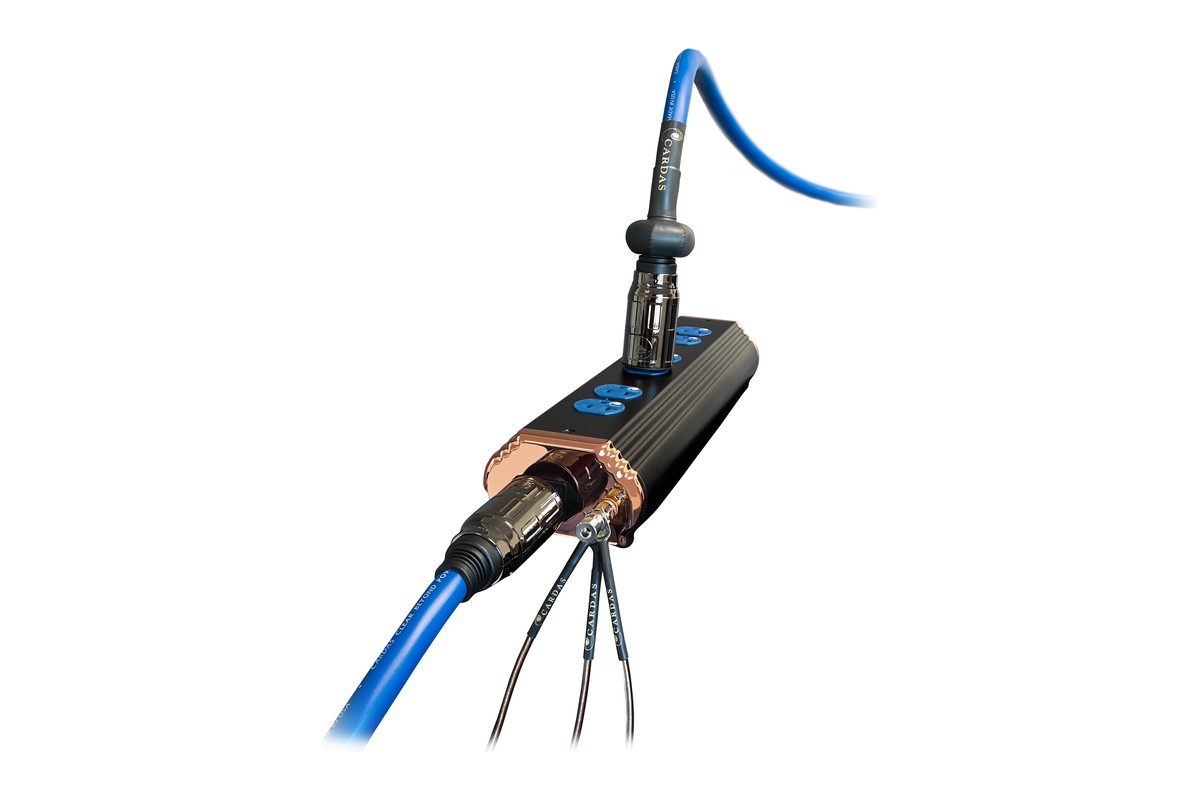

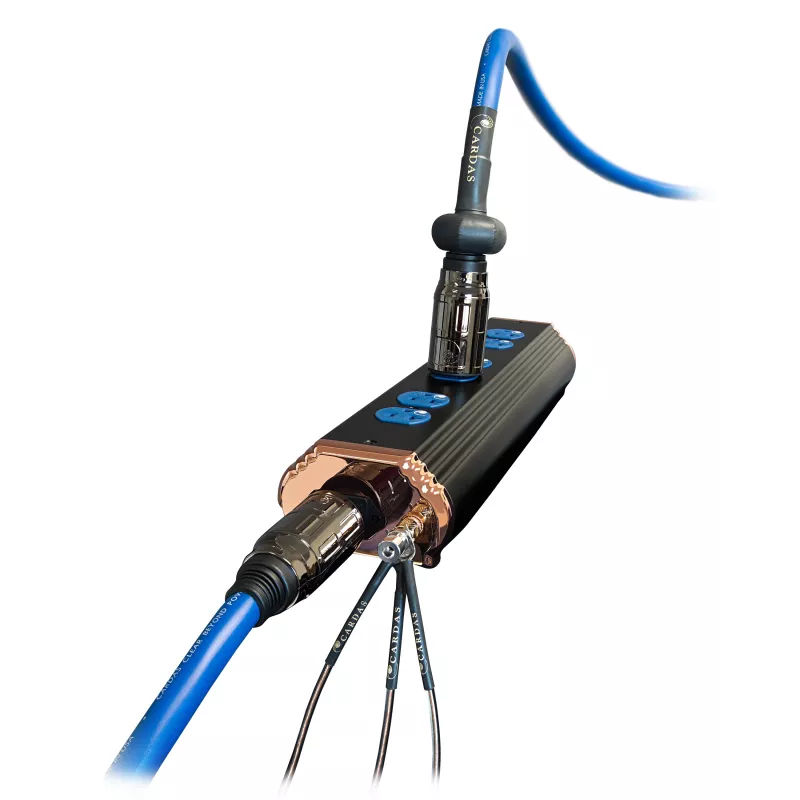

Blue power cord plugged into the Nautilus IEC inlet, with three ground cables

15 A IEC inlet

This version receives power through a 15 A IEC inlet, the standard input of the Nautilus. A 4 mm banana socket next to the inlet takes Cardas ground cables, sold separately. The high current is distributed cleanly to the six outlets.

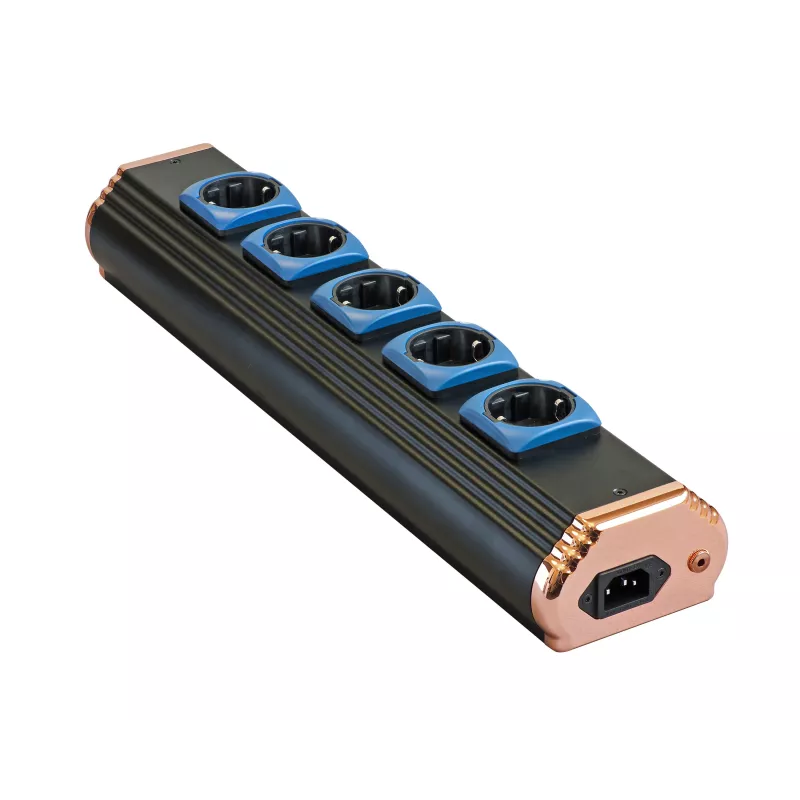

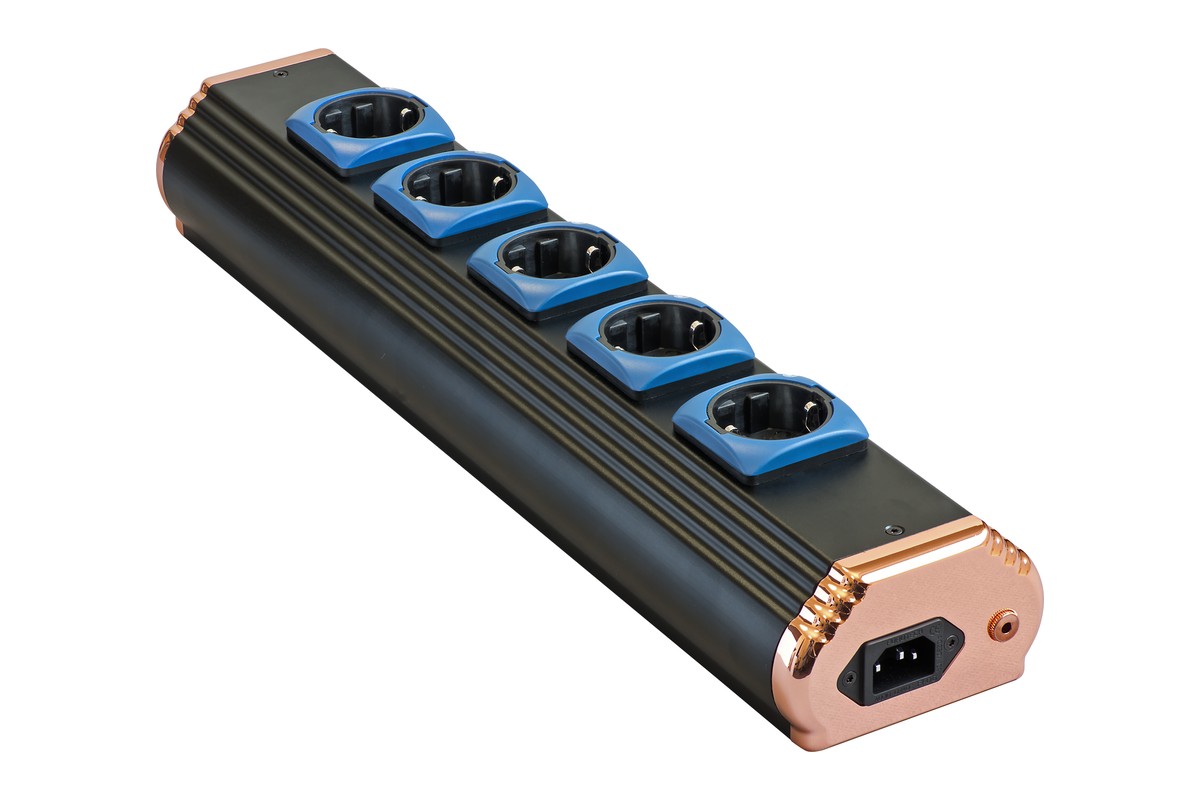

European version: black housing, blue Schuko outlets and copper-coloured IEC inlet

Resonance-damped aluminium chassis

The extruded aluminium body is designed not to resonate, closed by copper-plated brass end caps that recall the original Golden 6A. A one-kilogram copper ground plate completes the construction. Every Nautilus is hand-assembled in Bandon, Oregon.

70319

Data sheet

Product Type
Power Strip
Features
RFI/EMI filter
Brand
Cardas
Technology
Solid core Grade 1, 99.9999% pure oxygen free copper, extruded PVC insulation. Ground conductor Grade 1, 99.9999% pure oxygen free copper, gauges scaled to Golden Ratio. Cross-field layer geometry, PFA jacket.
Series
Nautilus Power Strip
Connections
Standard 15 amp IEC inlet; 20 amp IEC available as an option
Connector

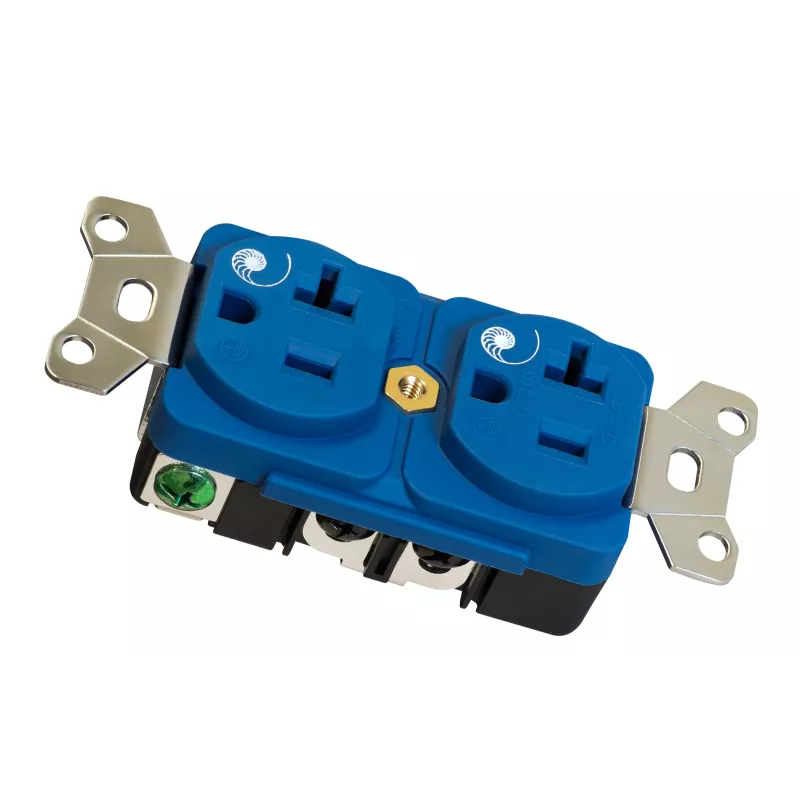

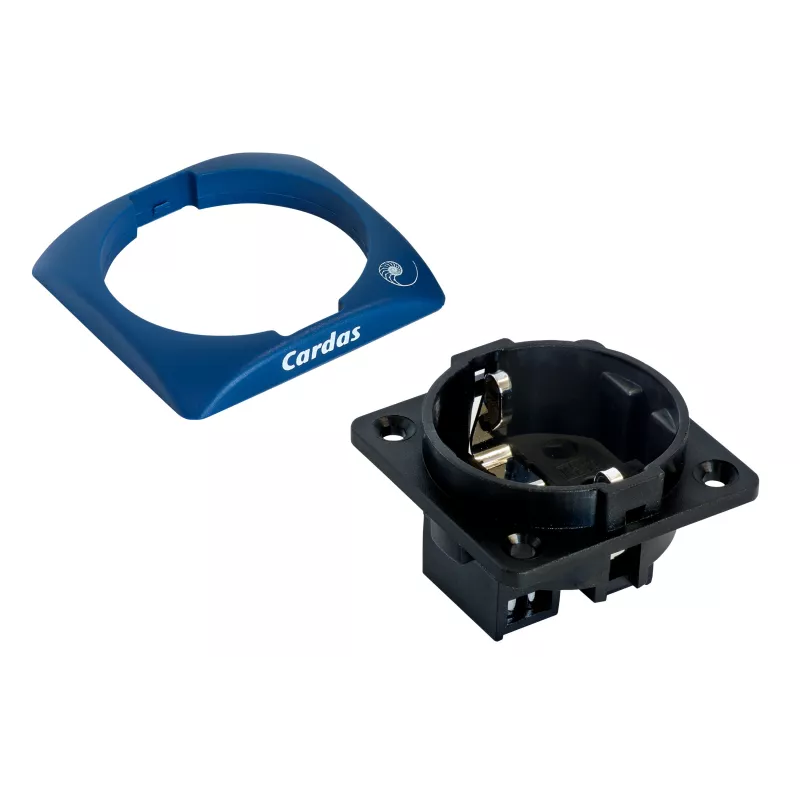

6 outlets, Cardas 4181US (US) / 4181EU (Euro) premium power outlets
Width
47.6 cm
Depth
10.5 cm
Height
7.7 cm
Unit weight
3.5 kg

Specific References

UPC
70319
