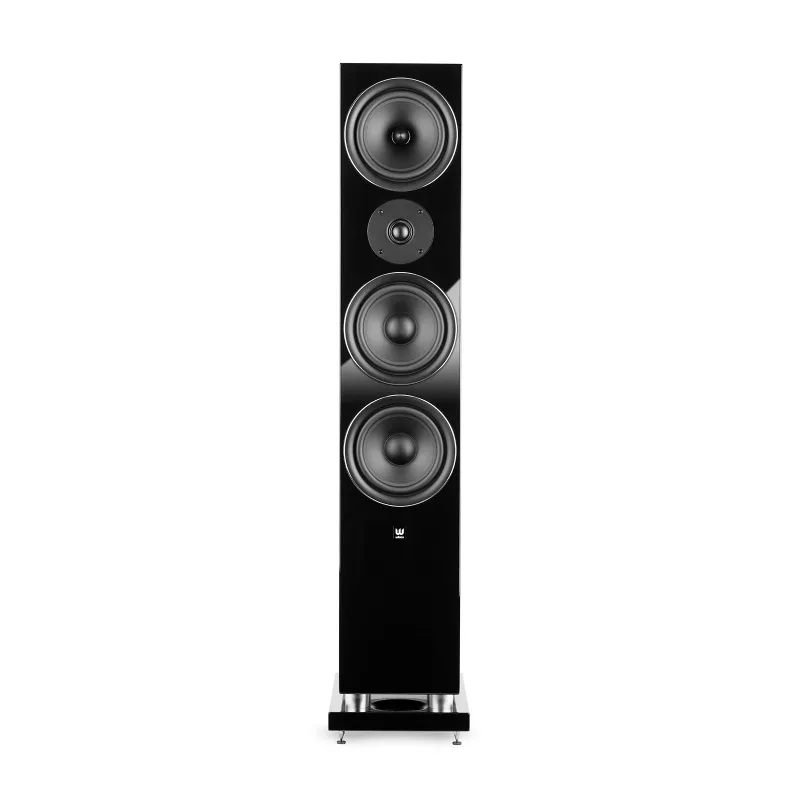

Wilson Exclusive Line EL-10: three-way bass-reflex floorstanding speaker in high-gloss lacquer. Three 165 mm drivers and a 25 mm textile dome cover 35 Hz to 20 kHz.
The rigid, damped MDF cabinet receives six coats of UV-resistant varnish. The white does not yellow in sunlight. The range comes in black or white high gloss.

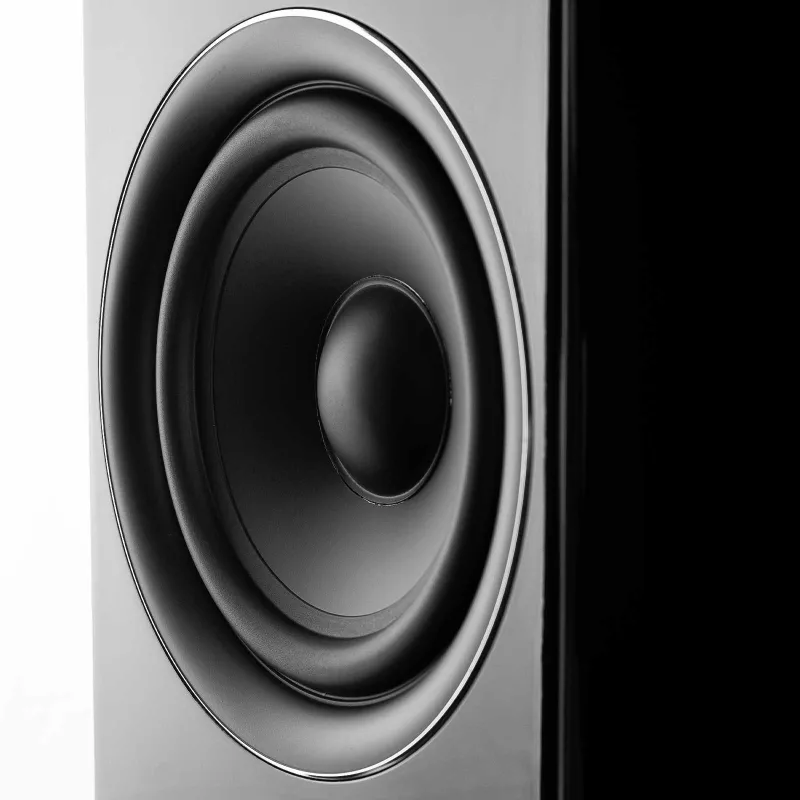

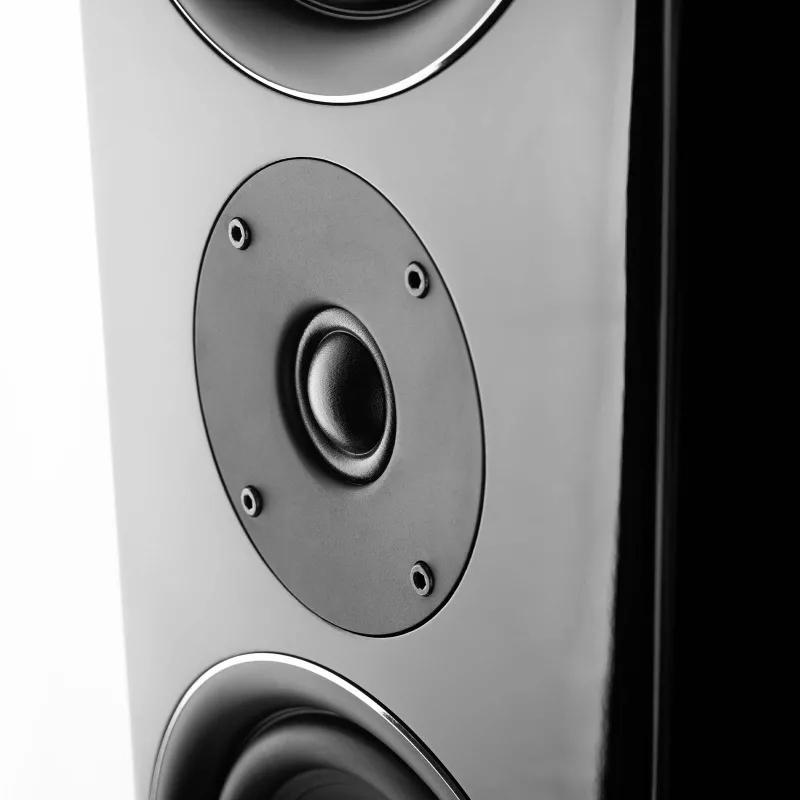

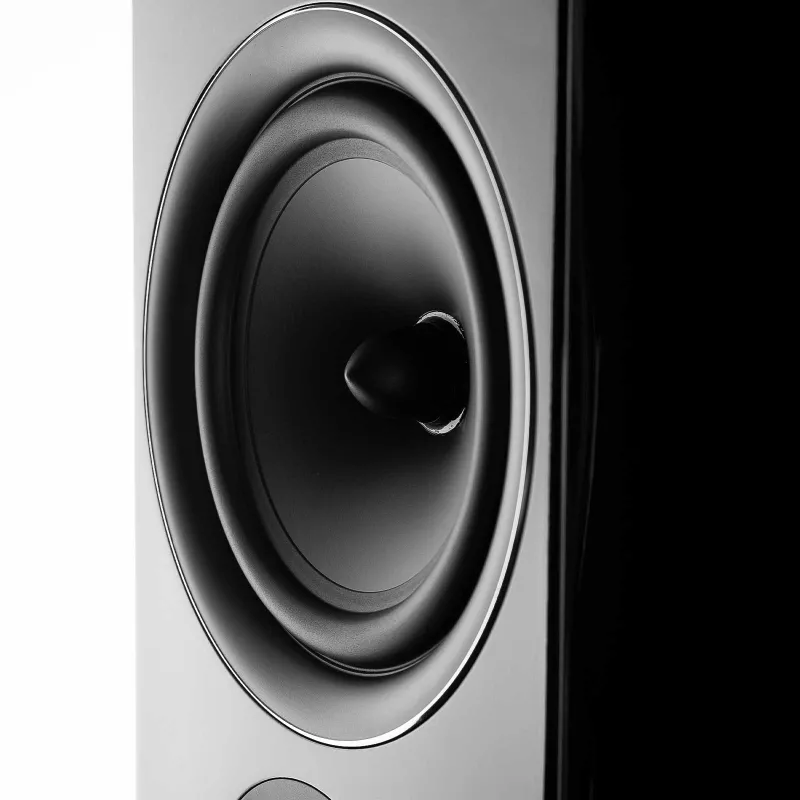

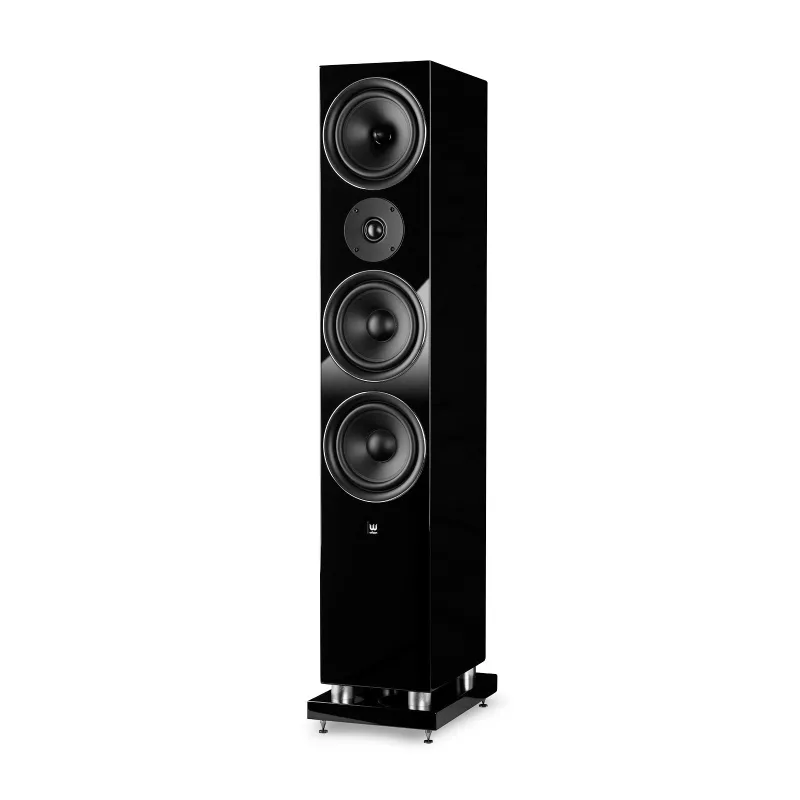

A 25 mm textile dome, a 165 mm midrange and two 165 mm woofers share the band. The cellulose cones stay rigid at low weight, and the midrange has a phase equaliser. The crossover is set at 2,400 Hz, for a response from 35 Hz to 20 kHz (±3 dB).

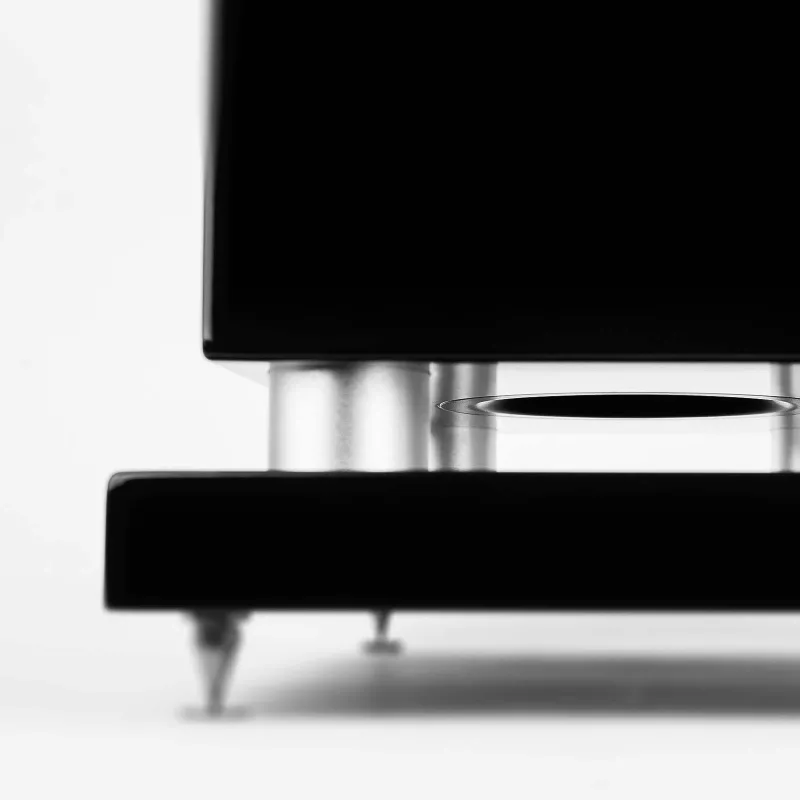

Four spacers isolate the solid plinth from the cabinet. The bass-reflex port opens downwards, and its tuning tolerates placement close to the wall: depth and dynamics gain presence. Decoupling spikes are supplied with the speaker. With 90 dB sensitivity and 4 ohms, it suits amplifiers from 50 to 200 W.

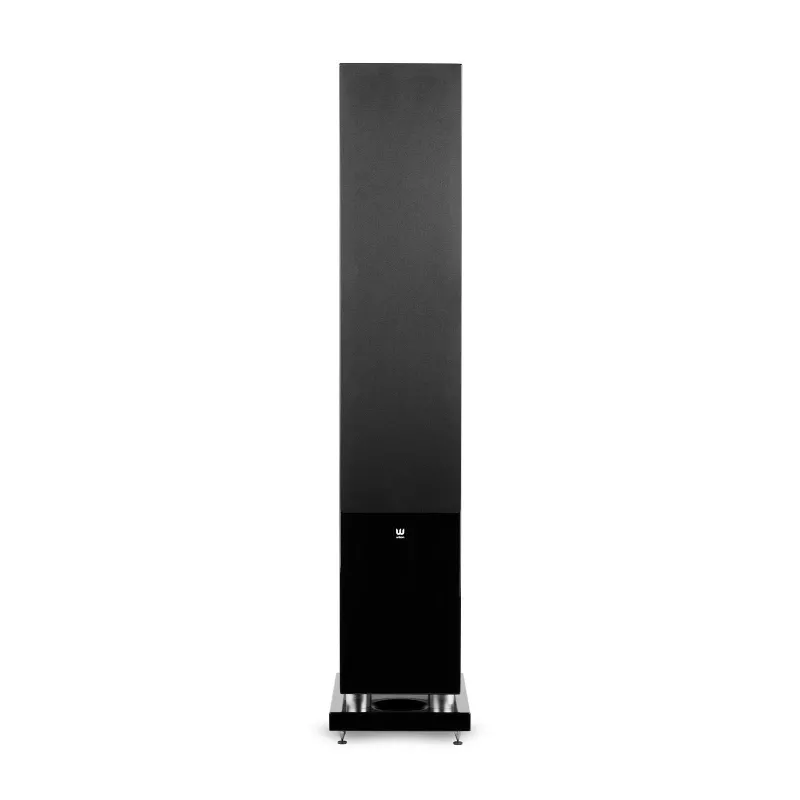

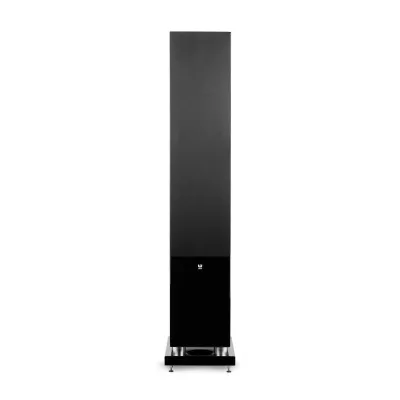

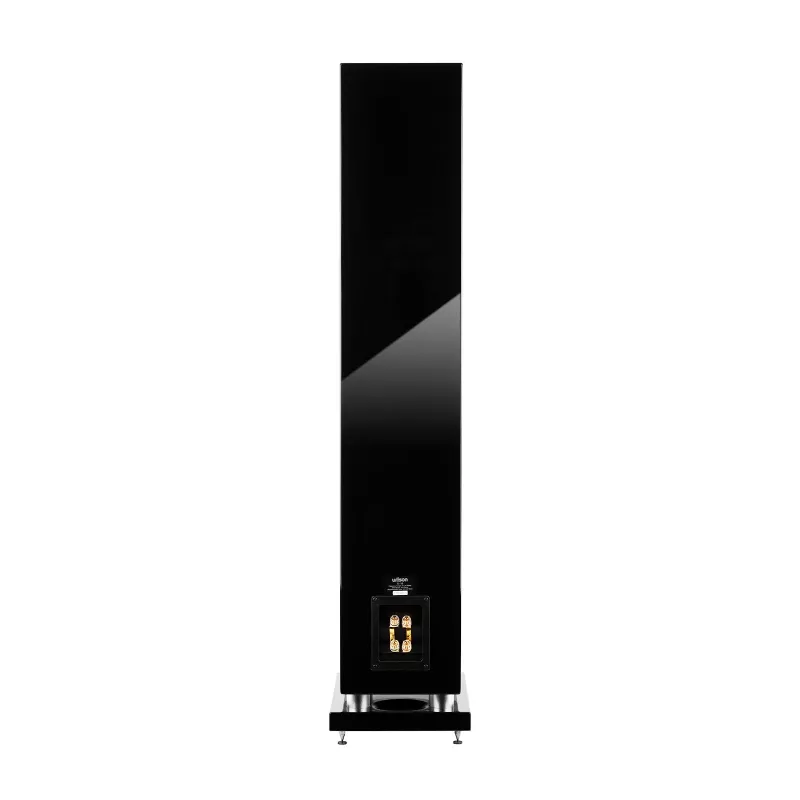

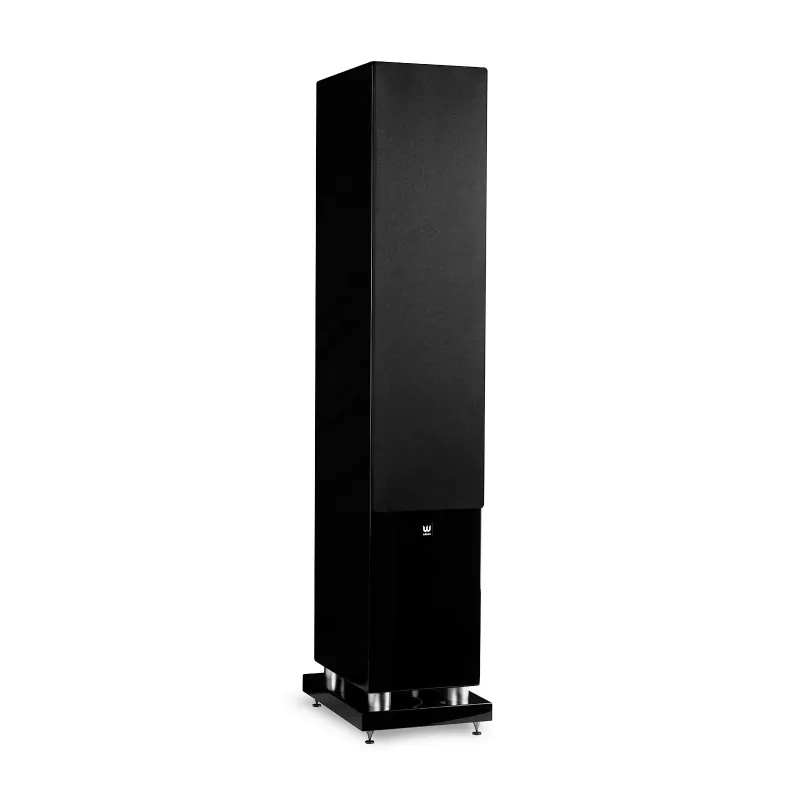

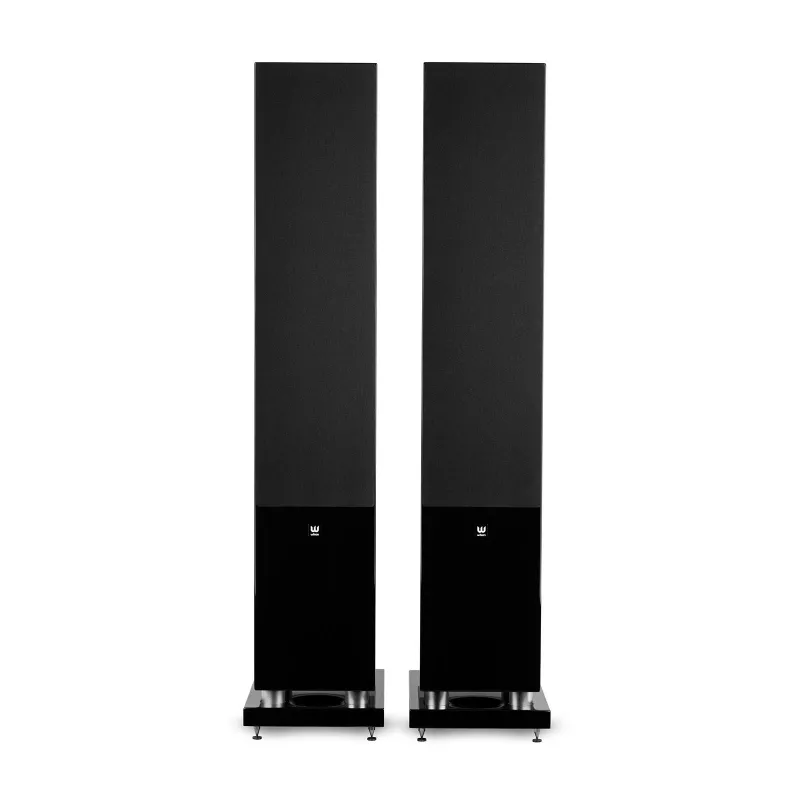

Two pairs of grilles in different shades are supplied. Hidden magnets hold them to the front without a visible frame. When removed, they are stored on magnets at the back of the cabinet.
