Yamaha NS-777 | 3-Way Floor-Standing Speaker (piece) | 2 YEAR WARRANTY

70618
CHF549.00 Tax included
Supplier stock – typically 4 to 7 days
Yamaha NS-777 floor-standing speaker, three-way four-driver bass-reflex. Dual 20 cm PMD woofers and a waveguide midrange, price per unit.
Quantity
Add to wishlist
Supplier stock

The minimum purchase order quantity for the product is 2.

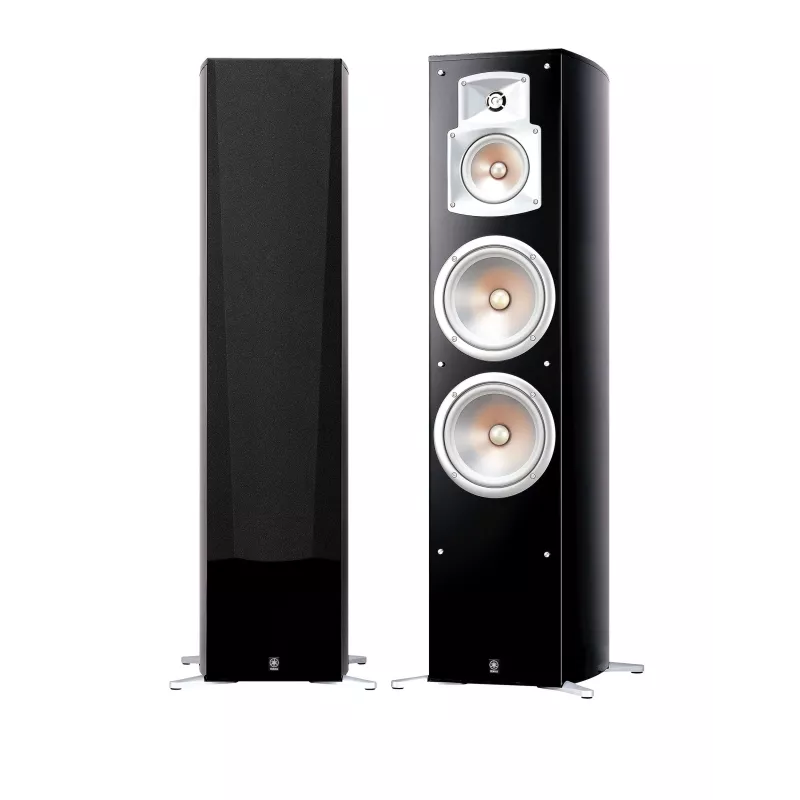

Pair of black floorstanders, one dressed with its grille

Three-Way Floorstanding Speaker

The NS-777 stacks two 20 cm PMD woofers, a 13 cm midrange and a 2.5 cm aluminium tweeter. Bandwidth reaches down to 30 Hz and up to 35 kHz. Each speaker weighs 24.4 kg.

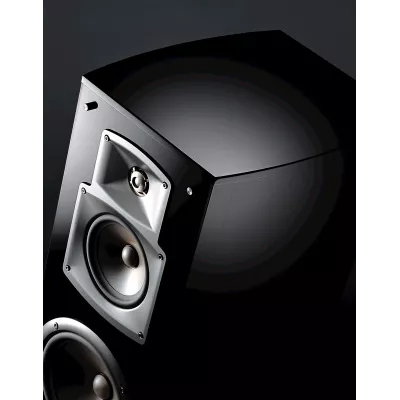

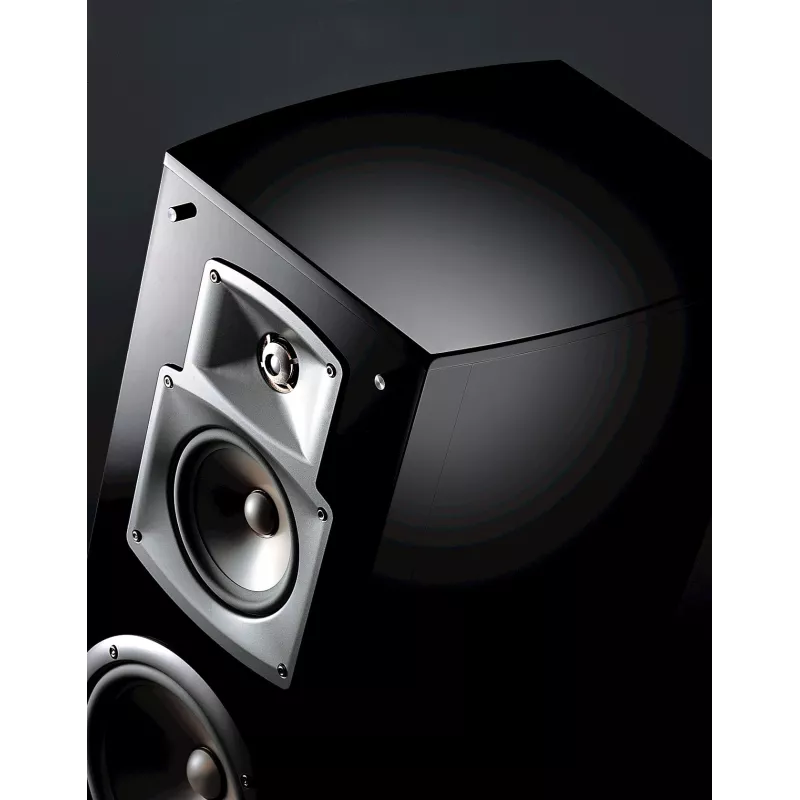

Close-up on the midrange and the tweeter in their waveguide

Tweeter Waveguide Horn

The aluminium tweeter sits in a waveguide horn. The 13 cm midrange gets the same treatment. Sensitivity reaches 89 dB for 2.83 V at 1 m.

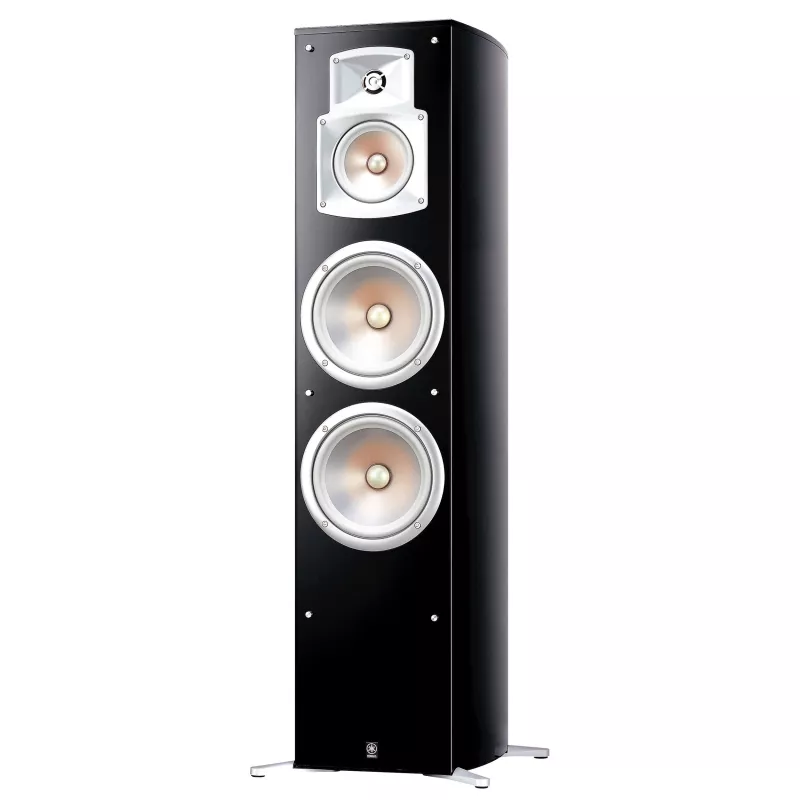

A single black floorstander, grille removed, drivers exposed

Power Handling

The NS-777 takes 100 W nominal and 250 W maximum. Nominal impedance is 6 ohms. The cabinet measures 276 x 1100 x 390 mm.

70618

Data sheet

Technology
3-Way, 4-Speaker Bass-Reflex Floor-Standing Speaker System
Nominal impedance
6 ohms
Sensitivity
89 dB/2.83 V/1 m
Tweeter
2.5cm aluminium dome with Waveguide horn
Midrange driver
13cm cone with Waveguide horn
Woofer
Dual 20cm PMD cone
Frequency response
30 Hz-35 kHz
Recommended amplifier power
100 W
250 W
Width
27.6 cm
Depth
39.0 cm
Height
110.0 cm
Unit weight
24.4 kg

Specific References

EAN13
4957812054539
New
