Zidoo Z3000 PRO | 8K Android media player with dual HDMI outputs

Name: Zidoo Z3000 PRO | 8K Android media player with dual HDMI outputs
Brand: Zidoo
SKU: 71298
Price: 799.00 CHF
Availability: InStock

Reference 71298

CHF799.00 Tax included

24‑hour delivery

Zidoo Z3000 PRO, an 8K media player running Android 11 with an Amlogic S928X-K processor, 8 GB of DDR4 and dual HDMI outputs that split picture and sound. Its hidden bay takes a 3.5-inch SATA hard drive of up to 16 TB.

Description
Product Details

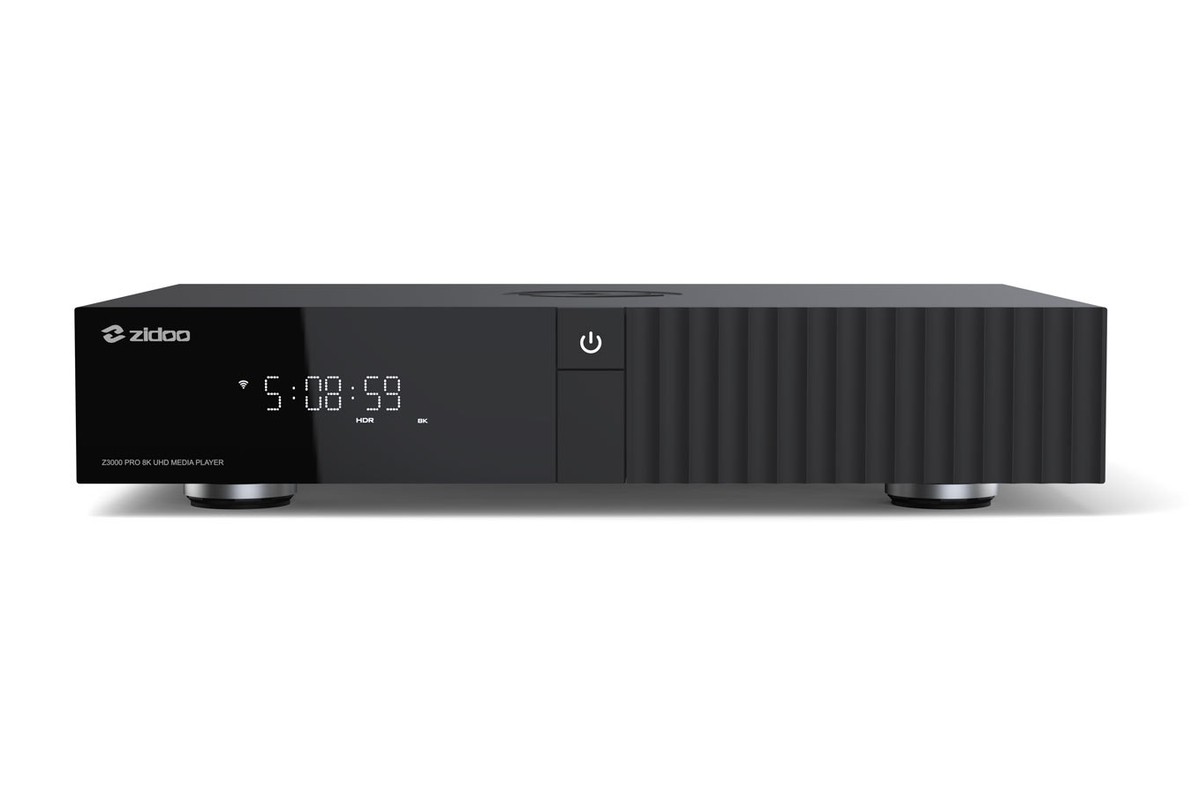

Flat black media player seen from the front, LED display and ribbed side section

Brushed aluminium front panel

The Z3000 PRO pairs a brushed aluminium alloy front panel with a large LED display, in a housing of 35 x 24.1 x 6 cm weighing 2.9 kg. A hidden NSS bay takes a 3.5-inch SATA hard drive of up to 16 TB, and the Wi-Fi and Bluetooth antennas are built into the housing. An internal switching power supply runs directly from the mains.

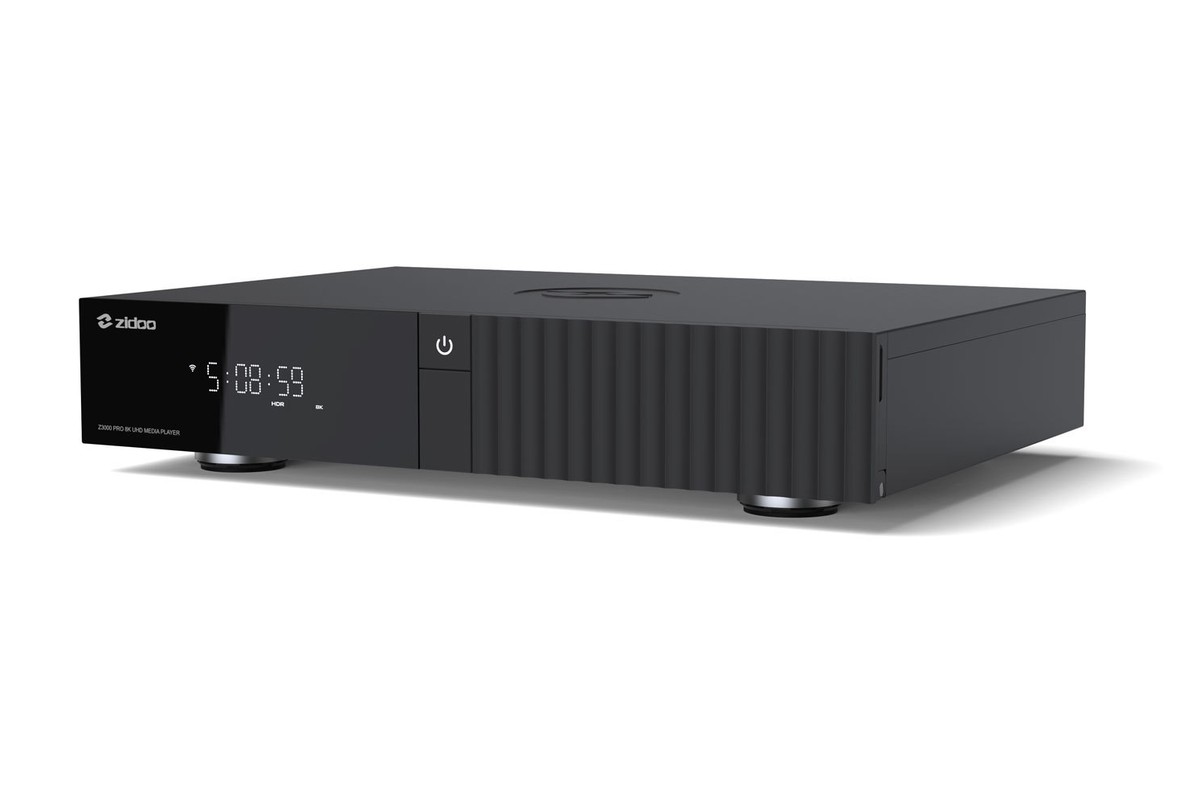

Black unit seen at three-quarter angle from the left, smooth top cover and metal feet

8K HDR picture and VS10

The Amlogic S928X-K processor with Cortex-A76 and Cortex-A55 cores works with 8 GB of DDR4 and 64 GB of eMMC storage running Android 11. The main HDMI 2.1a output sends pictures up to 8K at 60 Hz, in 12 bits with the BT.2020 colour space, in HDR10, HLG, HDR10+ and Dolby Vision, and decodes AV1, VP9, H.265, AVS3 and AVS2. The VS10 engine adjusts to each type of video content, and the frame rate switches automatically, 23.976 Hz included.

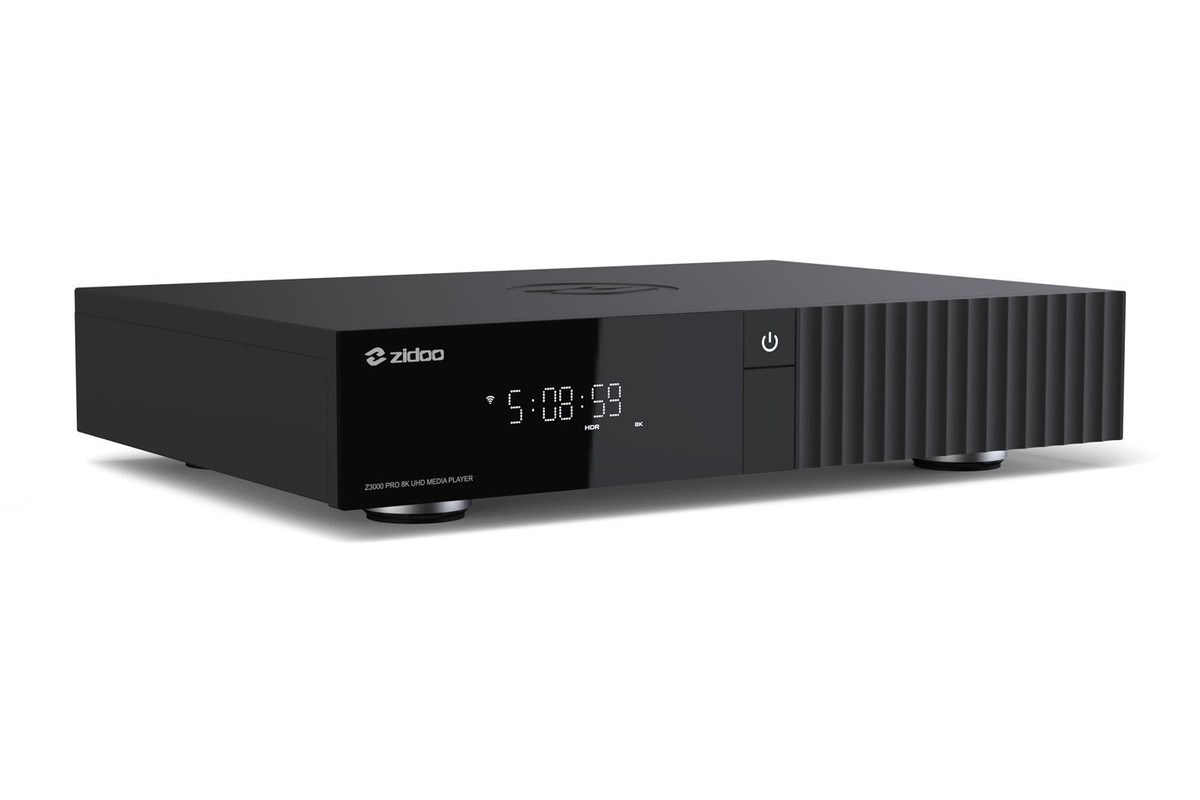

Black unit seen at three-quarter angle from the right on a white background

Separate dual HDMI outputs

A second HDMI output is reserved for sound: it sends Dolby Atmos unchanged, multichannel PCM and DSD to the AV receiver. The TV or projector thus gets 4K from the main output, without replacing an older receiver. Dolby and DTS formats are also decoded up to Dolby TrueHD Atmos, and sound leaves through USB, optical, coaxial or stereo RCA.

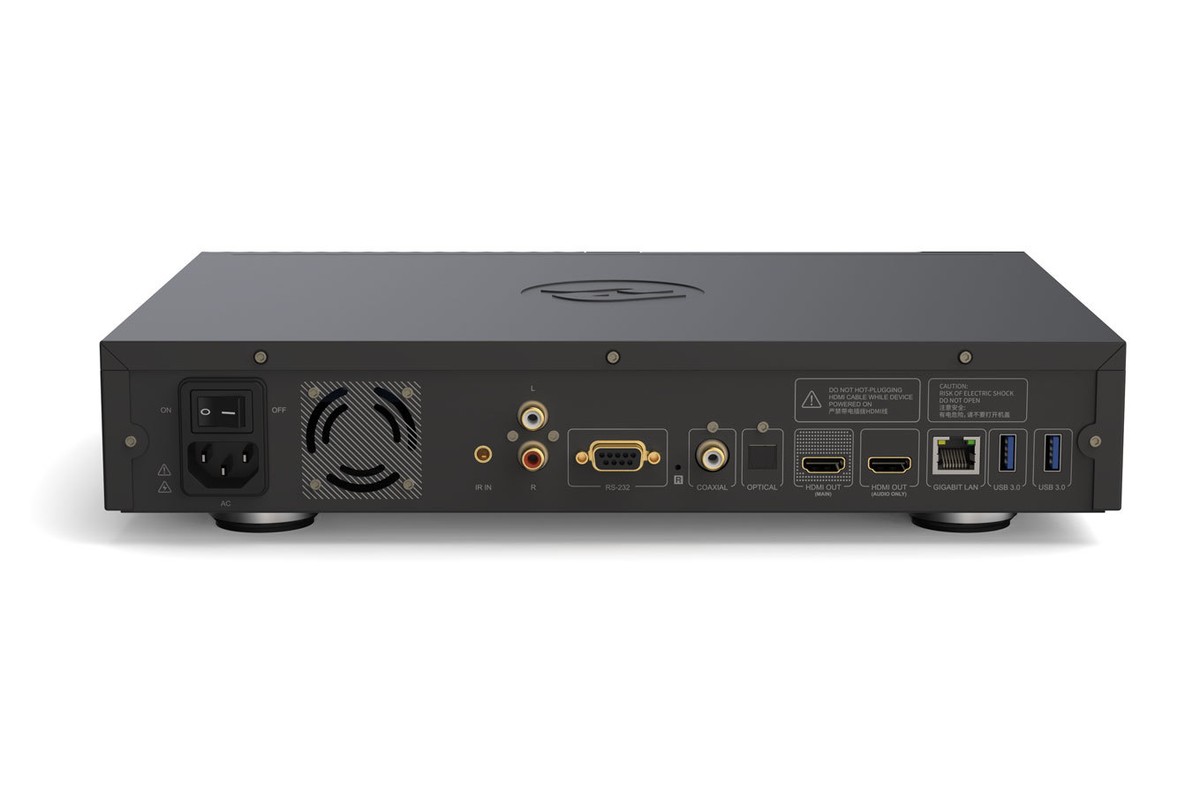

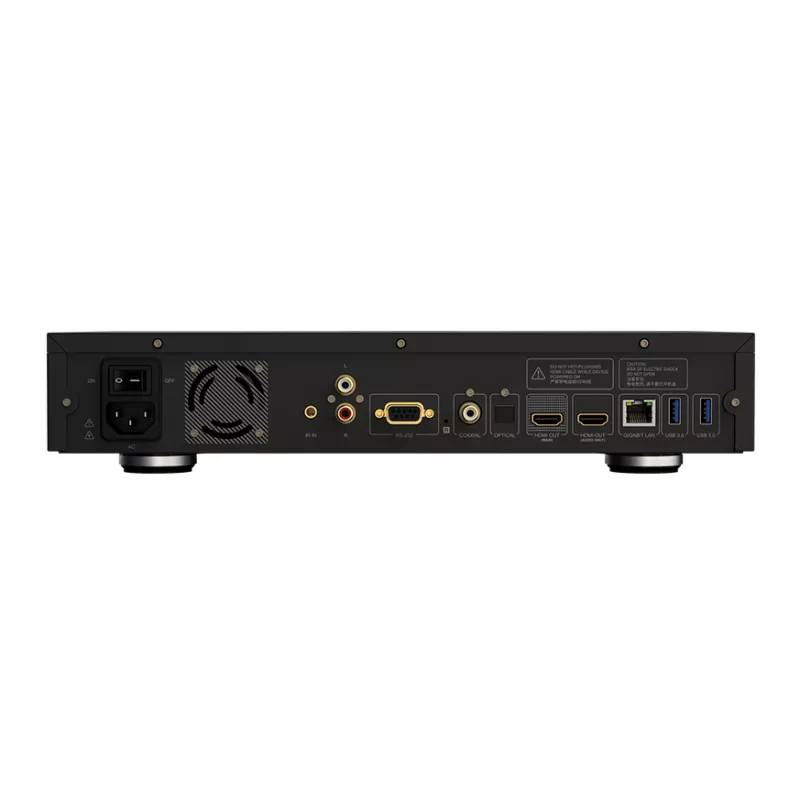

Rear panel with mains socket, fan, coaxial and RCA outputs, serial port, two HDMI, Ethernet and USB

Connections and home automation

The rear panel brings together the mains input, an RS-232 port, an IR input on a 3.5 mm jack, Gigabit Ethernet and two USB 3.0 ports, joined by a USB 2.0 port, dual-band Wi-Fi 6 and Bluetooth 5.2. The player is controlled via HDMI CEC, RS-232, Control4, Wake-on-LAN or the Zidoo Controller app, including landscape mode on iPad and Android tablets. BD and UHD Blu-ray menus, Poster Wall 4.0 and lossless playback of DSD, WAV, APE and DTS are supported.

Reference 71298

Data sheet

Product Type: Android 8K Media Player
Features: Aluminium alloy chassis
Control4 compatible
HDMI CEC
LED display
Network protocols NFS, SMB v1/v2/v3, UPnP, WebDAV
Remote Control Supplied
Wake-on-LAN (WOL)
Zidoo Controller app (iOS and Android)
USB ports: 1x USB 2.0
2x USB 3.0
Brand: Zidoo
Audio outputs: 1 x RCA, 1 x optical, 1 x coaxial
USB Audio output to DAC
Wireless connectivity: Bluetooth 5.2
Dual-band Wi-Fi 802.11 a/b/g/n/ac/ax
Wi-Fi 6
Color: Black
Number of HDMI ports: 2
Streaming services: DLNA
TIDAL Connect
Resolution: 8K 60 Hz
Video processing: Dolby Vision
HDR10
HDR10+
HLG
VS10 Engine
Connectivity: App control
IP control
RS-232 control
Storage expansion: SATA 3.0 for a 16TB hard drive
Hi-Res Audio: DSD (SACD ISO, DSF, DFF), WAV, APE, DTS
Series: Zidoo Z3000 PRO
Operating system (OS): Android 11
Network connectivity: Gigabit Ethernet RJ-45
Application: Home Theater
Internal storage: 64 GB eMMC
Video codecs: AV1
AVS2
AVS3
H.265
VP9
Processor: Amlogic S928X-K ARM Cortex-A76 + Cortex-A55 (penta-core)
GPU Mali-G57 MC2
Audio technology: DTS
Dolby Atmos
Dolby TrueHD
Connections: IR input 3.5 mm jack
Infrared receiver
RAM memory: 8 GB DDR4
Video outputs: Audio-only HDMI output
HDMI 2.1a
Power consumption: AC 110-120 / 220-240 V, 50/60 Hz, 0.35 A max.
Width: 35.0 cm
Depth: 24.1 cm
Height: 6.0 cm
Unit weight: 2.9 kg
