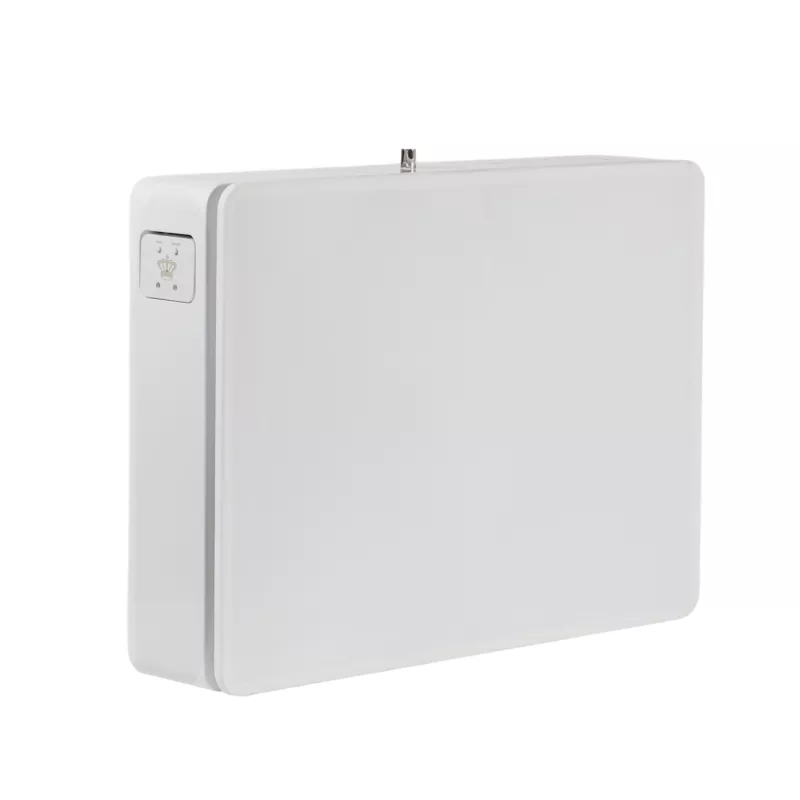

REL Planar PL-2 | Wireless wall-mounted subwoofer | 3 YEAR WARRANTY

Reference 73806

CHF2,990.00 Tax included

Supplier stock – typically 4 to 7 days

REL Planar PL-2, an ultra-slim active subwoofer designed for wall mounting, with a 20.5 cm flat-piston driver, a 25 cm passive radiator and 550 W. It is the largest Planar, made for big rooms and open-plan spaces.

Color : White

White
Black

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

Slim black subwoofer with wooden grille against the wall of a dark living room

The larger Planar

The Planar PL-2 applies the PL-1 principle on a bigger scale: mounted on the wall or placed close to it, it uses the wall to reinforce its bass. The cabinet measures 65 cm wide, 48 cm high and 14.4 cm deep, for 20.25 kg. It is aimed at large rooms and open-plan spaces.

Black gloss subwoofer without grille at a three-quarter angle, showing its 20.5 cm driver

20.5 cm flat-piston driver

The 20.5 cm flat-piston active driver, derived from REL's in-wall subwoofer work, offers long excursion. A 550 W amplifier drives it, and REL quotes extension down to 24 Hz. Its flat piston makes the bass hard to locate in the room.

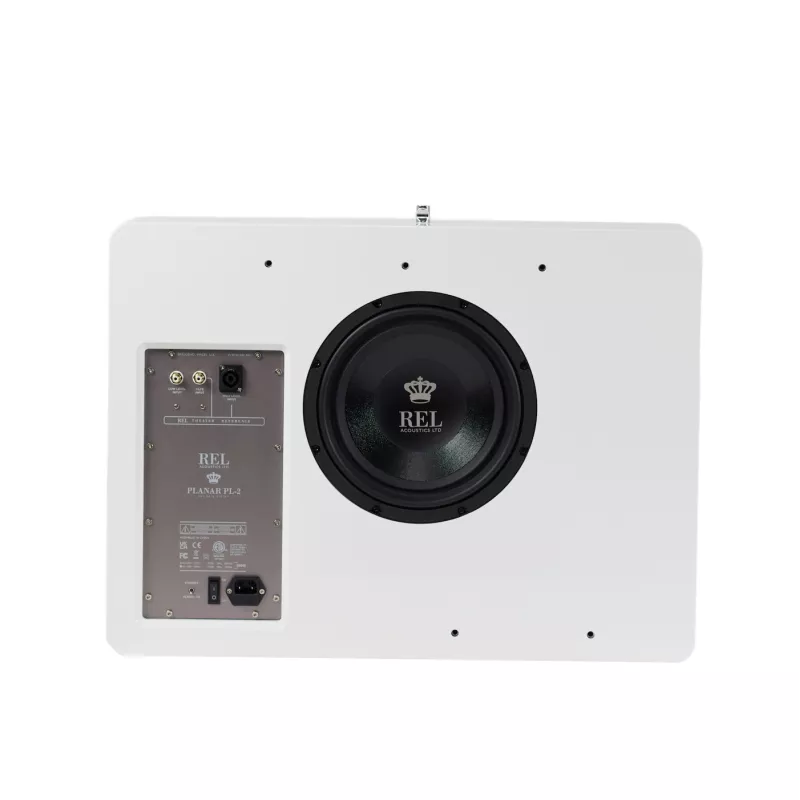

Rear panel with passive radiator and amplifier module

25 cm passive radiator

At the rear, a 25 cm passive radiator works with the driver's back wave and couples to the wall to reach deeper. The amplifier module groups the Speakon high-level input, .1/LFE and low-level RCA inputs, and the choice between auto standby and always on. The wireless receiver is built in, while the AirShip Direct transmitter is ordered separately.

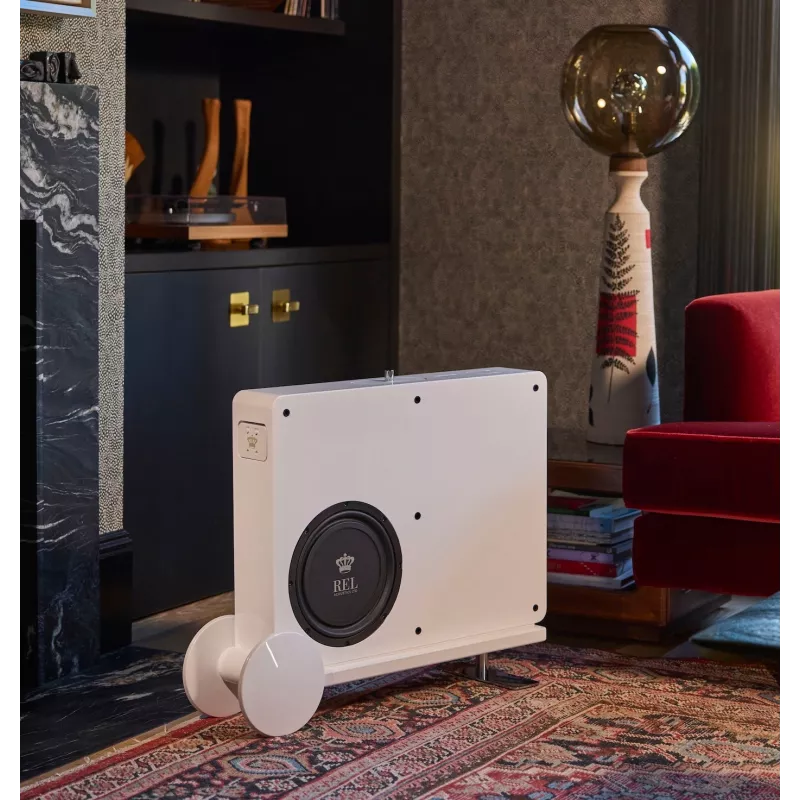

White subwoofer without grille standing on its cart in a living room

Wall or cart

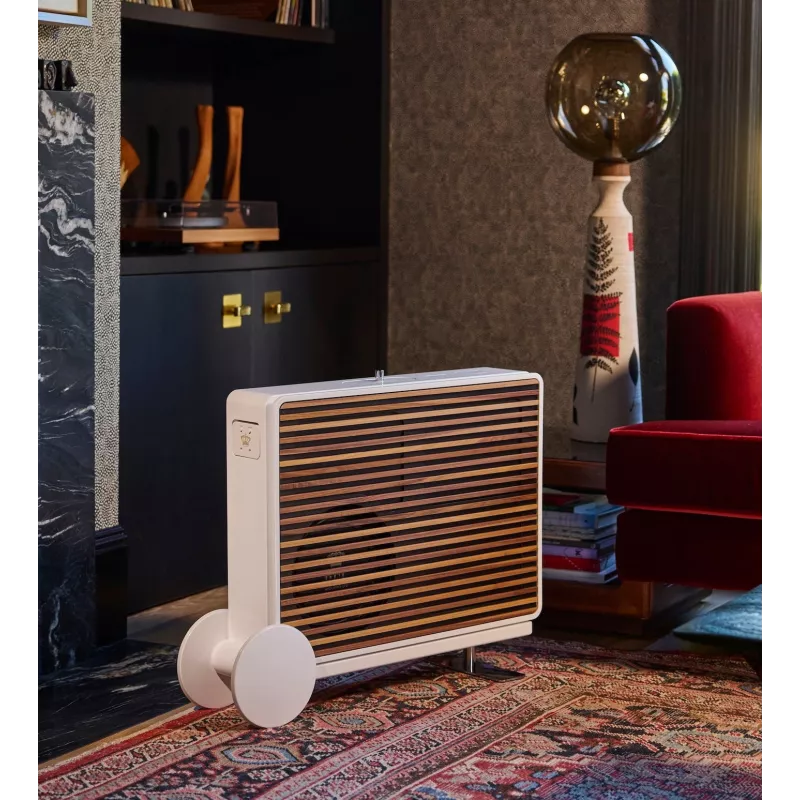

Supplied with wall-mounting hardware and a cloth grille, the PL-2 can also stand on the optional Planar Cart, making it easy to try several positions. The wooden Premium Wood grille is available as an option too. It comes in black or white gloss lacquer and is sold individually.

Black = Black; White = White

Reference 73806

Data sheet

Product Type: Active subwoofer with auxiliary bass radiator (ABR)
Features: Cloth grille supplied, Premium Wood grille and Planar Cart optional
DC fault protection
Fully electronic SET-SAFE protection
Fuse 4 A at 230 V, 8 A at 120 V
Mains input 100-240 V, selectable
Output short-circuit protection
Standby or always-on mode
Supplied: power adapter, 90-degree mains lead for wall mounting, 1.5 m high-level Speakon cable for the AirShip Direct transmitter, 2 RCA cables, user manual
Wall-mounting hardware supplied
Brand: REL Acoustics
Analog inputs: High Level (Speakon), low level RCA, .1/LFE RCA
Wireless connectivity: Built-in wireless receiver, AirShip Direct transmitter (sold separately)
Output power: 550 W
Color: Gloss black, gloss white
Technology: 250 mm (10 in) rear passive radiator
Series: Planar
Installation type: Wall-mounted installation
Amplification technology: Pure Class D
Woofer: 205 mm (8 in) flat-piston active driver, front-firing
Frequency response: Low-frequency extension 24 Hz
Width: 65.0 cm
Depth: 14.4 cm
Height: 48.0 cm
Unit weight: 20.25 kg
