Wharfedale NOVA 12 | Active subwoofer 300 mm

Name: Wharfedale NOVA 12 | Active subwoofer 300 mm
Brand: Wharfedale
SKU: 73565
Price: 1299.00 CHF
Availability: BackOrder

Reference 73565

CHF1,299.00 Tax included

Supplier stock – typically 4 to 7 days

The Wharfedale NOVA 12 is an active subwoofer with a 300 mm driver and an ABR radiator, powered by a 280 W Class-D amplifier. It reaches down to 28 Hz at -6 dB.

Description
Product Details

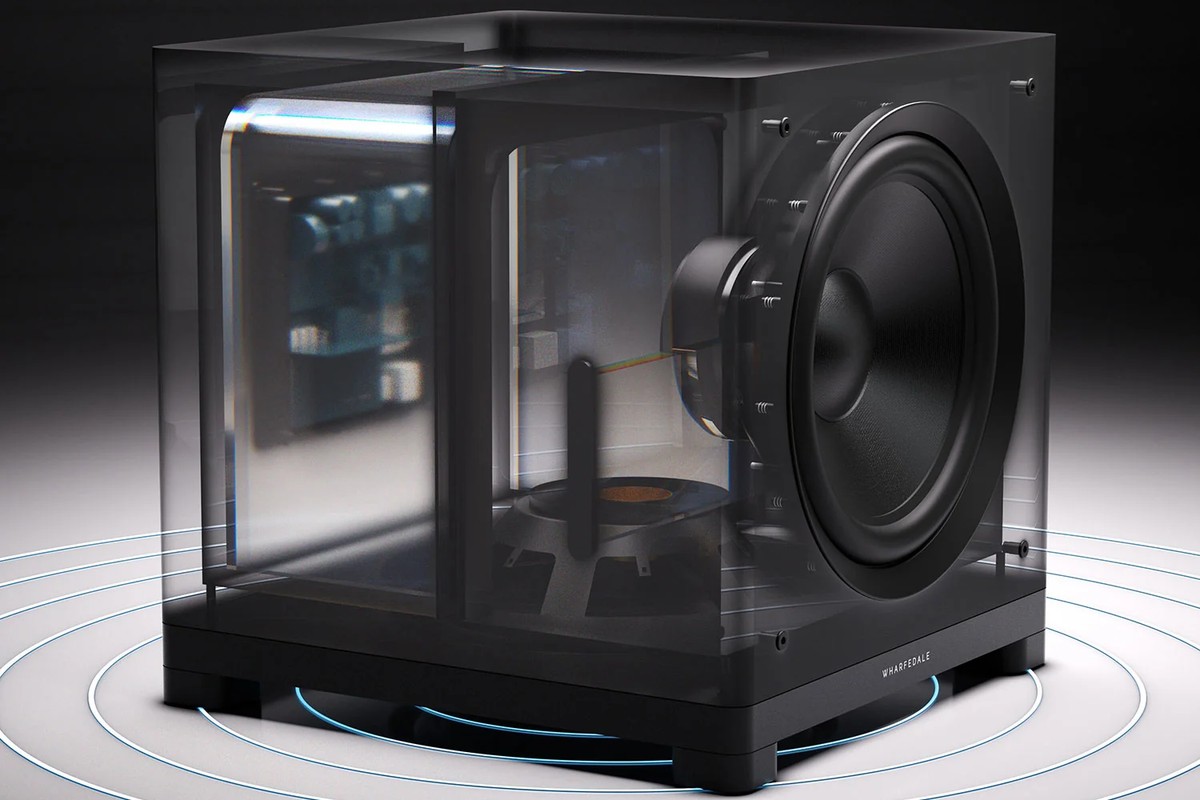

Translucent cutaway view of a NOVA series subwoofer, with its driver, suspension and radiator

Ventless ABR loading

The NOVA 12 replaces the bass-reflex port with a 300 mm ABR auxiliary radiator with an SPL paper cone. This radiator fires downward, on a double suspension, and works with the active driver. With no port, the subwoofer avoids turbulence, chuffing noise and compression. Intended for medium to large rooms, it reaches down to 28 Hz at -6 dB.

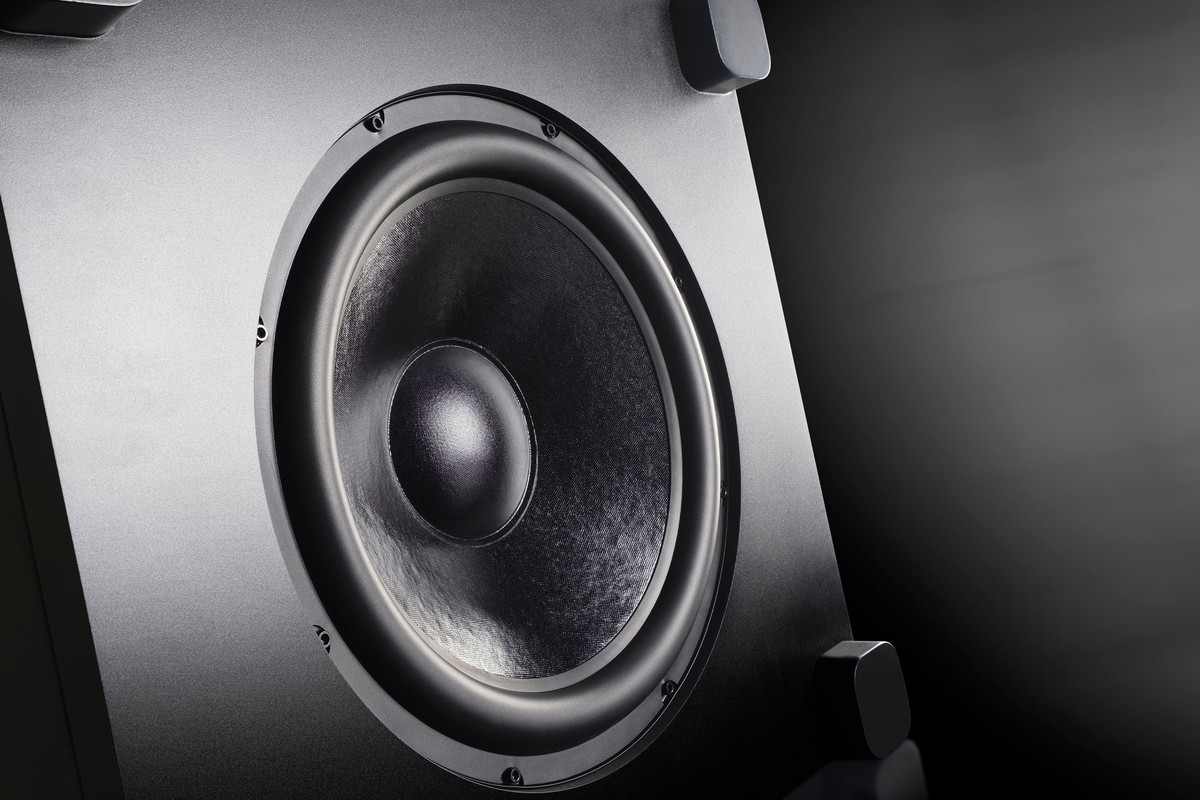

Close-up of the bass driver, its black cone and rubber surround

300 mm driver

The 300 mm (12-inch) long-excursion driver sits on the front face. Aluminium shorting rings are built into the motor. They reduce inductance modulation as the voice coil moves in the magnetic gap, and so distortion, and transients stay sharp. The subwoofer weighs 29.3 kg.

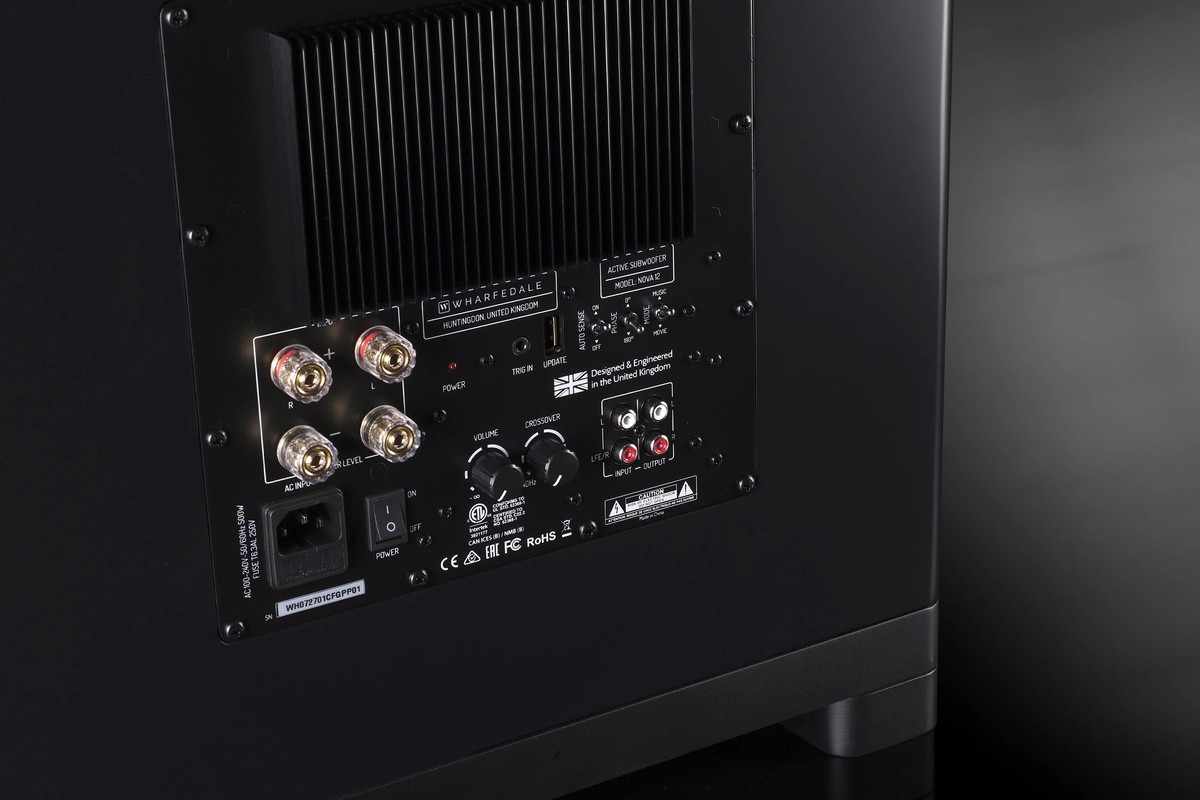

Back of the subwoofer with its heat sink, high-level terminals and volume and crossover controls

Class-D amplification and DSP

The high-current Class-D amplifier delivers 280 W rated and 770 W peak, enough to drive the large 300 mm driver. The DSP drives a dynamic equaliser that adjusts the response to the listening level. Two modes are built in: Music, faster and better matched to the main speakers, and Cinema, more expansive for film soundtracks. On standby, consumption stays below 0.5 W.

Living room with a wall-mounted TV, two grey floorstanding speakers, a centre speaker and the black subwoofer on the right

Settings and connections

The crossover frequency is adjustable from 40 to 160 Hz, with phase and level controls. The stereo line input (2 x RCA) accepts LFE on the R channel, and the high-level input uses four 4 mm terminals. A stereo line output (2 x RCA), a 12 V trigger and a USB update port complete the connections. The subwoofer measures 435 mm wide, 443 mm high with base and feet, and 487 mm deep with grille and terminals.
