Velodyne Acoustics SPL-X 15 in Geneva | Digistore.ch

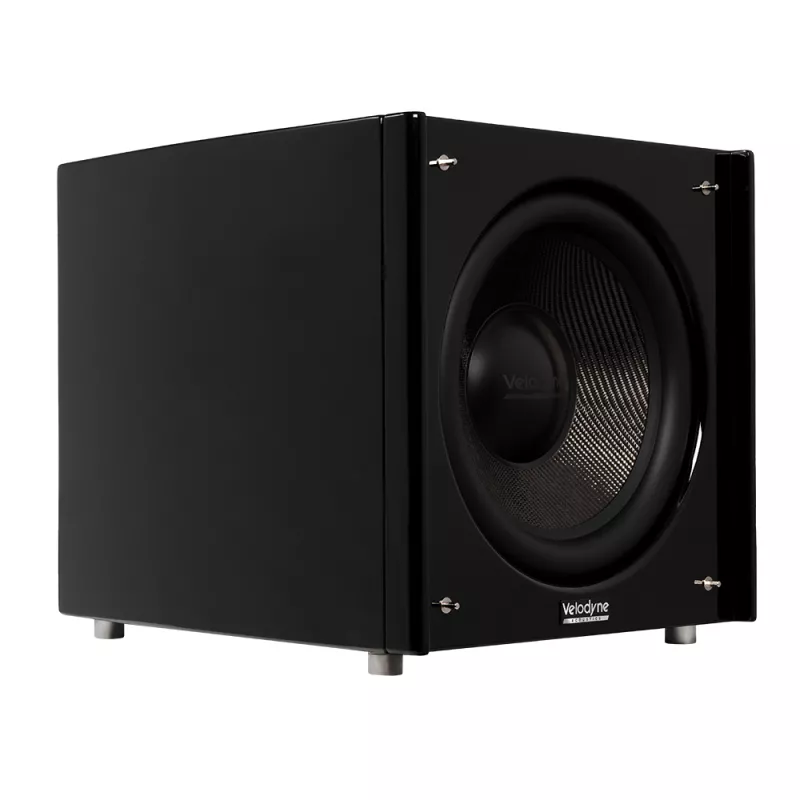

Velodyne Acoustics SPL-X 15 | Active Subwoofer 15 Inch

Reference 72491

CHF4,999.00 Tax included

Supplier stock – typically 4 to 7 days

The Velodyne Acoustics SPL-X 15 is a 15-inch active subwoofer. Its Class D amplifier delivers 1500 W RMS and its response reaches down to 22 Hz at ± 3 dB.

Description
Product Details

15 Inch Carbon Driver

The 15 inch driver pairs a carbon fibre cone with a dual-spider suspension and a basket opened by three ventilation channels. Its four-layer 4 inch / 102 mm voice coil is driven by a triple ferrite magnet system. The braced, sealed HDF cabinet keeps the enclosure resonances in check.

Amplifier module seen from the back, RCA and XLR inputs

Class D Amplification

The Class D amplifier delivers 1500 W RMS and 2000 W peak. Response runs from 22 - 180 Hz at ± 3 dB, and from 15 - 250 Hz at ± 10 dB. The low-pass filter is adjustable from 30 to 200 Hz with 12, 24, 36 or 48 dB per octave slopes.

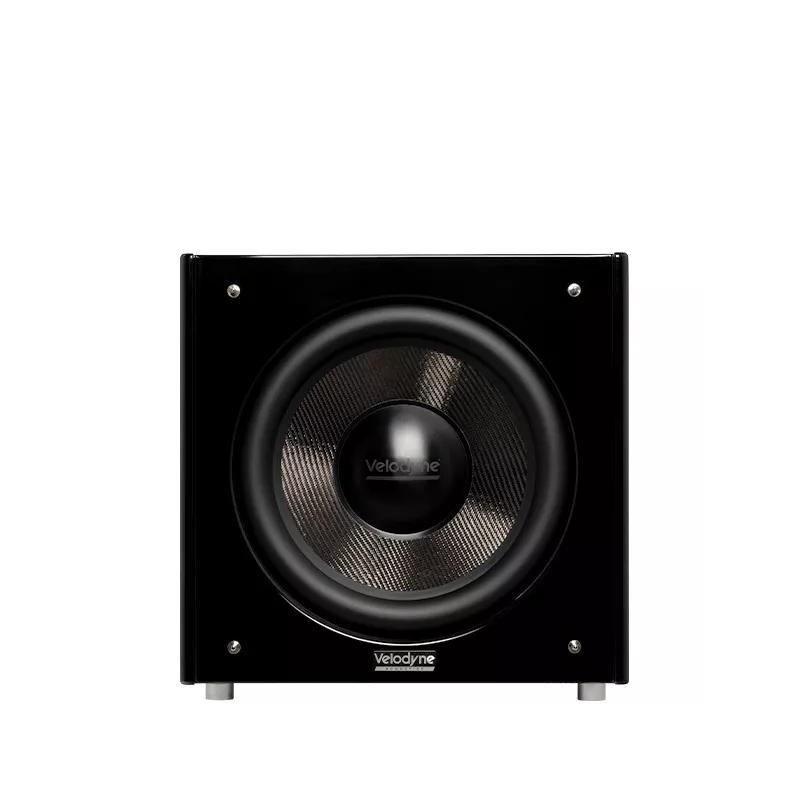

Carbon cone and surround seen from the front

Dual Spider Suspension

The dual-spider suspension keeps the voice coil on axis even at high excursion, which limits modulation distortion. The basket, opened by three channels, vents the pressure behind the cone. The triple ferrite magnet supplies the field this control needs.

Base and Finish

The machined feet decouple the cabinet from the floor and adjust to take up an uneven surface. The sealed HDF cabinet carries a black fabric grille on an MDF frame. The subwoofer measures 47 x 47 x 58 cm and weighs 45 kg.

Reference 72491

Data sheet
