Velodyne Acoustics SPL-X 10 in Geneva | Digistore.ch

Velodyne Acoustics SPL-X 10 | Active Subwoofer 10 Inch

Reference 72489

CHF2,999.00 Tax included

Supplier stock – typically 4 to 7 days

The Velodyne Acoustics SPL-X 10 is a 10-inch active subwoofer. Its Class D amplifier delivers 1000 W RMS and its response reaches down to 28 Hz at ± 3 dB.

Description
Product Details

10 Inch Carbon Driver

The 10 inch driver pairs a carbon fibre cone with a dual-spider suspension and a basket opened by three ventilation channels. Its four-layer 3 inch / 76 mm voice coil is driven by a triple ferrite magnet system. The braced, sealed HDF cabinet keeps the enclosure resonances in check.

Class D Amplification

The Class D amplifier delivers 1000 W RMS and 1500 W peak. Response runs from 28 - 250 Hz at ± 3 dB, and from 18 - 300 Hz at ± 10 dB. The low-pass filter is adjustable from 30 to 200 Hz with 12, 24, 36 or 48 dB per octave slopes.

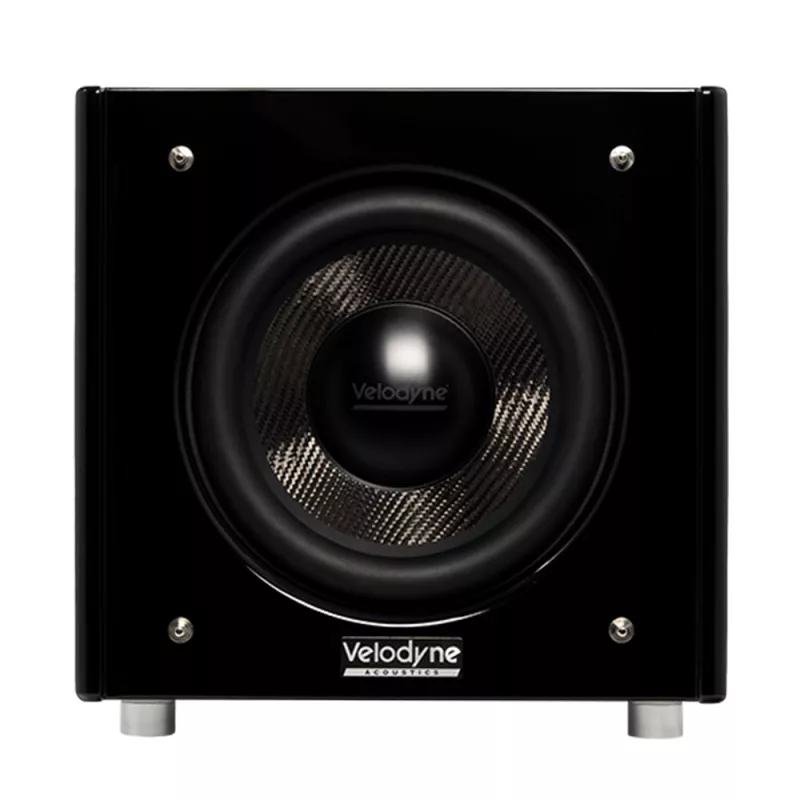

Carbon cone and surround seen from the front

Dual Spider Suspension

The dual-spider suspension keeps the voice coil on axis even at high excursion, which limits modulation distortion. The basket, opened by three channels, vents the pressure behind the cone. The triple ferrite magnet supplies the field this control needs.

Base and Finish

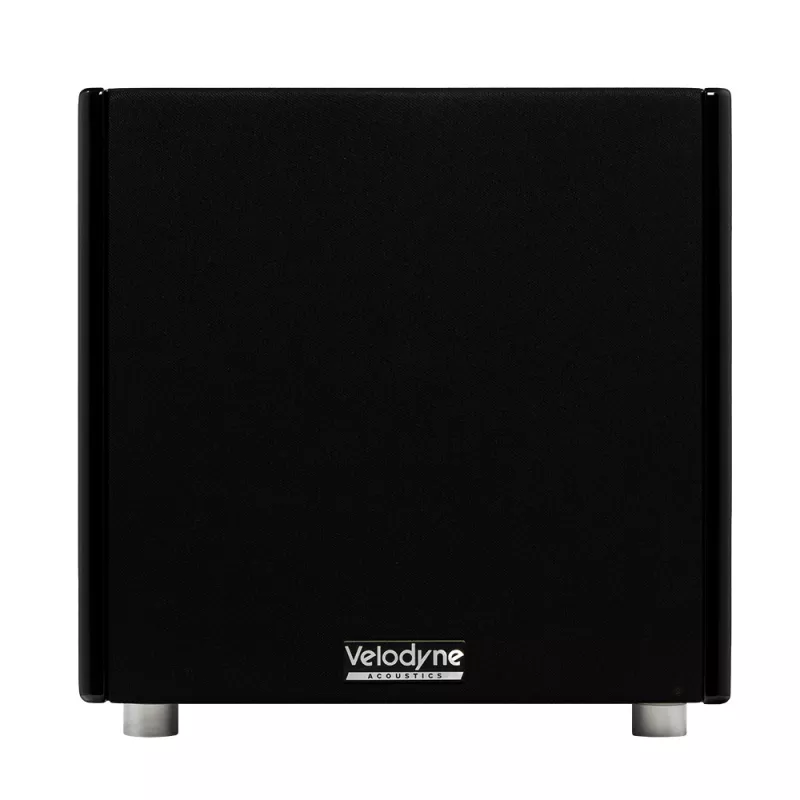

The machined feet decouple the cabinet from the floor and adjust to take up an uneven surface. The sealed HDF cabinet carries a black fabric grille on an MDF frame. The subwoofer measures 36 x 34 x 44 cm and weighs 30 kg.

Reference 72489

Data sheet
