REL T/5x | 125 W active subwoofer | 3 YEAR WARRANTY

Reference 66640

CHF790.00 Tax included

Supplier stock – typically 4 to 7 days

REL T/5x, an active subwoofer from Serie T/x with a down-firing 8-inch driver and a 125 W Class A/B amplifier. It fills a medium-sized living room with bass from a discreet cabinet.

Color : Black

White
Black

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

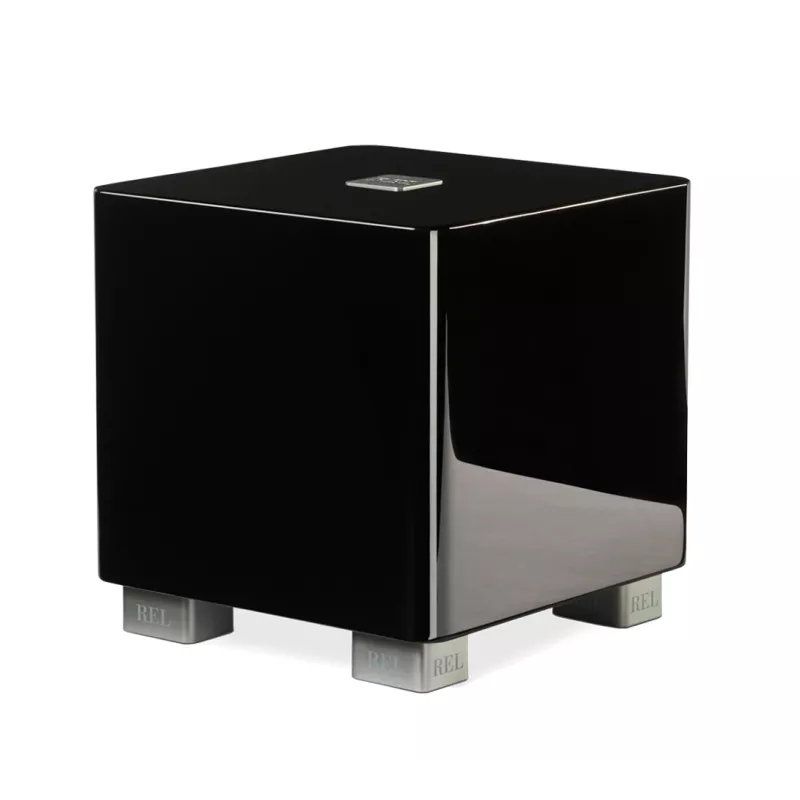

Gloss black subwoofer at three-quarter angle on engraved feet

Entry to Serie T/x

The T/5x opens Serie T/x with an 8-inch (200 mm) active driver that fires towards the floor. Bass strikes the floor and spreads evenly through the room, giving the subwoofer the foundation of a larger model. This layout also does away with a grille, for a clean cabinet 30 cm wide, 30.7 cm high and 31.3 cm deep.

White subwoofer on the floor in front of a brick wall and canvases

125 W Class A/B amplifier

The 125 W amplifier runs in high-current Class A/B, with a large toroidal transformer and a generously sized power supply. This reserve lets it go well beyond its rated power on a film explosion or a kick drum hit. It suits medium living rooms and even some open-plan spaces, which a smaller subwoofer cannot handle.

Gloss white subwoofer at three-quarter angle on a white background

High Level and .1/LFE

Like every REL, the T/5x connects to the speakers through a High Level connection on a Speakon socket: it receives the same signal and takes on their character. The .1/LFE input works at the same time, with its own level control, so music and films need no rewiring. The Arrow wireless module, sold separately, fits on the rear to do away with the cable.

Lacquer and aluminium feet

The cabinet receives five coats of gloss lacquer, black or white, and stands on machined aluminium feet engraved with the brand name. Compared with the T/i generation, its internal volume has grown and its corners are rounded to avoid pockets of pressure. The subwoofer weighs 14.3 kg and is sold individually.

Black = Black; White = White

Reference 66640

Data sheet

Product Type: Active closed-box subwoofer
Features: 1.6 A semi-delay fuse (230 V), 3.15 A semi-delay (115 V)
Five coats of gloss lacquer
Fully electronic SET-SAFE protection, DC fault and output short protection
Gain control range: 80 dB
Machined aluminium feet and badge
Mains input voltage 220-240 V, 110-120 V for certain markets
Phase switch 0 / 180°
Supplied: mains lead, Neutrik Speakon cable (10 m nominal), user manual
Volume, crossover and .1/LFE level controls
Brand: REL Acoustics
Analog inputs: High Level (Speakon), low level RCA, .1/LFE RCA
Wireless connectivity: Arrow wireless option (sold separately)
Output power: 125 W
Color: Black, White
Series: Serie T/x
Amplification technology: Class A/B
Woofer: 1 x 8 in (200 mm) long-throw, FibreAlloy cone, inverted alloy centre cap, steel chassis, down-firing
Frequency response: 32 Hz (-6 dB, in room)
Width: 30.0 cm
Depth: 31.3 cm
Height: 30.7 cm
Unit weight: 14.3 kg
