REL HT/1003 MKII | 10-inch 300 W home cinema subwoofer | 3 YEAR WARRANTY

Reference 73790

CHF790.00 Tax included

Supplier stock – typically 4 to 7 days

REL HT/1003 MKII, an active home cinema subwoofer with a 250 mm CarbonGlas driver and a 300 W RMS Class D amplifier. Fast, controlled bass in a compact format, designed for small and medium-sized rooms.

Color : Black

White
Black

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

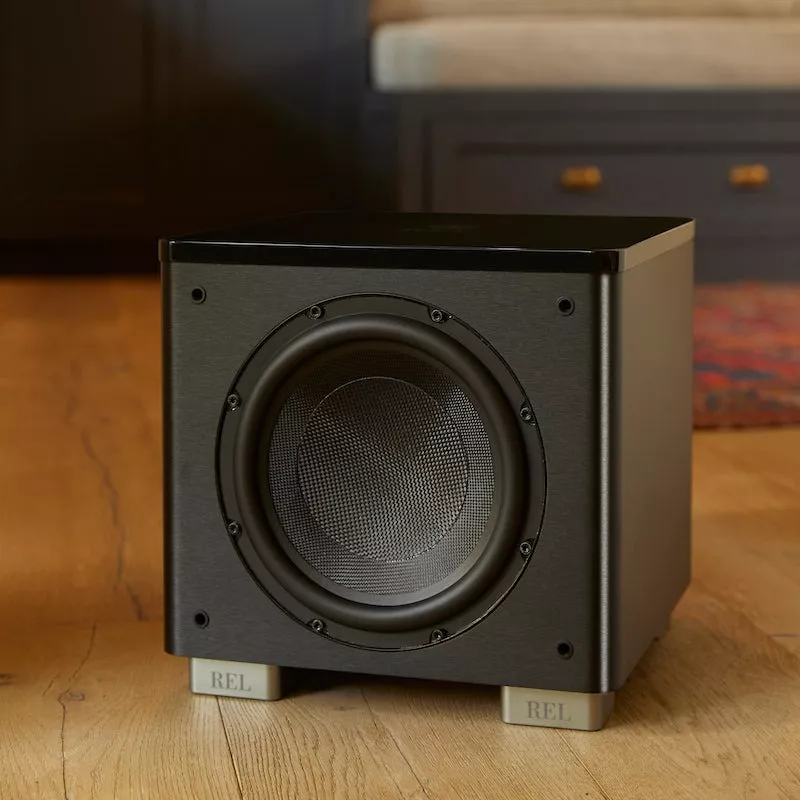

Black subwoofer seen at a three-quarter angle, driver exposed

Compact home cinema bass

The HT/1003 MKII is the smallest subwoofer in the Serie HT and is designed first and foremost for home cinema. It delivers twice the output of its predecessor while keeping the speed and control REL is known for. At 36.2 cm wide, 34.3 cm high and 38.7 cm deep for 15.5 kg, it fits easily into small and medium-sized rooms. It is sold individually, in black or white.

250 mm CarbonGlas driver

The 250 mm long-throw driver pairs a glass fibre cone with an inverted carbon fibre centre cap, mounted on a steel chassis. Larger magnets and a suspension with an enlarged surround allow more excursion without losing control. Response reaches down to 24 Hz at -6 dB in room.

Black subwoofer at a three-quarter angle with its grille fitted

Lacquered, understated cabinet

The sealed cabinet borrows the low proportions of REL's Reference models. Its sides are clad in a horizontally line-grained composite, and the 15 mm top plate is finished in five coats of hand-polished high-gloss lacquer, with the REL logo floating inside it. A grille is supplied to cover the driver.

Blue rear panel with controls, RCA inputs and mains socket

Amplifier and analogue filters

A 300 W RMS Class D amplifier drives the woofer, backed by analogue input filters and a subsonic filter that starts at 12 Hz. The rear panel offers two low-level RCA inputs or one LFE input, a daisy-chain output, a crossover adjustable from 30 to 200 Hz and a 0 or 180° phase switch. The HT-Air MKII kit, sold separately, adds a 5.8 GHz wireless link.

Black = Black; White = White

Reference 73790

Data sheet

Product Type: Closed-box active subwoofer, front-firing driver
Features: 6.3 A semi-delay fuse (230 or 115 V operation)
Auto standby or always-on switch
Crossover adjustable from 30 to 200 Hz
DC fault protection
Fully electronic SET-SAFE protection
Mains input 220-240 V (110-120 V for certain markets)
Output short-circuit protection
Phase 0 or 180°
Supplied: grille, mains lead, user manual
Brand: REL Acoustics
Audio outputs: Daisy chain: 2 x low-level RCA or 1 x LFE RCA
Analog inputs: 2 x low-level RCA or 1 x LFE RCA
Wireless connectivity: HT-Air MKII compatible (sold separately)
Output power: 300 W RMS
Color: Black, White
Technology: Horizontally oriented line-grained composite, 15 mm top plate, 5 coats of hand-rubbed high-gloss lacquer
Series: Serie HT
Amplification technology: Class D
Power consumption: Standby more than 0.5 W, idle 10 W
Woofer: 10 in. (250 mm) long-throw CarbonGlas cone, inverted carbon fibre centre cap, steel chassis
Frequency response: -6 dB at 24 Hz (in room)
Width: 36.2 cm
Depth: 38.7 cm
Height: 34.3 cm
Unit weight: 15.5 kg
