Marantz Model 40n | 70 W connected integrated amplifier | 4 YEAR WARRANTY

Name: Marantz Model 40n | 70 W connected integrated amplifier | 4 YEAR WARRANTY
Brand: Marantz
Price: 2399.00 CHF
Availability: BackOrder

Reference 67695

CHF2,399.00 Tax included

Supplier stock – typically 4 to 7 days

The Marantz Model 40n is a connected integrated amplifier rated at 70 W per channel into 8 ohms, with an HDAM-SA3 power stage. Built-in HEOS, an HDMI ARC input for the TV and a Marantz Musical MM phono stage complete it.

Color : Black

Gray
Black

Quantity

Add to wishlist

Supplier delivery time usually between 4 and 7 days

Description
Product Details

Black Marantz Model 40n integrated amplifier on a carved wooden stand, speaker on the left

HDAM-SA3 and 70 W

The Model 40n delivers 70 W per channel into 8 ohms and 100 W into 4 ohms, with an HDAM-SA3 power stage. A double-shielded toroidal transformer powers it. Response runs from 5 Hz to 50 kHz at 0.02% harmonic distortion, and a subwoofer output with a low-pass filter adjustable from 40 to 120 Hz takes a subwoofer.

Silver and gold amplifier next to a speaker, vinyl records in the foreground

Built-in HEOS streaming

The Model 40n has HEOS built in: from the HEOS app it streams TIDAL, Pandora or Amazon Music HD and shares music with the other HEOS devices in the home. The rear USB-A port plays files stored on a flash drive or disk. The supplied remote also controls a Marantz CD player.

Close-up of the capacitors on an audio circuit board

MM phono and HDMI ARC

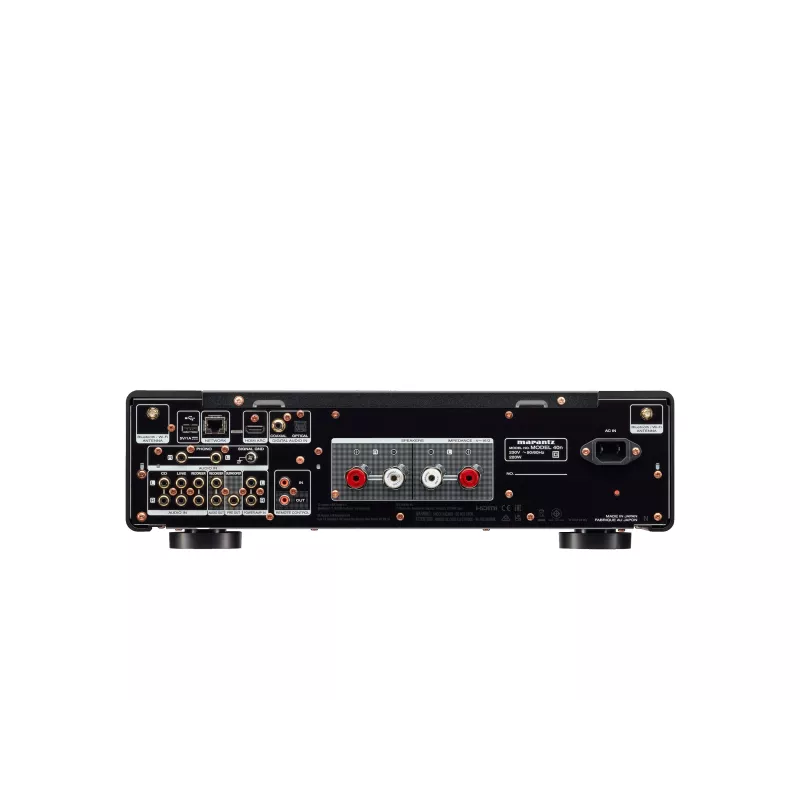

The turntable connects to the MM phono input and its Marantz Musical Phono EQ, with an 87 dB signal-to-noise ratio. The TV links to the HDMI ARC input in PCM, while an optical and a coaxial input take other digital sources. Four analogue inputs including phono, a REC output and a Power Amp Direct input complete the rear panel.

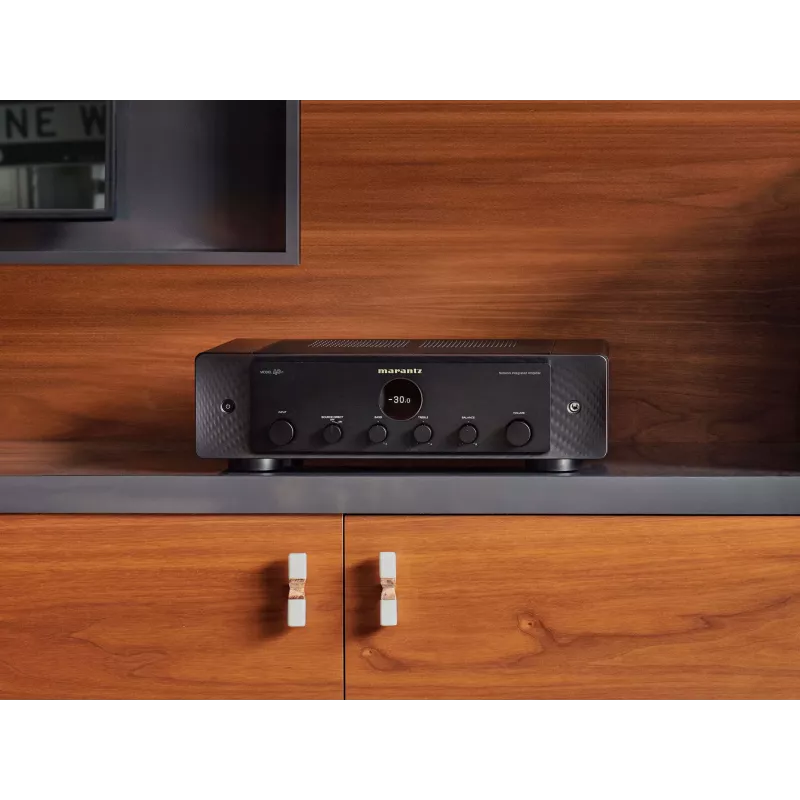

Black amplifier in a wooden TV cabinet beneath a screen

Aluminium front, two finishes

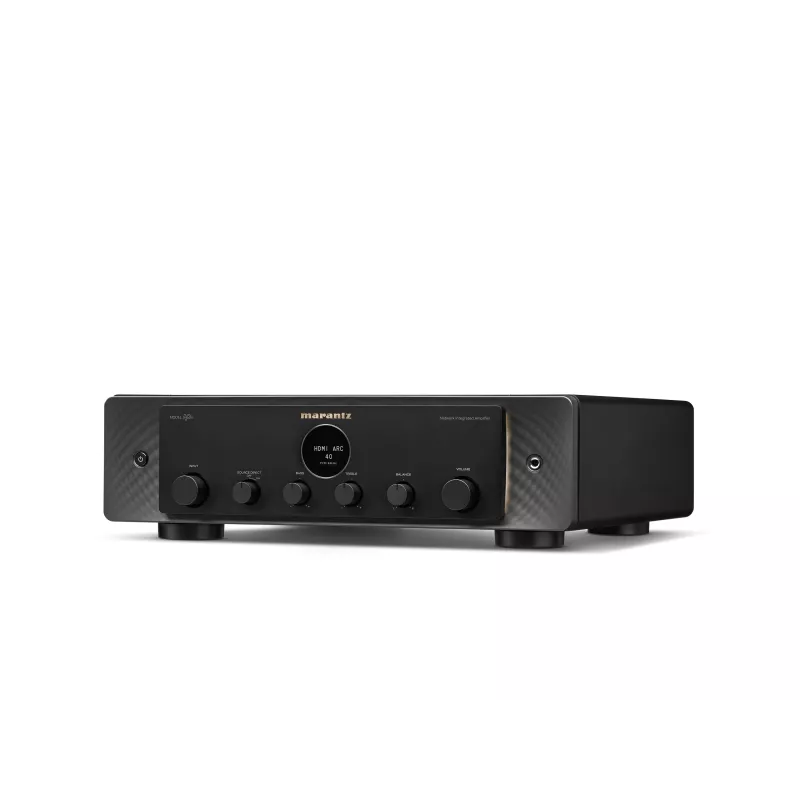

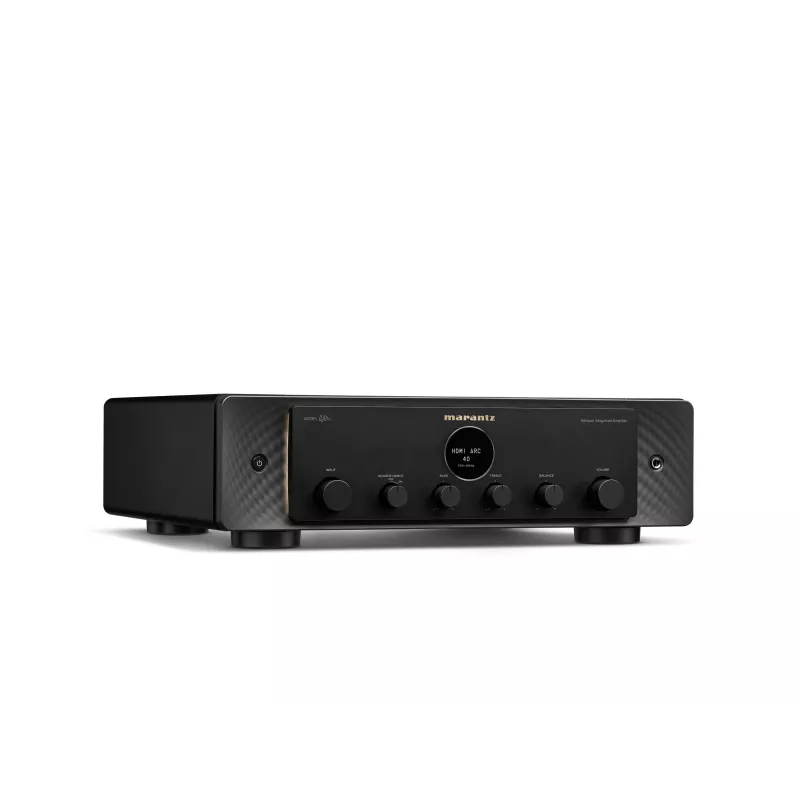

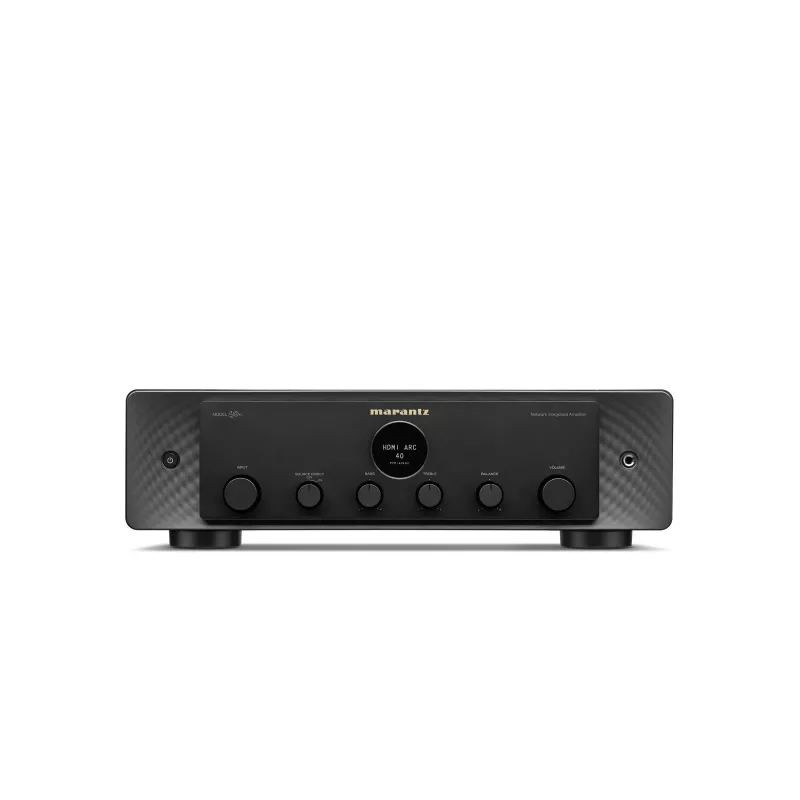

The aluminium front panel echoes the porthole and symmetry of classic Marantz components, with dimmable edge lighting. The knobs are aluminium and the chassis sits on a double-layer bottom plate. The unit measures 443 mm wide, 432 mm deep and 130 mm high, draws 220 W and 0.3 W in standby, and comes in Black or Silver Gold.

Black = Black; Grey = Silver Gold

Reference 67695

Data sheet

Product Type: Integrated amplifier
Features: Aluminium front panel
Detachable power cable
Dimmable front-panel lighting
Double-layer bottom plate
HEOS app (iOS, Android)
Marantz Musical phono EQ
Source Direct
System remote function
Tone controls
USB ports: 1 (rear, USB-A)
Bluetooth: Yes
Brand: Marantz
Integrated DAC: ESS ES9016K2M
WiFi: Yes
Integrated phono: Yes (MM)
Digital inputs: 1 optical, 1 coaxial
HDMI ARC: Yes (ARC)
Analog inputs: 4 RCA inputs (incl. phono), 1 REC output
Subwoofer output: 1 (low-pass filter 40 / 60 / 80 / 100 / 120 Hz)
Multiroom: Yes (HEOS)
Output power: 70 W + 70 W (8 Ω), 100 W + 100 W (4 Ω)
Phono inputs: MM
Color: Black, Silver, Gold
Streaming services: HEOS, AirPlay 2, Spotify Connect, Tidal, Amazon Music
Technology: Double-shielded toroidal transformer
HDAM-SA3, Class A/B
Hi-Res Audio: DSD 5.6, PCM 192/24
HDMI inputs: 1 (ARC)
Series: Model
Connections: Marantz Remote Bus RC-5 (in / out)
Marantz SPKT-1+ speaker terminals
Power Amp Direct input
Signal-to-noise ratio: Phono MM 87 dB, CD 106 dB
Power consumption: 0.3 W (standby)
220 W
Frequency response: 5 Hz - 50 kHz
Distortion (THD): 0.02 %
Width: 44.3 cm
Depth: 43.2 cm
Height: 13.0 cm
Unit weight: 16.7 kg
