Yamaha NS-AW194 | All-Weather Outdoor Speaker (piece) | 2 YEAR WARRANTY

70621
CHF74.00 Tax included
Supplier stock – typically 4 to 7 days
Yamaha NS-AW194 outdoor speaker with moisture-treated drivers. 2.5 cm balanced dome tweeter, 30 W nominal, price per unit.
Color : White
Quantity
Add to wishlist
Supplier stock

The minimum purchase order quantity for the product is 2.

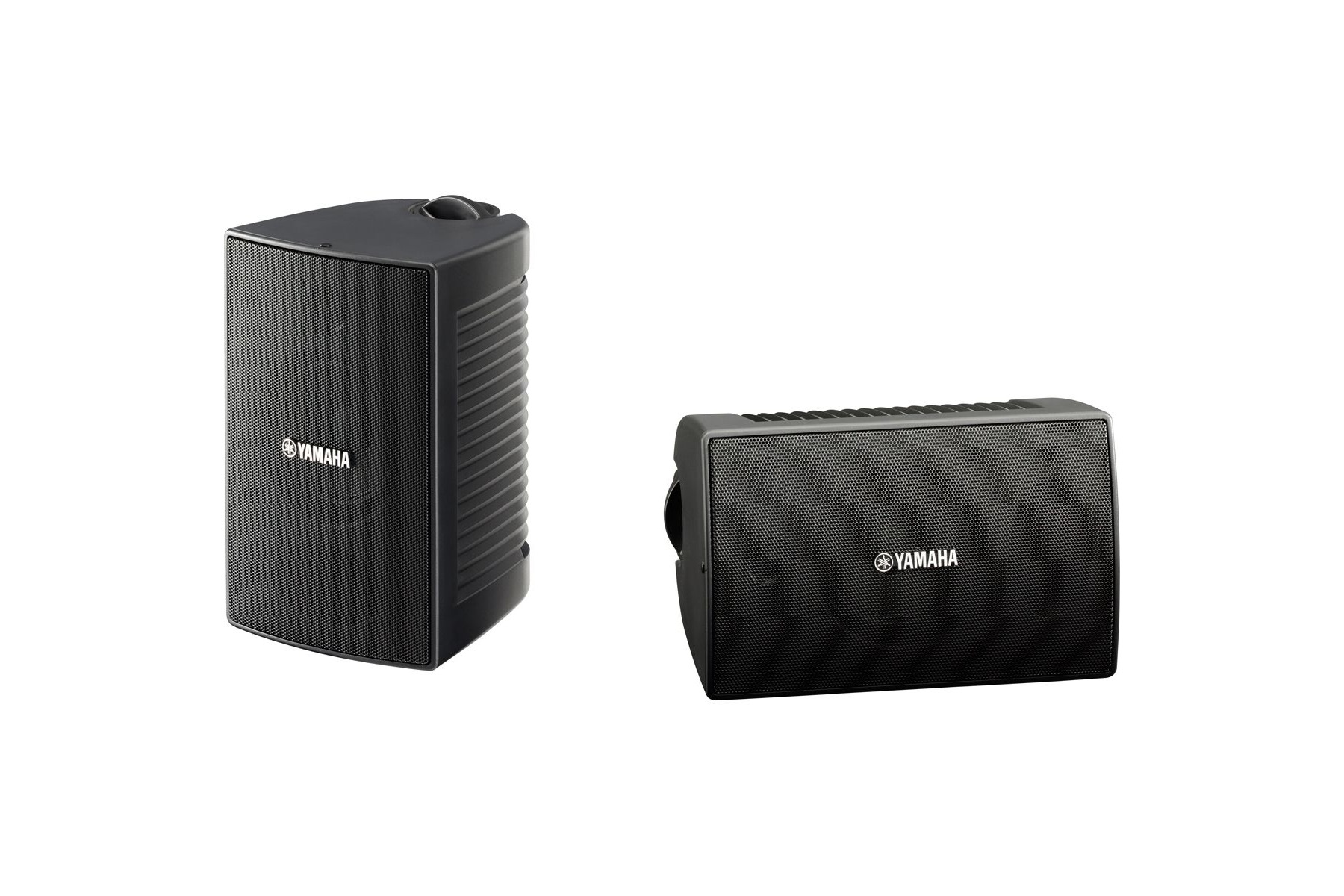

Pair of black outdoor speakers, one at three quarters and one front on

Two-Way Outdoor Speaker

The NS-AW194 pairs a 10 cm waterproof woofer with a 2.5 cm dome tweeter. Bandwidth runs from 100 Hz to 20 kHz at 8 ohms. Protection is rated IPx3 and the U-bracket is supplied.

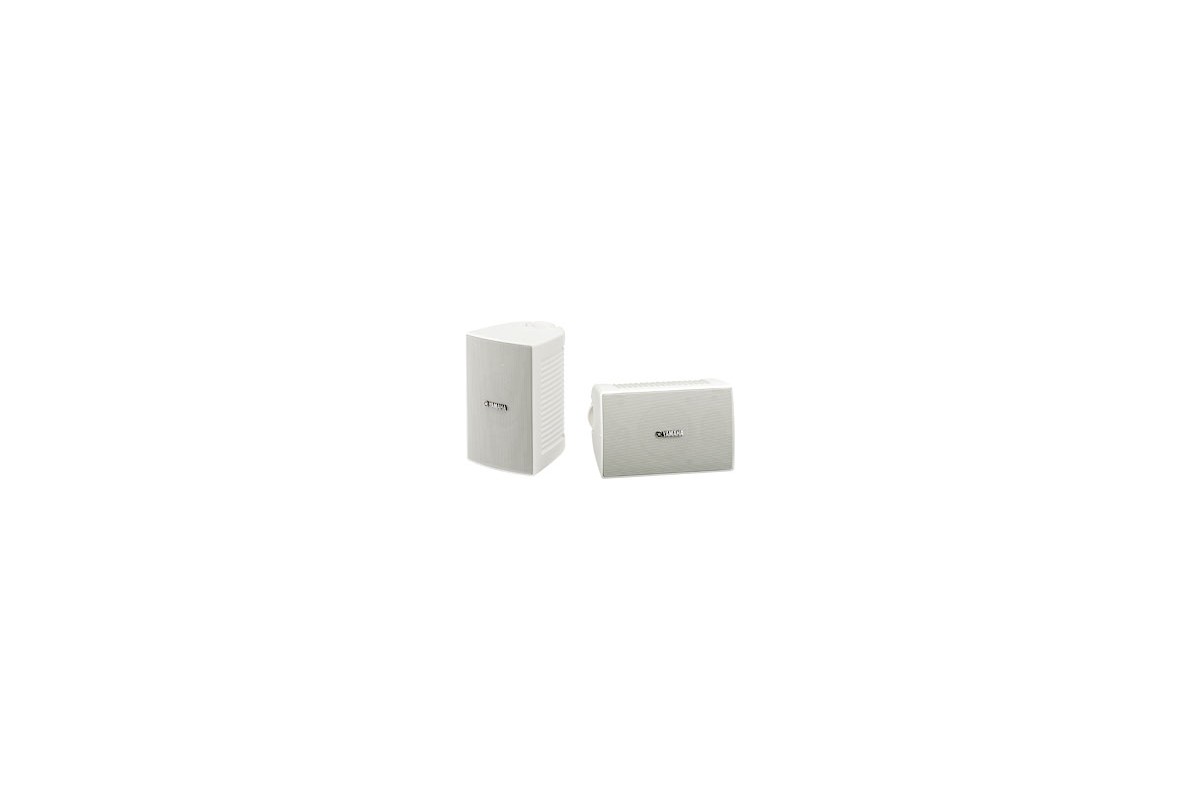

The same pair in white, mounting bracket visible

Two Finishes, Black and White

The model comes in black and in white, at the same price and the same dimensions. White blends into a light facade, black under a dark eave. The U-bracket swivels to aim the speaker at the listening area.

70621

Data sheet

Features
IPx3
Technology
2-way bass-reflex
Nominal impedance
8 ohms
Sensitivity
85 dB/2.83 V/1 m
Installation type
U-bracket (Movable angle: 81°) *degree pitch:13.5°
Connections
Push Terminal ( Applicable Cable *Max, Twisted wire : 8mm²/ AWG 8)
Tweeter
1" (2.5cm) fluid-cooled, coated balanced dome
Woofer
4" (10cm) waterproof cone
Frequency response
100 Hz–20 kHz
Recommended amplifier power
30 W
80 W
Width
15.2 cm
Depth
17.1 cm
Height
24.3 cm
Unit weight
1.3 kg

Specific References

EAN13
4957812498166
