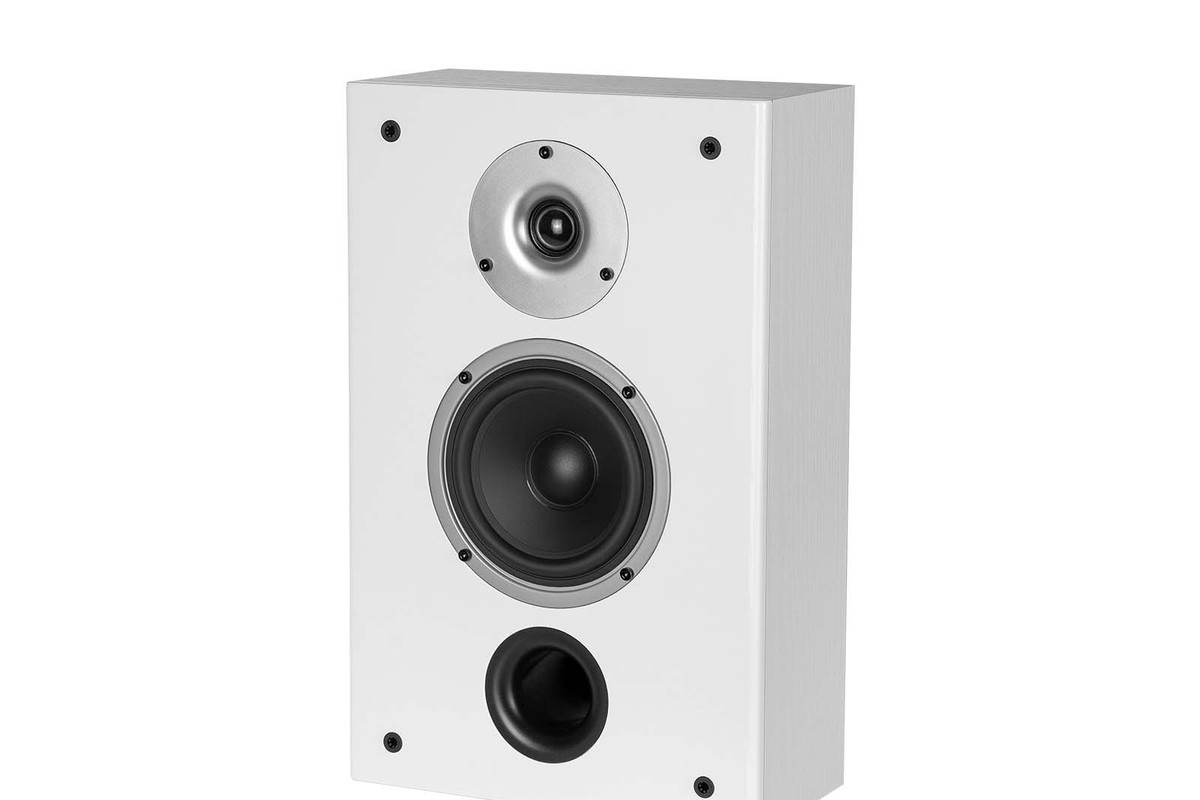

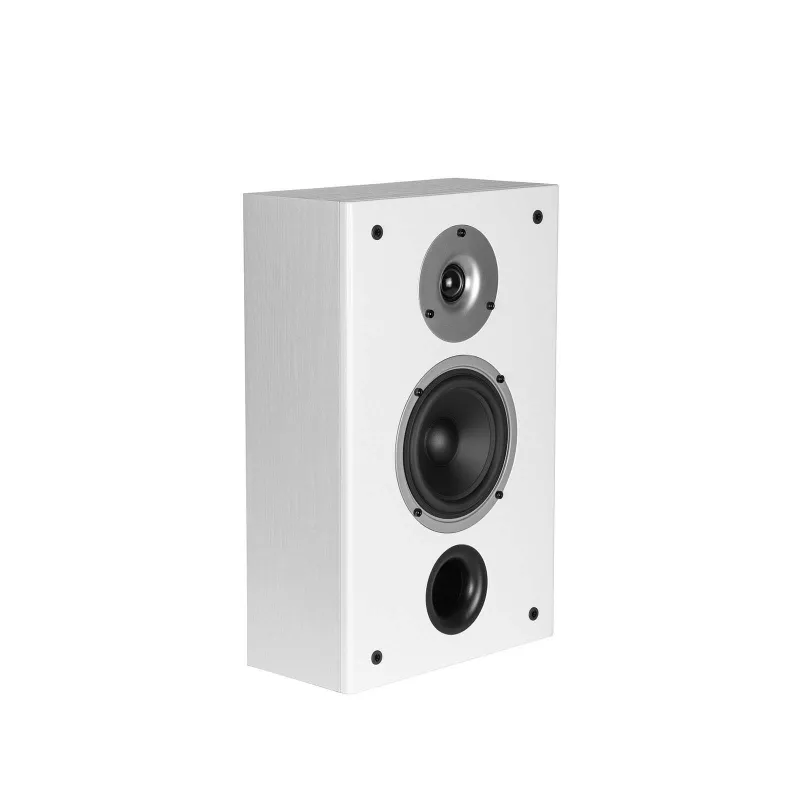

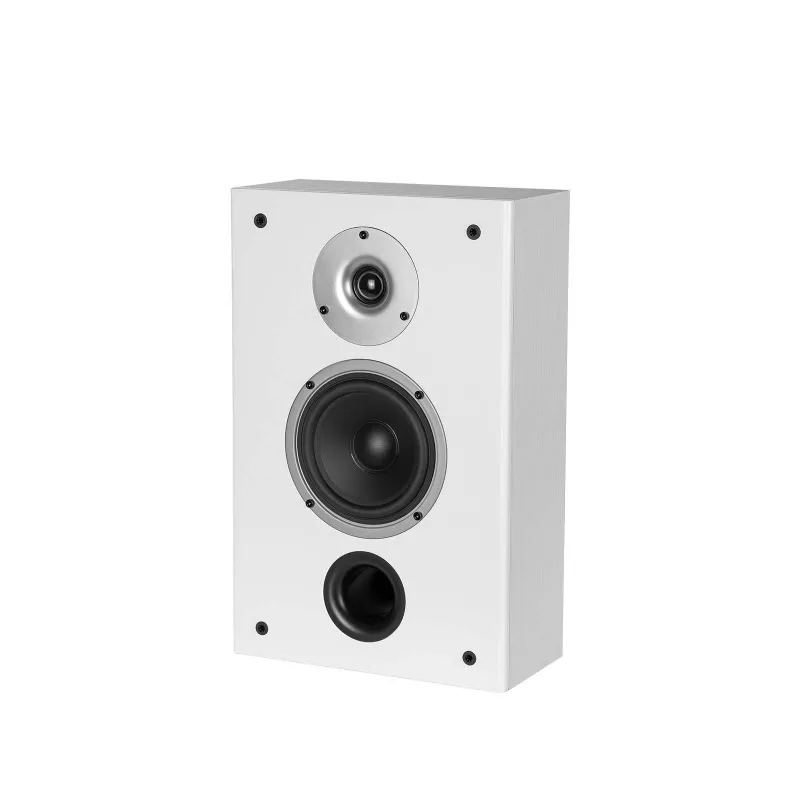

Wilson Raptor On-Wall: two-way bass-reflex on-wall speaker in a black or white finish. A 25 mm dome and a 125 mm midrange cover 55 Hz to 20 kHz.

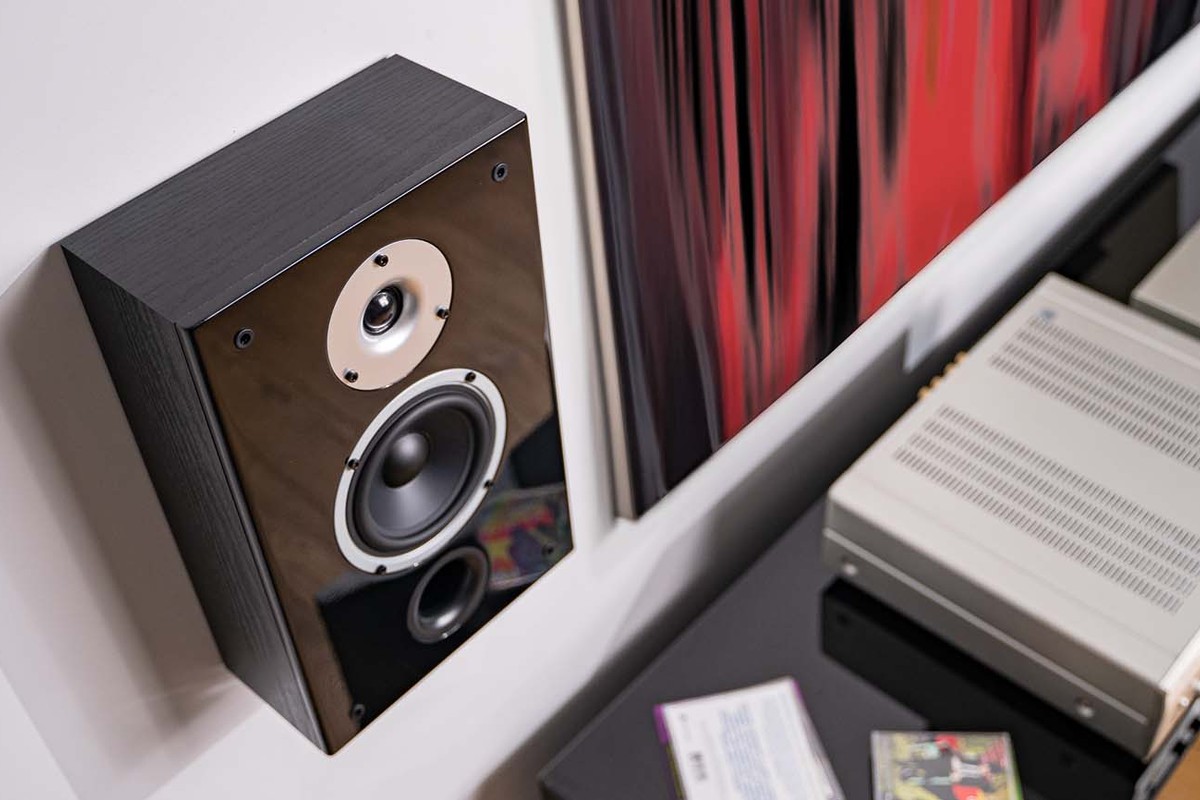

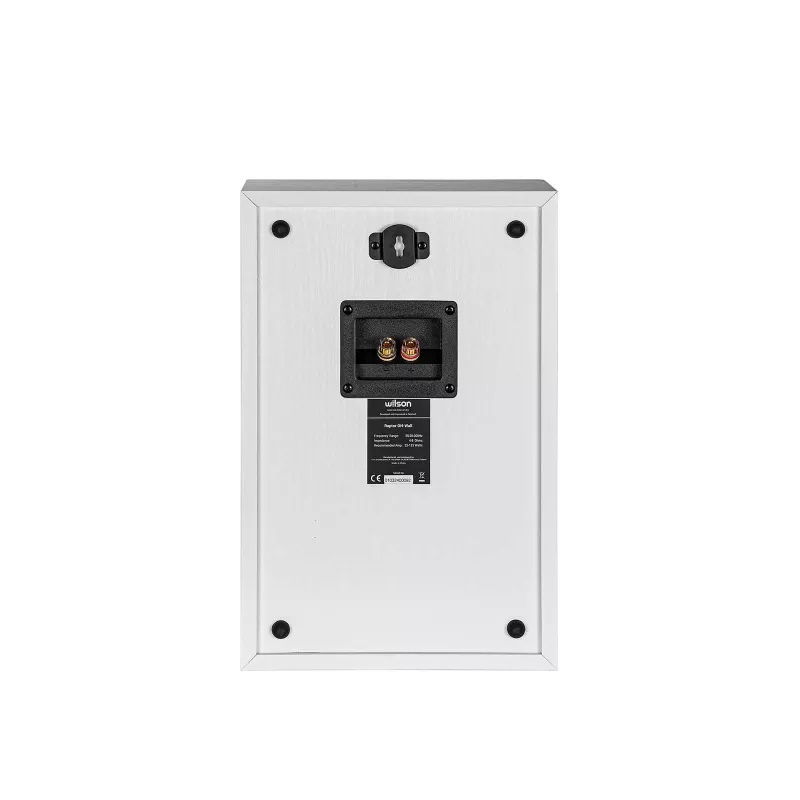

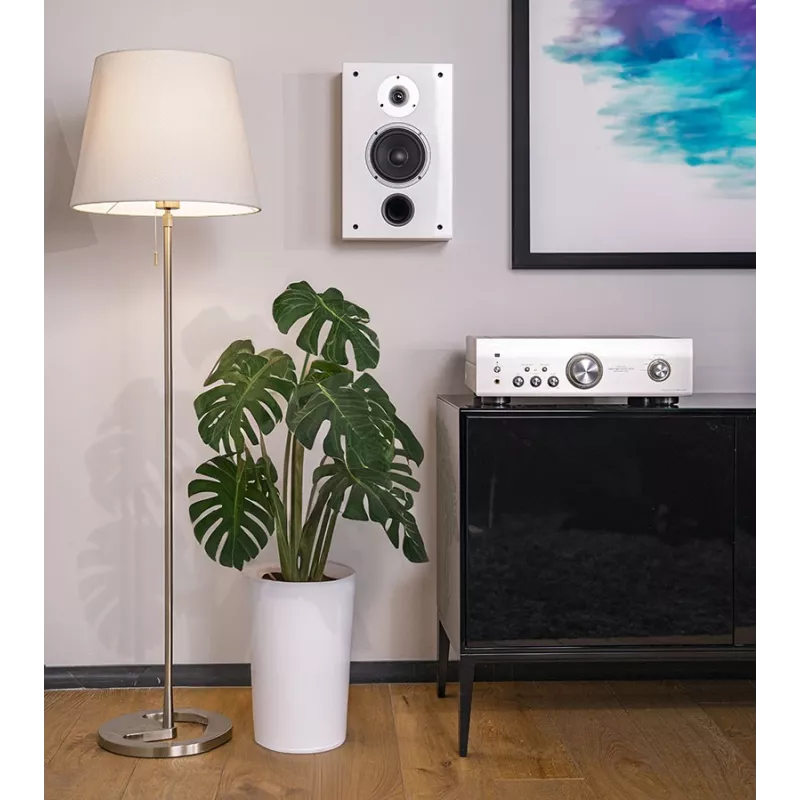

A metal keyhole bracket is built into the back of the cabinet. Just choose screws suited to your type of wall, and four rubber stops are supplied for installation. At 390 x 250 x 120 mm and 4.2 kg, the flat cabinet stays discreet in a small room. In stereo, you place it at ear height, facing the listening position.

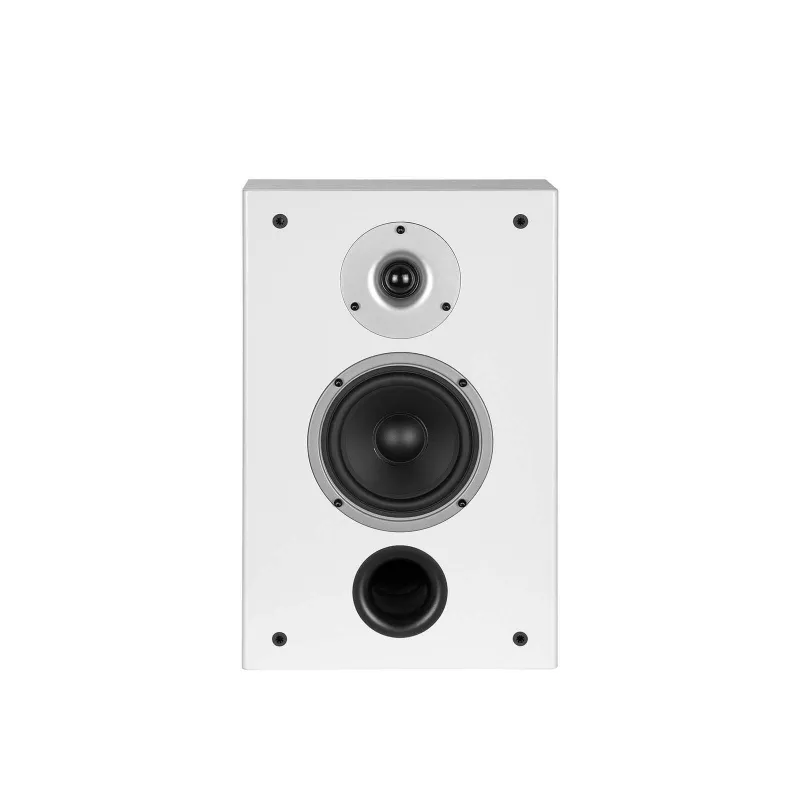

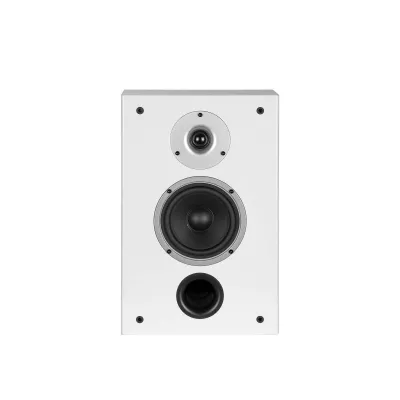

A soft 25 mm dome with a neodymium magnet and a 125 mm driver share the spectrum, with a crossover at 2,800 Hz. The aluminium voice coils limit heating at high volume. The port opens at the front: the air outlet is not against the wall. The response covers 55 Hz to 20 kHz (±3 dB), for a maximum level of 106 dB.

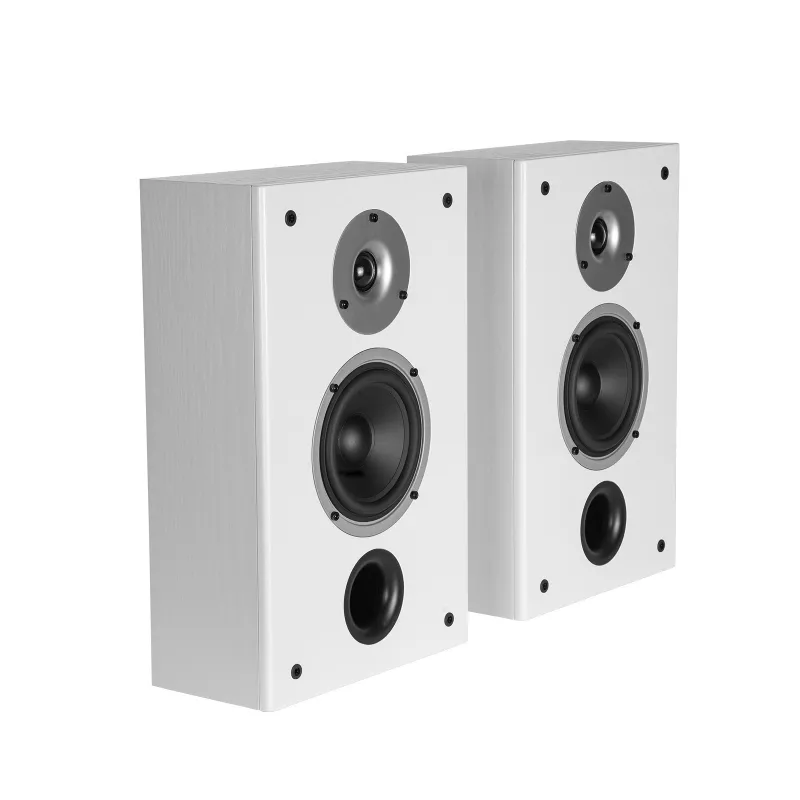

This model works as a stereo speaker, a front or surround speaker, and a Dolby Atmos speaker from a 5.1 system. It pairs with the other speakers in the Raptor series, which share its finishes. With 86 dB sensitivity and an impedance of 4 to 8 ohms, it suits an amplifier of 25 to 125 W.

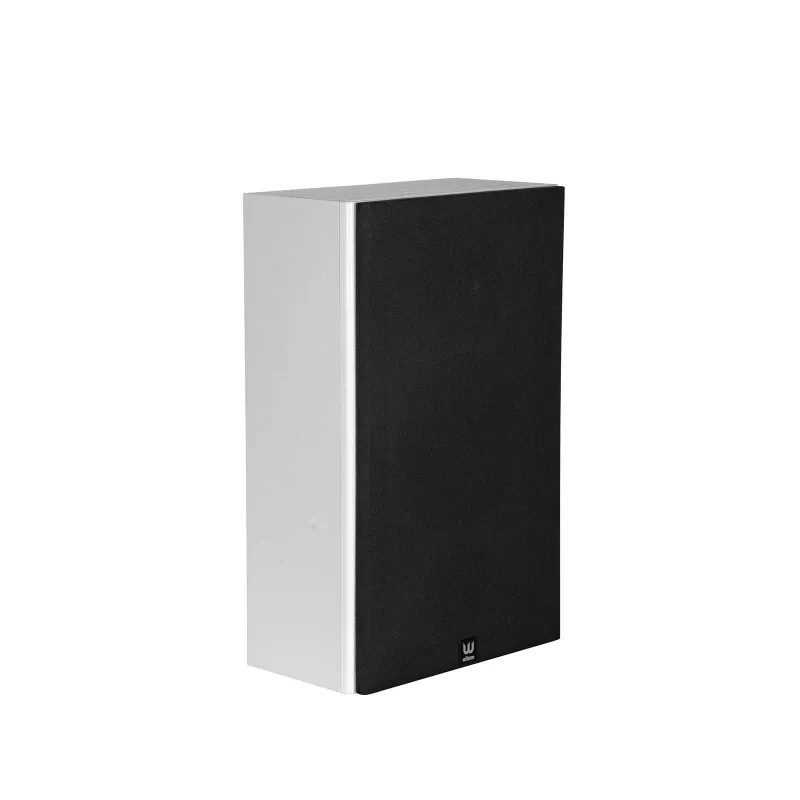

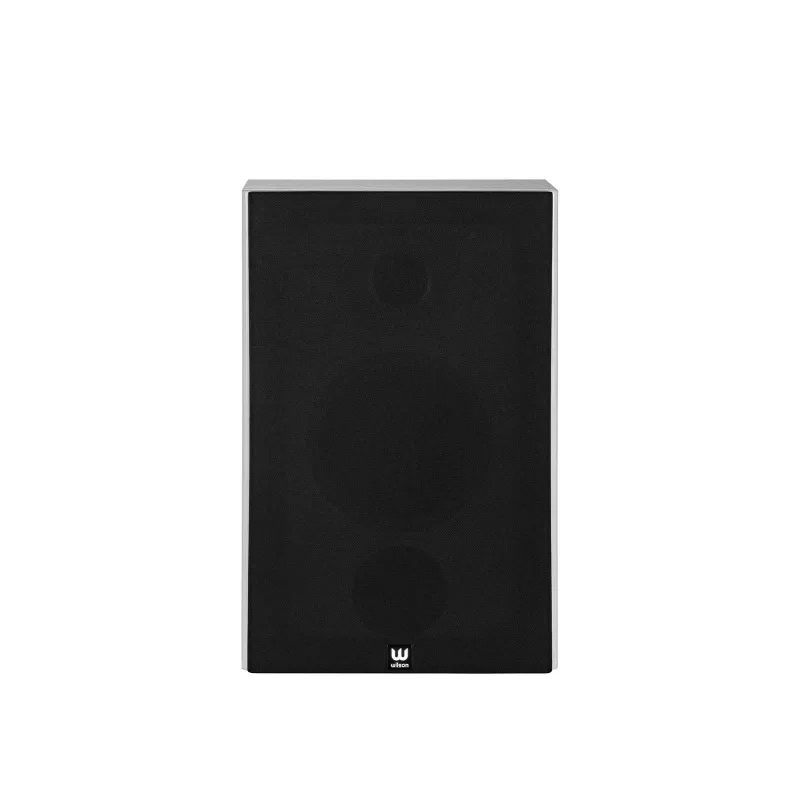

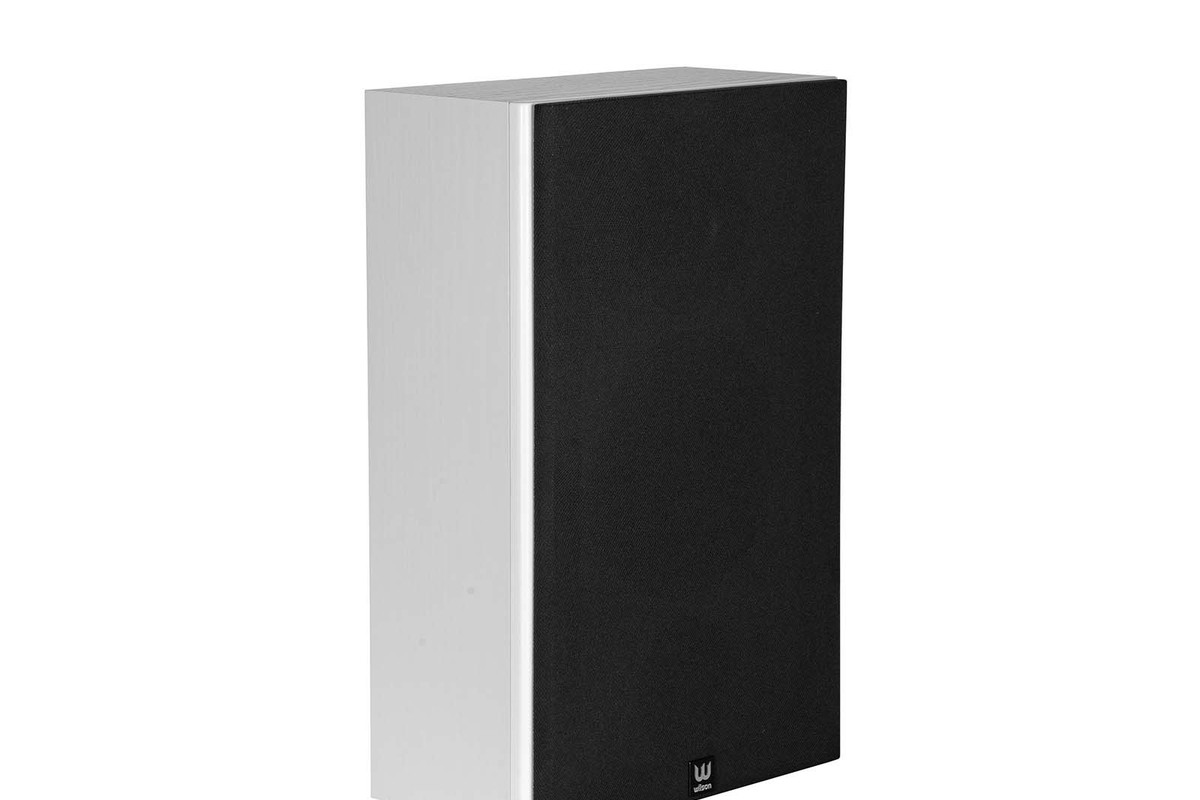

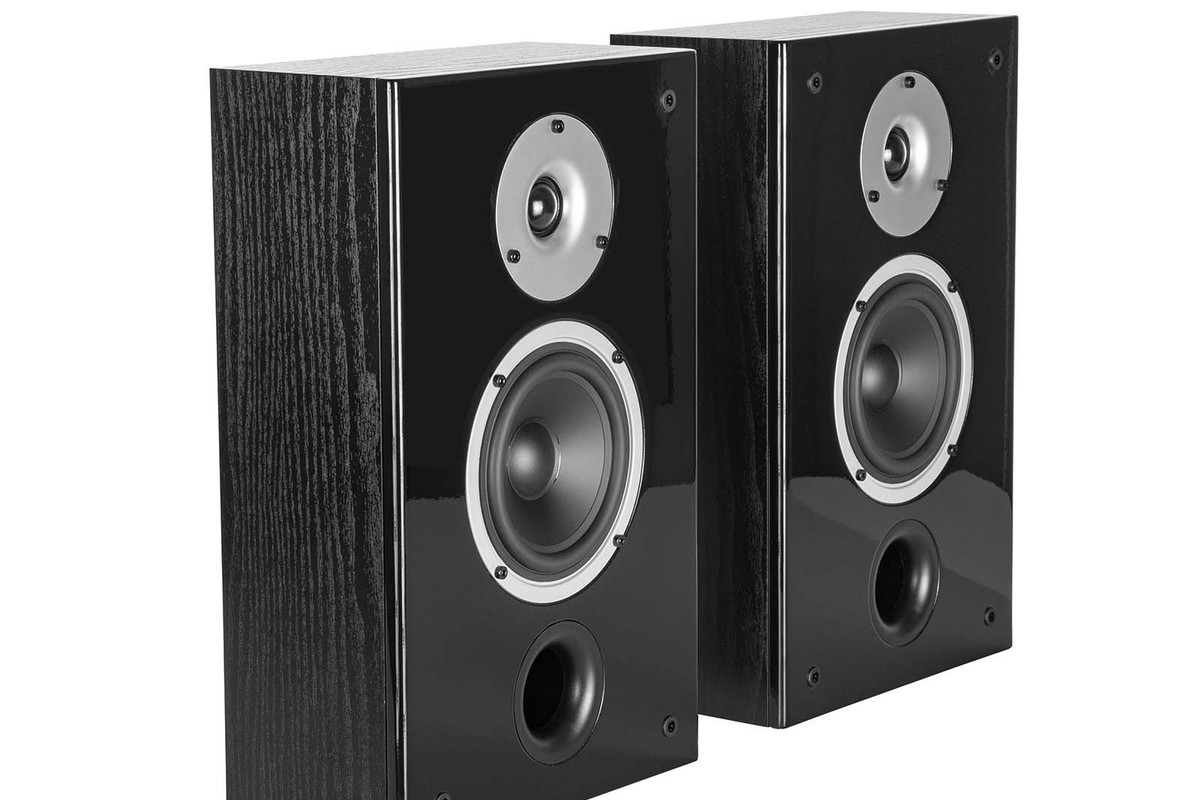

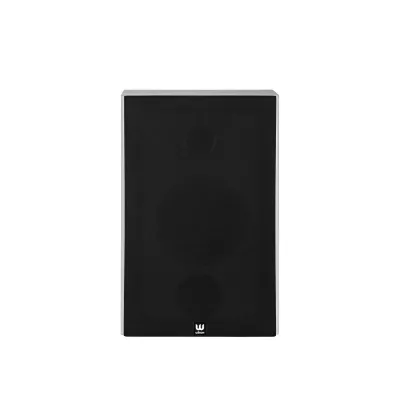

The black grille, in acoustically neutral fabric, hides the drivers and the port. The cabinet comes in black ash or white ash, with a visible wood structure. The gold-plated screw terminal accepts banana plugs.
