Unison Research Unico Primo | Hybrid integrated amplifier | 2 YEAR WARRANTY

Name: Unison Research Unico Primo | Hybrid integrated amplifier | 2 YEAR WARRANTY
Brand: Unison Research
Price: 2299.00 CHF
Availability: BackOrder

Reference 73772

CHF2,299.00 Tax included

Supplier stock – typically 4 to 7 days

Unison Research Unico Primo hybrid integrated amplifier, with a Class A ECC83 valve input stage and a dynamic Class A power MOSFET output. It delivers more than 80 W and accepts an optional MM/MC phono board.

Color : Silver

Black
Silver

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

One ECC83 at the input

The Unico Primo is a stereo integrated amplifier that brings the technology of Unison Research's more ambitious models into a compact format. Its Class A triode input stage uses one ECC83 (12AX7) valve, and four power MOSFETs biased in dynamic Class A form the output stage. It delivers more than 80 W, with a 10 dB feedback factor and a damping factor above 50.

Black version at three-quarter angle, vented top cover

Assembled in Treviso

Understated lines, carefully finished surfaces and balanced proportions give the Unico Primo its elegant look. Its solid construction, careful choice of components and almost artisan assembly, carried out at the Treviso factory, reflect the brand's origins. The chassis measures 43.5 x 43 x 9.5 cm and weighs 14 kg. The valves are covered for 3 months, the unit for 2 years.

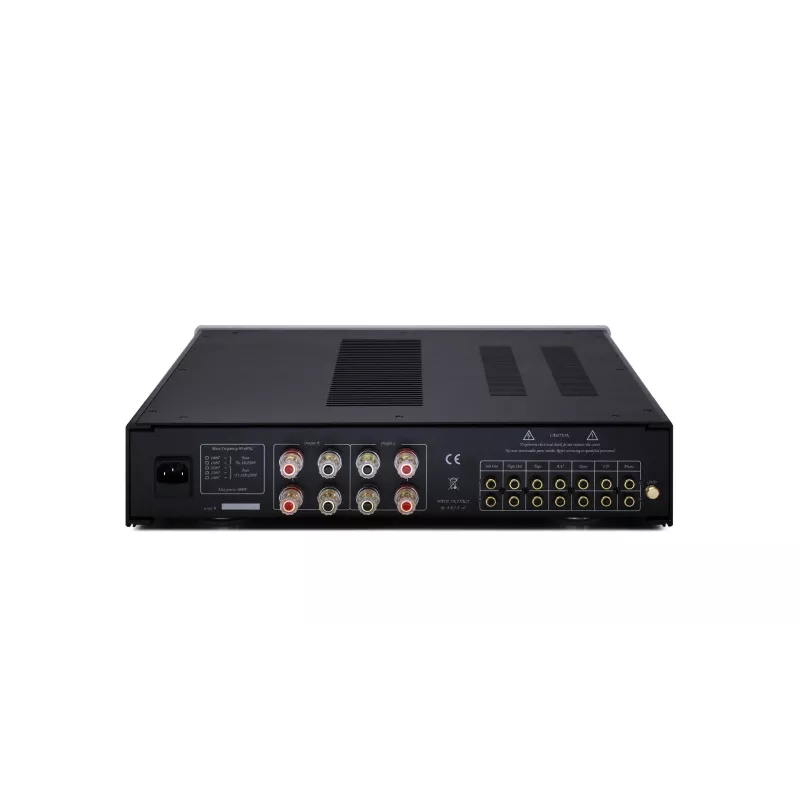

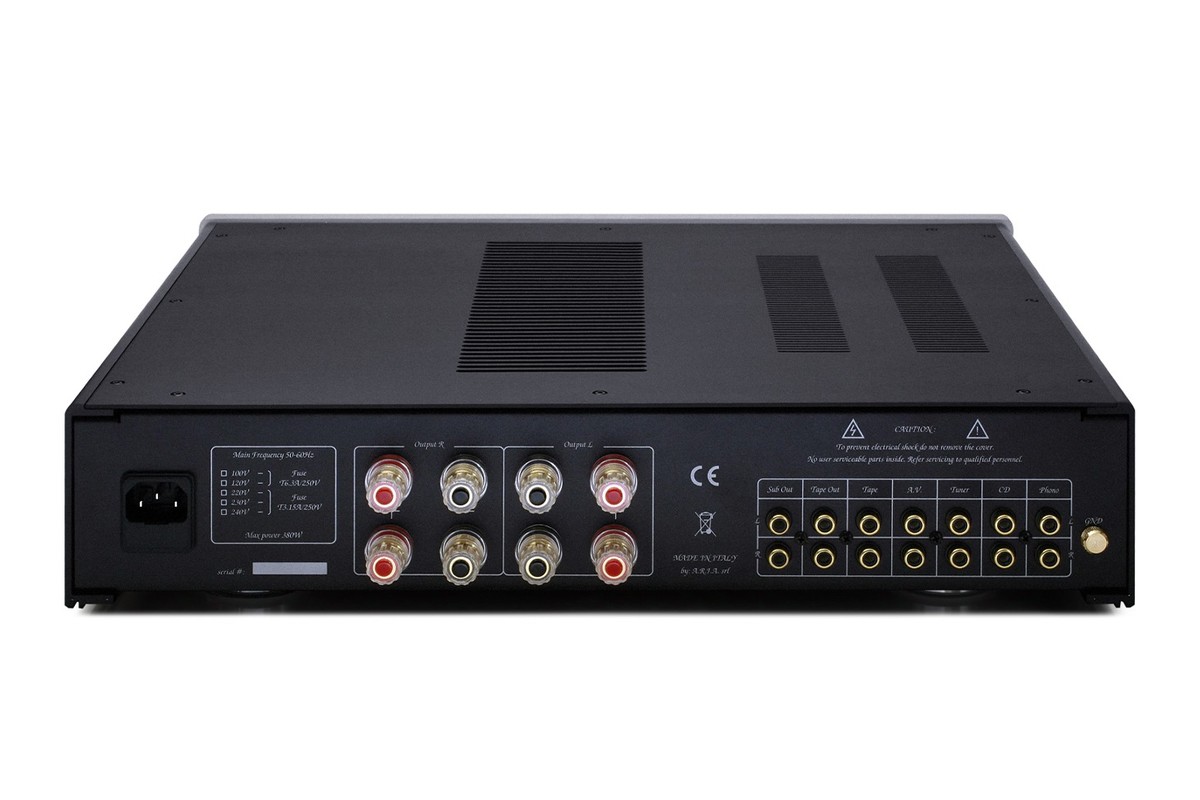

Rear panel with RCA inputs and double speaker terminals

RCA inputs, optional phono

The rear panel offers five RCA line inputs, one of which can take the optional MM / MC phono board, plus a tape input. On the output side there is a tape output and an RCA subwoofer output. The optional phono stage provides 40 dB of gain in MM and 50 dB in MC, with a selectable extra 10 dB of gain.

Black = Black; Silver = Silver

Reference 73772

Data sheet

Product Type: Hybrid amplifier
Integrated amplifier
Features: Damping factor: above 50
Feedback factor: 10 dB
Infrared remote volume control
Input impedance: 50 kΩ / 47 pF
Maximum phono input voltage (optional): 120 mV at 1 kHz (MM)
Phono RIAA equalisation (optional): active at low frequencies, passive at high frequencies
Phono gain (optional): 40 dB (MM), 50 dB (MC)
Phono gain selection (optional): +0 dB / +10 dB
Brand: Unison Research
Audio outputs: 1 x RCA tape, 1 x RCA subwoofer
Integrated phono: Optional (MM/MC)
Analog inputs: 5 x RCA line (1 optional phono), 1 x RCA tape
Subwoofer output: 1
Output power: More than 80 W
Color: Black, Silver
Series: Unico
Sensitivity: 260 mV
Connections: 4 + 4 binding posts for bi-wiring
Amplification technology: Class A triode input stage
Dynamic Class A bias
Output stage: 4 x power MOSFET
Tube hybrid
Valves: 1 x ECC83 (12AX7)
Signal-to-noise ratio: 90 dB
Power consumption: 380 W max
Frequency response: -0.1 dB at 10 Hz, -0.5 dB at 100 kHz
Impédance de charge recommandée: 47 kΩ / 220 pF (MM), 100 Ω / 440 pF (MC), optional phono stage
Distortion (THD): 0.15% at 10 W, 1 kHz
Phono (optional): 0.09% at 5 mV, 1 kHz, MM
Width: 43.5 cm
Depth: 43.0 cm
Height: 9.5 cm
Unit weight: 14.0 kg
