FiiO WARMER R2R | Desktop DAC with tube buffer

72604
CHF399.00 Tax included
FiiO WARMER R2R desktop converter with an in-house R2R network and a four-tube E88CC buffer. Simultaneous RCA and XLR line outputs, mechanical VU meters.
Color : Black
Quantity
Add to wishlist
Supplier lead time, usually between 4 and 7 days

Guarantee safe & secure checkout

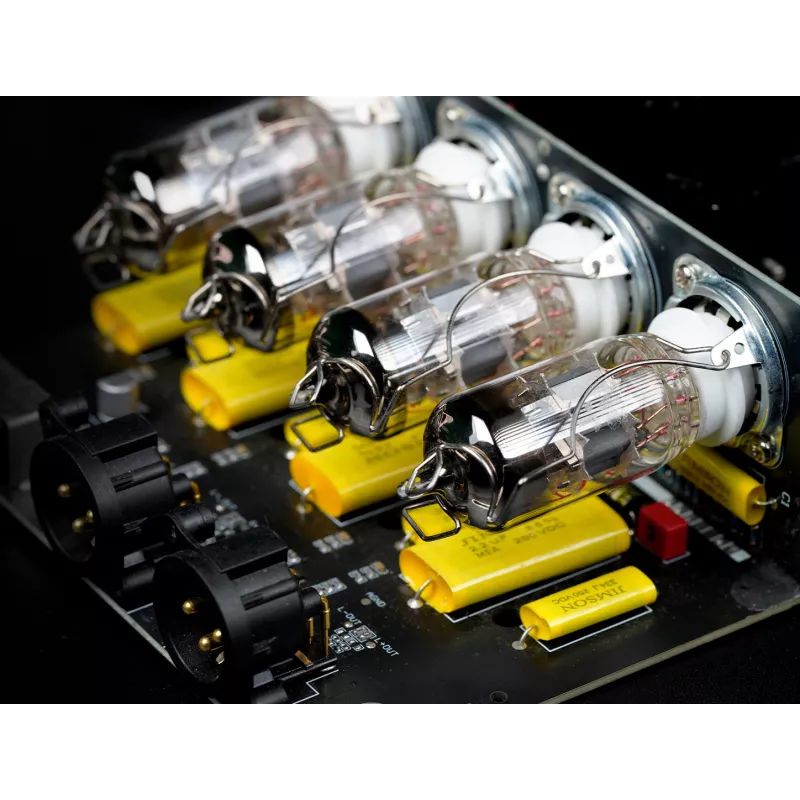

The four E88CC tubes of the FiiO WARMER R2R, lit

Four E88CC tubes

The output stage rests on four JJ Electronic E88CC tubes imported from Slovakia, run on a plus-or-minus 28 volt supply and rated for ten thousand hours. Two OPA1642AIDR precede them. A 46-watt toroidal audio transformer feeds the whole unit.

The converter board and its precision resistor network

An in-house R2R network

Conversion uses no off-the-shelf chip: FiiO lines up 192 thin-film resistors, forty-eight per channel, in a fully differential four-way 24-bit network. The resistors are rated at 0.1 % accuracy and 30 ppm thermal drift. A GD32F303RET6 handles control, an SA9312L the USB stage.

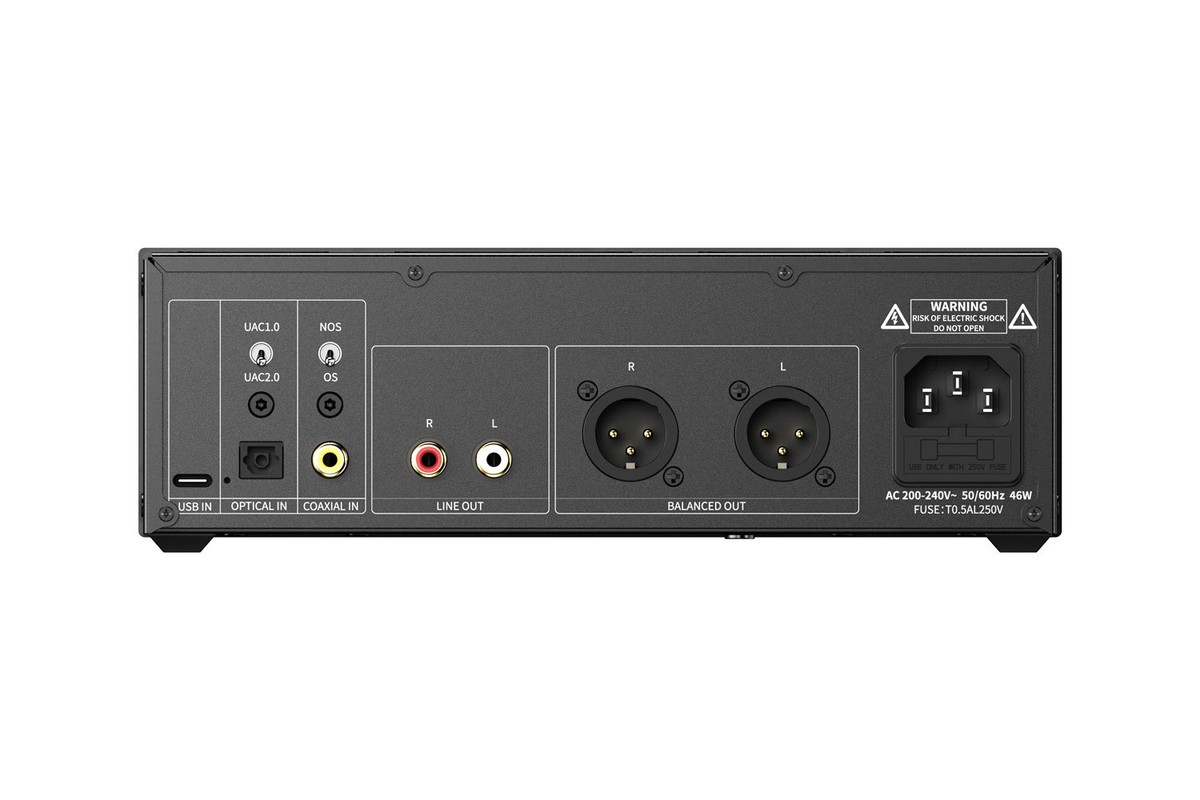

Rear panel with the RCA and XLR outputs of the WARMER R2R

Line outputs only

Two single-ended RCA outputs and two balanced XLR3 outputs can run at the same time, at 1.8 and 3.3 volts RMS. Signal-to-noise reaches 112 dB on RCA and 114 dB on XLR. The unit has neither a headphone output nor a volume control: it sits between a source and a preamplifier.

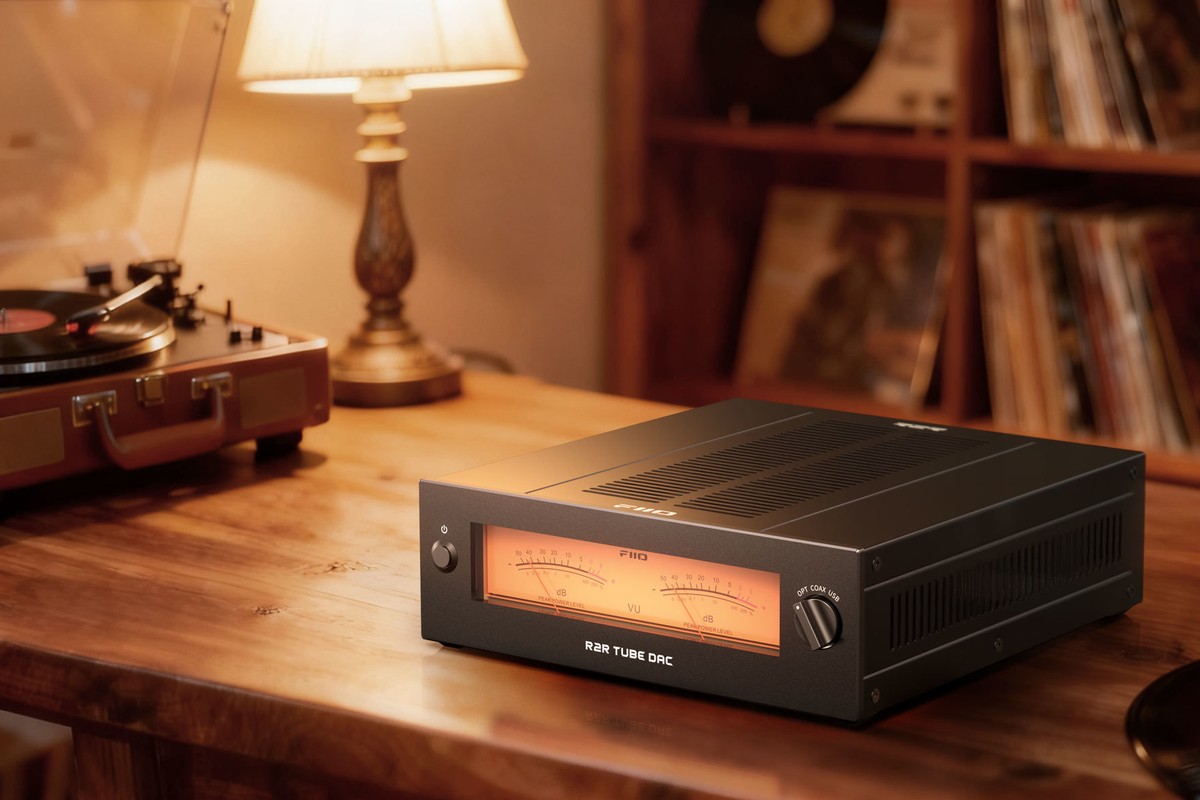

Backlit mechanical VU meters on the front of the unit

Switchable oversampling

An OS/NOS selector chooses between playback at the original rate and global oversampling to 384 kHz. Inputs accept 384 kHz/32-bit over USB, 192 kHz/24-bit coaxial and 96 kHz/24-bit optical, with a UAC 1.0 or 2.0 switch. Two backlit mechanical VU meters fill the front, on a chassis of 223.5 x 213 x 66.8 mm weighing 2865 g.

72604

Data sheet

Product Type
Desktop digital-to-analogue converter with tube buffer, line outputs only
Integrated DAC
In-house four-way 24-bit R2R network, 192 thin-film resistors (48 per channel), 0.1 % accuracy, 30 ppm; buffer with four JJ Electronic E88CC tubes
Audio outputs
Two RCA line outputs at 1.8 Vrms and two balanced XLR3 outputs at 3.3 Vrms, usable at once; no headphone output and no volume control
Connectivity
USB-C input at 384 kHz/32-bit, coaxial at 192 kHz/24-bit and optical at 96 kHz/24-bit, UAC 1.0 or 2.0 switch, 46 W toroidal transformer
Technology
Two backlit two-channel mechanical VU meters on the front, chassis of 223.5 x 213 x 66.8 mm weighing 2865 g
Hi-Res Audio
Signal-to-noise ratio of 112 dB on RCA and 114 dB on XLR; OS/NOS switch between the original rate and oversampling to 384 kHz
Series
WARMER
Width
22.4 cm
Depth
21.3 cm
Height
6.7 cm
Unit weight
2.865 kg

Specific References

EAN13
6953175711087
