Cambridge Audio DacMagic 200M in Geneva | Digistore.ch

Cambridge Audio DacMagic 200M

Reference 65472

CHF490.00 Tax included

The Cambridge Audio DacMagic 200M is a desktop digital-to-analog converter featuring dual ESS SABRE ES9028Q2M DACs and a headphone amplifier. It supports PCM up to 24-bit/768 kHz, DSD512, and MQA via USB, coaxial, optical, or Bluetooth aptX.

Color : Gray

Gray
Black

Quantity

Add to wishlist

Supplier delivery time is usually between 4 and 7 days

Guarantee safe & secure checkout

Description
Product Details

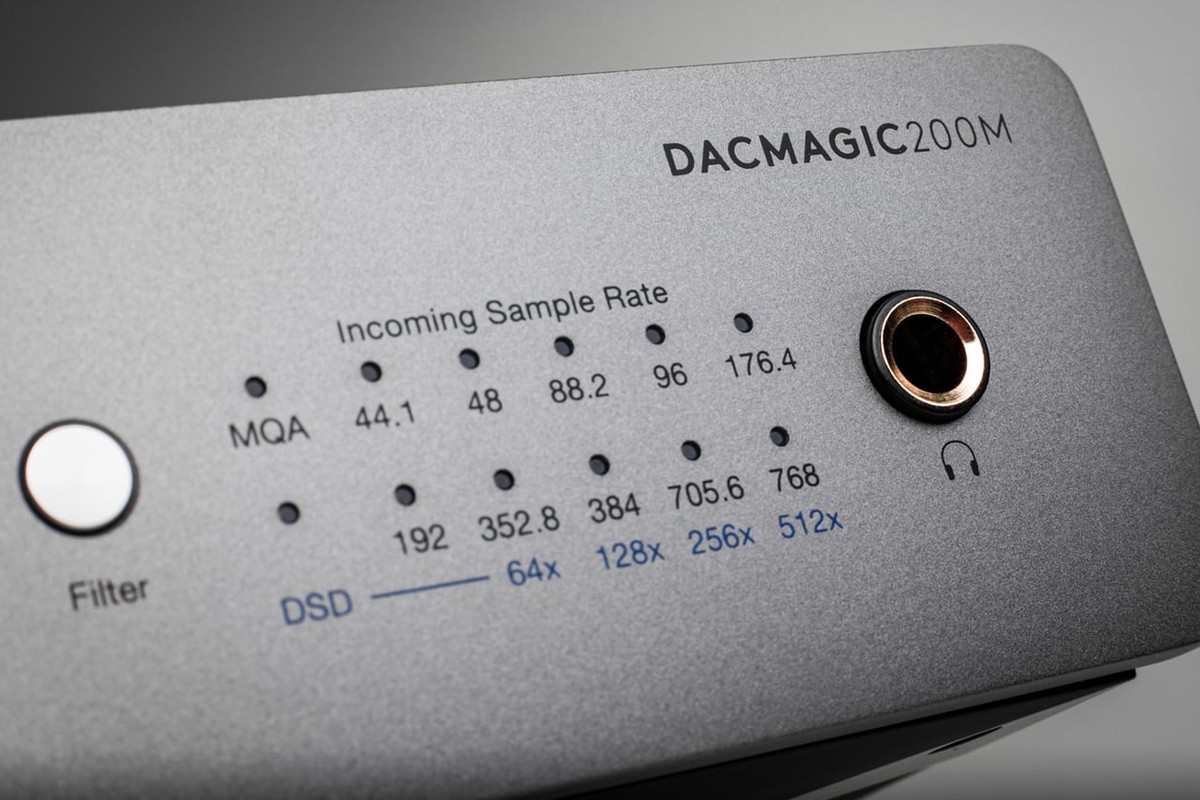

Façade du DacMagic 200M et ses indicateurs de fréquence d'échantillonnage

High Resolution and MQA

Two ESS SABRE ES9028Q2M DACs each handle one channel, limiting crosstalk to less than -110 dB at 10 kHz. The USB input supports PCM up to 768 kHz at 24-bit resolution, as well as native DSD from 64x to 512x. MQA decoding is full-featured, supporting both Core and Renderer modes, and an LED indicates when a certified file is being played. The signal-to-noise ratio exceeds 115 dB A-weighted.

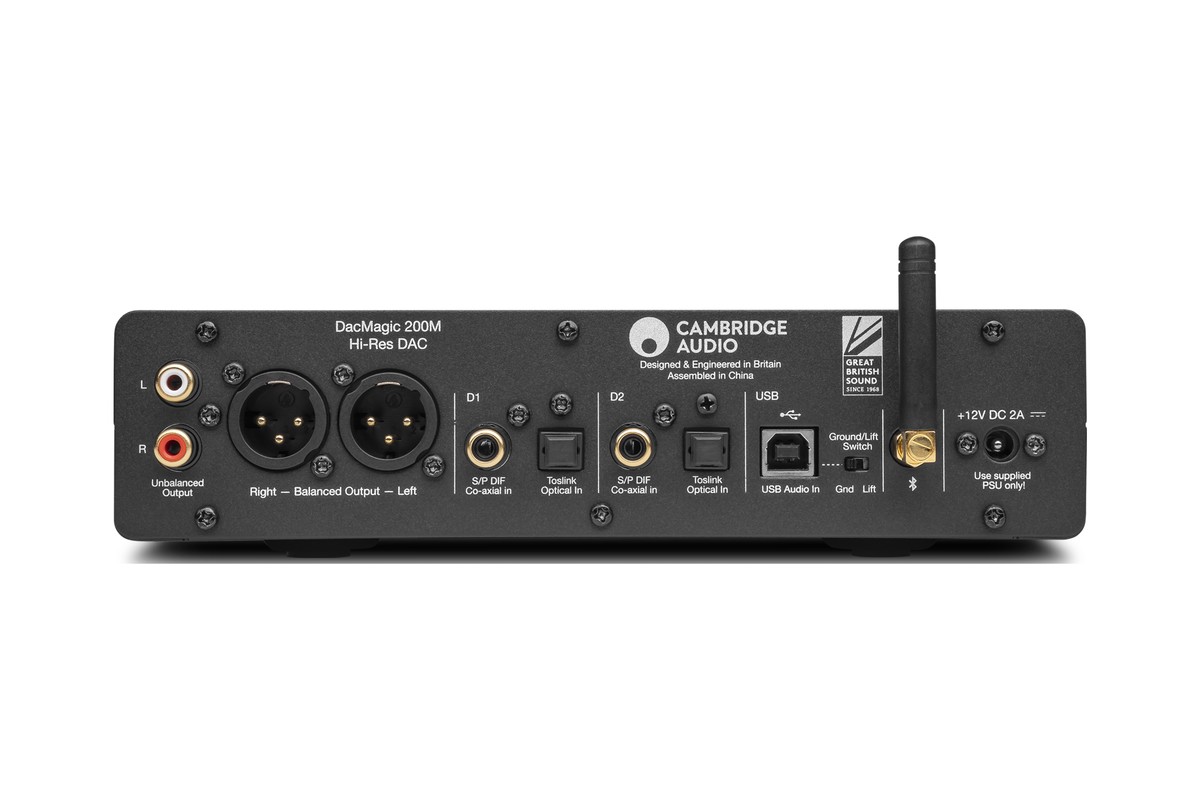

Panneau arrière avec sorties symétriques XLR et entrées numériques

Comprehensive Connectivity

Two Toslink optical inputs and two S/PDIF coaxial inputs accommodate home audio sources, with the coaxial connection supporting up to 192 kHz at 24-bit resolution. The balanced XLR outputs deliver 4.2 V rms, and the unbalanced RCA outputs deliver 2.1 V rms, with a choice of fixed or variable output levels. A Ground/Lift switch handles ground loops, and the Bluetooth antenna supports SBC and aptX codecs in version 4.2.

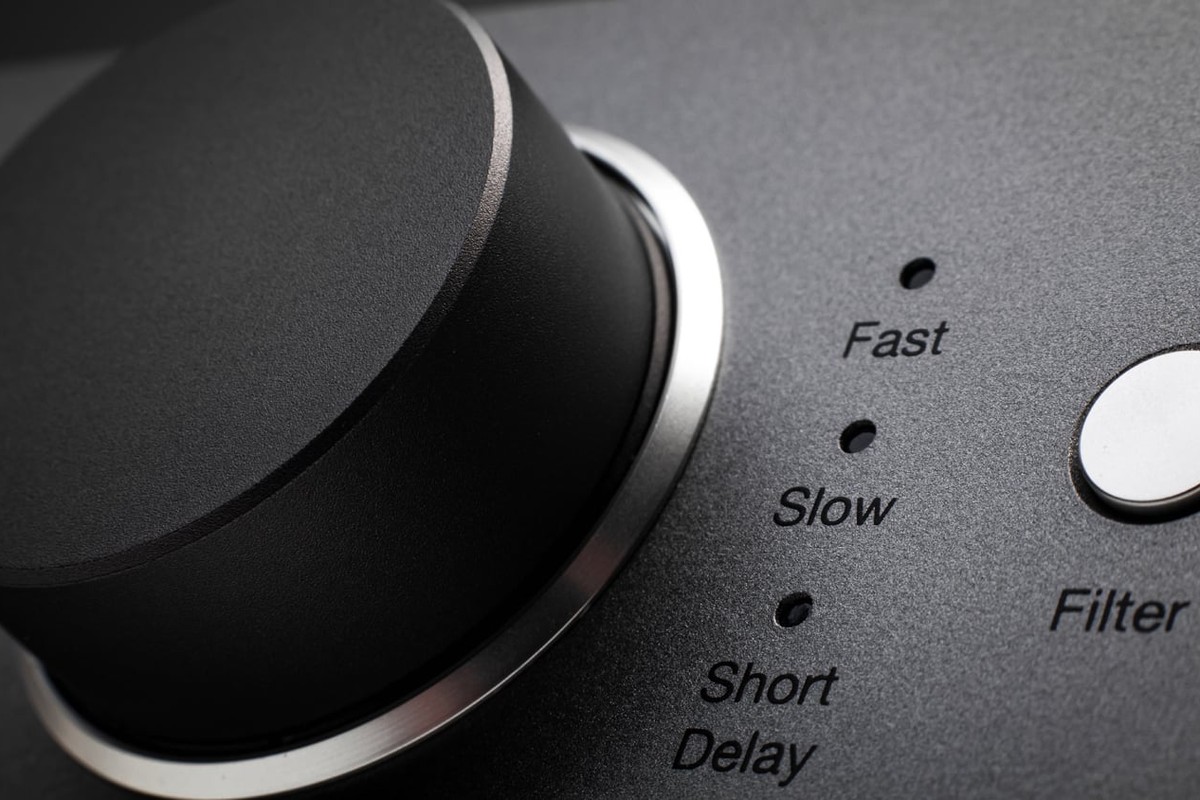

Molette de volume et sélecteur de filtre numérique

Selectable Digital Filters

Three reconstruction filters are accessible from the front panel: Fast, Slow, and Short Delay. Each modifies the converter’s impulse response, allowing you to adjust the playback to match the recording you’re listening to. The 6.35 mm headphone output delivers over 300 mW into 32 ohms and supports impedances ranging from 10 to 600 ohms.

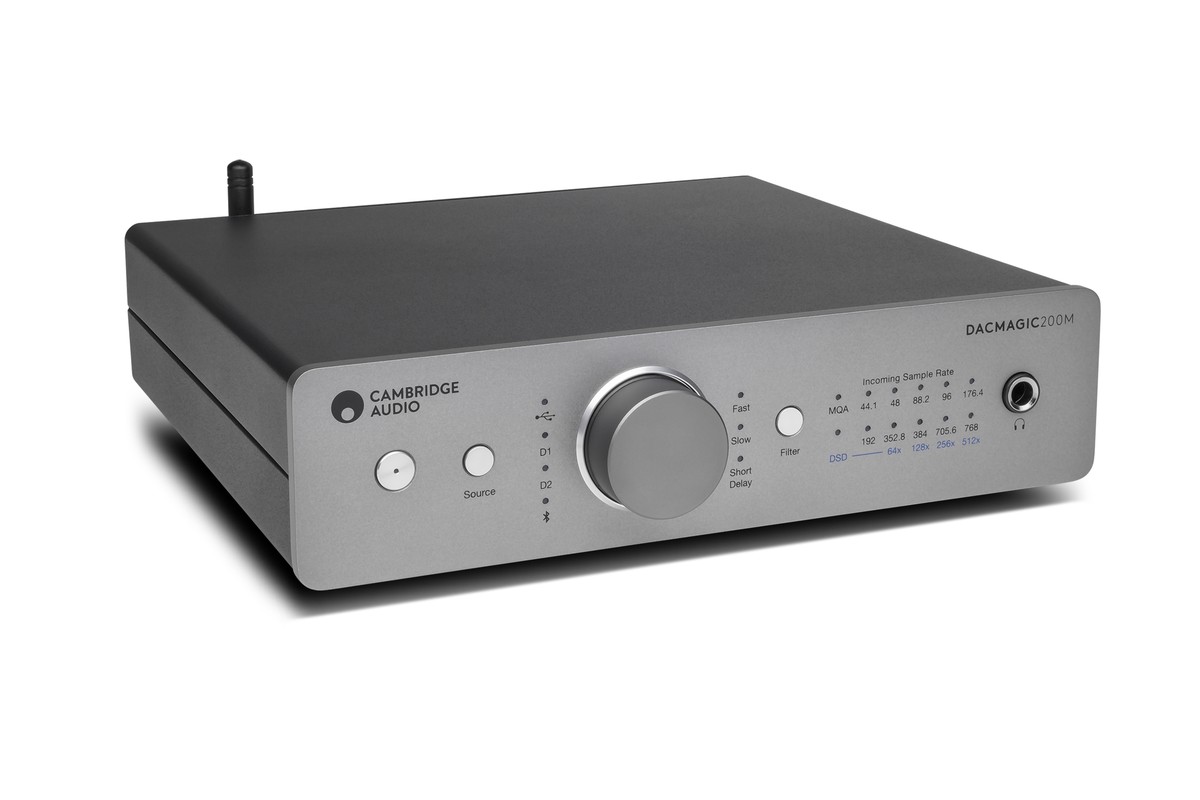

Vue de trois quarts du convertisseur au format demi-largeur

Half-width format

The chassis measures 21.5 cm wide by 19.1 cm deep by 5.2 cm high and weighs 1.2 kg. This half-width format fits just as easily on a desk as it does in a hi-fi stack. Power consumption is capped at 12 W, and the device is Roon Tested certified.

Reference 65472

Data sheet

Product Type: DAC
Integrated DAC: ESS SABRE ES9028Q2M x2
Audio outputs: RCA Output
XLR
Digital inputs: 2 optical + 2 coaxial
USB Audio
Series: DacMagic
Wireless transfer: Bluetooth aptX
Signal-to-noise ratio: 115 dB
Width: 21.5 cm
Depth: 19.1 cm
Height: 5.2 cm
Unit weight: 1.2 kg

Specific References

EAN13: 5055300420879

Condition New
