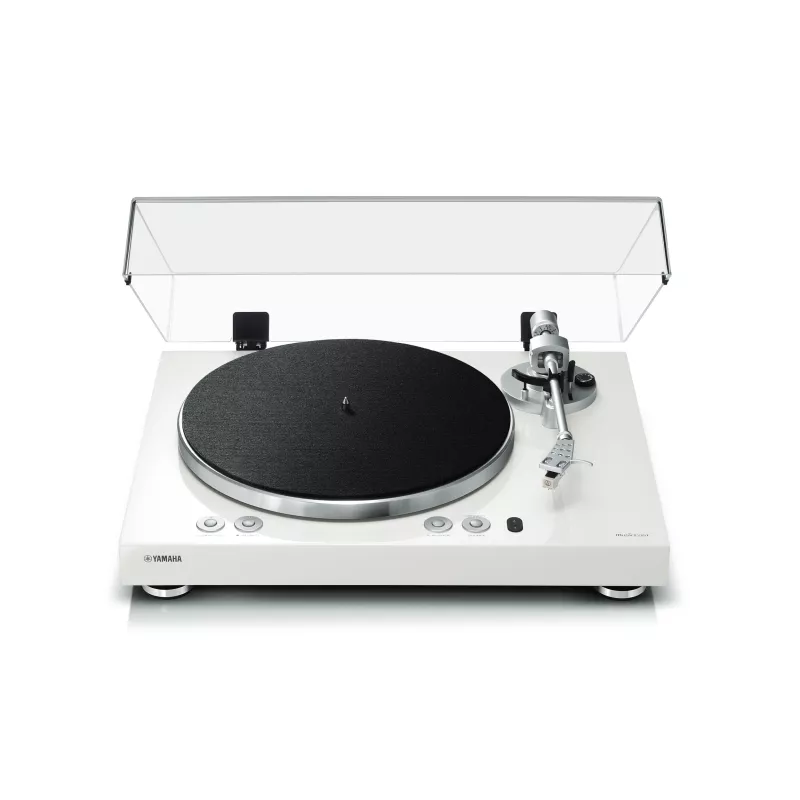

Yamaha TT-N503 | MusicCast Belt-Drive Turntable | 2 YEAR WARRANTY

Name: Yamaha TT-N503 | MusicCast Belt-Drive Turntable | 2 YEAR WARRANTY
Brand: Yamaha
Price: 899.00 CHF
Availability: BackOrder

Reference 60735

CHF899.00 Tax included

Supplier stock – typically 4 to 7 days

Yamaha TT-N503 MusicCast VINYL 500 turntable, belt drive with an aluminium platter. Built-in Wi-Fi, Bluetooth and AirPlay.

Color : White

White
Black

Quantity

Add to wishlist

Supplier stock

Description
Product Details

Yamaha TT-N503 turntable on an oak unit, wireless speaker alongside

Belt Drive

A DC motor drives the platter through a belt. Both 33 and 45 rpm speeds are covered, with a speed variation of 2 per cent. Wow and flutter stands at 0.2 per cent.

The turntable on a chest of drawers, lid closed, framed print on the wall

Aluminium Platter

The platter is die-cast in aluminium. The moving magnet cartridge delivers 2.5 mV at 1 kHz. Signal-to-noise ratio reaches 67 dB or better, A-weighted.

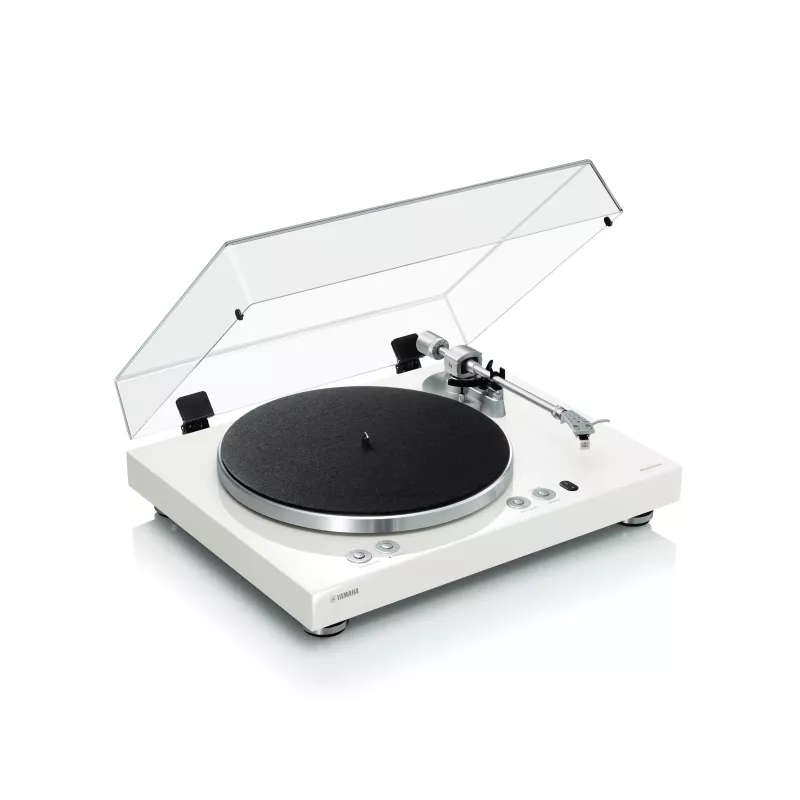

Three-quarter view, lid open, platter and tonearm in view

Network and Bluetooth

The turntable joins the network over Wi-Fi on 2.4 and 5 GHz, or through its Ethernet socket. AirPlay and Bluetooth version 4.2 round out the wireless routes. A record can thus be streamed to the other MusicCast devices in the house.

Line and Phono Outputs

The rear panel carries a line output and a phono output. The built-in preamplifier can therefore be bypassed if the amplifier has its own phono input. The chassis measures 45.0 cm wide, 13.6 cm high and 36.8 cm deep, at 5.7 kg.

Reference 60735

Data sheet

Bluetooth: 10 m / 32.8 ft. 10 in. (without interferene)
Ver. 4.2 / A2DP, AVRCP
Headphone output: RCA: 2 (PHONO, LINE)
WiFi: Yes (2.4 / 5 GHz)
Streaming services: Yes
Audio format: MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz
SBC, AAC
Technology: Static balance straight tonearm
Network connectivity: Yes
Rotation speed: 33-1/3 rpm, 45 rpm
Included cartridge: MM type
Drive type: Belt drive
DC motor
Platter - Material: Aluminium die-cast (Diameter 30 cm)
Tonearm - Length: 223.5 mm
Signal-to-noise ratio: 67 dB or higher (A-weighted, 20 kHz, LPF)
[IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz)
Wow and flutter: 0.2%
Speed drift: ±2%
Tracking force: 0-4 g
3.5 ± 0.5 g
Power consumption: 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired)
6 W
Frequency response: Fs 44.1 kHz, 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz, 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz, 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz, 2 Hz to 96 kHz (+0 / -6 dB)
Niveau de sortie: 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz)
2.5 mV (1 kHz, 3.54 cm / sec)
450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec)
Width: 45.0 cm
Depth: 36.8 cm
Height: 13.6 cm
Unit weight: 5.7 kg
