AVM PAS 30.3 Préampli réseau

Reference 72841

CHF2,780.70 Tax included

Step 30.3 is a hand-assembled network streaming preamplifier in Germany. It brings together a Phono MM / MC entry, an HDMI ARC entry and high resolution reading to DSD256, to connect to a power block.

Color : Silver

Gray
Black
Silver

Quantity

Add to wishlist

Delivery time usually supplier between 4 and 7 days

Guarantee safe & secure checkout

Description
Product Details

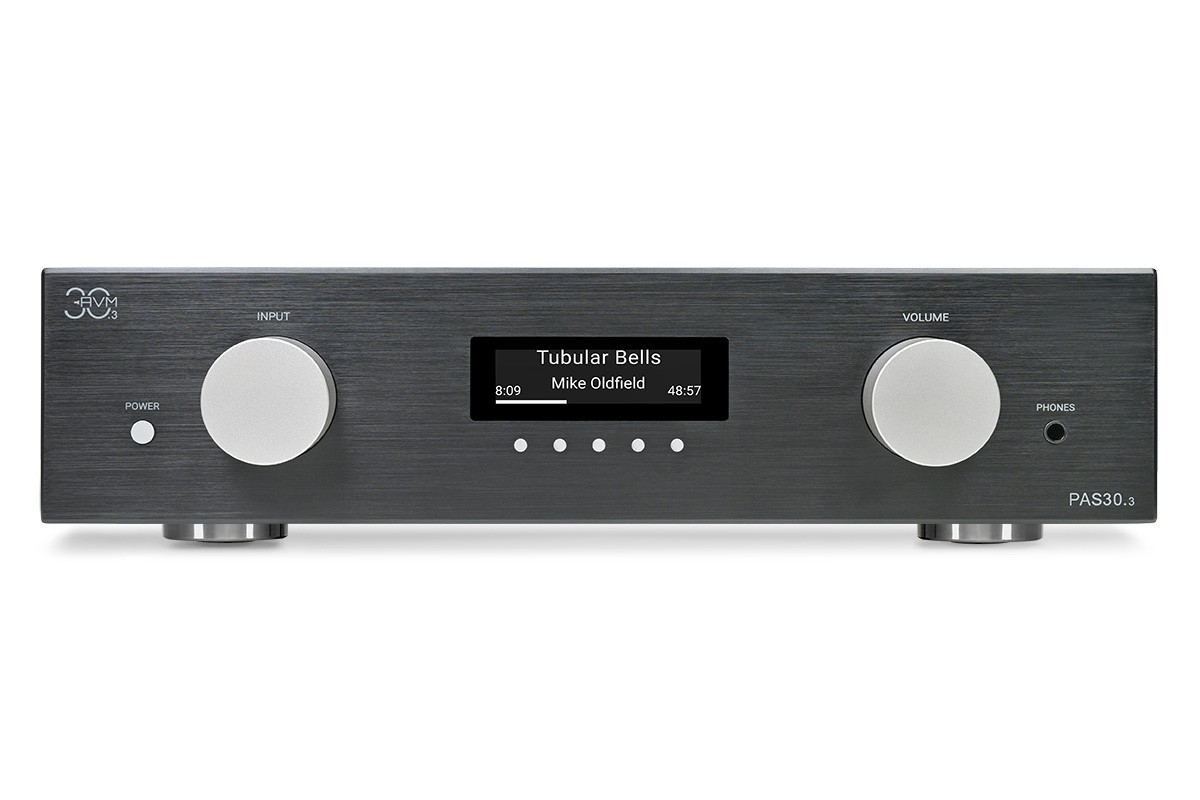

AVM not 30.3 Face view, brushed aluminum facade

Preamplification and network

Step 30.3 brings together preamplification and network sources in a frame to connect to a power block. Its line output has an impedance of 47 ohms and a distortion rate of less than 0.001%. The signal / noise ratio exceeds 100 dB, and the crosstalk between inlets remains under-85 dB.

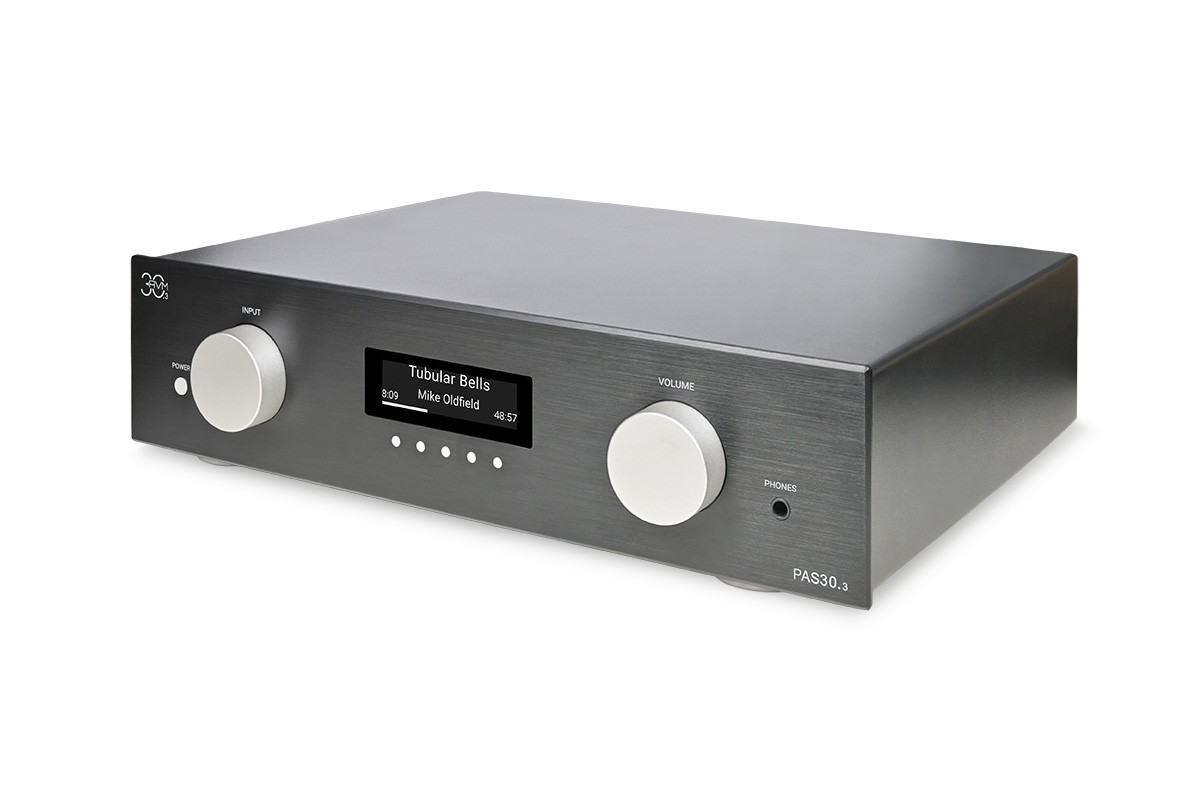

Three quarters before, dollars and screen

Phono MM and MC input

The Phono stage accepts mobile magnet cells and mobile reel. The gain reaches 40 dB in mm and 60 dB en mc, with a respected riaa curve at less than 0.2 dB. The signal / noise ratio is more than 83 dB (a) in mm and 74 dB (a) in MC.

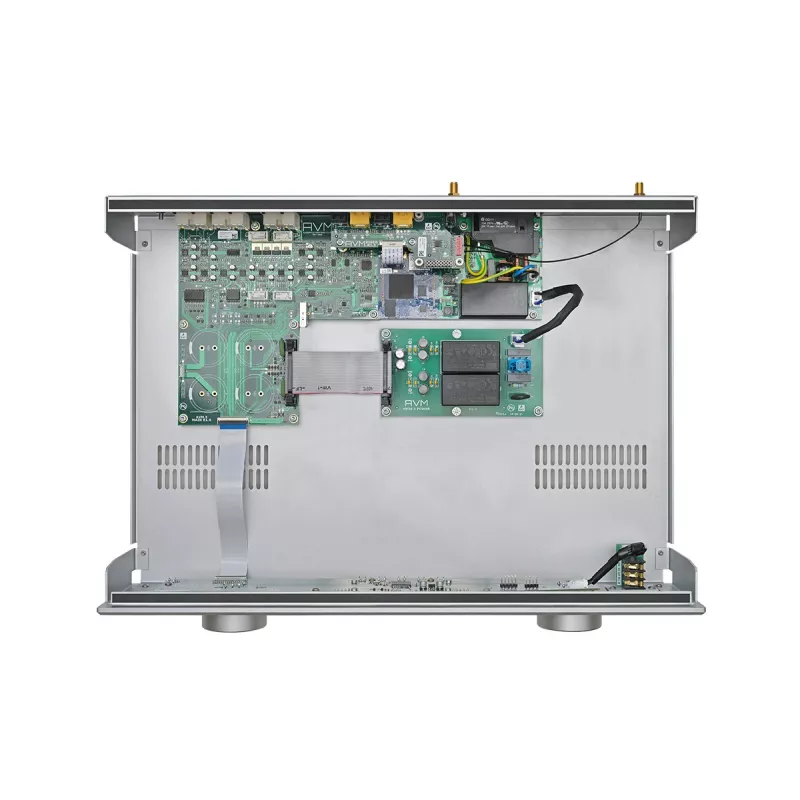

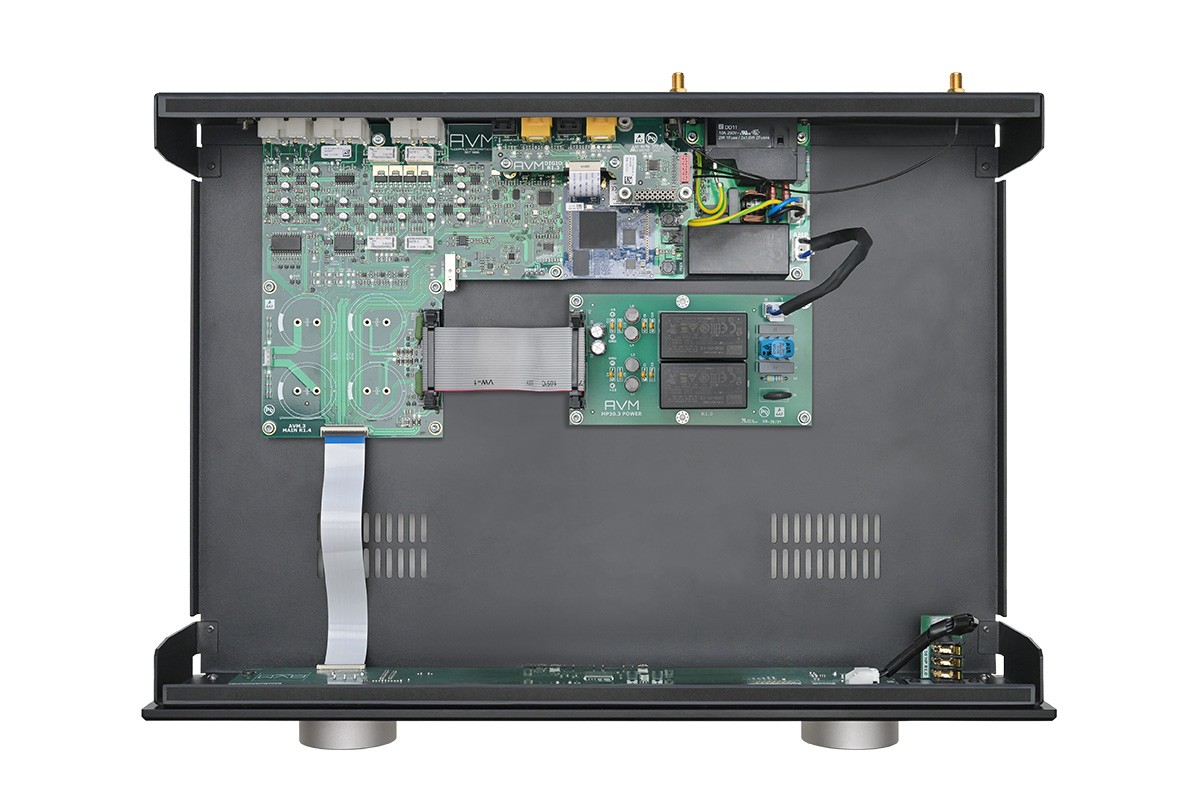

Interior of the device, power supply and electronic cards

German assembly

The device is hand assembled in AVM workshops in Malsch, Germany. The home streaming engine, the X-Stream Engine, reads the files to DSD256 and PCM 384 KHz / 32-bit. The headphone output displays an impedance of 80 ohms.

Digital sources

Digital inputs accept 192 kHz / 24-bit coaxial and HDMI Arc, 96 kHz / 24-bit optical. The network goes through the Ethernet 100 Mbit / s or the 2,4 and 5 GHz Bib-Band Wi-Fi, with two antennas. The Bluetooth 5.0 The and a USB-A plug at the back complete the sources.

Black = Black Silver = Gray Silver = Cellini

Reference 72841

Data sheet
