Vincent Audio PHO-500 | Phono preamplifier

Reference 63351

CHF690.00 Tax included

Supplier stock – typically 4 to 7 days

Vincent Audio PHO-500 phono preamplifier, switchable between MM and MC. Its power supply lives in a second box and a USB output lets you digitise records.

Color : Black

Gray
Black

Quantity

Add to wishlist

Supplier stock – typically 4 to 7 days

Description
Product Details

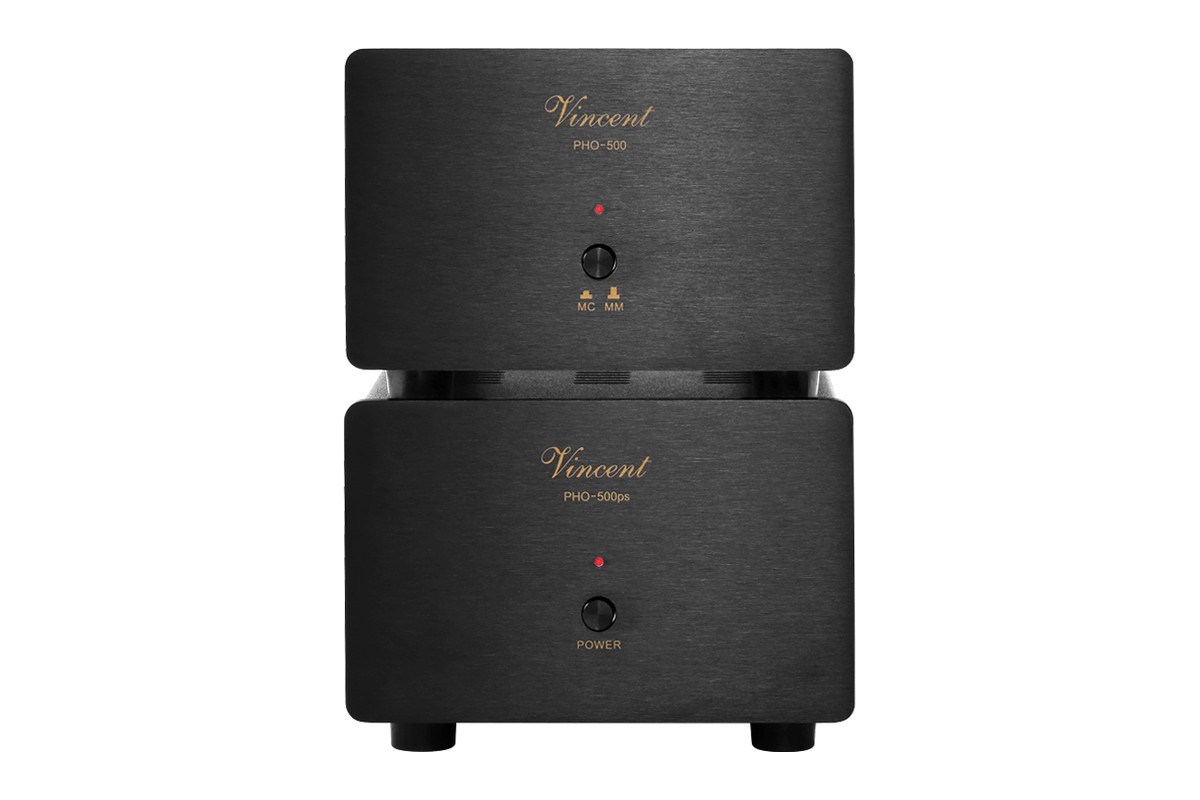

Black preamplifier sitting on its power supply

Adjustable load and capacitance

Input impedance is adjustable from 100 to 1000 ohms in MC, capacitance from 15 to 350 picofarads in MM. The cartridge therefore sees the load it was designed for. Output impedance is fixed at 250 ohms.

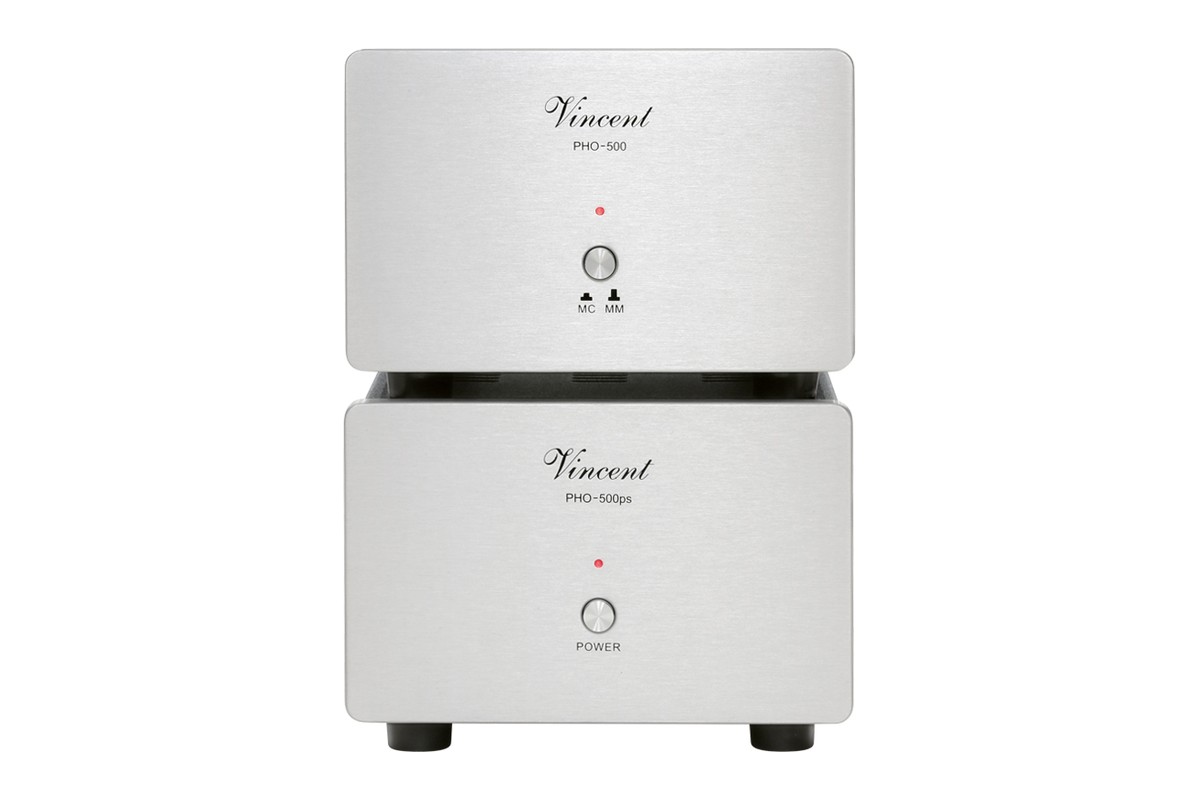

Same pair in silver finish, seen from the front

MM and MC cartridges

Input sensitivity is 58 mV in MM and 6.8 mV in MC. Signal-to-noise ratio exceeds 83 dB in MM and 70 dB in MC. Distortion stays below 0.05 % from 20 Hz to 20 kHz.

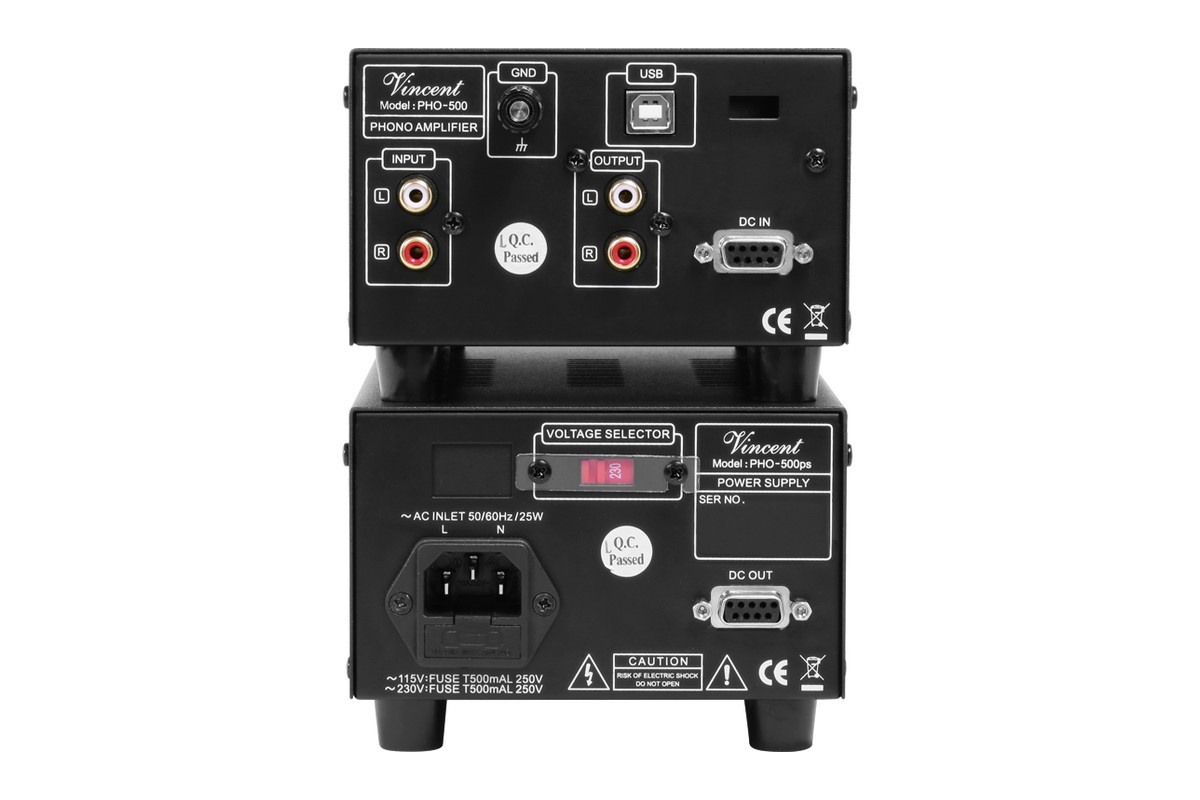

Rear panel of both boxes, RCA and USB sockets

A USB output

A USB output joins the stereo RCA output so records can be digitised. The input comes down to one stereo RCA socket. Maximum power consumption is limited to 10 watts.

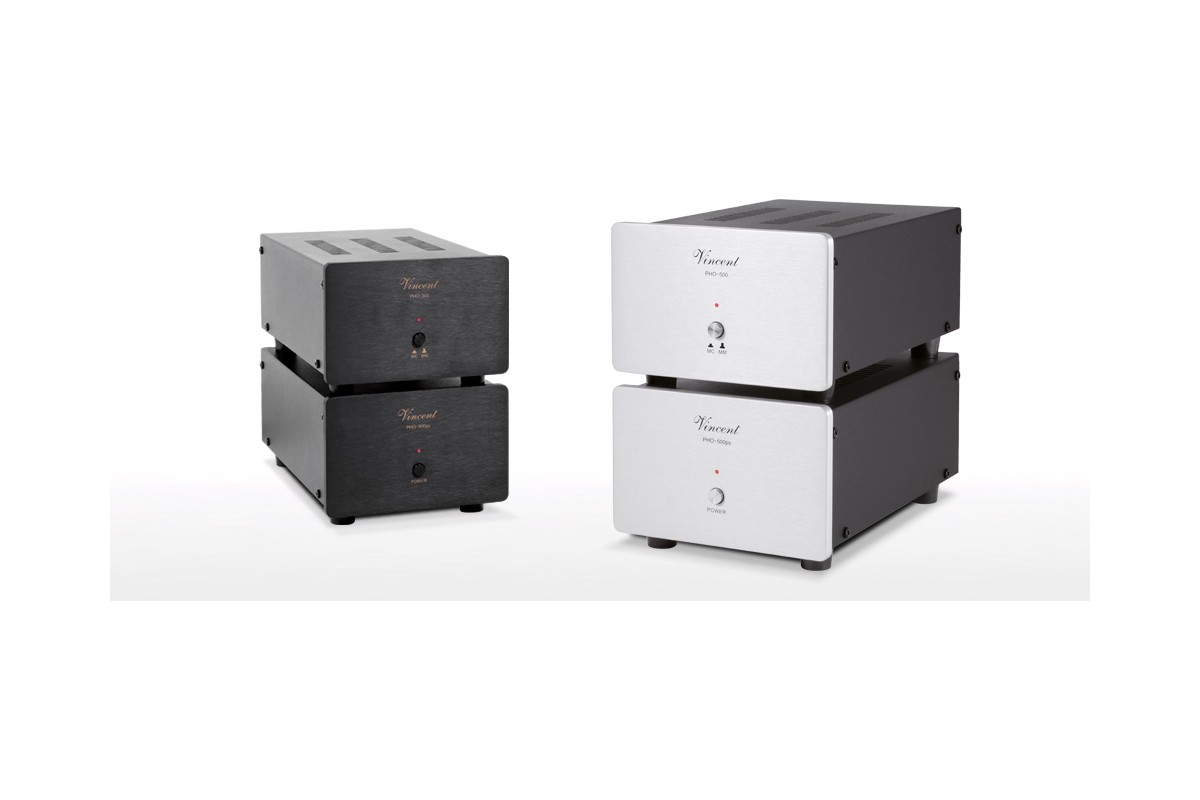

The two pairs side by side, black and silver

Two separate boxes

The power supply lives in its own enclosure, keeping the transformer away from the audio circuits. Each box measures 13 x 9.5 x 20.5 cm, at 1.4 kg and 1 kg. Black and silver finishes are both offered.

Reference 63351

Data sheet
