The Wharfedale LINTON set combines a three-way bass-reflex bookshelf speaker and a LINTON Stand. It is sold individually, one speaker with its stand.

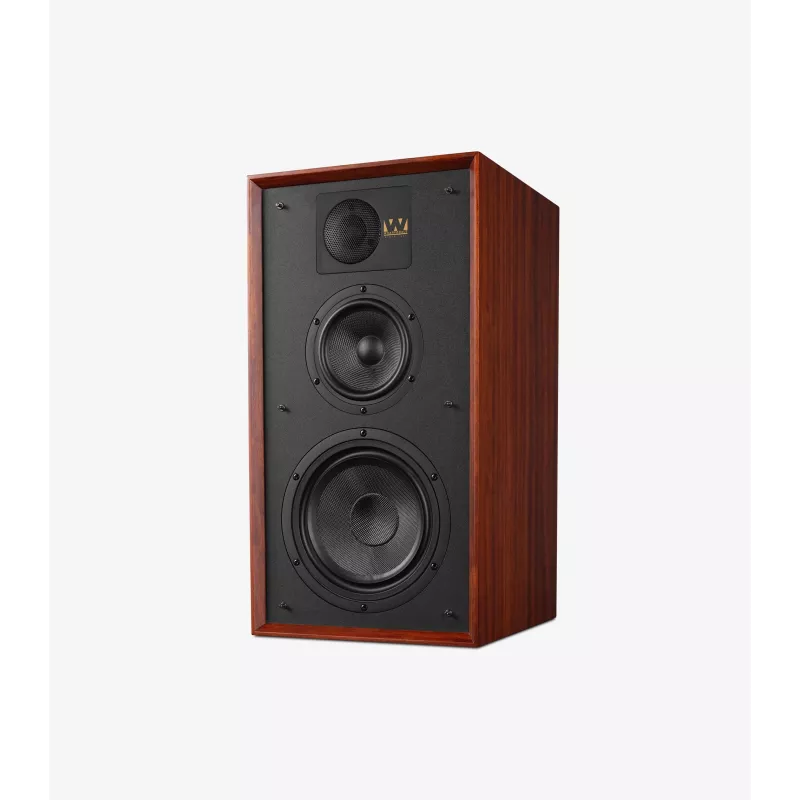

The set combines one LINTON and one matching LINTON Stand. The LINTON follows the principle of the 1965 model, a cabinet wide enough to house three drivers. It measures 565 mm high including its base, 300 mm wide and 360 mm deep including the terminals.

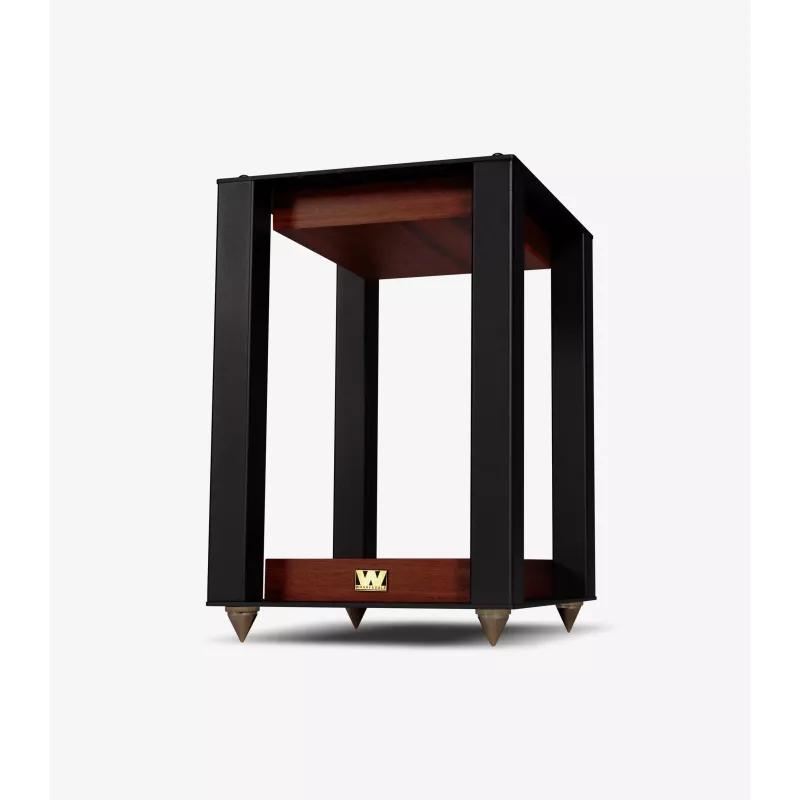

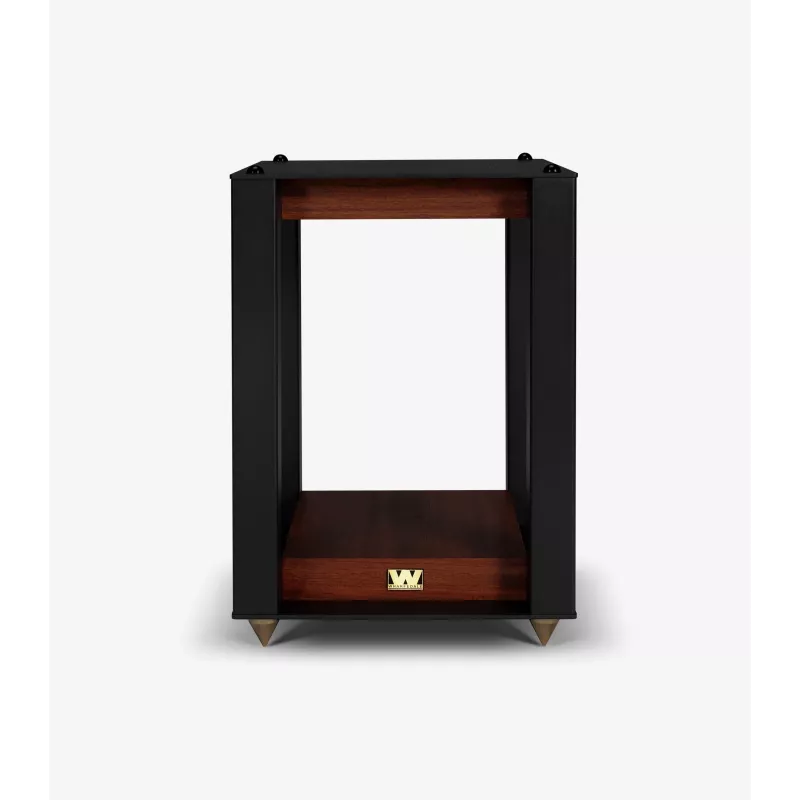

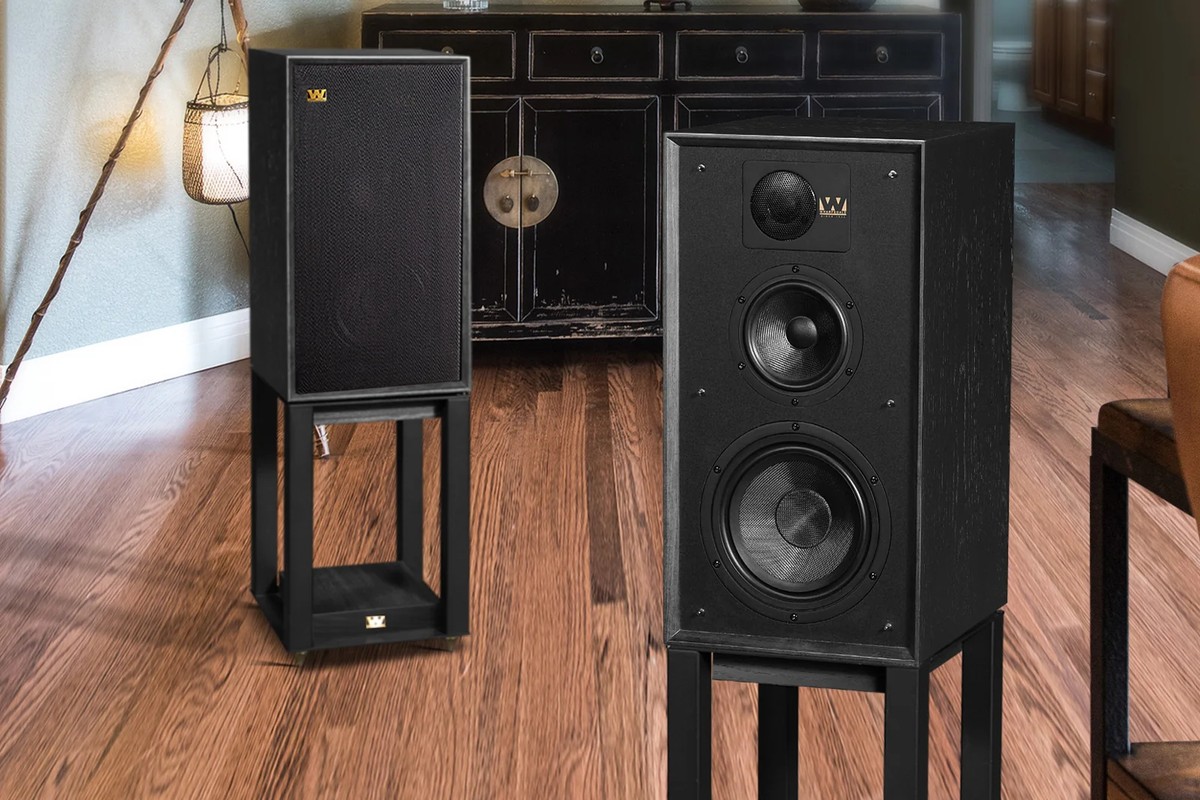

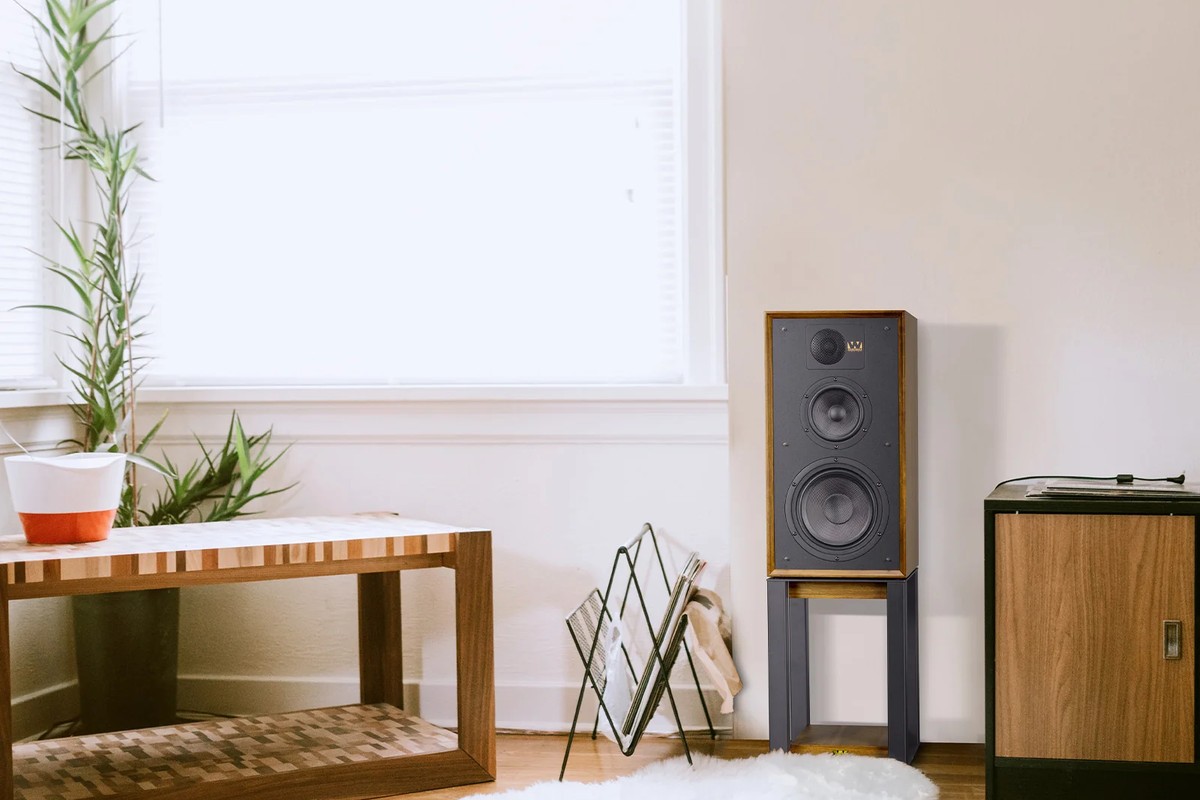

The stand places the speaker at listening height for a seated listener. Its rigid metal frame damps vibration. Wood veneer panels at the top and bottom match the cabinet finish. The space in the stand is sized for 12-inch vinyl records.

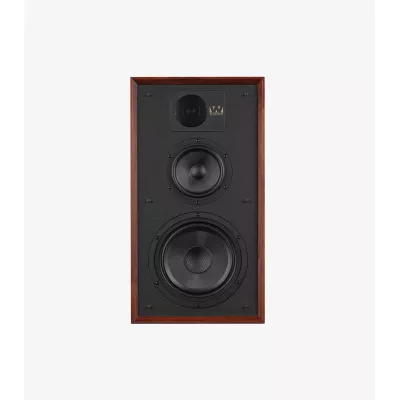

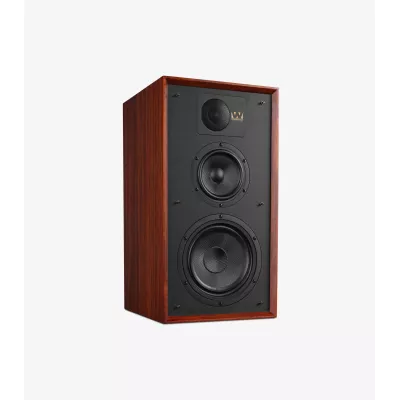

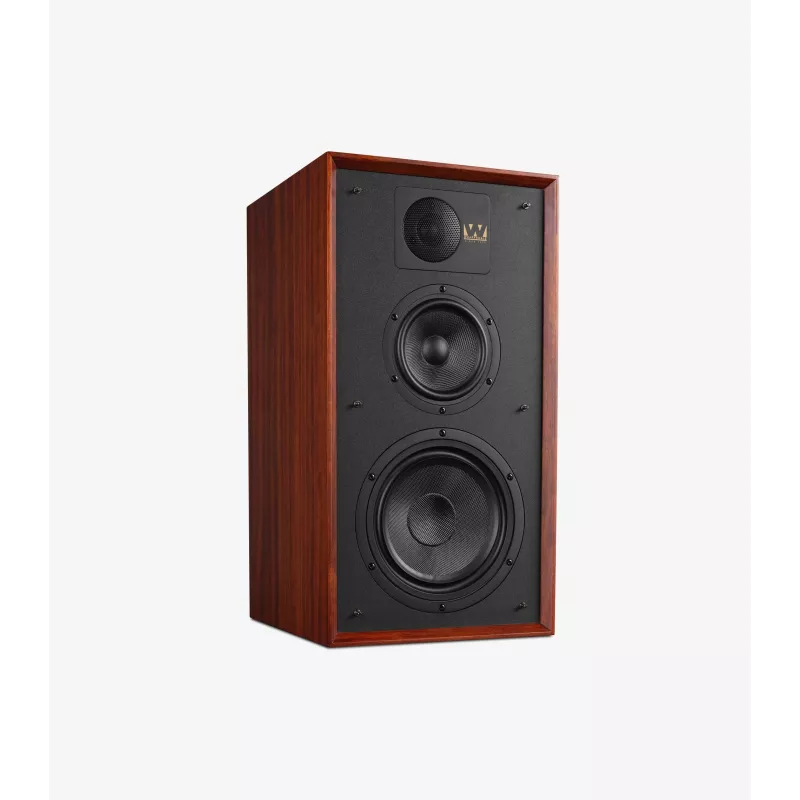

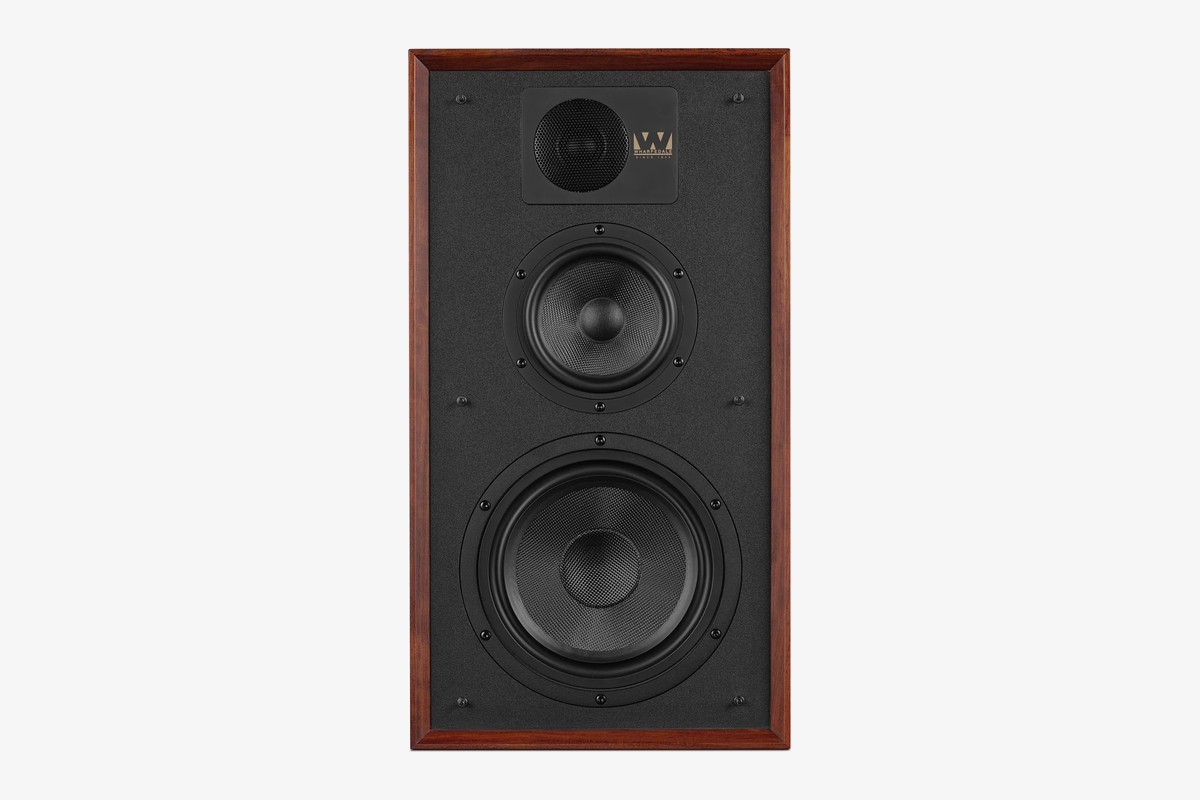

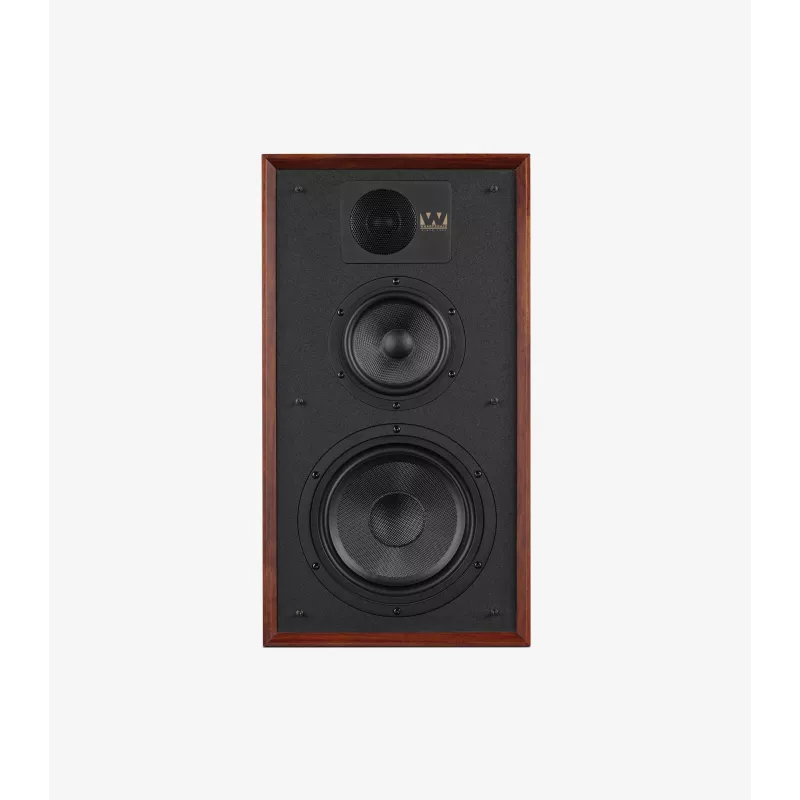

The 200 mm (8 inch) woofer sits on a die-cast chassis. The 135 mm (5 inch) midrange driver has its own internal chamber. Both have a black woven Kevlar cone, and the 25 mm soft-dome tweeter completes the treble range. The crossover points are 630 Hz and 2.4 kHz.

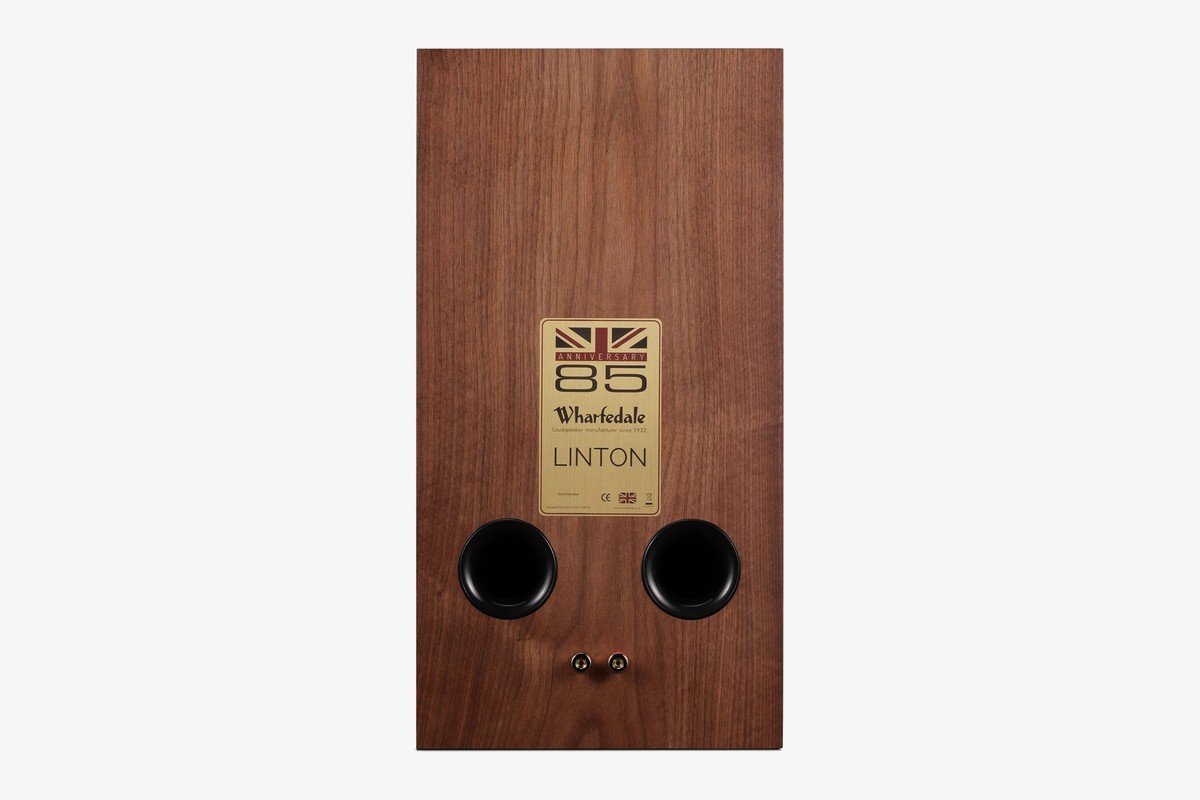

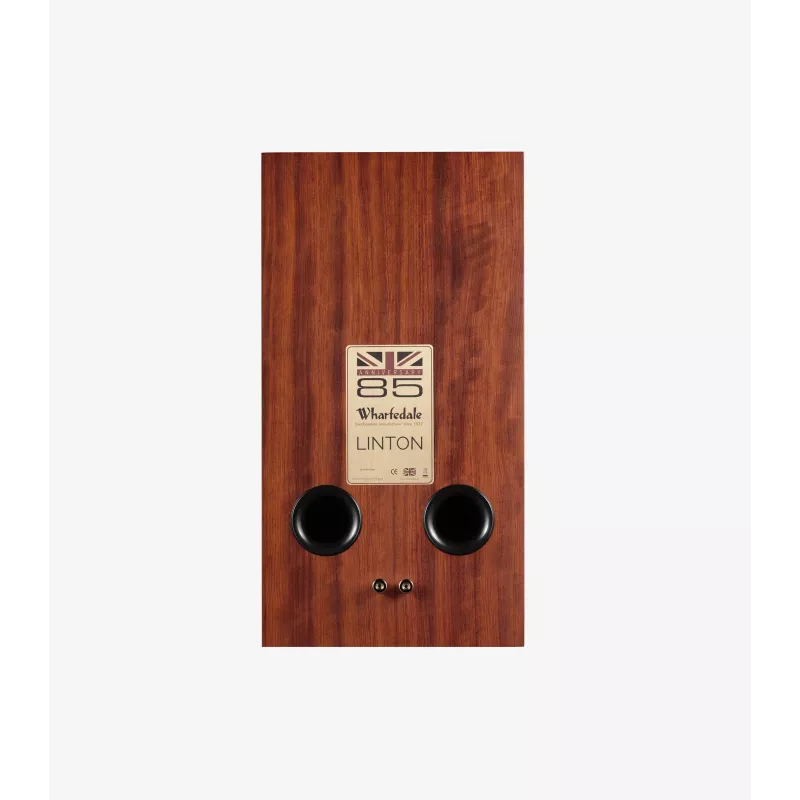

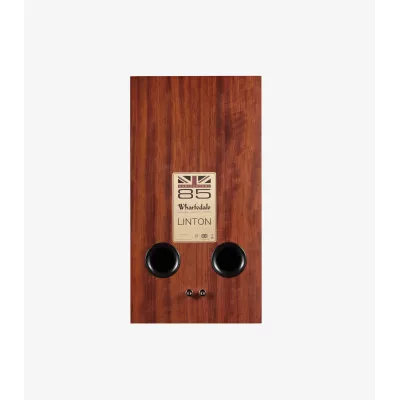

The back of the cabinet has two round ports and the binding posts. Response extends from 40 Hz to 20 kHz (±3 dB), with bass extension down to 35 Hz at -6 dB. Nominal impedance is 6 Ω, with a minimum of 3.5 Ω, for a sensitivity of 90 dB (2.0 V, 1 m). The recommended amplifier delivers 25 to 200 W, for a peak level of 110 dB.
