EPOS ES7N | 2-way bookshelf loudspeaker

73205
CHF1,000.00 Tax included
Supplier stock – typically 4 to 7 days
2-way EPOS ES7N bookshelf loudspeaker. Available in black, white, walnut and orange, sold individually.
Color : Orange
Quantity
Add to wishlist
Supplier lead time, usually 4 to 7 days

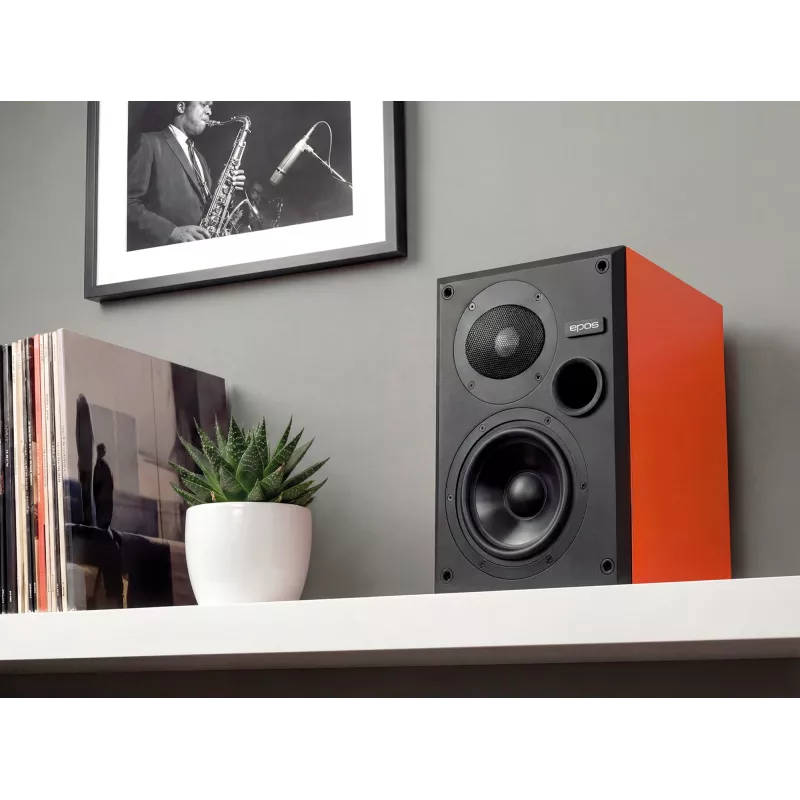

EPOS ES7N loudspeaker in orange on a wall shelf

Compact size, controlled bass

The ES7N houses a 130 mm mica-filled polypropylene mid-bass driver and a 28 mm tweeter in a cabinet measuring 290 x 200 x 270 mm for 7.6 kg. Those dimensions let it sit on standard shelving without overhang. The cabinet pairs two 8 mm MDF panels separated by a damping layer, and a single brace is enough to quieten its resonances.

Black bookshelf loudspeaker on a stand in a living room

Crossover switch for placement

A switch on the rear panel selects between two versions of the crossover. In the upper position you place the speaker 30 to 50 cm from the wall; in the lower position it plays against the wall or inside a bookshelf. Sensitivity moves from 86 dB to 89 dB depending on the setting, for an impedance of 4 ohms that drops to a minimum of 3 ohms at 15 kHz. The port is bent and opens between the two side panels, with damped vents that control output through the midrange.

73205

Data sheet

Product Type
2-way bass-reflex bookshelf loudspeaker
Nominal impedance
4 Ω (minimum 3 Ω at 15 kHz)
Sensitivity
86 dB / 89 dB (2.83 V / 1 m)
Tweeter
28 mm ceramic-coated aluminium dome
Woofer
130 mm mica-filled polypropylene
Width
20 cm
Depth
27 cm
Height
29 cm
Unit weight
7.6 kg

Specific References

EAN13
9506619757997
