Vincent Audio SV-237MKII | Hybrid integrated amplifier

Reference 71901

CHF2,490.00 Tax included

Supplier stock – typically 4 to 7 days

Vincent Audio SV-237MKII hybrid integrated amplifier from the tubeLine series. It supplies 2 x 150 W into 8 ohms, the first ten watts running in class A.

Color : Black

Black
Silver

Quantity

Add to wishlist

Supplier delivery time usually between 4 and 7 days

Description
Product Details

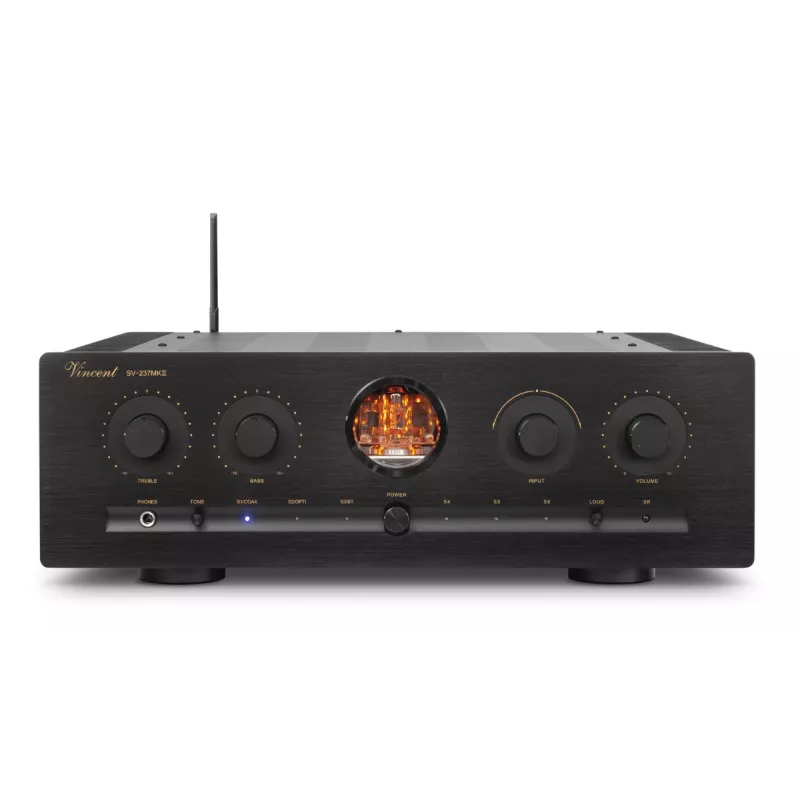

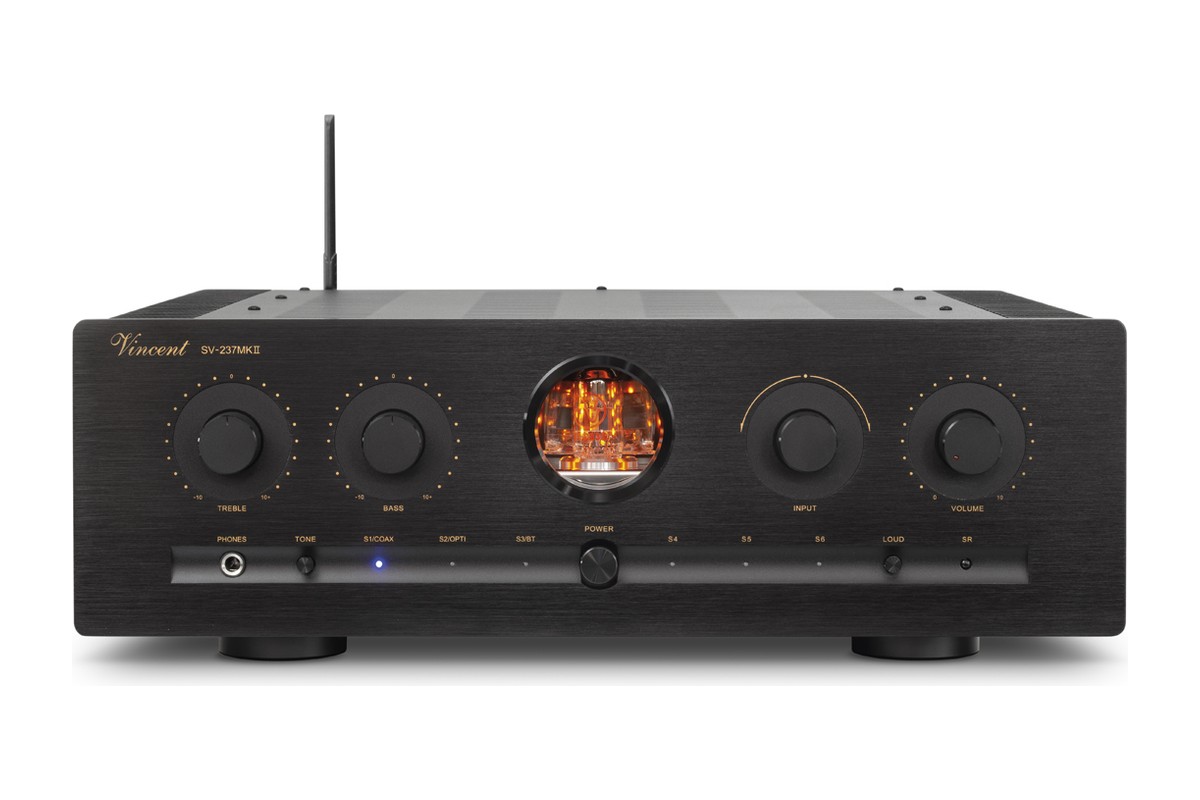

Black front panel, volume control and rotary selector

Ten watts in class A

The first ten watts per channel run in class A before switching to class AB. One 12AX7 tube and two 6N1P tubes make up the input stage. Bandwidth covers 20 Hz to 20 kHz at ±0.5 dB.

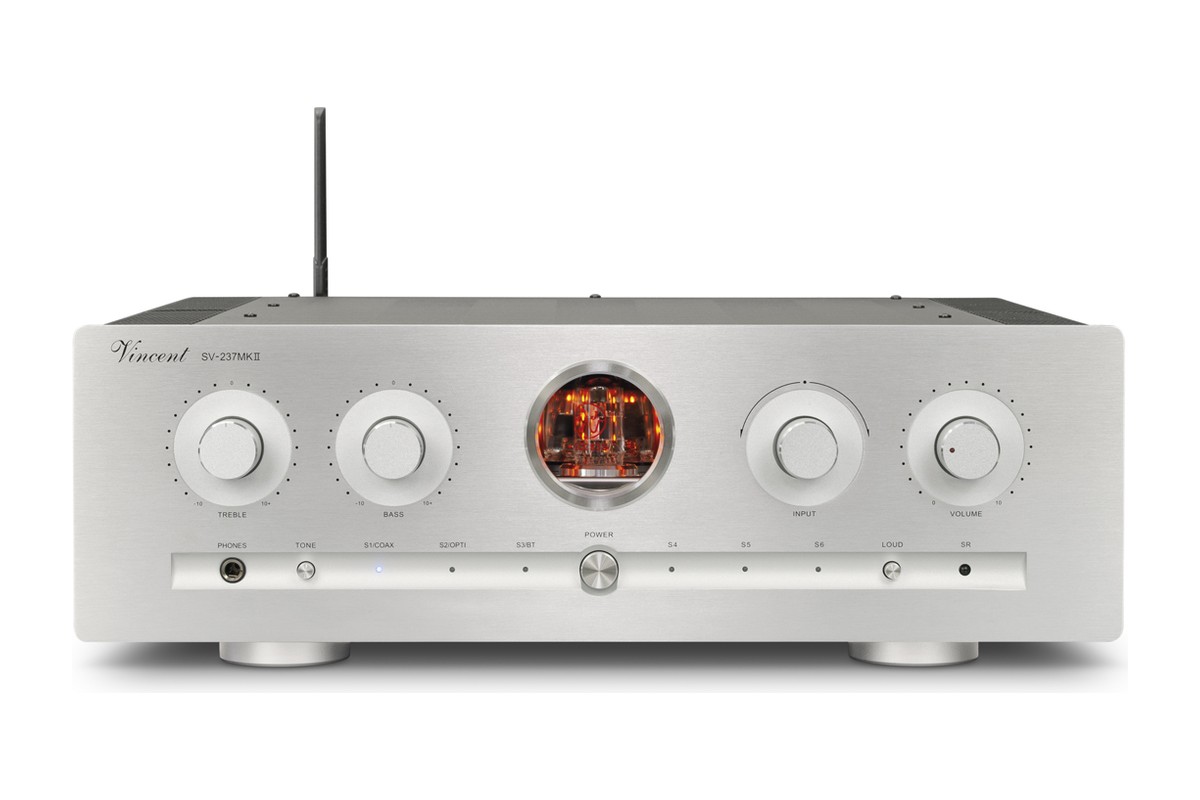

The same model in silver finish, seen from the front

One hundred fifty watts

Rated power reaches 2 x 150 W into 8 ohms and 2 x 250 W into 4 ohms. Maximum consumption is 563 W and input sensitivity 300 mV. Four pairs of speaker terminals sit on the rear panel.

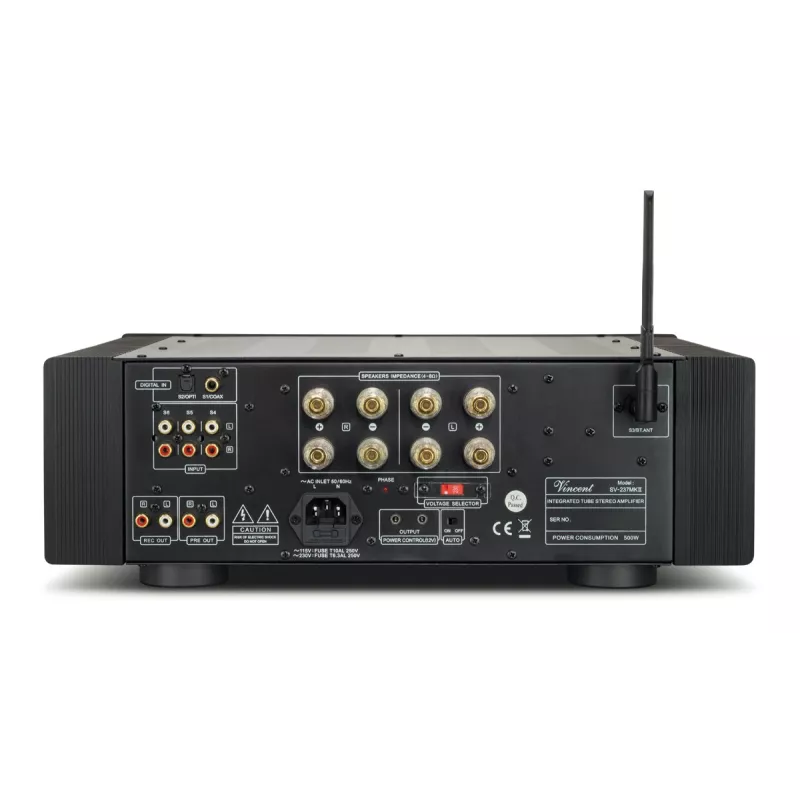

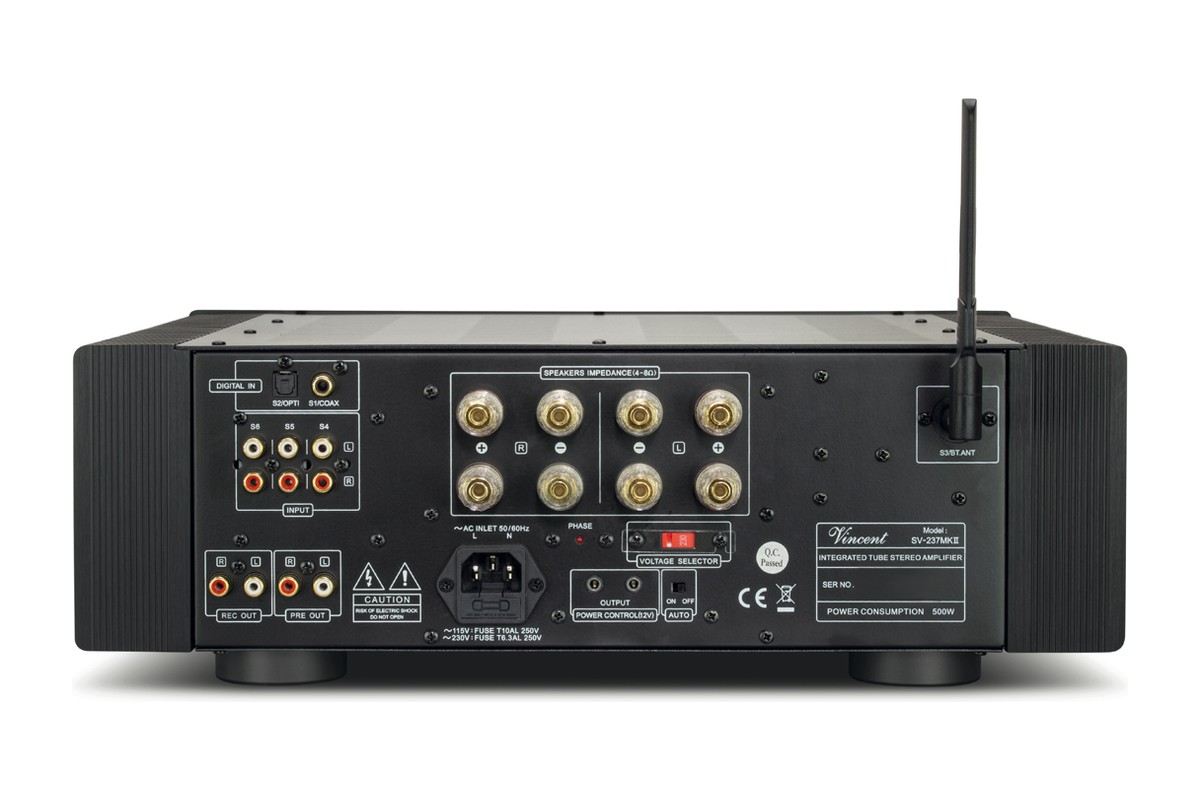

Full rear connection panel, digital and analogue inputs

Three analogue inputs

Three stereo RCA inputs take traditional sources, joined by optical, coaxial and Bluetooth. Two 3.5 mm jack sockets provide the Power Control function. Pre Out and Rec Out outputs remain available.

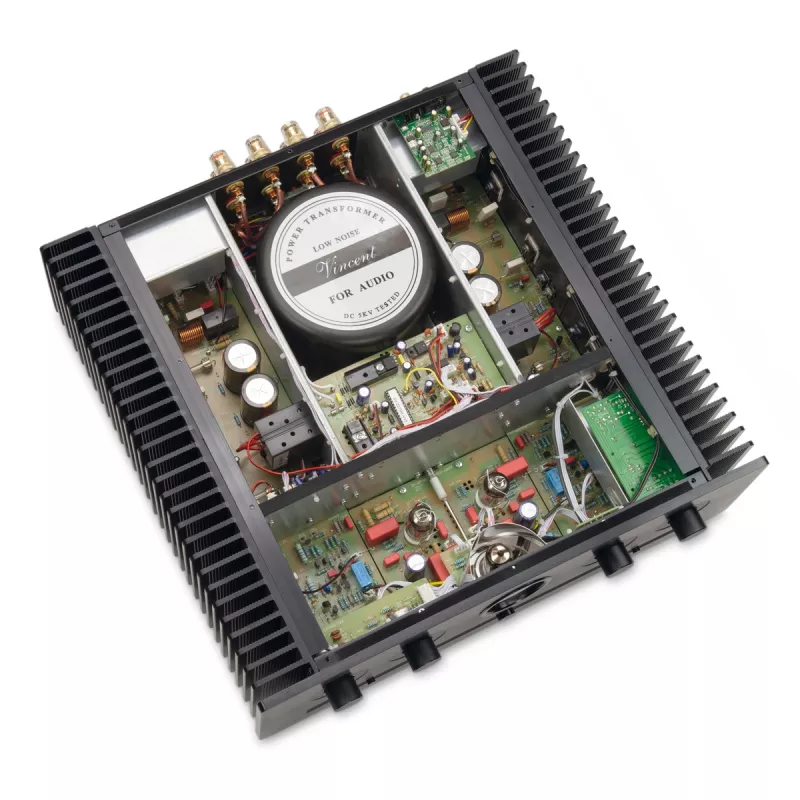

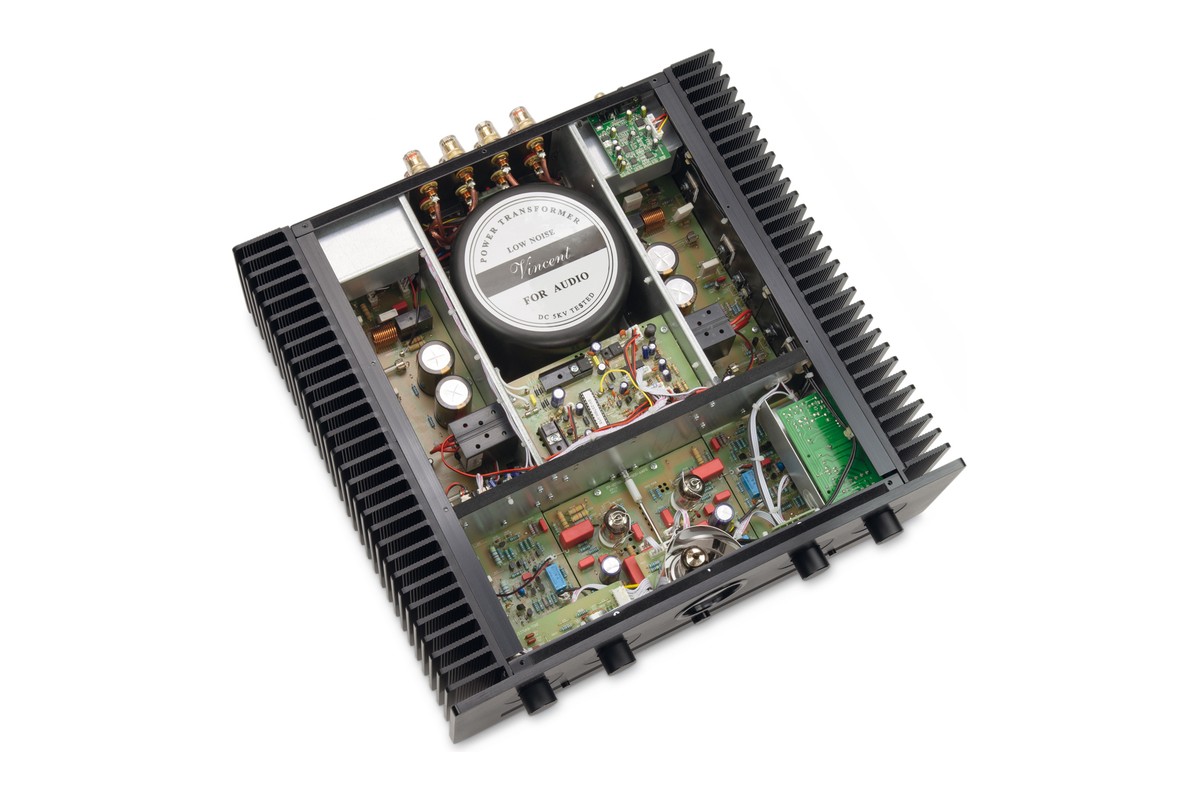

Inside the unit, power supply and heatsinks

Twenty kilos of chassis

The unit measures 43 x 15 x 43.5 cm and weighs 20.4 kg. Signal-to-noise ratio exceeds 90 dB and input impedance is 47 kilohms. Distortion stays below 0.1 % at 1 kHz for 1 watt.
