Gold Note Alimentation PSU 10

72911
CHF990.00 Tax included
EXTERNAL POWER GOLD Note to four rails dedicated to Phono PH-10 Preamp. Four voltage regulators with very low noise.
Color : Black
Quantity
Add to wishlist
Delivery time usually supplier between 4 and 7 days

Guarantee safe & secure checkout

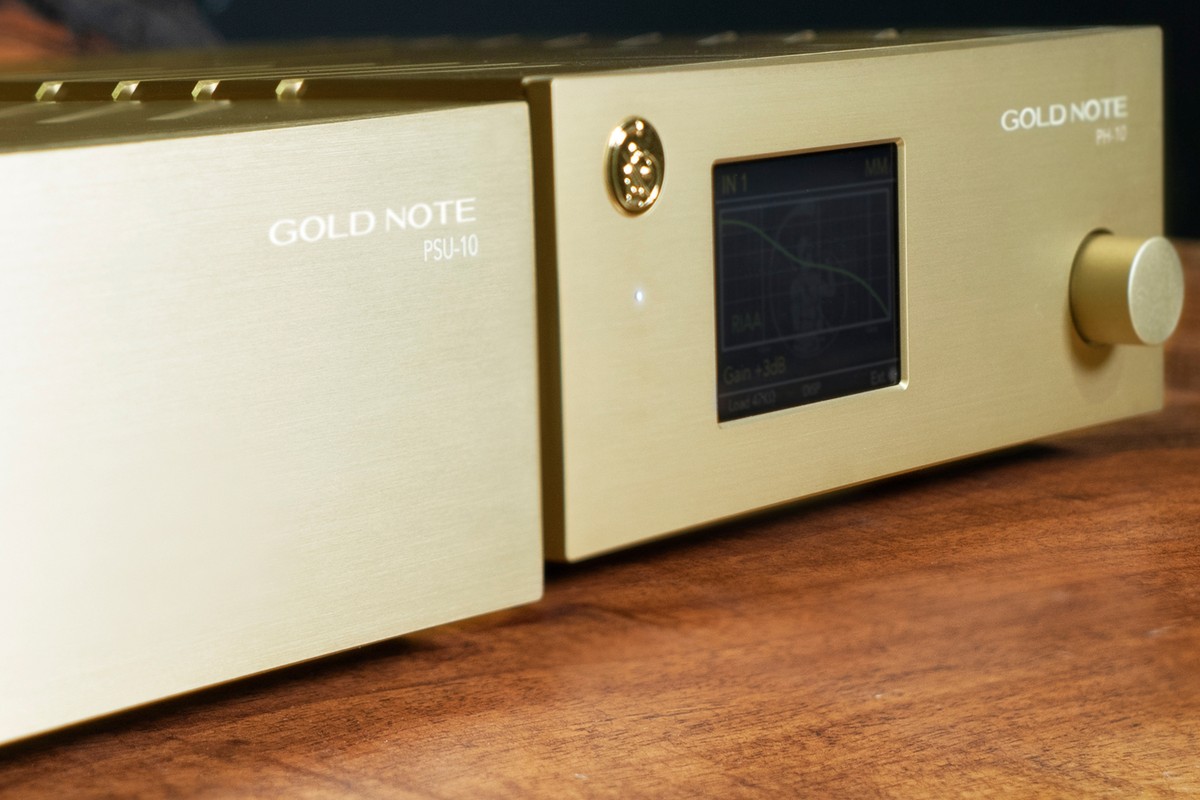

GOLD Note PSU-10

Four separate rails

The PSU-10 distributes four audio quality feed rails, each dedicated to a pH-10 section. Separate power supplies prevents a section from polluting others by the common rail. Each rail has its own regulator.

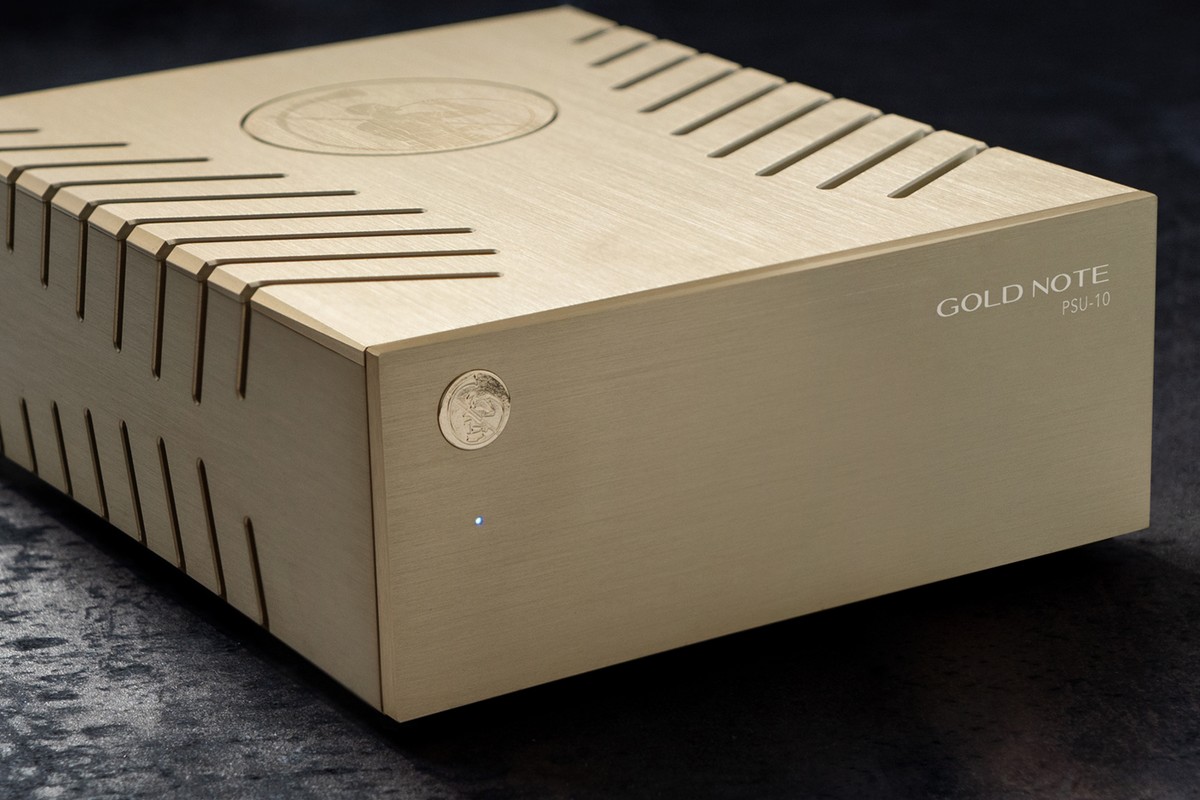

Chassis aluminum anodise brush

Regulators with very low noise

The four voltage regulators are selected for their noise floor. The maximum output voltage variation remains in 0.05%. The full power response time comes down under 2.5 microseconds.

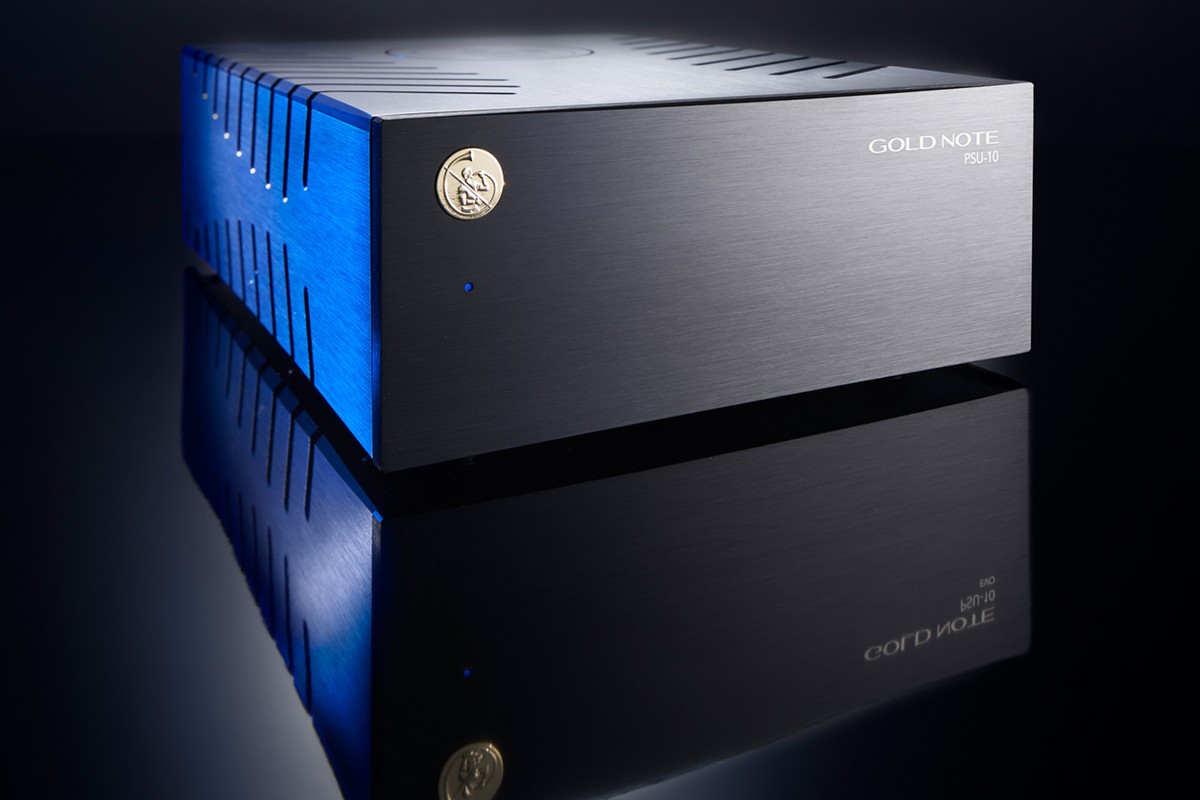

PSU-10 associated with pH-10

Sector rejection of 80 dB

The rejection of the line noise exceeds 80 dB, which isolates the preamps of the disturbances of the electricity grid. The unit accepts 100 to 120 V as 220 to 240 V with automatic detection. This flexibility avoids any adjustment to the installation.

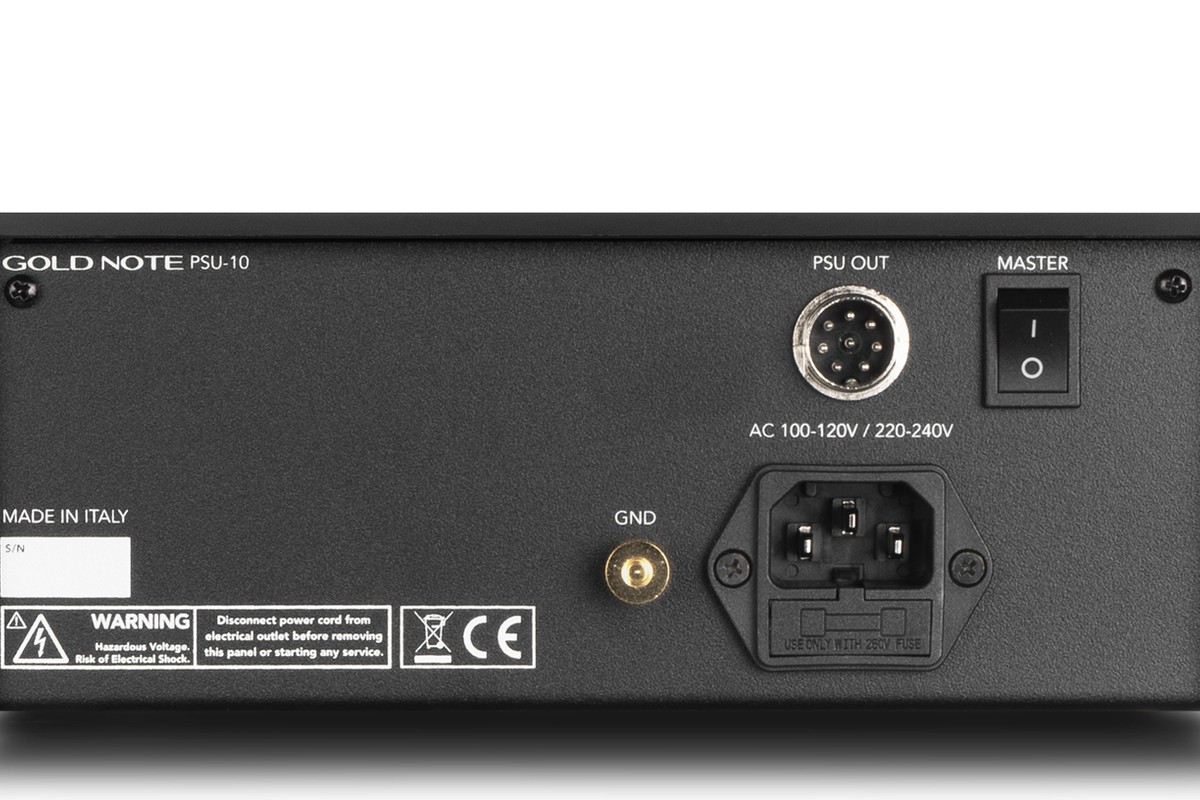

Rear face and connection

Matching chassis at pH-10

The housing takes the dimensions of the pH-10, 200 × 80 × 260 mm, for 4 kg. It arises under or next to the preamp without breaking the visual harmony. The three brushed anodized aluminum finishes are identical to those of PH-10.

72911

Data sheet

Width
20.0 cm
Depth
26.0 cm
Height
8.0 cm
Unit weight
4.0 kg

Specific References

EAN13
8050054560557
