TECHNICAL SPECIFICATIONS:
PREAMPLI PHONO
- MM / ®
- Entrance impedance: 100 Ω (MC), 47 kΩ
- Entry capacitance: 270 pF (mm)
- Entrance level (at 1 kHz for 3.6 mV (MC), 37.7 mV (mm)
- Gain (by default at 1 kHz, Adjustable ± 20 dB:) 55 dB (™), 35 dB (mm)
- Response Riaa Response: ± 0.1 dB (20 Hz to 20 kHz)
- Distortion THD + N (AT 1 KHz, 20 Hz - 20 kHz BW, 2 VRMS Output:) 0.008% (TM), 0.005% (MM)
- S / B ratio (at 1 kHz, IEC-A, 2 VRMS Output:) 82 dB (MC), 96 dB (mm)
PREAMP
- Frequency answer:
- digital-in, 192 KHz10 Hz - 50 kHz (+0.00, -0.50 dB)
- digital-in, 96 kHz 10 Hz - 45 kHz (+0.00, -0.50 dB)
- digital-in, 44.1 kHz10 Hz - 20 kHz (+0.00, -0.03 dB)
- analog-in, DSP Fashion10 Hz - 40 kHz (+0.02, -0.20 dB)
- analog in, direct fashion10 Hz - 80 kHz (+0.00, -0.10 dB)
- Distortion THD + N (AT 1 KHz, 20 Hz - 20 kHz BW, 2 VRMS Output)
- digital-in, 44.1 KHz, 0 DBFS 0.0008%
- analog-in, DSP Mode, 1 VRMS INPUT 0.0020%
- analog In, Direct Mode, 1 VRMS INPUT 0.0020%
- S / B ratio (at 1 kHz, IEC-A, 2 VRMS Output)
- digital-in, 44.1 KHz, 0 DBFS 112 dB
- analog In, DSP Mode, 2 VRMS INPUT 110 dB
- analog In, Direct Fashion, 2 VRMS INPUT 120 dB
- XLR Configuration: Pine 1: Mass, Pine 2: (+), PIN 3: (-)
POWER AMPLIFY
- Impedance: 8Ω 4Ω 2Ω
- Output power by RMS channel, 20 Hz - 20 kHz,
- 200 W 8 Ohms
- 400 W4 Ohms
- 550 W 2 Ohms
- Distortion for 100 W:0.002% (1 kHz), 0.015% (20 kHz)
- Signal / noise Report: (IEC-A, Ref. 200 W) 114 dB
- Frequency answer: (20 Hz - 20 kHz)± 0.1 dB
- Depreciation factor: (20 Hz - 1 kHz) 330
- Separation of channels: 101 dB (100 Hz), 61 dB (10 kHz)
DIMENSIONS & WEIGHT
- Height: 17.2 cm
- Width : 43.2 cm
- Depth without the cables: 44.5 cm
- Weight: 18 kg
OVERVIEW
So Str !
The Canadian brand Anthem is known and renowned for its upscale home cinema amplifiers. Capacity current current and with a very sharp acoustic correction system, theAnthem Str is an integrated amplifier stereo with an elegant industrial design with a minimalist interface complemented by a large TFT screen. It replaces the venerable Integrated 225, which derives from more than 10 years of good and loyal services.
One of the peculiarities of the product is the integration of the arc (Athem Room Correction), the acoustic correction device that the Canadian brand has been developing for many years. Initially implemented for the home cinema for which it proved itself, it optimizes the experience of listening thanks to the compensation of the response curve in function of the geometry of the room, the placement of the speakers and their characteristics.
THEAnthem STR has an integrated phono preamp compatible with MM and MC cells. The purists will be delighted to learn that it has a direct analog mode. Its DAC is compatible with the 32-bit PCM / 384 KHz and DSD 2.8 / 5.6 MHzon the USB and 24bit / 192KHz input on digital inputs.
THEAnthem Str also has a very big capacity. The diet is ensured by a big transformer toroidal. Capable of supplying difficult loads, its power of 225W under 8 ohms is almost doubled under 4 ohms. More impressive again it shows upset to feed loads up to 2 ohms with a power of 600W by channel. The power stages when they use 8 bipolar transistors per channel.

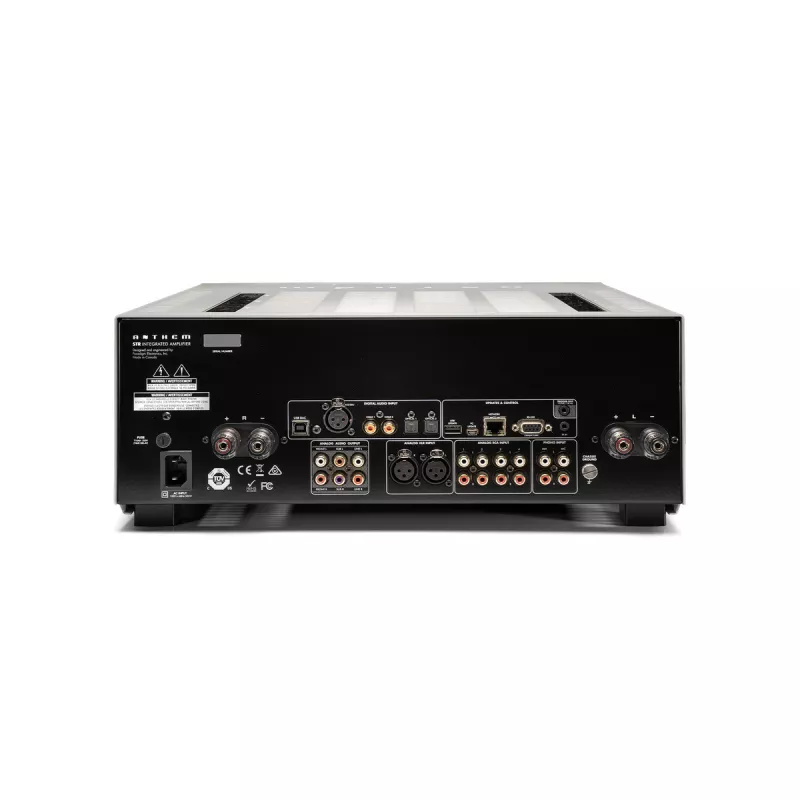

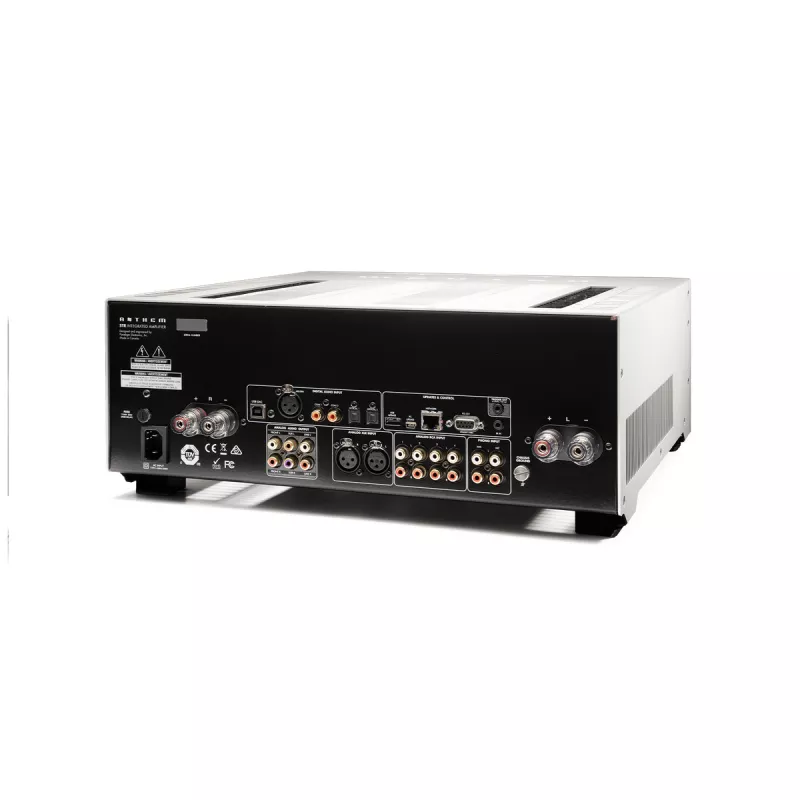

The connectivity is complete: digital inputs S / PDIF coaxial, optical, AES / EBU, asynchronous USB port, entries phono mm and ™, symmetrical analog inputs, Ethernet and RS-232 jack for the control of the application as well as the possibility of managing two mono or stereo subwoofers with bass management control.
