The Denon PMA-3000NE is a stereo integrated amplifier delivering 80 W per channel into 8 ohms, with an MM and MC phono stage. Its quad-chip ES9018K2M DAC accepts PCM at 384 kHz and DSD at 11.2 MHz.

Color : Silver

Black
Silver

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

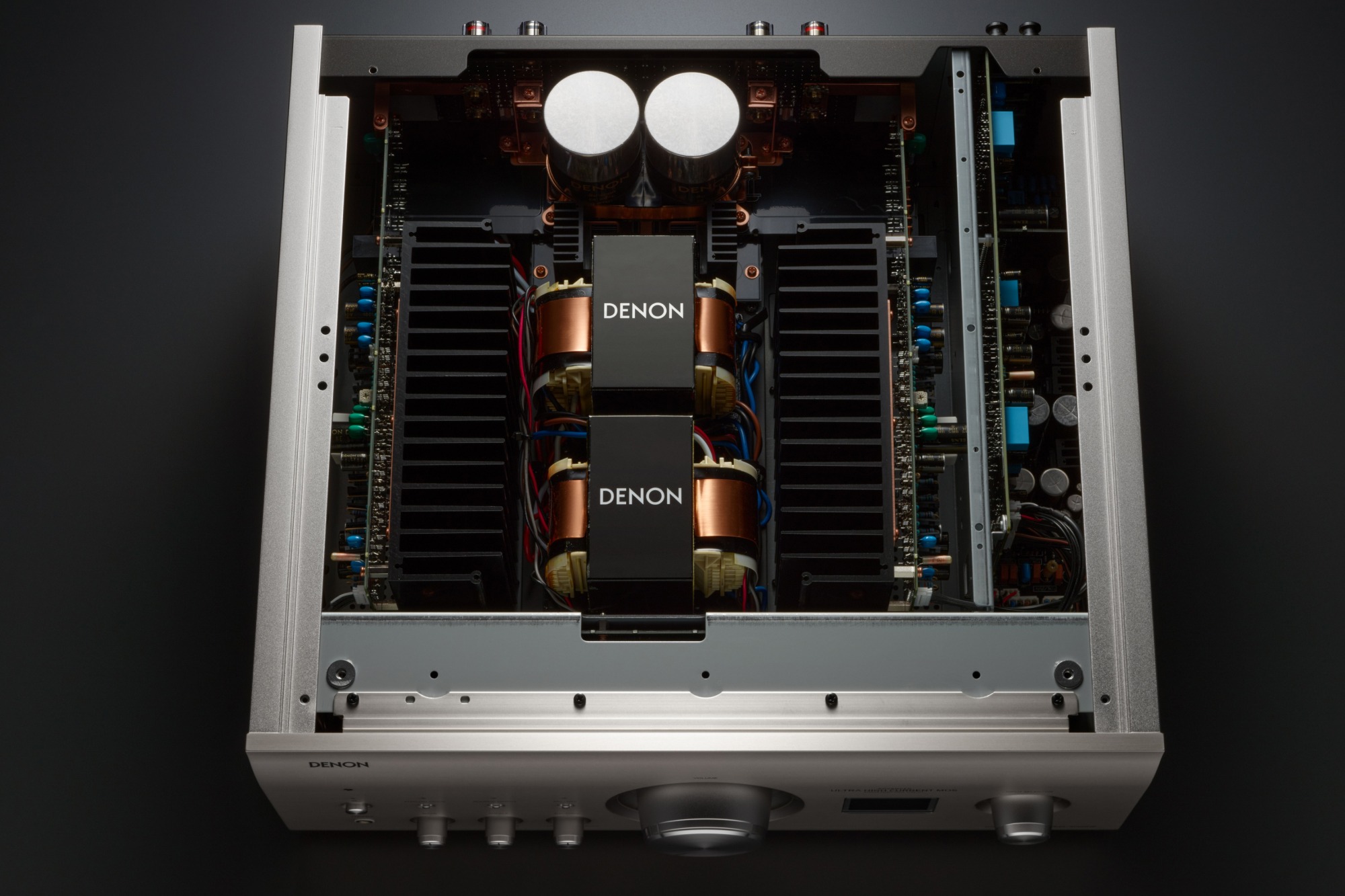

Open silver amplifier seen from above: transformers, heatsinks and circuits

UHC-MOS push-pull

The output stage is built on UHC-MOS transistors in a single push-pull configuration. It delivers 80 W per channel into 8 ohms and 160 W into 4 ohms, with 0.01 % harmonic distortion. It can therefore drive a wide range of speakers and load impedances.

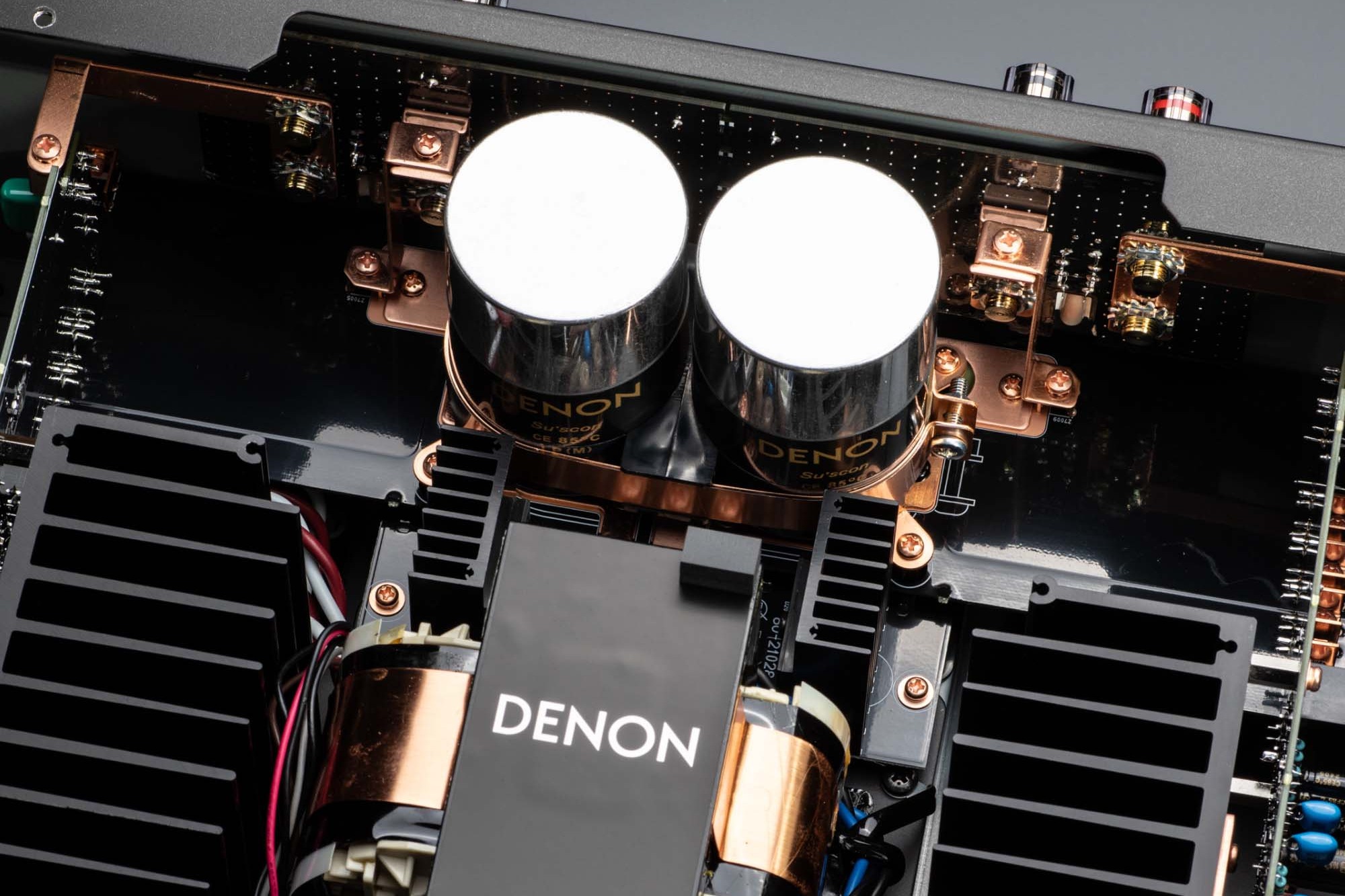

Interior close-up: filter capacitors and shielded transformer

MM and MC phono

The phono stage accepts MM cartridges, 2.5 mV into 47 kohms, and MC cartridges, 200 µV into 100 ohms. Its short, high-gain circuit limits distortion. The signal-to-noise ratio reaches 89 dB in MM and 74 dB in MC.

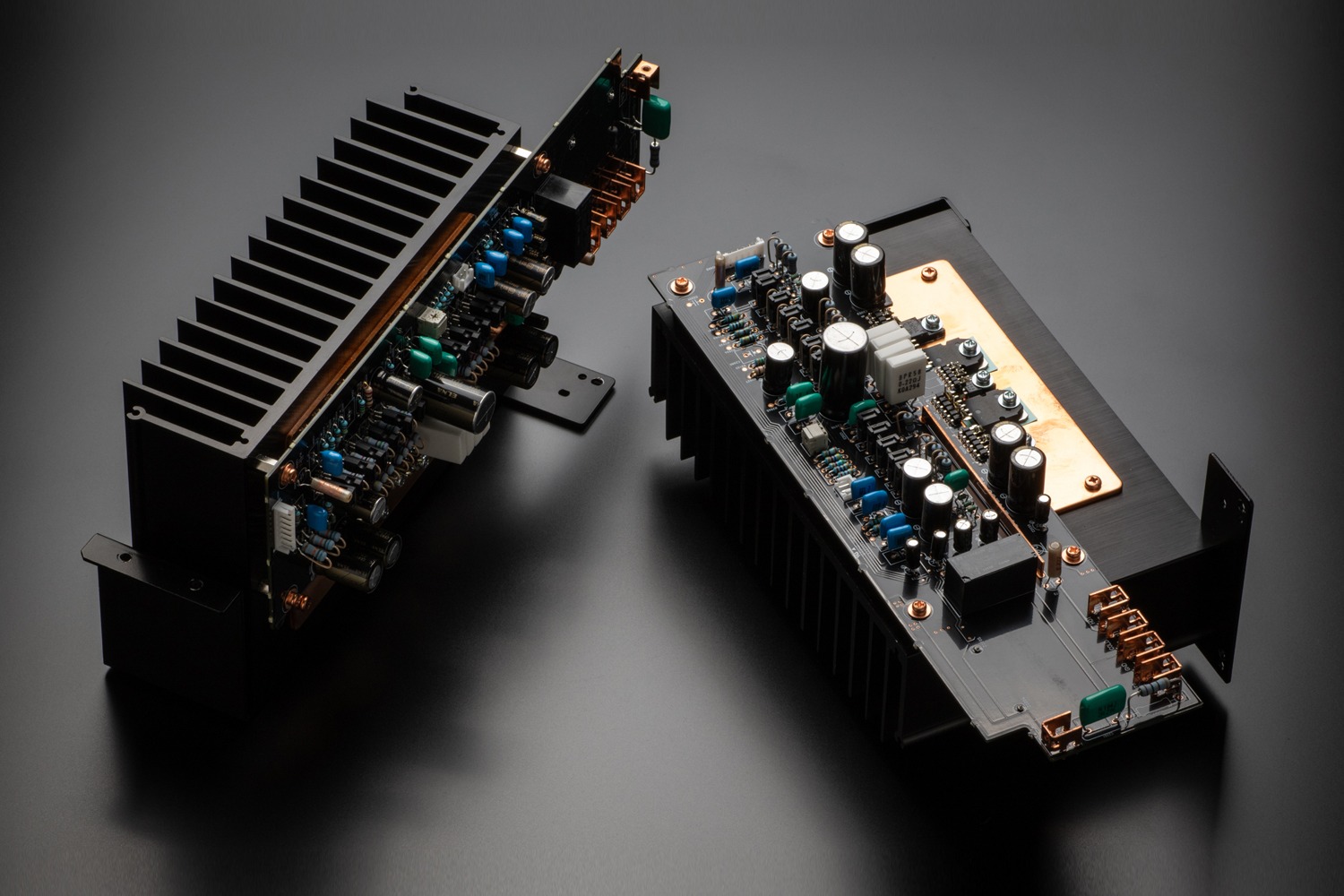

Amplifier modules removed from the chassis, heatsinks and circuit boards

Quad ES9018K2M DAC

Four ES9018K2M chips convert the digital inputs: three optical, one coaxial and one asynchronous USB-B. Over USB, PCM reaches 384 kHz/32-bit and DSD 11.2 MHz. Ultra AL32 processing oversamples the signal and smooths the waveform.

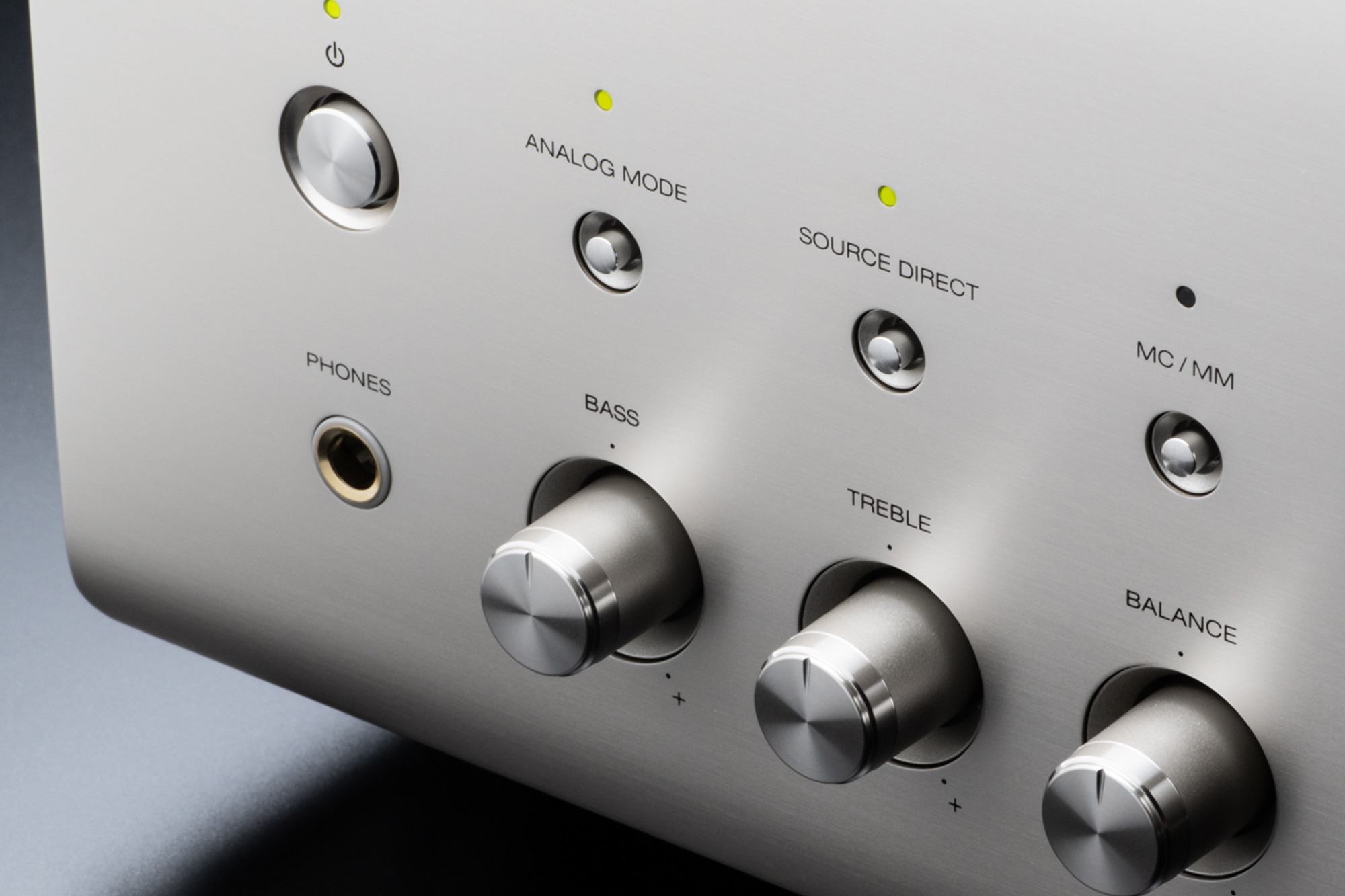

Close-up of a silver amplifier front panel with its selector buttons

Analogue mode, Source Direct

Analogue mode switches off the digital circuits, and Source Direct removes the tone controls from the signal path. The RCA inputs are machined from gold-plated brass, and the speaker binding posts are the same as on the AVR-A1H. Built in Shirakawa, Japan, the unit weighs 24.6 kg and comes in black or silver.

Black = Black; Silver = Silver

Reference 73596

Data sheet

Product Type: Integrated stereo amplifier
Features: Analog Amp mode (front-panel button)
Asynchronous USB-B mode
Outputs muted when headphones are in use
Remote Control Supplied
Source Direct
Tone controls
USB DAC Function
USB ports: 1 x USB-B
Brand: Denon
Integrated DAC: ESS ES9018K2M x 4
Headphone output: 1
WiFi: No
Integrated phono: Yes
Number of channels: 2 channels
Digital inputs: 1 x coaxial (192 kHz / 24-bit)
3 x optical (192 kHz / 24-bit)
Analog inputs: 4 RCA inputs (incl. phono), 1 REC output
Multiroom: no
Output power: 80 W + 80 W (8 Ω, 20 Hz - 20 kHz, 0.07%), 160 W + 160 W (4 Ω, 1 kHz, 0.7%)
Phono inputs: Yes (MM/MC)
Color: Black or silver
Technology: DAC master clock
New UHC-MOS Single Push-Pull
Ultra AL32 Processing
Variable gain preamplifier (op-amp)
Hi-Res Audio: DSD 11.2, PCM 384/32
Connections: Gold-plated AVR-A1H-type speaker terminals with cover
Gold-plated RCA
Remote control bus
Signal-to-noise ratio: Phono MM 89 dB, phono MC 74 dB, CD 107 dB
Power consumption: 0.2 W (standby, TV autoplay off) / 0.4 W (TV autoplay on)
400 W
Distortion (THD): 0.01% (rated output -3 dB, 8 Ω, 1 kHz)
Width: 43.4 cm
Depth: 44.3 cm
Height: 18.2 cm
Unit weight: 24.6 kg
