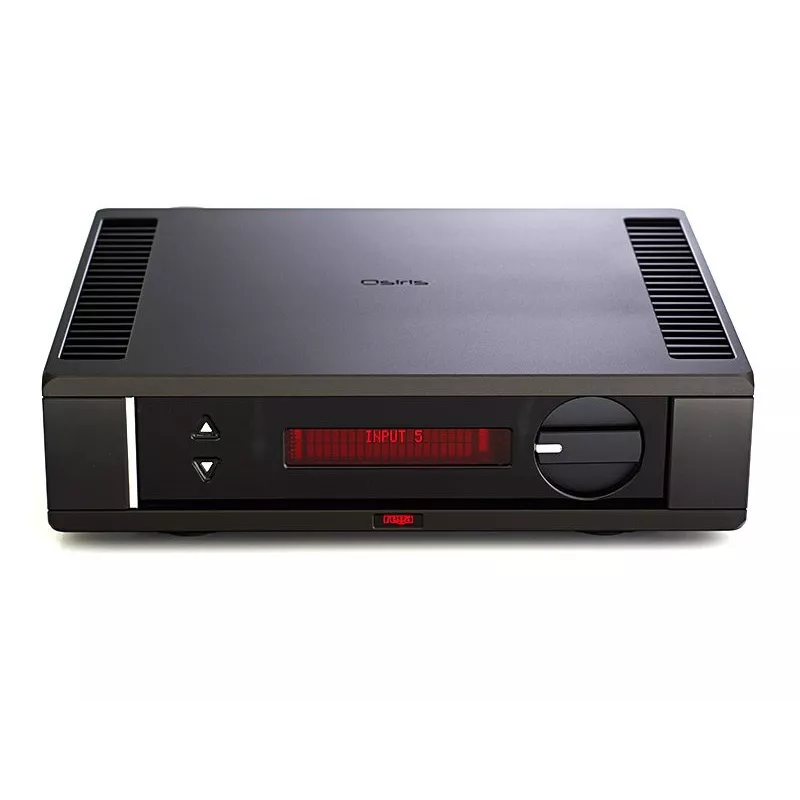

Rega Osiris

Reference 14430

CHF9,999.00 Tax included

Integrated reference amplifier Rega Osiris, 162 W per channel under 8 ohms in dual mono. Passive Preamp, Two 400 VA Toroidal Transformers, 25.6 kg.

Guarantee safe & secure checkout

Description
Product Details

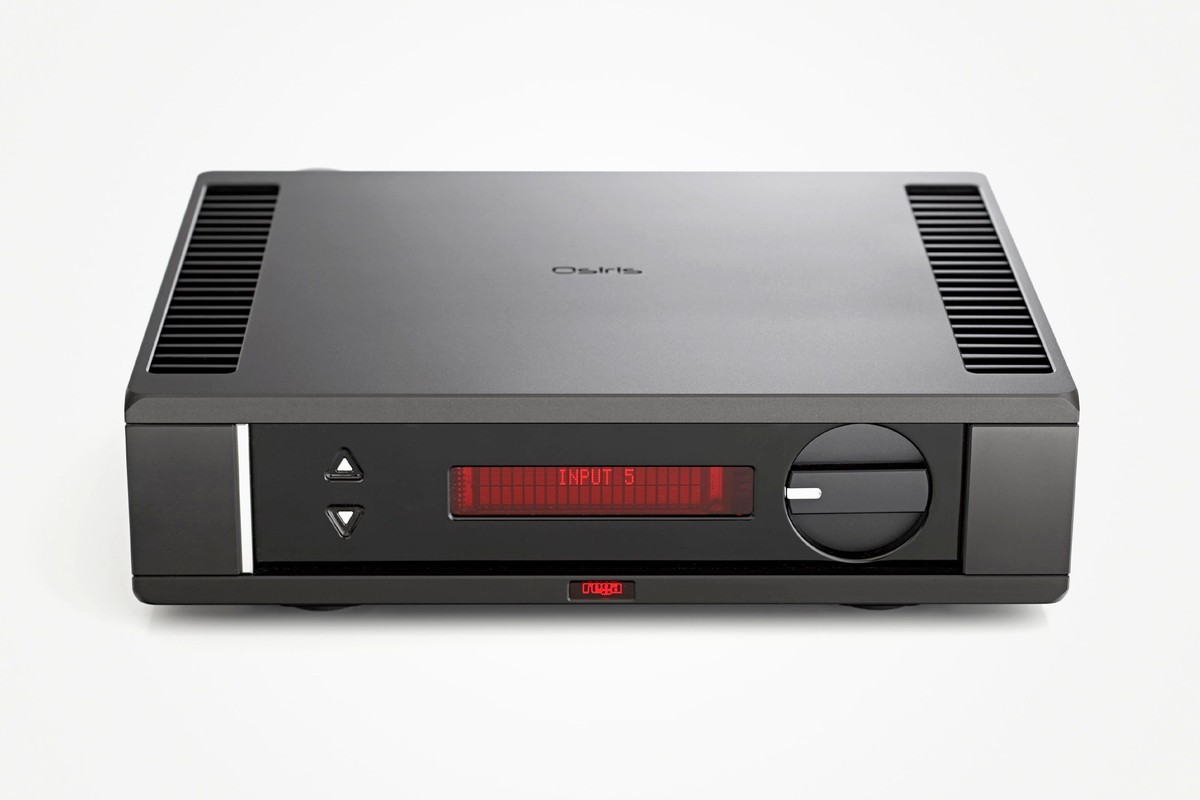

Integrated amplifier Rega Osiris seen from three quarters

162 Watts under 8 ohms

The osiris delivers 162 W per channel under 8 ohms and 250 W under 4 ohms, in dual mono. Rega There is a summary of thirty-two years of transistor amplification development. The CNC machined aluminum cabinet is 25.6 kg.

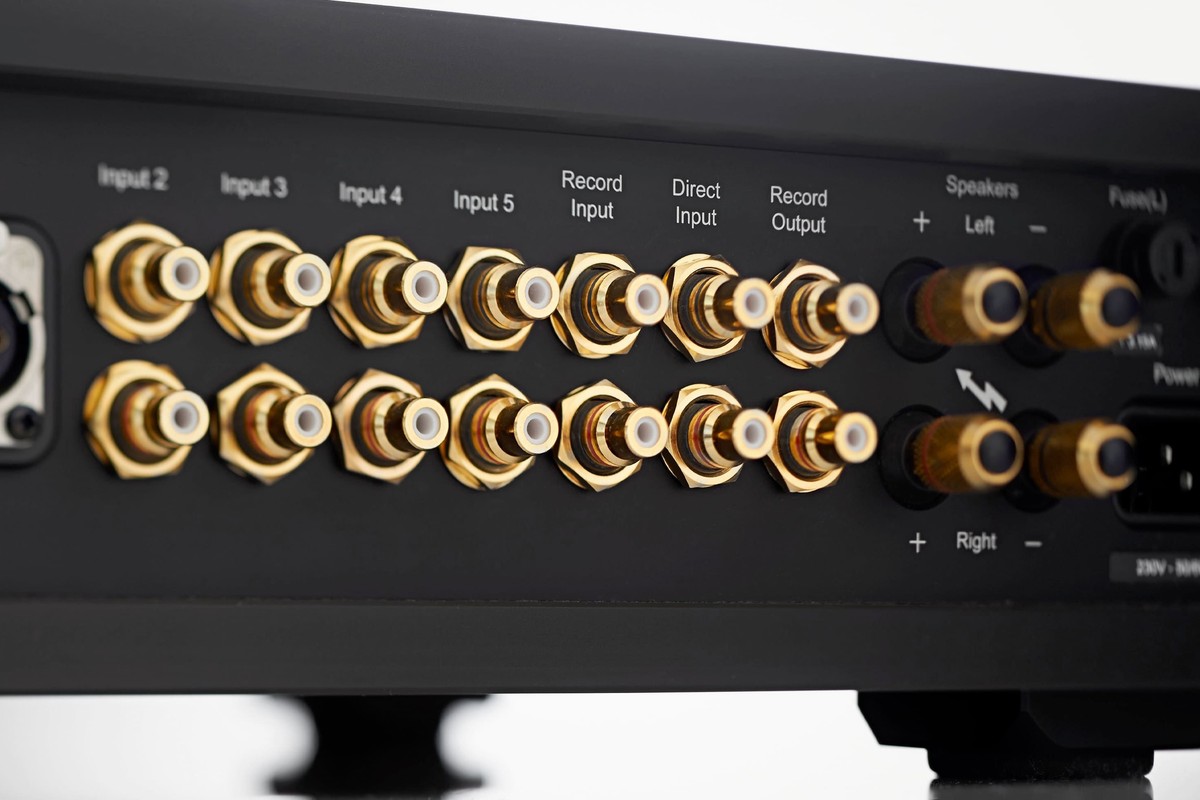

Rear face and golden connectivity of the amplifier

Four line entries

The rear aligns four line entries, a symmetrical input on XLR, a direct input and a recording output to 215 mV over 100 kilohms. The gain reaches 44 dB and the distortion remains in 0.05%. A reference CNC remote control and a reference sector cord accompany the device.

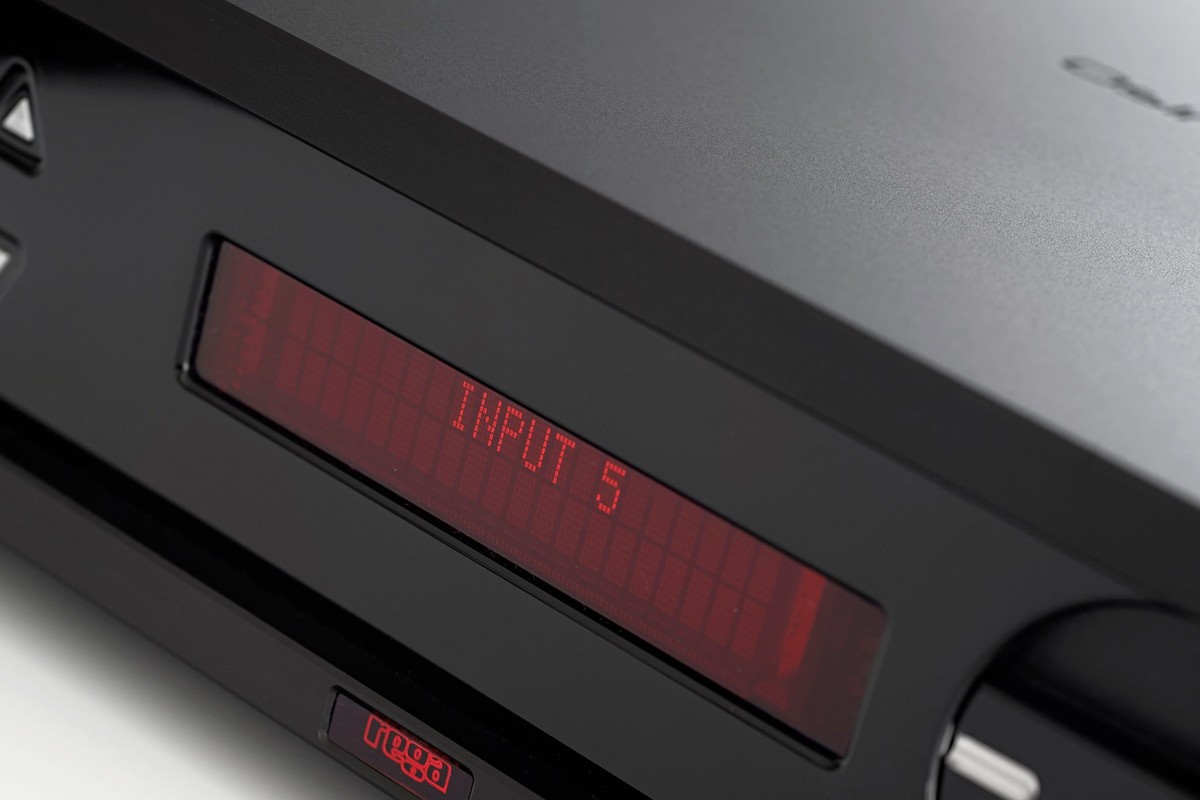

Red display indicating the selected entry

Passive preamp

The topology retained places a passive volume control and a single amplification stage between entry and speakers. Eight 200 W Sanken output transistors work upside down "triple" highlight, enough to hold the most difficult charges. Nichicon capacitors of audio quality occupy the decoupling positions.

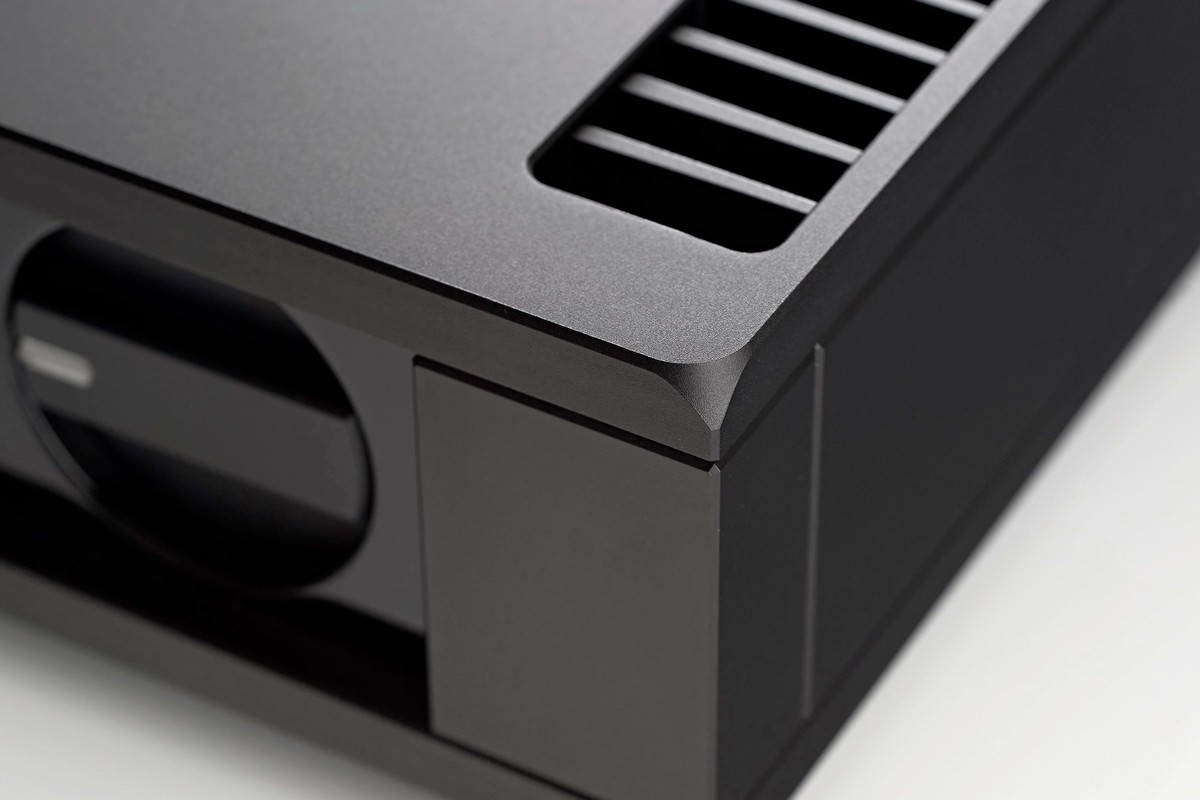

Detail of the lateral sink and aluminum cabinet

Two toroidal 400 goes

Two 400 VA toroidal transformers mounted according to a technique specific to Rega which prevents the sound from going to the frame, feed each channel with 40,000 "K-Power" smoothing microfarads. The chassis measures 43.4 x 12.2 x 35 cm for 560 W of consumption. The device does not have a standby: its polarization requires a stable operating temperature.
