Vincent Audio KHV-200 | Hybrid headphone amplifier

66755
CHF1,240.00 Tax included
Supplier stock – typically 4 to 7 days
Vincent Audio KHV-200 hybrid headphone amplifier. It offers a 6.35 mm jack output and a four-pin balanced XLR output.
Color : Silver
Quantity
Add to wishlist
Supplier delivery time usually between 4 and 7 days

Black front panel, jack and XLR headphone sockets

Four-pin balanced output

The KHV-200 carries a four-pin XLR headphone output alongside the 6.35 mm jack. A balanced link separates the grounds of the two channels completely. Distortion stays below 0.01 % at 1 kHz into 32 ohms.

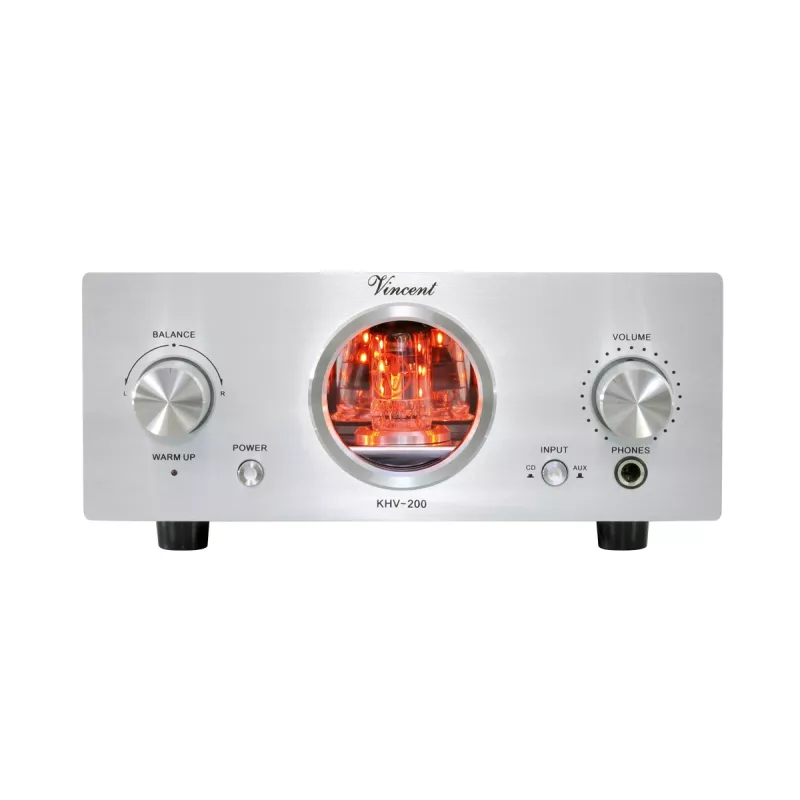

The same unit in silver finish

Two gain settings

A switch selects low or high gain, giving -2.66 dB or 13.64 dB at the headphone output. The setting suits sensitive headphones as well as high-impedance models. The preamplifier output follows the same principle at -11.06 dB or 5.13 dB.

Rear face with its RCA inputs and outputs

Three tubes at the input

Two E180F tubes and one ECC82 make up the input stage. Bandwidth covers 20 Hz to 20 kHz at ±0.1 dB and the signal-to-noise ratio exceeds 95 dB. Two RCA inputs and a Rec Out output complete the connections.

Both finishes seen from the front, lit porthole

Tubes behind a porthole

A circular window shows the tubes at work in the centre of the front panel. The unit measures 21 x 8.5 x 27.7 cm and weighs 3.6 kg. A dimmer adjusts the lighting.

66755

Data sheet

Product Type
Headphone Amplifier
Headphone output
Yes
Analog inputs
2 x RCA
Series
tubeLine
Frequency response
20 Hz - 20 kHz
Width
21.0 cm
Depth
27.7 cm
Height
8.5 cm
Unit weight
3.6 kg

Specific References

EAN13
4250019134036
