CHF0.00 Tax included
Supplier stock – typically 4 to 7 days
Color : Gray
Quantity
Add to wishlist
Supplier stock - usually 1 to 4 days

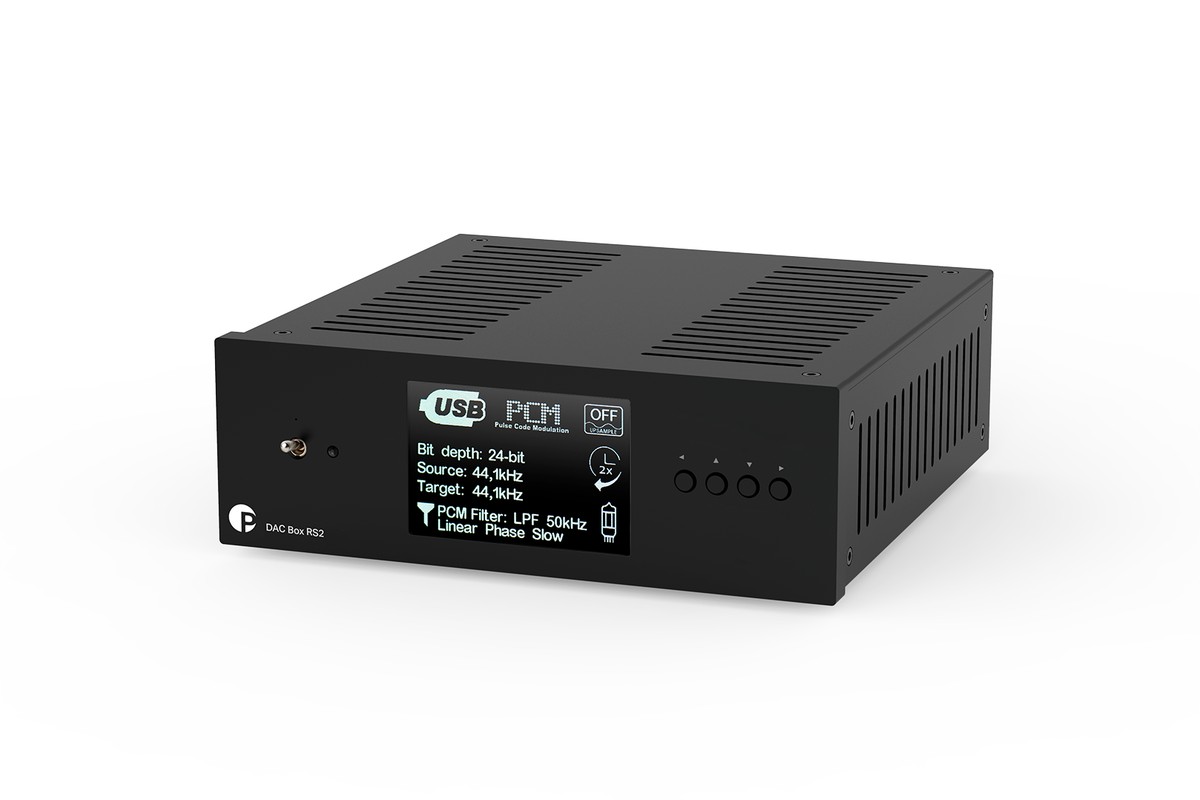

Black front with large information display

Dual-mono ESS Sabre

The DAC Box RS2 uses two ESS9038Q2M converters, one per channel, with separate left and right signal paths. The circuit is fully balanced, in a dual-mono layout. Over USB it plays PCM up to 32-bit/768 kHz and DSD up to DSD512.

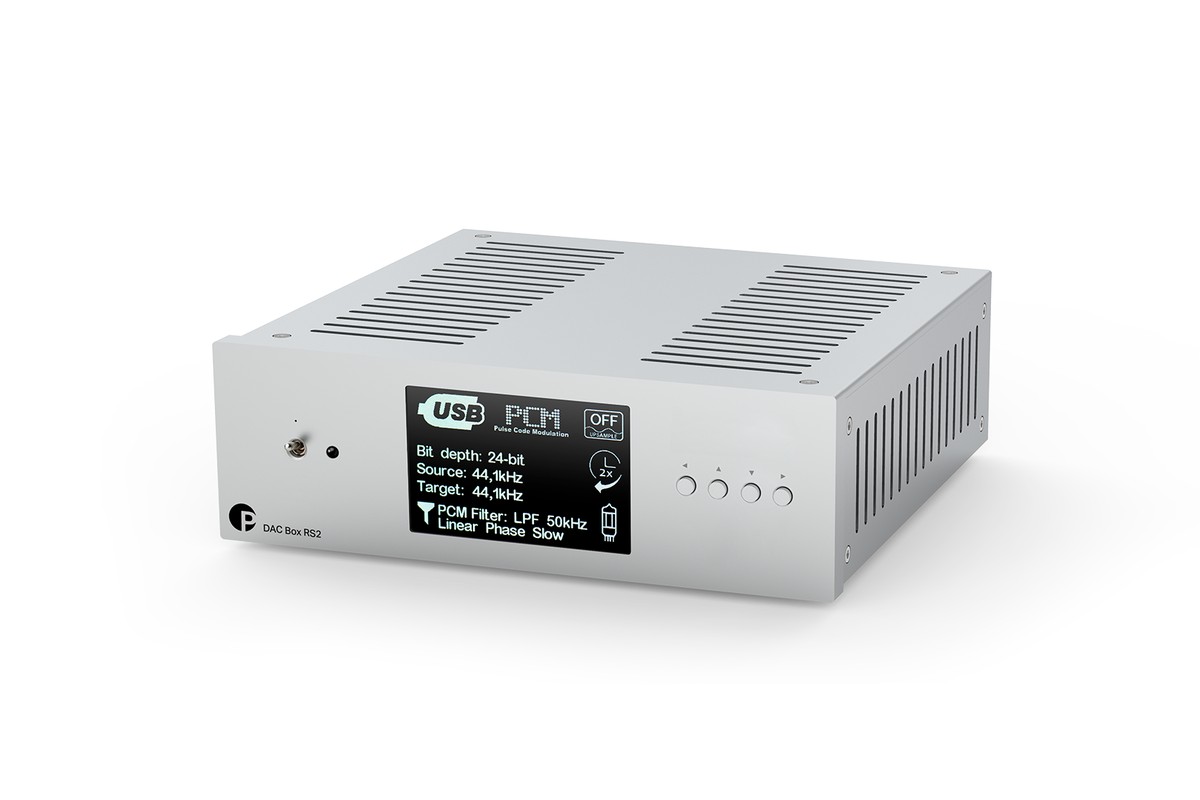

Silver version seen at three-quarter angle

Tube or solid-state output

The fixed analogue output switches between a solid-state stage and a stage using four 6922EH tubes, to suit each listener. Eight digital filters let you shape the sound, including the optimum transient filter from the creators of MQA. MQA decoding is handled entirely in hardware.

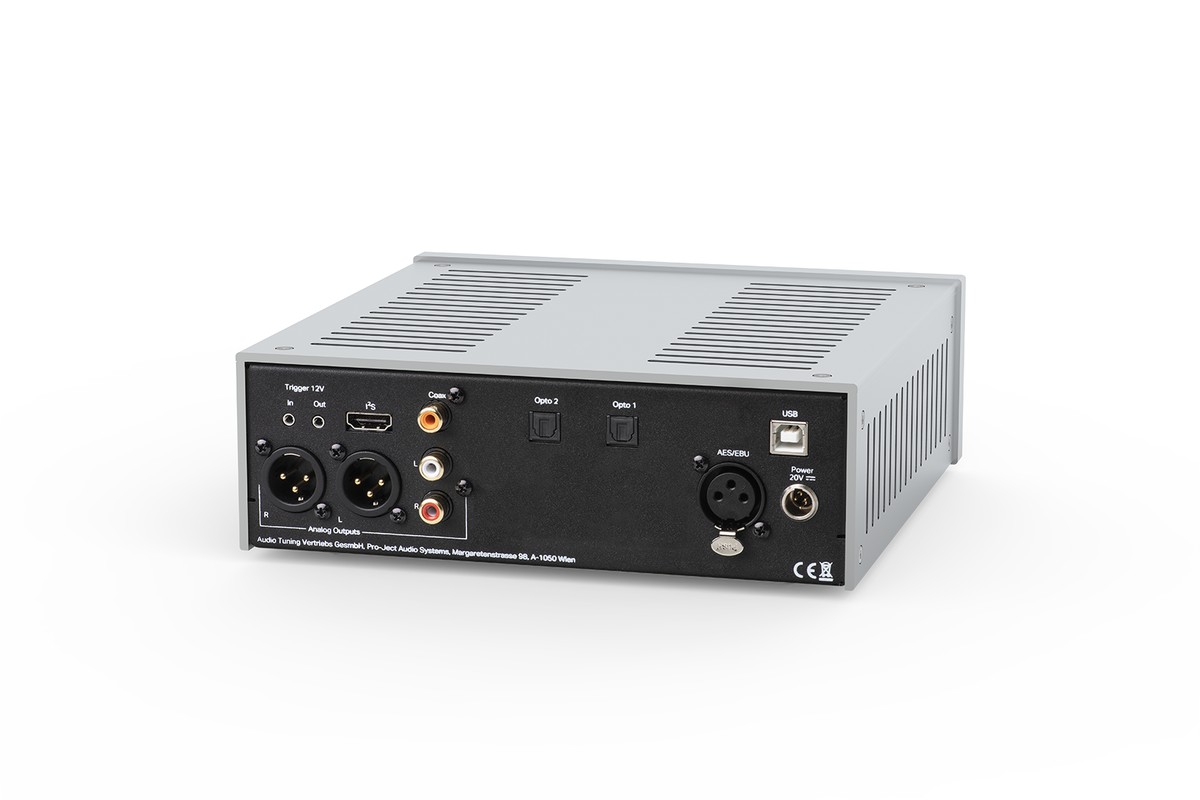

Rear panel with XLR and RCA outputs and digital inputs

Six digital inputs

The rear panel offers an asynchronous USB input, an I²S link over HDMI for the CD Box RS2 T transport, two optical inputs, one coaxial and one balanced AES/EBU. Analogue outputs are provided on XLR and RCA. A large front display, an aluminium remote control in the box and a choice of silver or black complete the package.

Black = Black; Gray = Silver

Data sheet

Product Type
DAC
Features
Master clock output: 16.9344 MHz for CD Box RS2 T
Output buffer: discrete and balanced, tube and solid state
Output impedance: 180 ohms solid state, 220 ohms tube
Power supply: 20 V / 3 A DC, 110 - 240 V, 50/60 Hz
Tubes: 4 x 6922EH
Brand
Pro-Ject
Integrated DAC
2 x ESS9038Q2M (dual mono, 32-bit/768 kHz/DSD512)
Audio outputs
Pre-out XLR and RCA
Digital inputs
1 x USB 2.0 Audio 32/768 + DoP and native DSD up to DSD512, 1 x HDMI I2S for CD Box RS2 T, 2 x S/PDIF optical 24/192, 1 x S/PDIF coaxial 24/192, 1 x AES/EBU balanced 24/192
Color
Black
Silver
Audio format
MQA, full unfolding by hardware
Series
Box Line
Power consumption
1.2 A DC max., less than 0.5 W in standby
Distortion (THD)
less than 0.0008% solid state / 0.001% tube, at 2 V RMS, 1 kHz (20 Hz - 20 kHz)
Width
20.6 cm
Depth
22.2 cm
Height
7.2 cm
Unit weight
1.52 kg
