Isol-8 SUBSTATION INTEGRA

54646
CHF3,990.00 Tax included
Conditioner sector Isol-8 Integra: Filtered distribution for complete system, 6 outputs including 4 at low / medium intensity and 2 high intensity. Dedicated Transmodal Filters, Continuous Locking Isola-8 Axis, Neutrik PowerCon Input 20 A.
Color : Gray
Quantity
Add to wishlist
Supplier stock

Guarantee safe & secure checkout

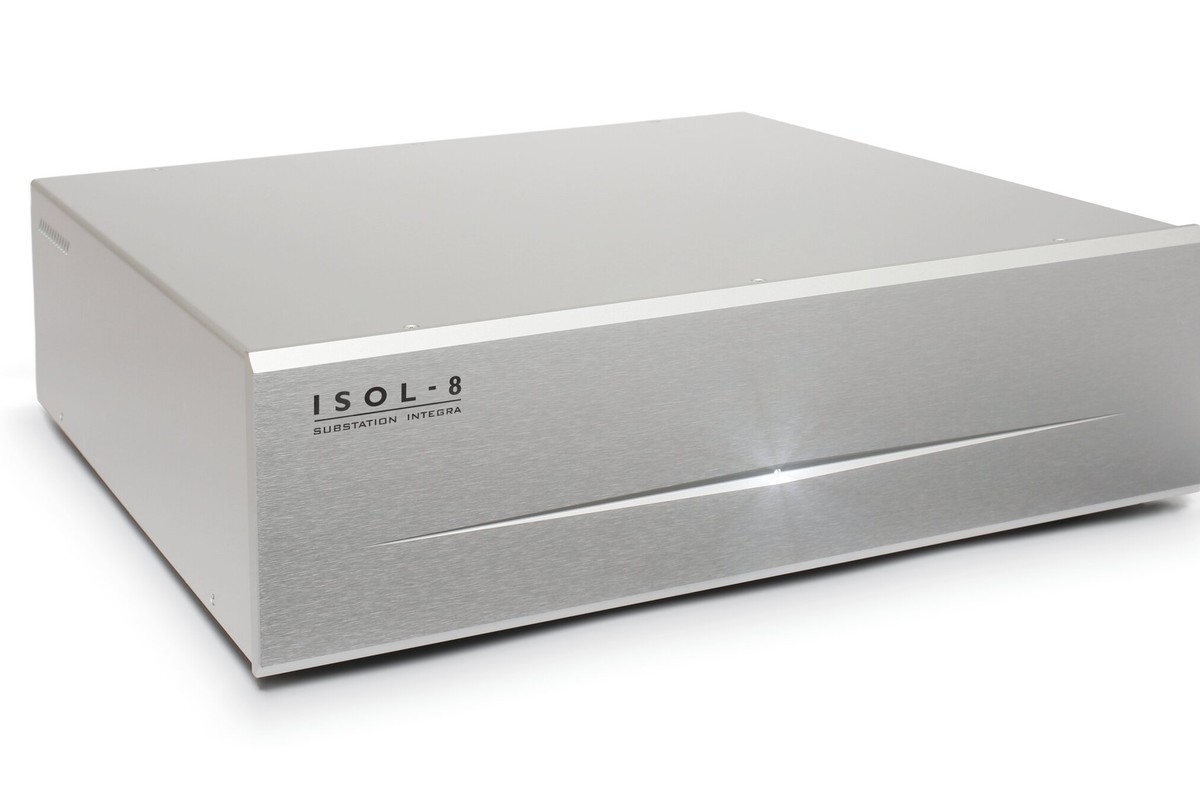

Isola-8 Integra angle view

Two sections of filtering

Integra separates its power into two separate filter sections. Four low and medium-intensity outputs host sources, two high-intensity outputs feed gourmet components like power amplifiers. Each source output receives its own transmodal filter, which prevents the sound of a device from contaminating others.

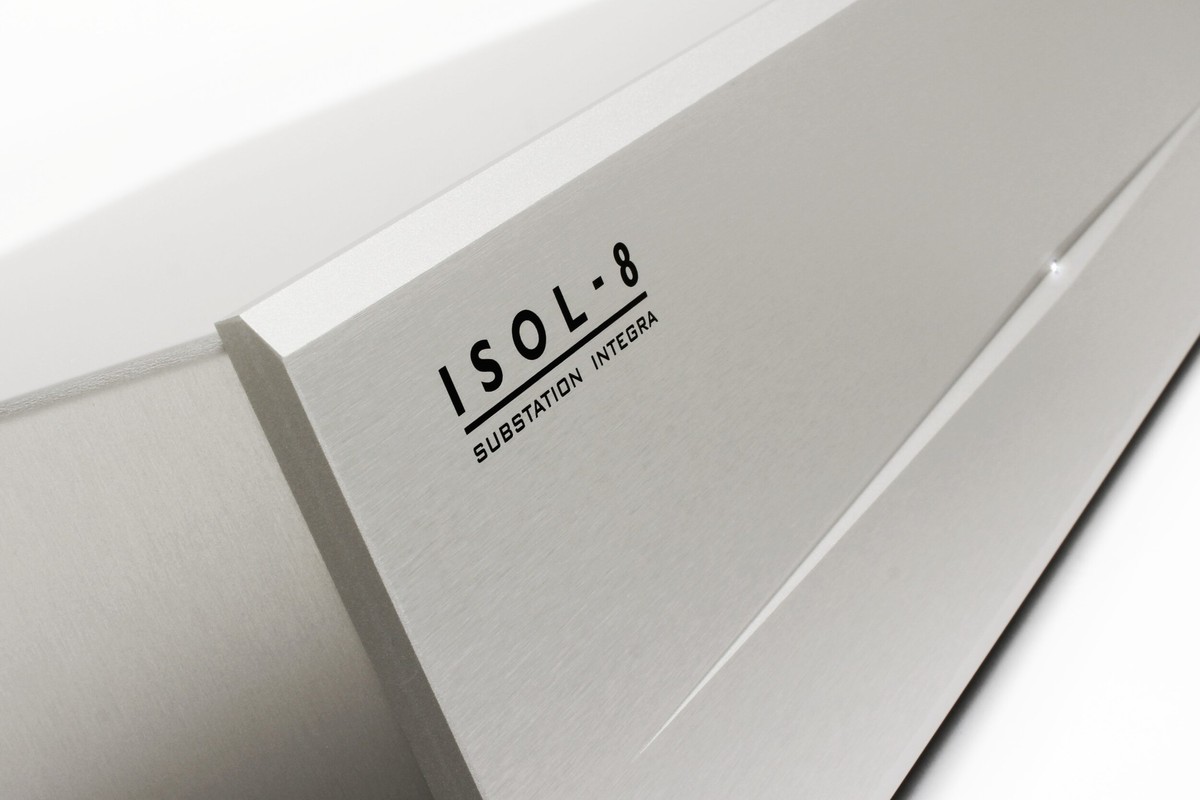

INTEGRA MANUFACTURING DETAIL

AXIS circuit and protection

An Isolated Axis High Axis circuit feeds all outputs and blocks the continuous component present on the mains, frequent cause of snoring transformers. All outputs are protected against overvoltages and tips, and a custom winding self filter the noise conveyed by the safety earth.

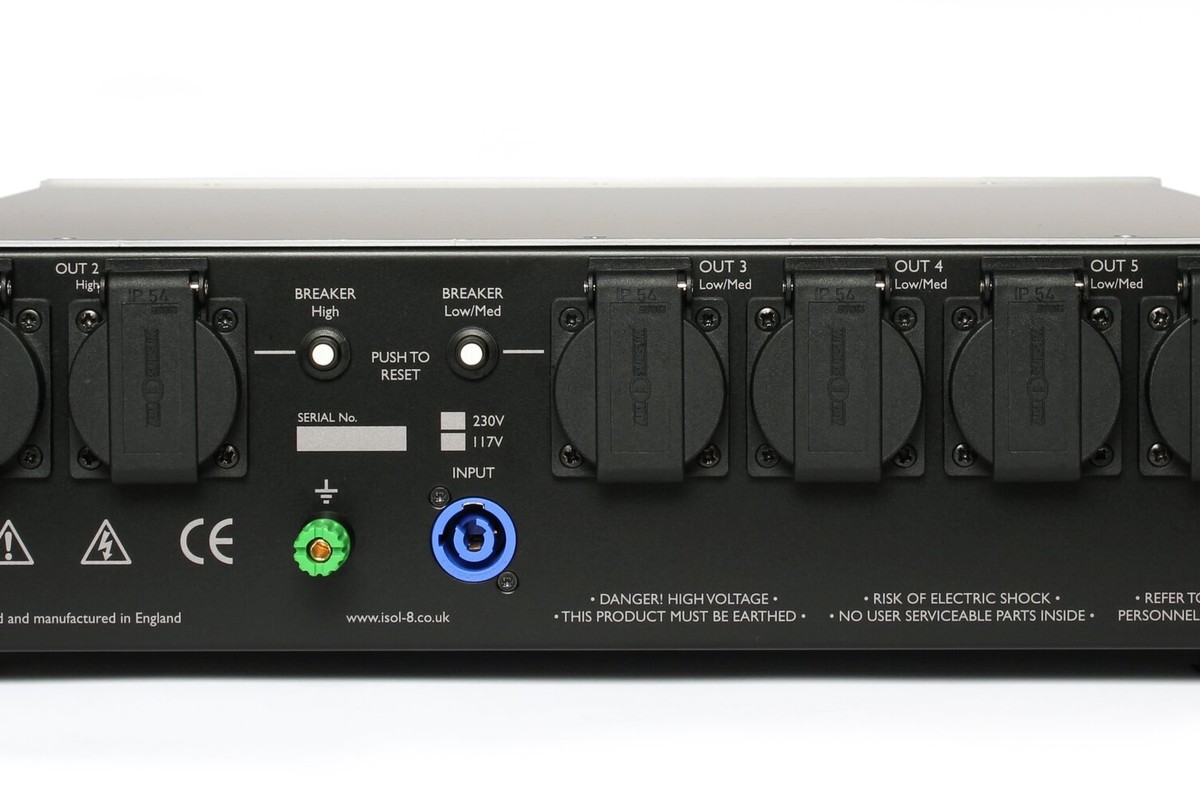

Rear face and outputs of the Integra

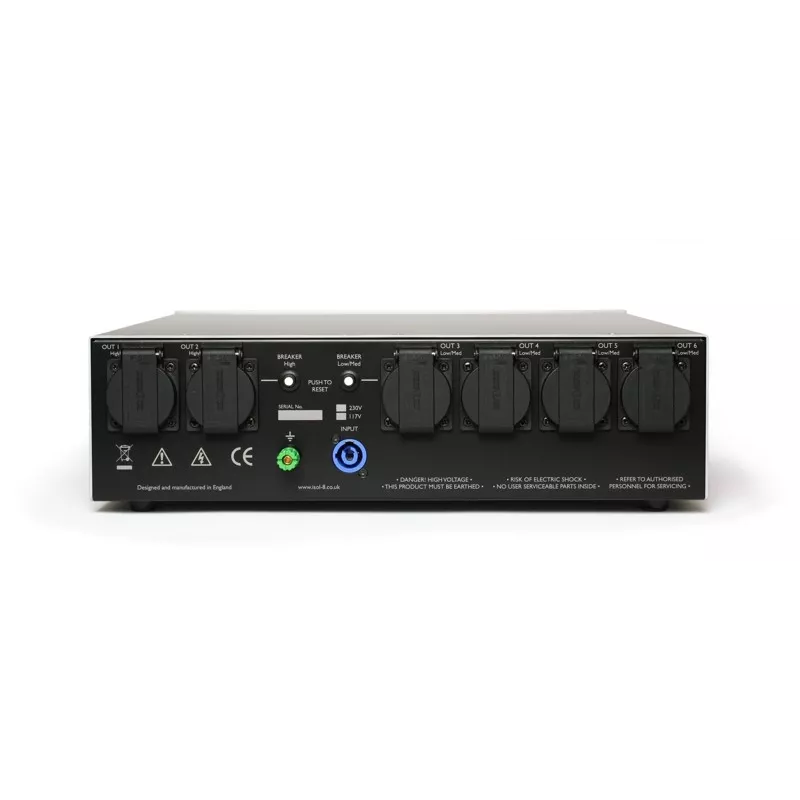

Six outputs, PowerCon entrance

The six outputs combine British outlets 13 A, European Schuko and US 15 A. The entrance is done on a lockable connector neutrik Powercon 20 A, placed in the center of the chassis to limit the interaction between the two groups of filters. Each high intensity output delivers up to 16 A, transmitted without dynamic compression thanks to the low series resistance of the transmodal topology.

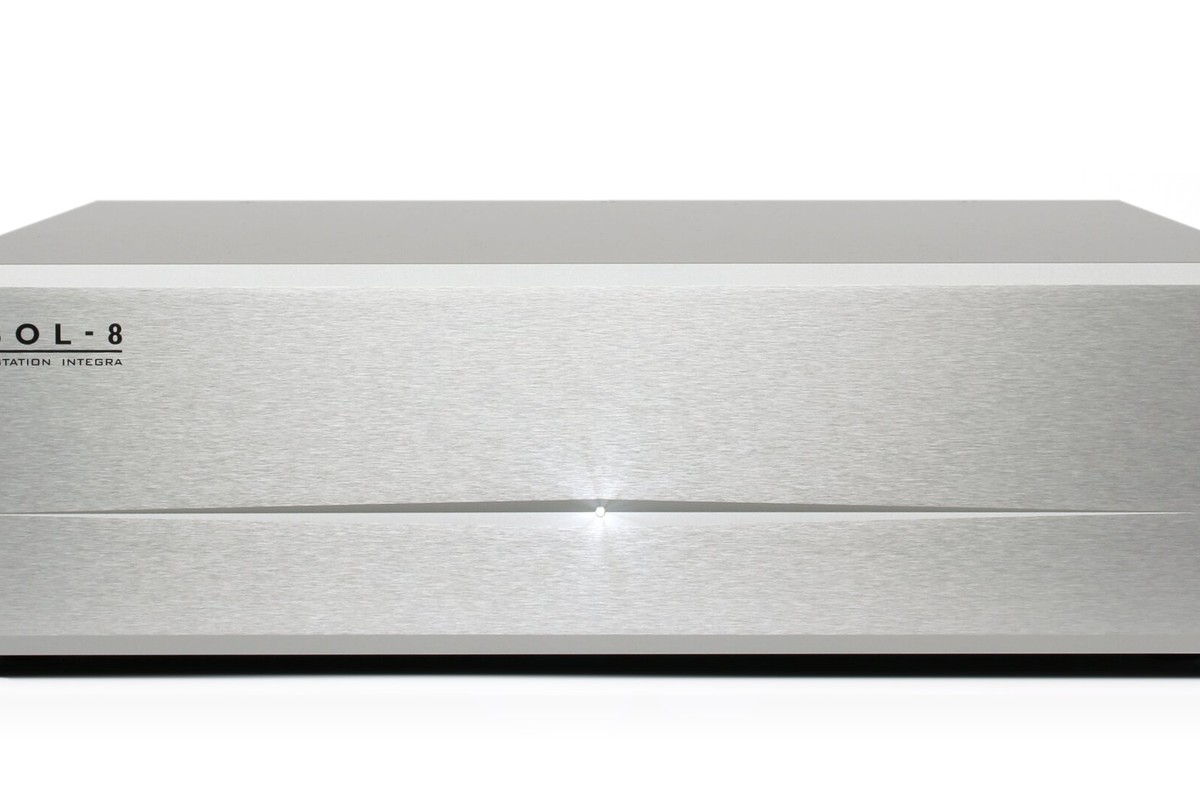

Integrant alloy front panel

Chassis and components

The black finish steel frame receives a 10 mm CNC machined alloy front panel and an aluminum lid. Inside, polypropylene capacitors, MUNDORF OFC inductors and custom windings serve filtering, with an isolated silver copper wiring at the PTFE. The outputs are protected from dust according to the IP54 index.

54646

Data sheet

Product Type
Mains Filter
Width
43.5 cm
Depth
41.0 cm
Height
13.1 cm
Unit weight
9.9 kg

Specific References

UPC
54646
