Isol-8 Minisub Wave

54641
CHF1,990.00 Tax included
Conditioner sector Isol-8 Minisub Wave: 6 outputs including 4 with transmodal filter for sources and 2 multi-filtering for amplifiers. IEC 10 A input, steel frame and aluminum facade.
Color : Black
Quantity
Add to wishlist
Supplier stock

Guarantee safe & secure checkout

Isola-8 minisub Wave angle view

Two filtering regimes

The Minisub Wave separates its six outputs into two groups: four low and medium-intensity outputs for sources, two high power outputs for amplifiers. Each group receives a filter topology adapted to its load.

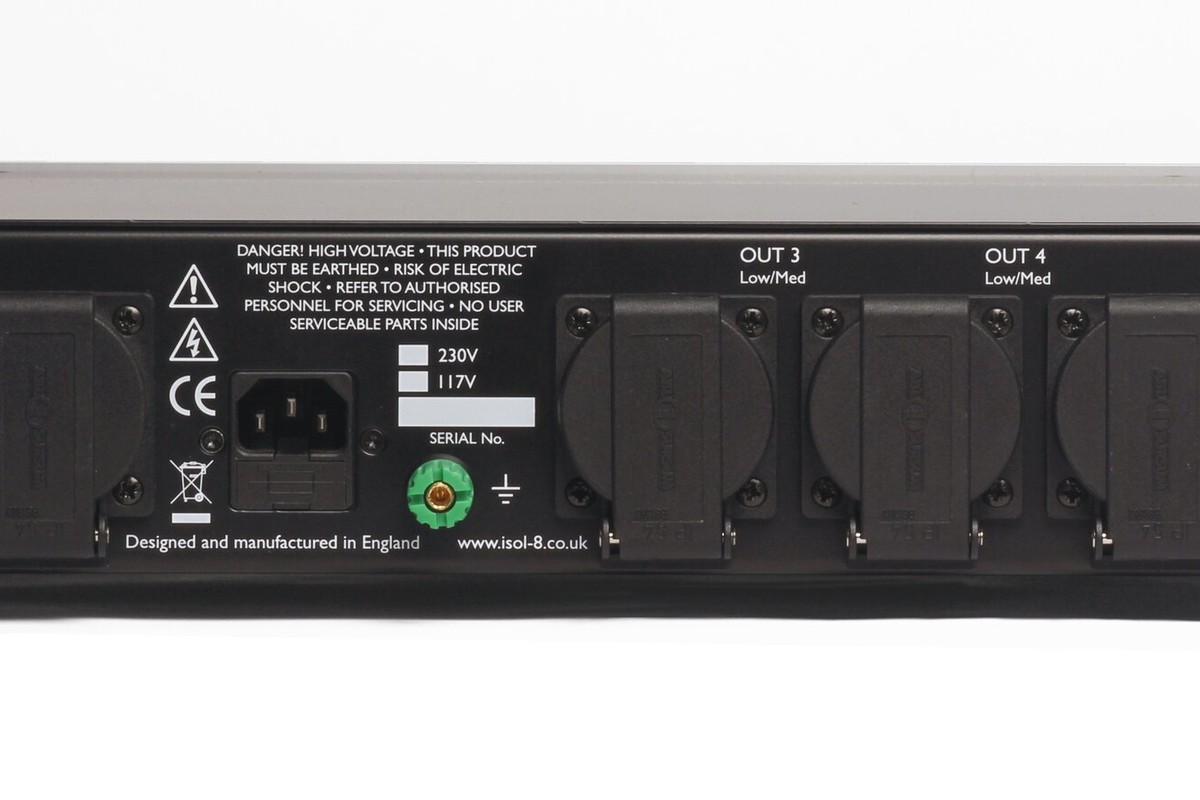

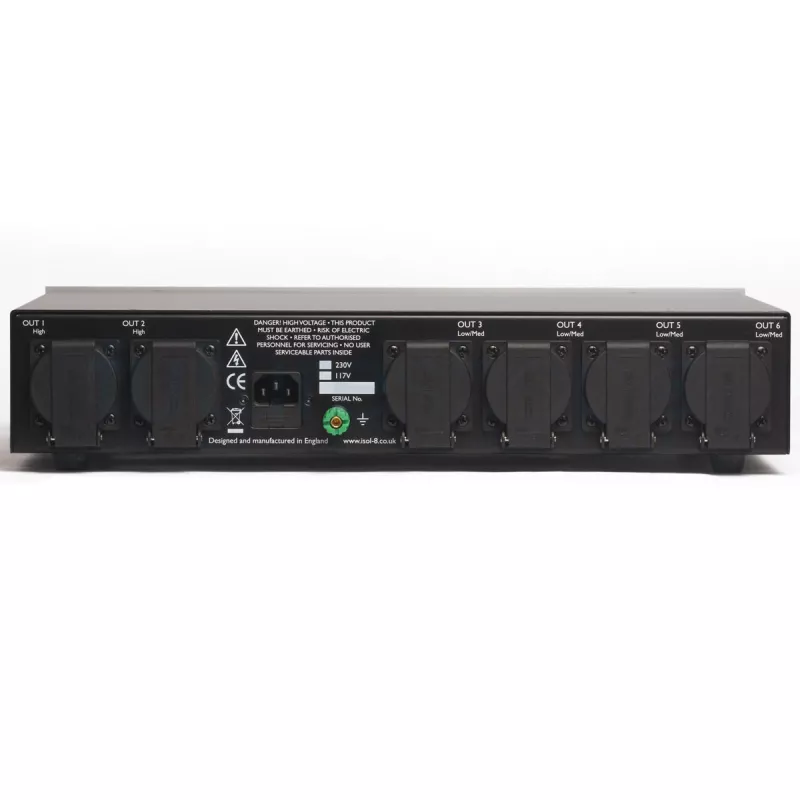

Rear face and outputs of Minisub

Transmodal filter on sources

The four source outputs each have a separate filtering network of transmodal topology, which treats common mode and differential mode. This prevents the sound of a component from contaminating others, a defect that most conditioners do not correct.

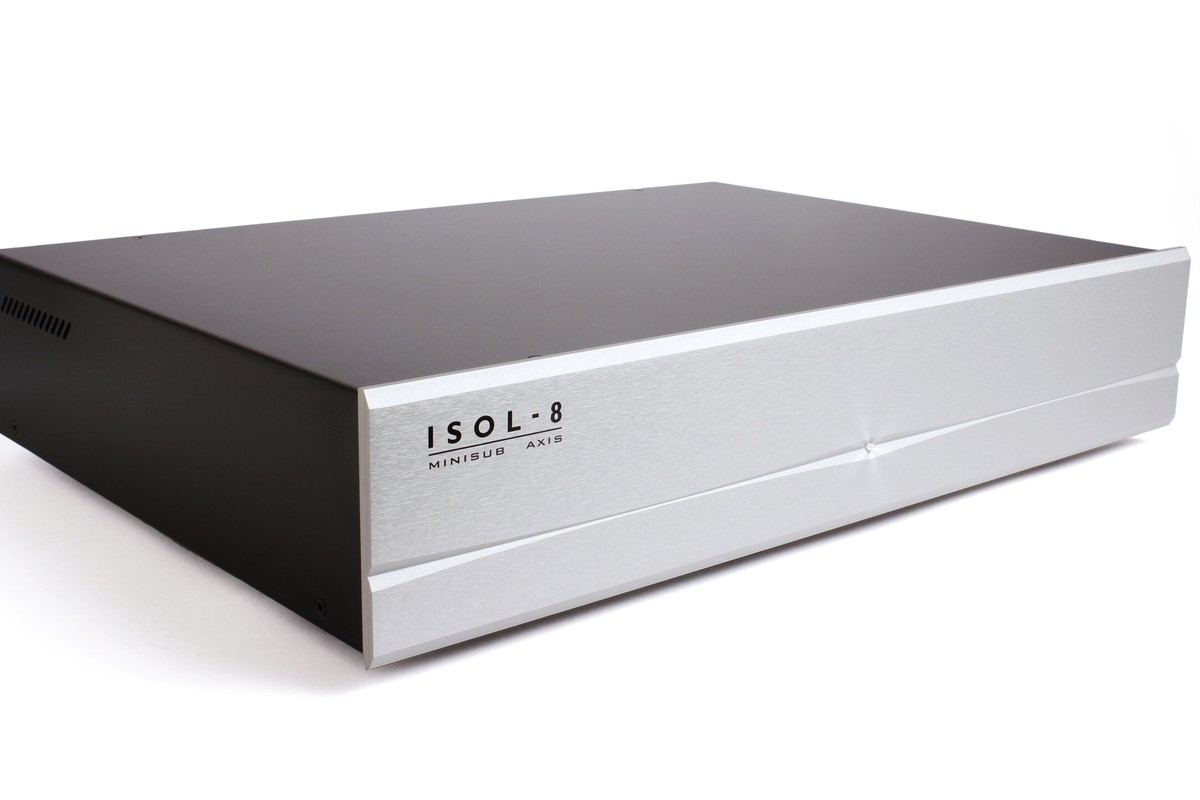

Minisub three-quarter view

Dedicated high power section

The two high power outputs receive a custom wind-up multi-component filter. It cleans gourmet loads like amplifiers without crushing their dynamics, with 10 A available by exit.

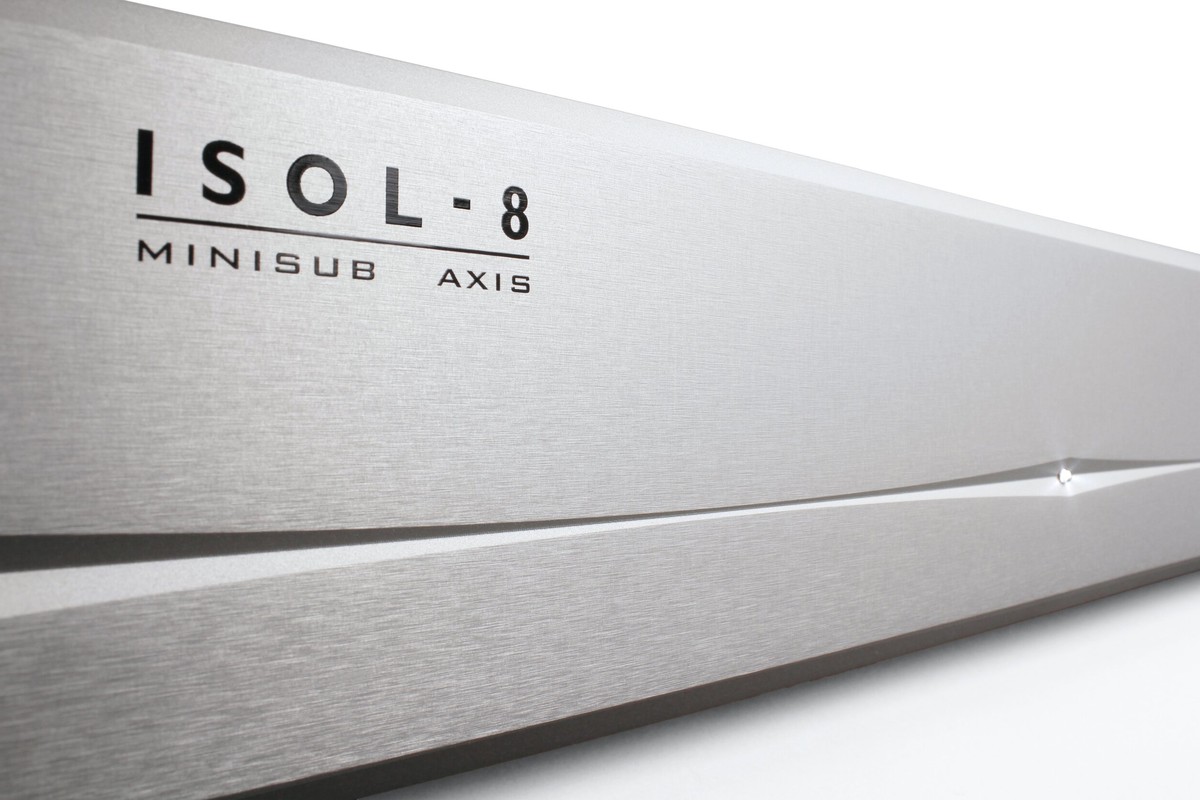

MINISUB Manufacturing Detail

IEC input and chassis

The power supply is done on an IEC 10 A input with fuse, 230 V or 117 V depending on the version. The black finish steel frame and aluminum facade measures 444 x 85 x 305 mm for 6.5 kg.

54641

Data sheet

Product Type
Mains Filter
Width
Depth
30.5 cm
Height
8.5 cm
Unit weight
6.5 kg

Specific References

UPC
54641
