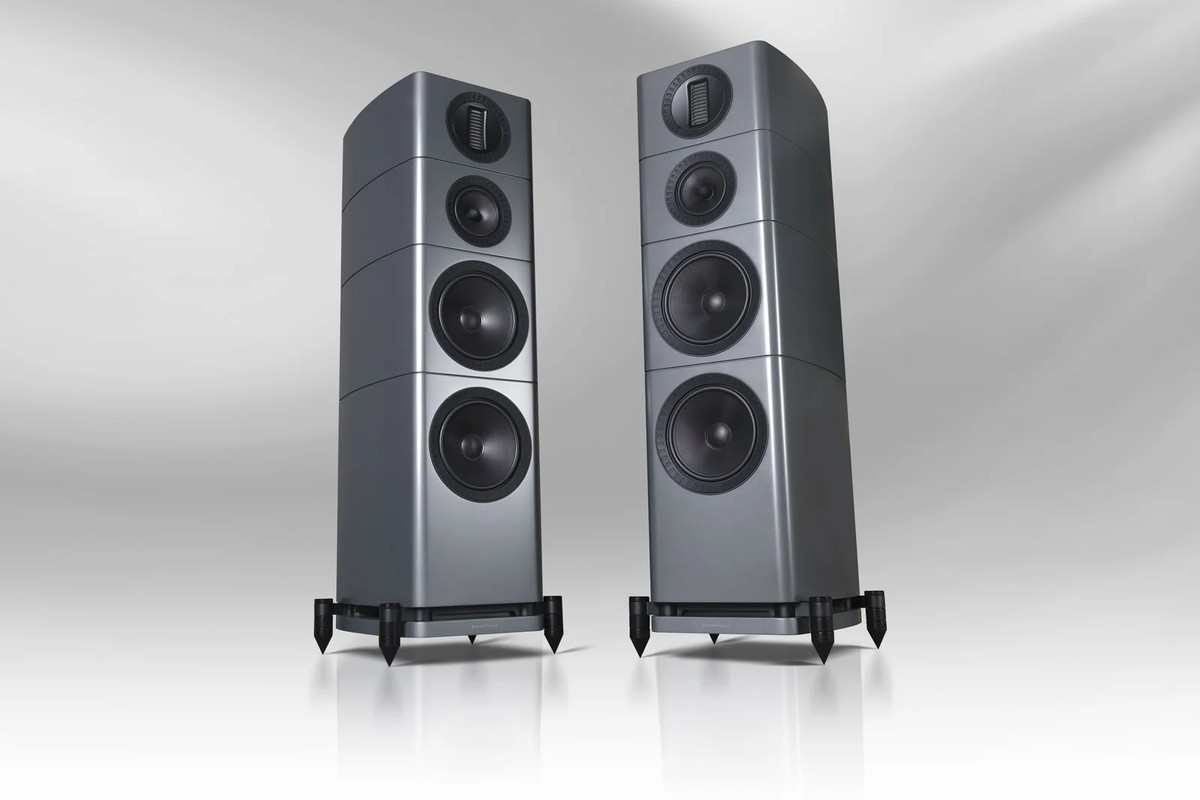

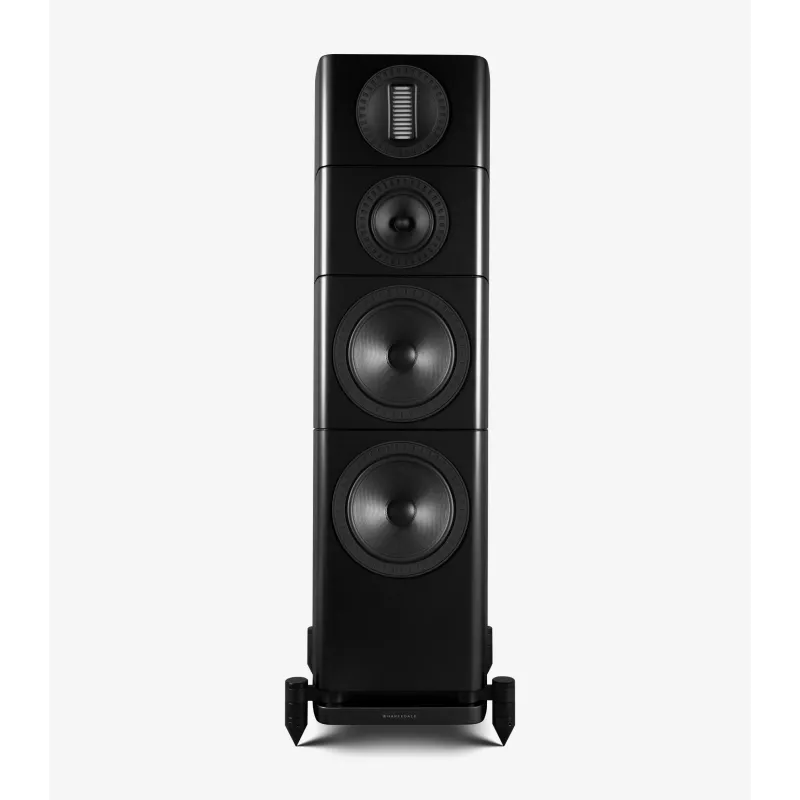

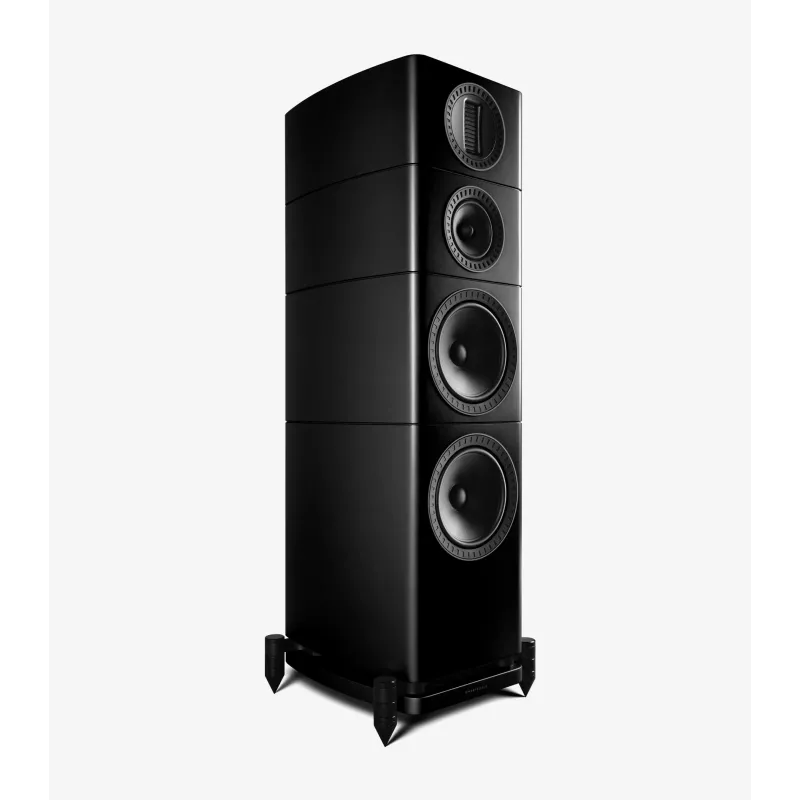

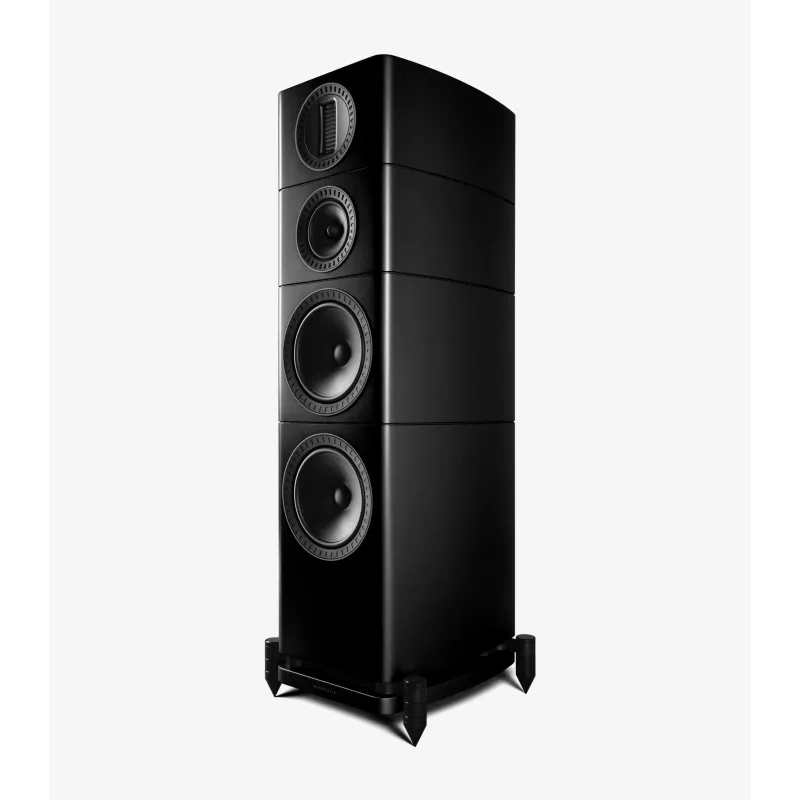

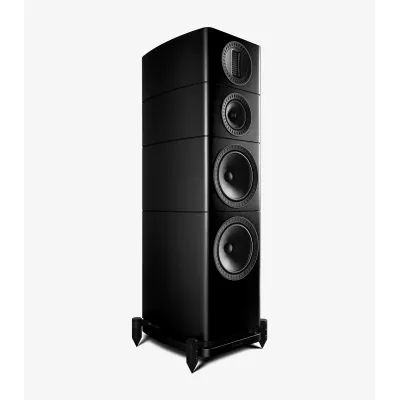

The Wharfedale ELYSIAN 4R is a three-way bass-reflex floorstanding speaker with two 8.5-inch woofers, a 6-inch midrange driver and an AMT tweeter. It covers 30 Hz to 22 kHz (±3 dB) and is sold individually.
The ELYSIAN 4R is the largest floorstanding speaker in the ELYSIAN R series. It stands 118.8 cm tall on its base and weighs 49.5 kg. Four drivers share three ways in a bass-reflex cabinet with quoted volumes of 38 L and 79.4 L.
Two 8.5-inch (220 mm) woofers cover the bottom of the spectrum. Like the 6-inch (150 mm) midrange driver, they use a coated glass-fibre matrix cone. Bass extension reaches 24 Hz at -6 dB.

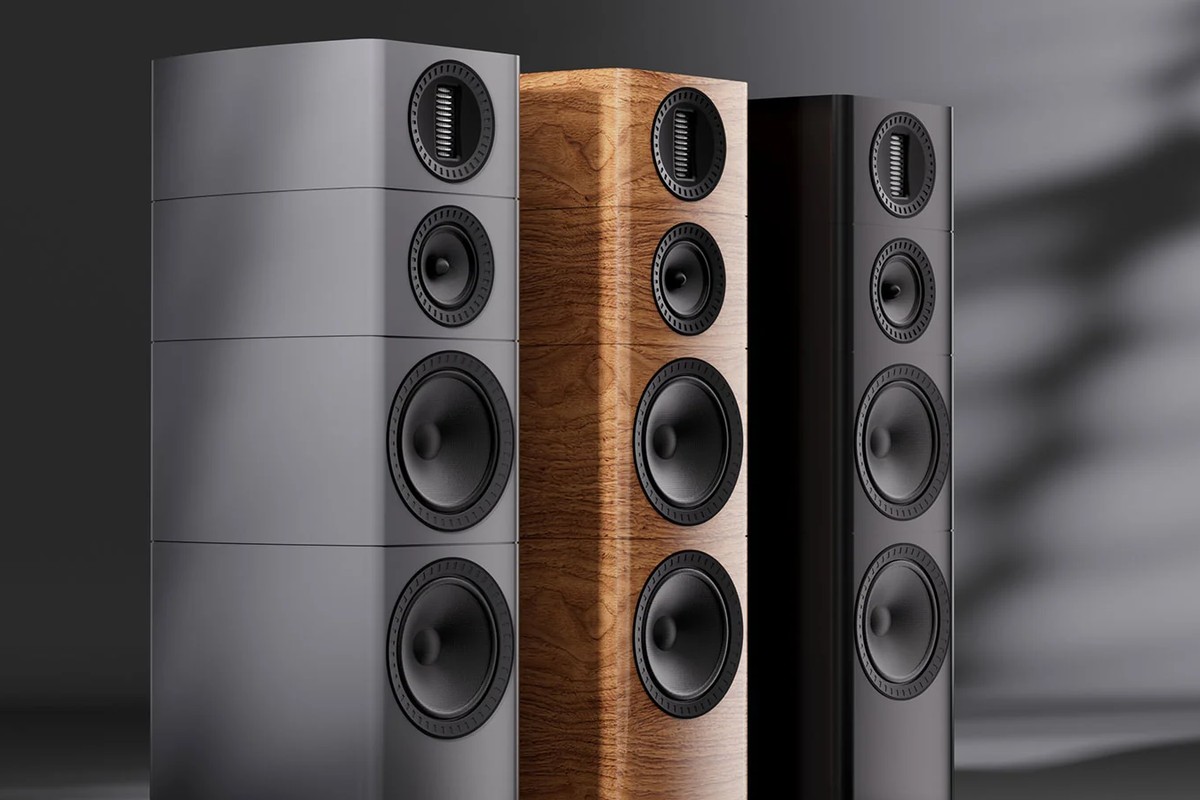

The 27 × 90 mm AMT tweeter takes over from 3.1 kHz. The response extends from 30 Hz to 22 kHz (±3 dB). The speaker comes in black, grey and light walnut.

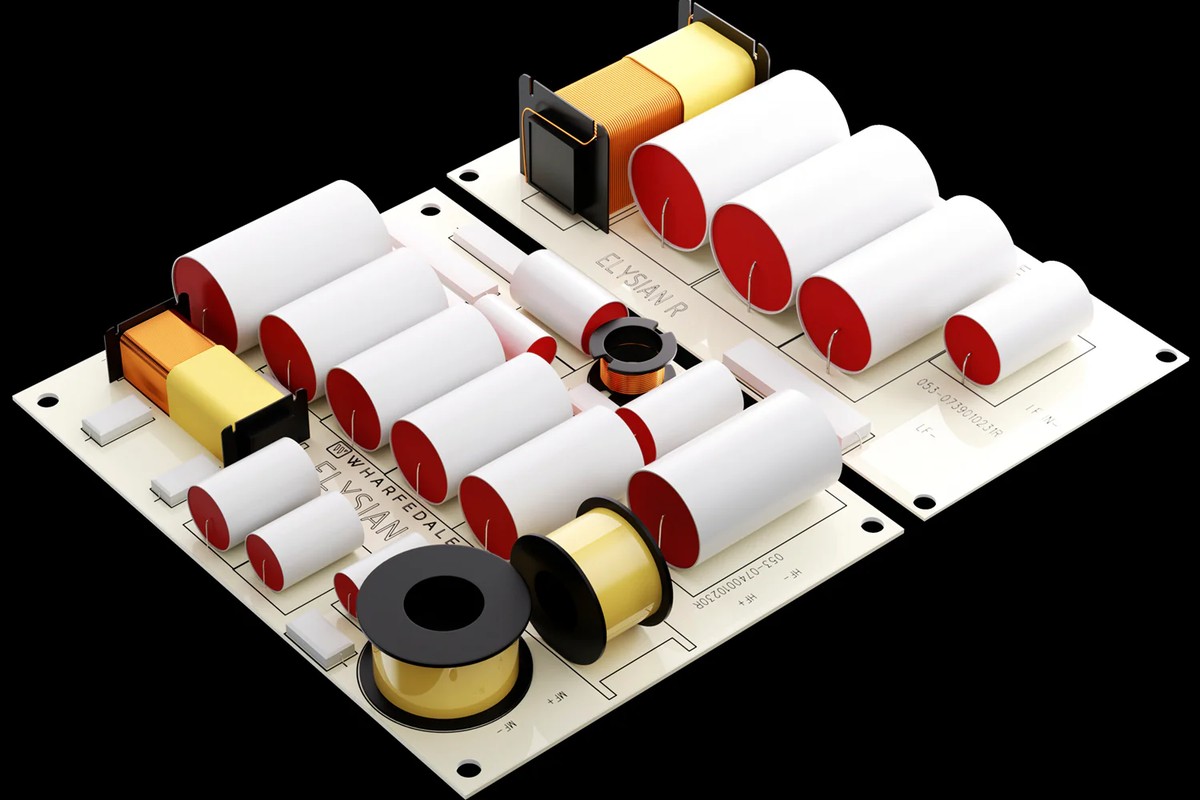

The crossover joins the three ways at 340 Hz and 3.1 kHz. The nominal impedance of 4 Ω, compatible with 8 Ω, drops to a minimum of 3.2 Ω. Sensitivity reaches 92 dB (2.83 V, 1 m). Drive the speaker with an amplifier rated 15 to 250 W, for a peak level of 110 dB.
