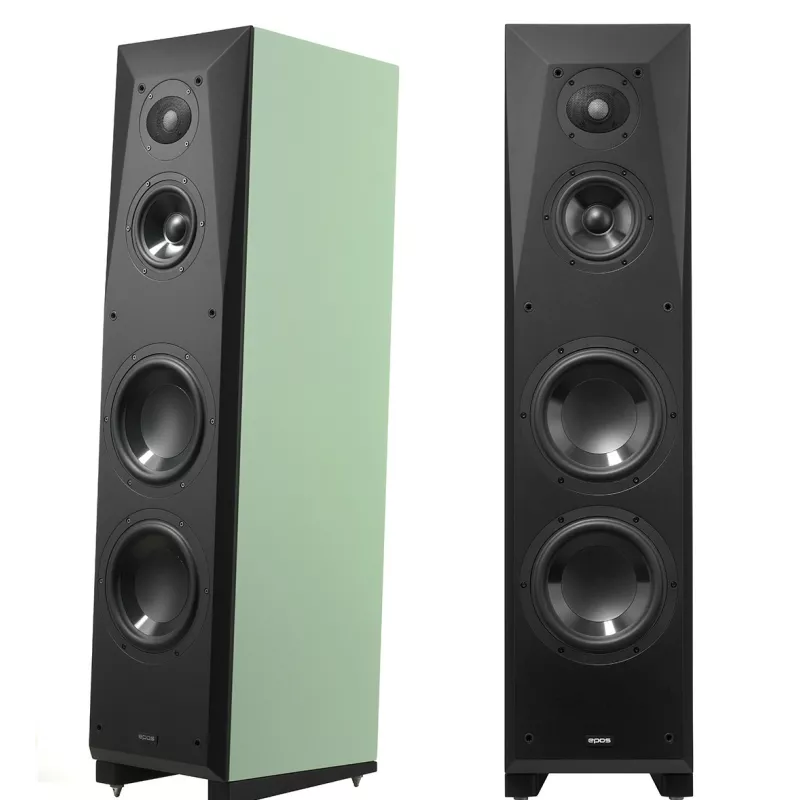

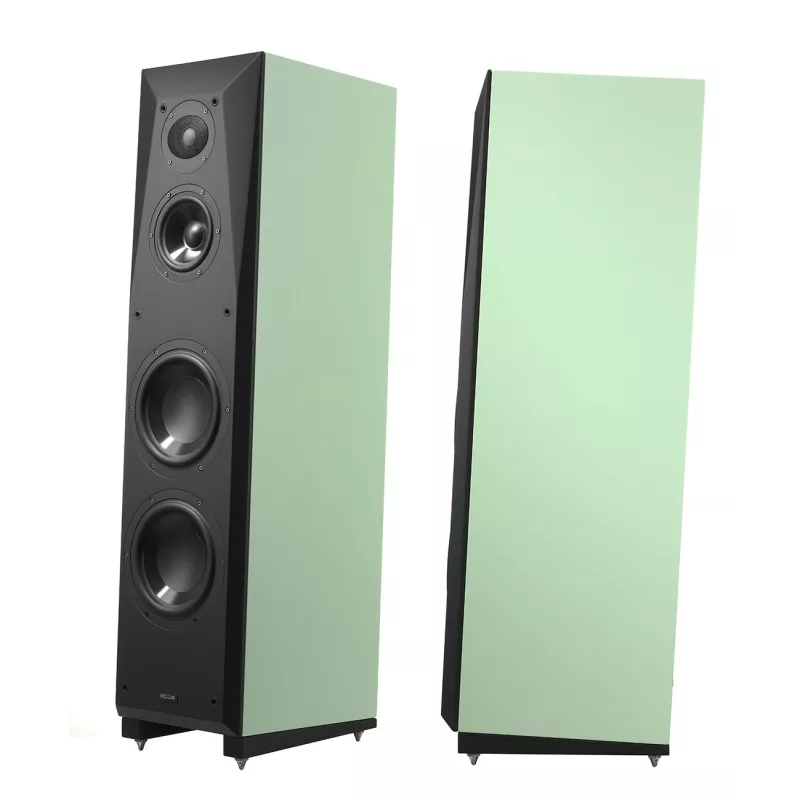

EPOS ES28N | 3-way floorstanding loudspeaker

73196
CHF3,995.00 Tax included
Supplier stock – typically 4 to 7 days
3-way EPOS ES28N floorstanding loudspeaker. Available in black, white, walnut and jade green, sold individually.
Color : Green
Quantity
Add to wishlist
Supplier lead time, usually 4 to 7 days

EPOS ES28N in walnut in a living room with turntable and tube amplifier

Three-way architecture

Two 7-inch bass drivers ruled out a two-way layout: their radiating area forbids a crossover around 2 to 3 kHz, and a 2.5-way configuration would have tilted the radiation axis downwards. EPOS therefore chose a three-way with a dedicated 130 mm midrange, crossed at 330 Hz then at 2700 Hz by modified LKR filters of the 2nd and 4th order. The column measures 1050 x 250 x 360 mm and weighs 35 kg.

Pair of black and white floorstanding speakers flanking a cabinet in a contemporary room

Port under the base

The 8 cm diameter port opens under the plinth, which allows a length sufficient to tune the cabinet to 30 Hz. Pressure-equalising holes placed halfway along suppress the tube resonance and lower the parasitic output by about 10 dB compared with a conventional port. Response reaches below 30 Hz and up to 25 kHz in room, for a sensitivity of 86 dB and an average impedance above 6 ohms, at minimum 3.9 ohms at 16 kHz.

73196

Data sheet

Product Type
3-way bass-reflex floorstanding loudspeaker
Nominal impedance
Average above 6 Ω (minimum 3.9 Ω at 16 kHz)
Sensitivity
86 dB (2.83 V / 1 m)
Tweeter
28 mm ceramic-coated aluminium dome
Midrange driver
130 mm (5.25 in) mica-filled polypropylene
Woofer
2 x 7 in mica-filled polypropylene (36 mm voice coil)
Frequency response
30 Hz - 25 kHz (in room)
Width
25 cm
Depth
36 cm
Height
105 cm
Unit weight
35 kg

Specific References

EAN13
9501972335424
