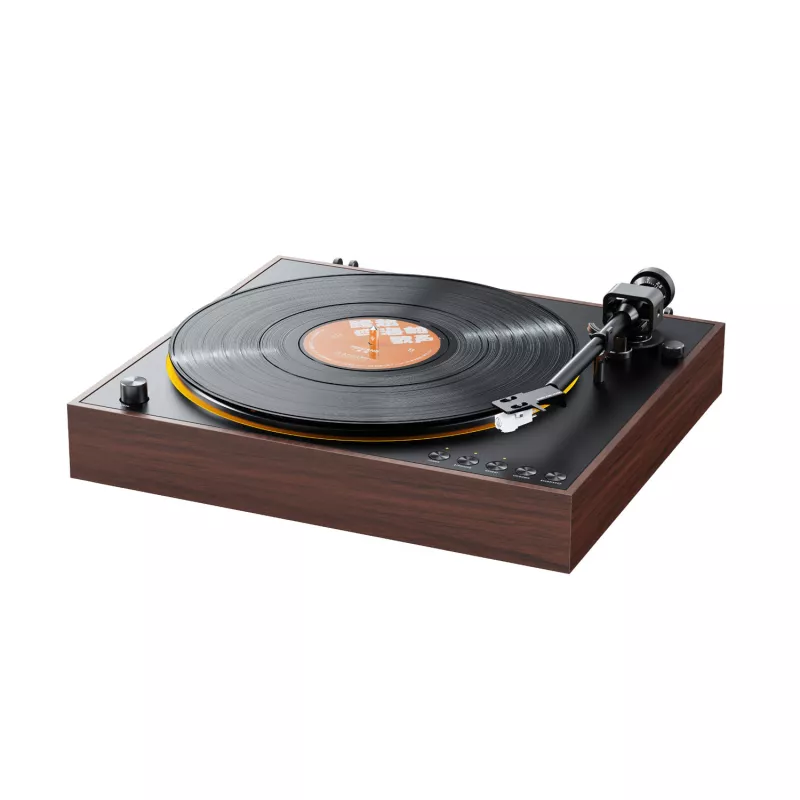

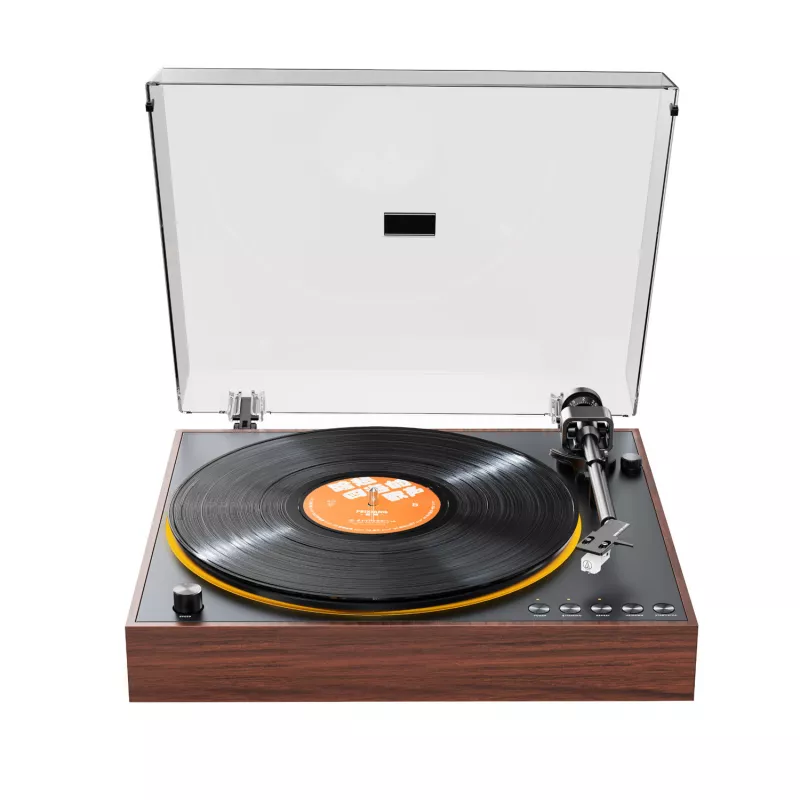

The mechanism lowers and lifts the arm unaided, on a quiet motor developed for the deck. The platter is aluminium alloy and the central spindle stainless steel. The whole measures 343 x 380 x 109 mm for 3330 g, dust cover included.

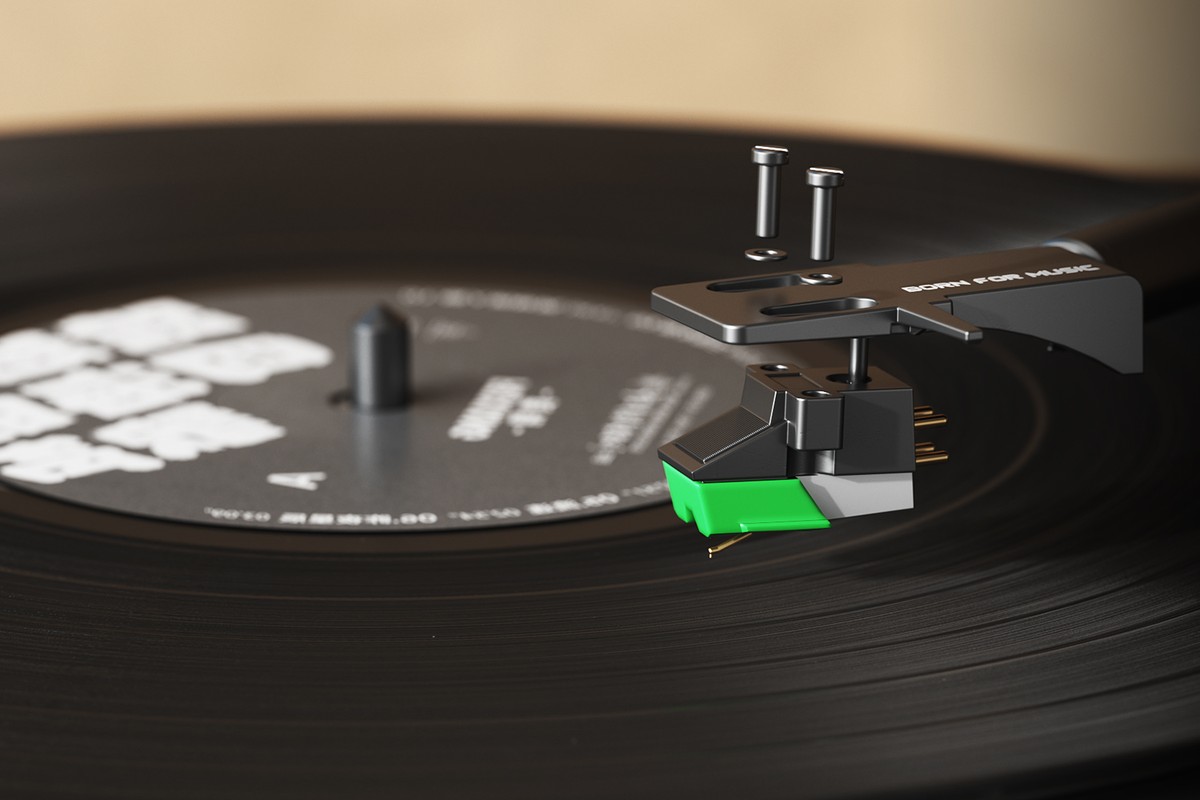

The deck arrives fitted with an Audio-Technica AT3600L cartridge, replaceable by the owner. The counterweight adjusts from 0 to 4 grams and the anti-skating covers the same range. Wow and flutter is stated at 0.2 % WRMS at most, at 33 rpm.

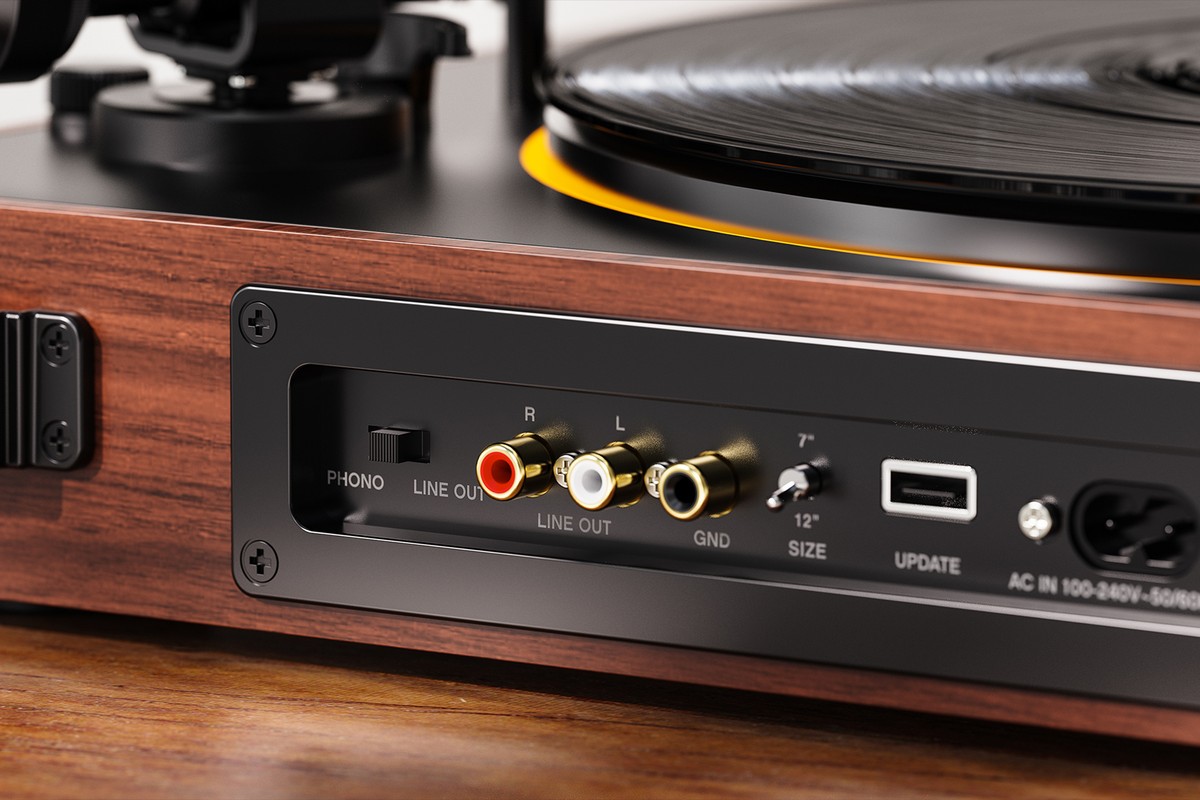

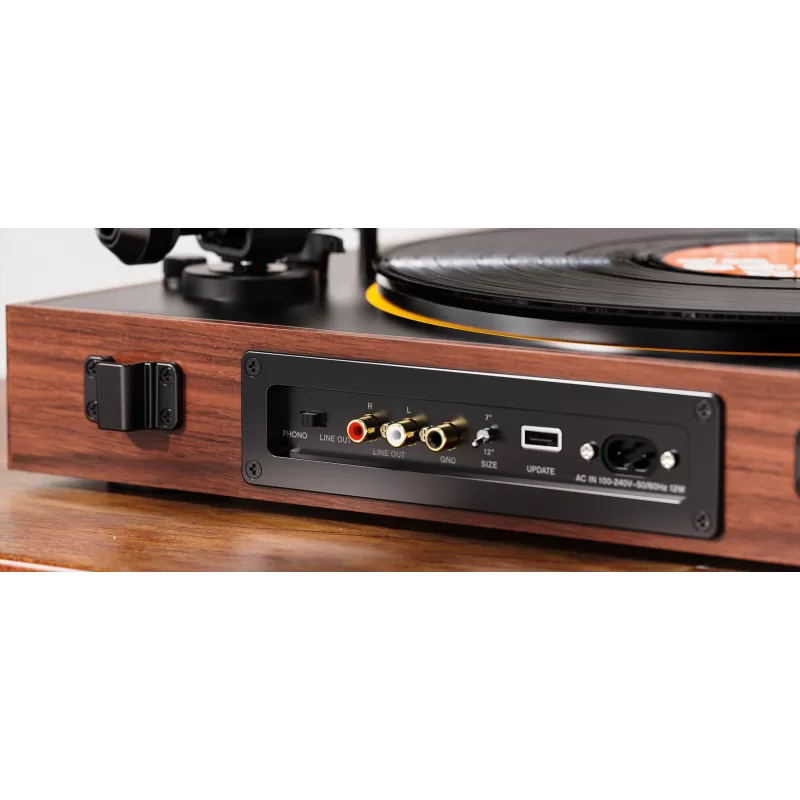

A selector chooses between the LINE output, which runs through the internal preamplifier and delivers at least 530 millivolts, and the PHONO output which bypasses that circuit and gives at least 7 millivolts. Both use the same RCA pair, alongside a ground terminal. The deck therefore suits a line input as readily as a phono input.

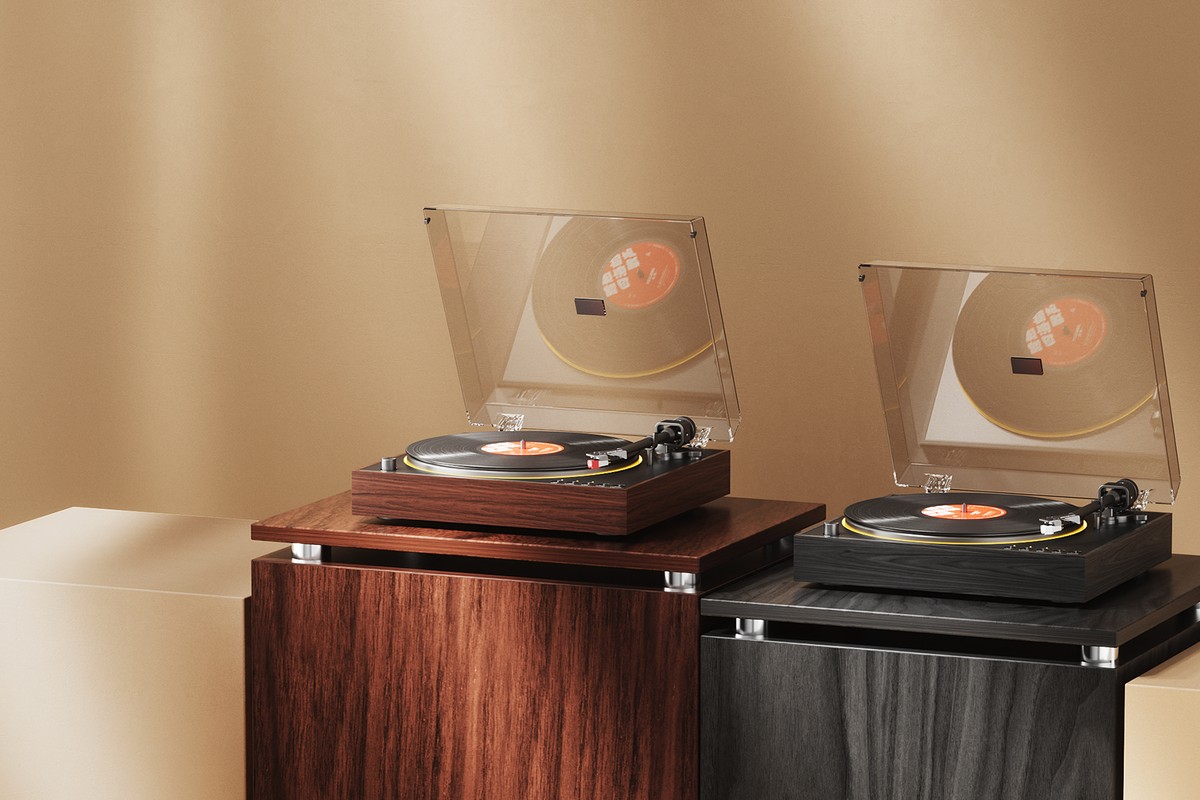

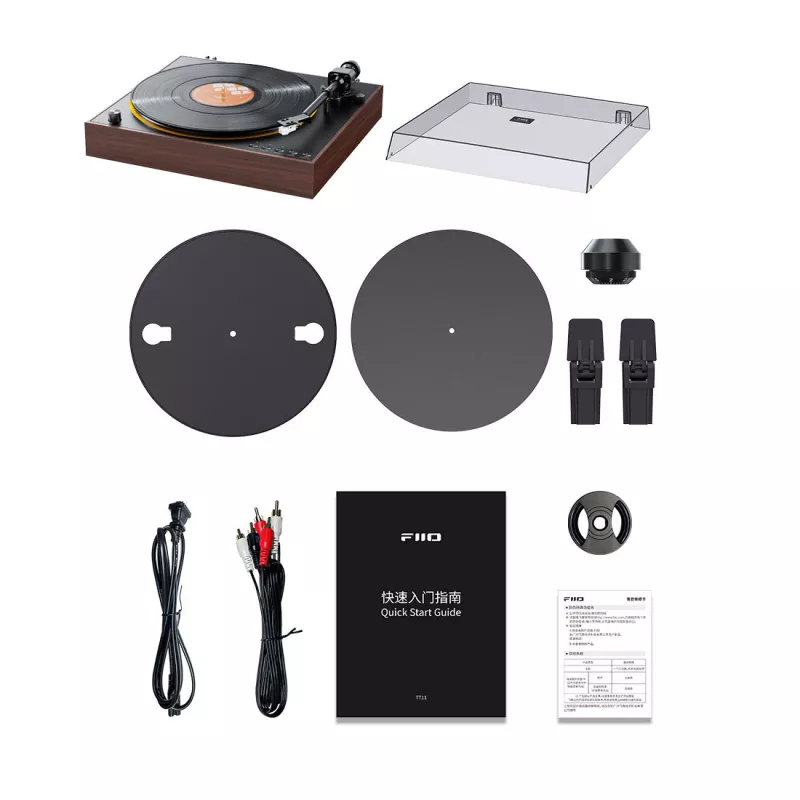

An AC6951C chip sends the signal over SBC to headphones or a speaker, through a dedicated pairing button. Speed sets to 33 or 45 rpm and size to 7 or 12 inches, with a 45 rpm adapter supplied. Ambient lighting offers seven colours or none, on a wood-effect chassis available in black and brown.
