FiiO BR15 R2R | Hi-Fi Bluetooth receiver

72613
CHF239.00 Tax included
FiiO BR15 R2R Bluetooth 6.0 receiver with an in-house R2R converter. RCA and XLR line outputs, USB, coaxial and optical inputs, selectable oversampling.
Color : Black
Quantity
Add to wishlist
Supplier lead time, usually between 4 and 7 days

Guarantee safe & secure checkout

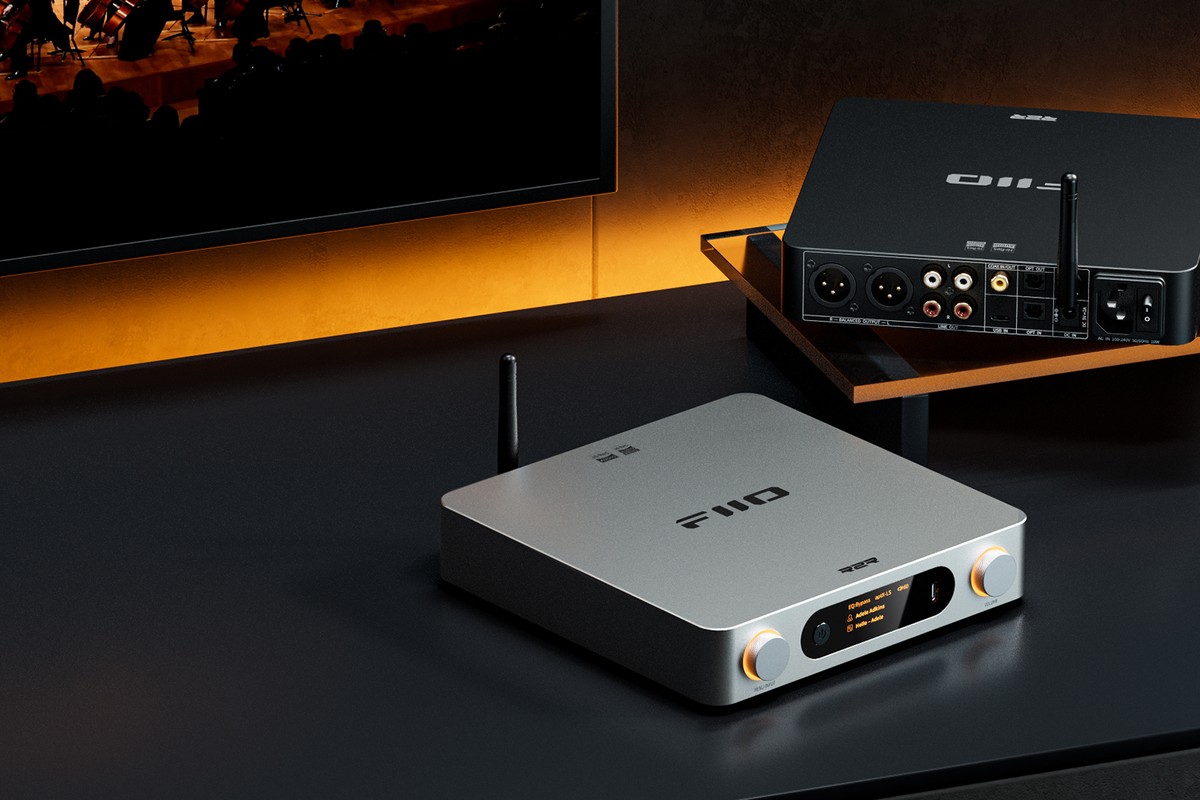

The FiiO BR15 R2R built into a system, in a living room

Bluetooth 6.0 and LE Audio

A QCC5181 chip receives over LC3, SBC, aptX, aptX HD, aptX Adaptive, LDAC and aptX Lossless, up to 2.1 megabits per second. The unit meets the LE Audio specifications and relies on a dedicated external aerial. aptX Adaptive rises to 96 kHz at 24-bit.

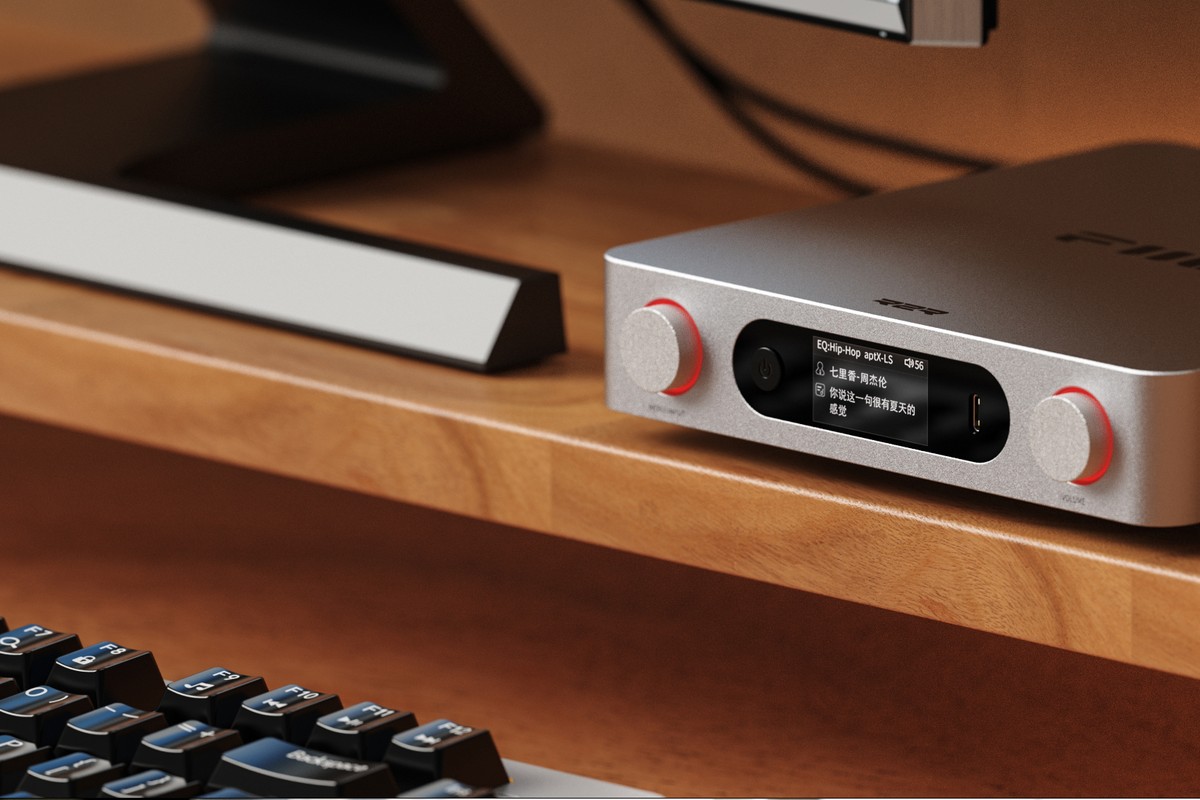

On a desk, connected to headphones and a laptop

An in-house R2R network

No off-the-shelf conversion chip: FiiO fits 192 thin-film resistors, forty-eight per channel, into a four-way 24-bit network. The path stays fully balanced from the network through the filter to the volume control. A dedicated system suppresses switching noise.

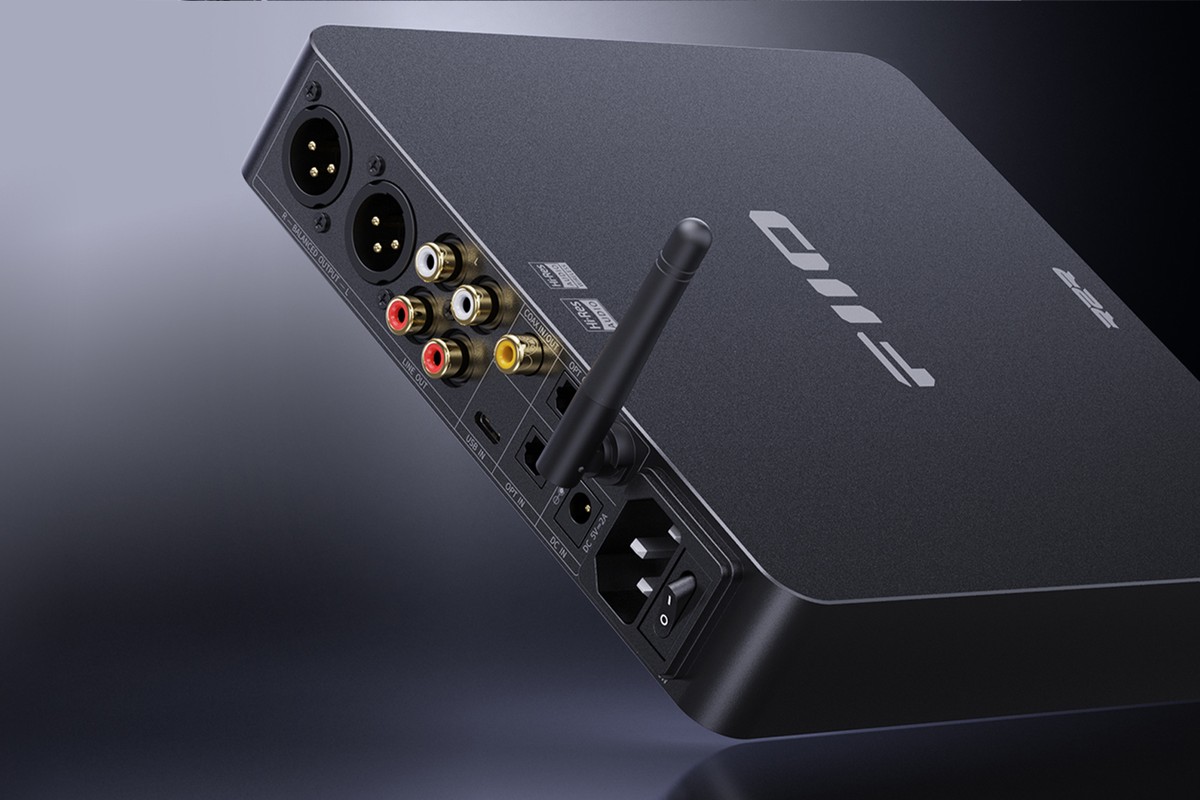

Rear panel: XLR and RCA outputs, coaxial and optical inputs, Bluetooth aerial

Line and digital outputs

Two RCA outputs and one XLR3 output deliver 2.2 and 4.4 volts RMS, for signal-to-noise ratios of 116 and 119 dB. The coaxial and optical sockets work as inputs and outputs alike, up to 192 kHz at 24-bit and DSD64. Two USB-C ports complete the connections.

The unit with its screen lit, beside a pair of headphones

Selectable oversampling

Oversampling can be set to off, 96, 192 or 384 kHz. A ten-band parametric equaliser comes with an automatic mode, unavailable during Bluetooth reception. The 1.47-inch screen shows title and artist, on a chassis of 210 x 188 x 42 mm weighing 760 g, with an infrared remote supplied.

72613

Data sheet

Product Type
Hi-Fi Bluetooth receiver and desktop R2R converter, four working modes
Bluetooth
Bluetooth 6.0 reception on a QCC5181 chip, LE Audio compliant: LC3, SBC, aptX, aptX HD, aptX Adaptive, LDAC and aptX Lossless, up to 2.1 Mbps
Integrated DAC
In-house four-way 24-bit R2R network, 192 thin-film resistors (48 per channel), 0.1 % accuracy, 30 ppm; fully balanced path through to the volume control
Audio outputs
Two RCA outputs at 2.2 Vrms and one XLR3 output at 4.4 Vrms; coaxial and optical outputs up to 192 kHz at 24-bit and DSD64
Connectivity
Two USB-C ports, coaxial and optical inputs, dedicated external Bluetooth aerial, infrared remote supplied
Technology
1.47-inch LCD screen, ten-band parametric equaliser with automatic mode, knob with adjustable lighting, 210 x 188 x 42 mm for 760 g
Hi-Res Audio
Signal-to-noise of 116 dB on RCA and 119 dB on XLR, full MQA decoding, oversampling settable to off, 96, 192 or 384 kHz
Series
BR
Width
21.0 cm
Depth
18.8 cm
Height
4.2 cm
Unit weight
0.760 kg

Specific References

EAN13
6953175792055
